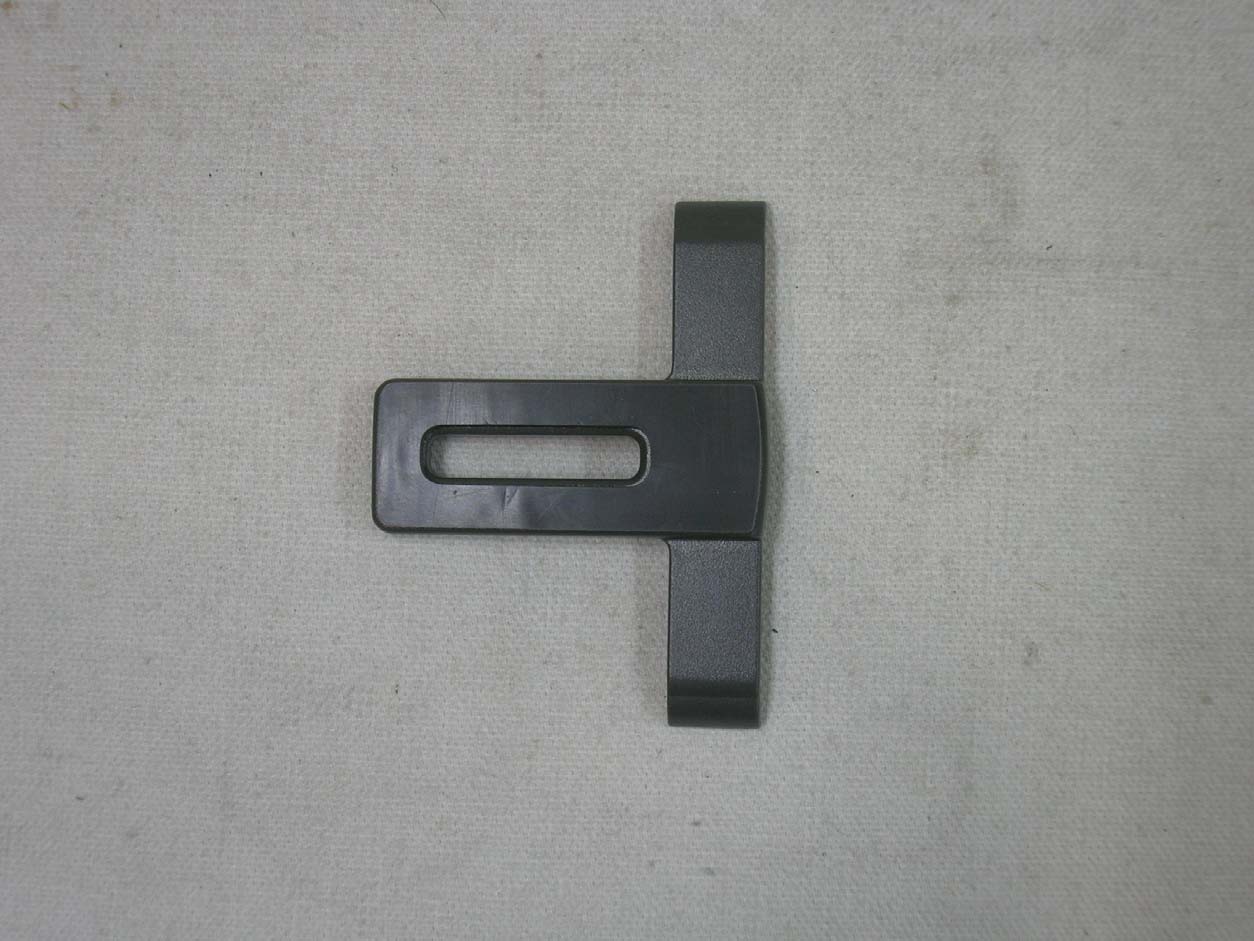

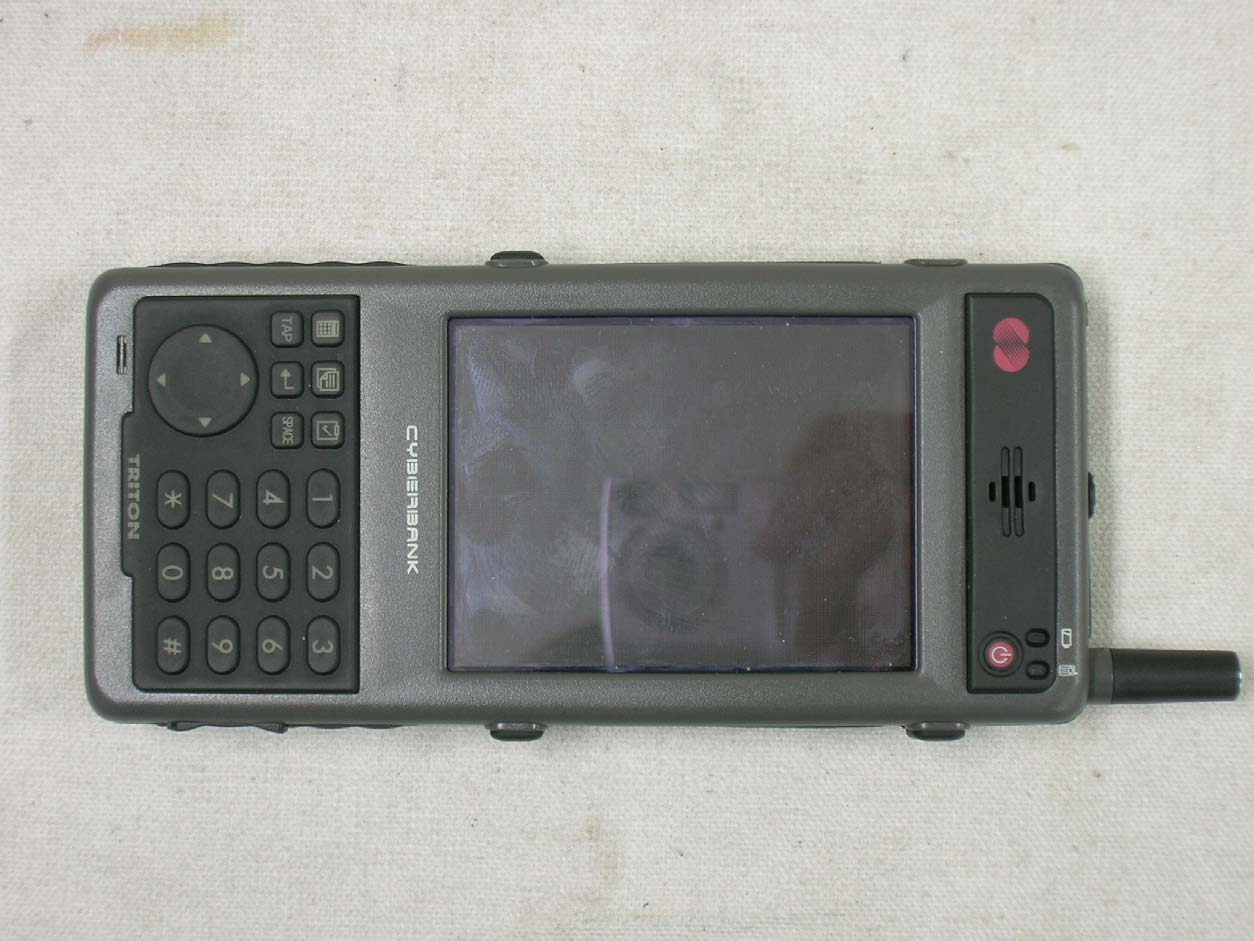

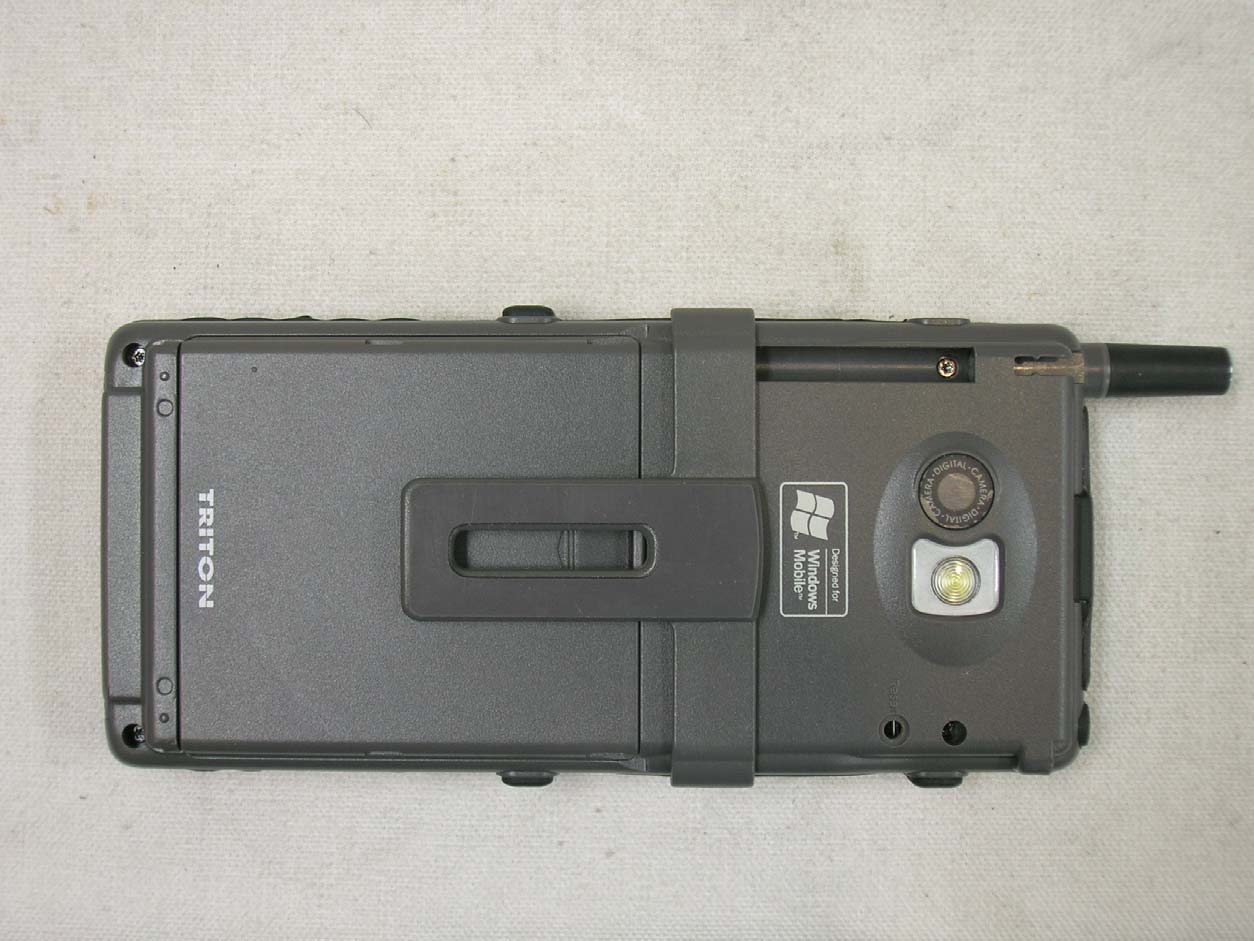

TRITON/Pocket PC User’s Manual Table of Contents 2 The information contained in this document is provided “as is” and is subject to change without notice. Cyberbank makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Cyberbank shall not be liable for any errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or the examples herein. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, adapted, or translated to another language without the prior written consent of Cyberbank, except as allowed under the copyright laws. The programs that control this product are copyrighted and all rights are reserved. Reproduction, adaptation, or translation of those programs without prior written permission of Cyberbank is also prohibited. Microsoft, ActiveSync, MSN, Outlook, Windows, Windows Media, Windows NT, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation. All other brand names and product names used in this document are trade names, service marks, trademarks, or registered trademarks of their respective owners. CYBERBANK. CORP. 3, 4, 5 th Fl. Mirae B/D Dogok-dong, Kangnam-gu, Seoul, Korea Copyright Cyberbank assumes no responsibility for any damage or loss resulting from the use of this manual. And also Cyberbank assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs. Be sure to make backup copies of all-important data on other media to protect against data loss. Table of Contents 3 In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of TRITON complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage your TRITON, or result in violation of FCC regulations. Do not use your TRITON with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. TRITON was tested for typical body-worn operations using the optional belt-clip / holster placed touch (0cm) from the body. To comply with FCC RF exposure requirements, a separation distance of touch (0cm) must be maintained between the user's body and TRITON, including the antenna, whether extended or retracted. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. For more information about RF exposure, please visit the FCC website at www.fcc.gov Specific Absorption Rate (SAR) for Wireless Phones The SAR is a value that corresponds to the relative amount of RF energy absorbed in the head of a user for a wireless handset. The SAR value of a phone is the result of an extensive testing, measuring and calculation process. It does not represent how much RF the phone emits. All phone models are tested at their highest value in strict laboratory settings. But when in operation, the SAR of a phone can be substantially less that the level reported to the FCC. This is because of a variety of factors including its proximity to a base station antenna, phone design and other factors. What is important to remember is that each phone meets strict federal guidelines. Variations in SARs do not represent a variation in safety. All phones must meet the federal standard, which incorporates a substantial margin of safety. As stated above, variations in SAR values between different model phones do not mean variations in safety. SAR values at or below the federal standard of 1.6W/kg are considered safe for use by the public. CDMA mode (Part 22)- Head: 1.46W/kg; Body-worn: 0.87W/kg FCC Radio Frequency Emission This phone meets the FCC Radio Frequency Emission Guidelines. FCC ID number: PGVCB-0880NP. More information on the phone’s SAR can be found from the following FCC website: http://www.fcc.gov/oet/fccid FCC RF Exposure Information Table of Contents 4 Please read these simple guidelines before using your phone. Failure to comply with these guidelines may be dangerous or illegal. Do not use a hand held phone whilst driving a vehicle; park the vehicle first. Switch off your phone when in an aircraft. The use of cellular phones whilst airborne is illegal in some countries. It may disrupt the operation of the aircraft. Follow any regulations or rules regarding air travel. Wireless phones can cause interference. Switch off your phone near medical equipment. Do not use your mobile phone at a petrol station or near fuel, chemicals or in any area where blasting is in progress. Observe restrictions and follow all rules and regulations. Use the phone only in a normal manner as instructed in this manual and do not handle the antenna unnecessarily. Only qualified service personnel must install or repair equipment. Breaking the warranty seal and opening the casing of the phone will void your warranty. Use only approved accessories and batteries. Do not connect to incompatible products. Avoid any contact with water and any type of moisture. Safety Information Table of Contents 5 Acknowledging Special Precaution…
Text truncated - open the document above for the full version.
FCC_Doc_2_BD triton_cdma_block diagram_ch 04.doc CyberBnak property & Confidential for Internal User Only 1/2 3/19/2005 Block Diagram List Details 2.1 CDMA LOGIC parts Details TX_IQ_DATA [8] RX_IQ_DATA [8] MSM5000 196 PBGA ARM7TDMI CORE PROCESSOR DIGITAL FM PROCESSOR UART 1 RF INTERFACE CDMA DIGITAL PROCESSOR Serial Bus Interface for IFR3000/IFT3000 General Purpose Input / Output (GPIO) EVRC VOCODER RF, PLL, IF, IFR3000/IFT3000 Analog Baseband/IF +2.8V UART2 / AUX CODEC JTAG Serial Bus [3] I_OFFSET Q_OFFSET RX_AGC_ADJ TRK_LO_ADJ IMD_ATTN TX_CLK+ PA_ON TX_CLK- IDLE / TX_AGC_ADJ SLEEP / CHIP /8 TCXO /N DPX_BW_CTRL Main_PLL_EN 19.68_PLL_EN PLL_DATA PLL_CLK SYNTH_LOCK PCM CODEC CODEC_Control PCM Control Rx AUDIO Tx AUDIO + ROM_CS/ RAM_CS/ Logic Main & H/W RESET Regulator +2.8V V_BATTERY PDA Control Logic PDA Interface for CDMA Download & External DM Interface Tx AUDIO - MSM5000Codec DV Flash +2.8AV Analog Audio Regulator Codec AV JTAG RS-232C Interface between CDMA & PDA JTAG Control Address / Data Line CODEC +3.0V FLASH ROM (16M) / SRAM (2M) JTAG Interface FCC_Doc_2_BD triton_cdma_block diagram_ch 04.doc CyberBnak property & Confidential for Internal User Only 2/2 3/19/2005 2.2 CDMA RF parts Details Antenna CDMA Cellular RF BlockDiagram IFT3000 MSM5000 PBGA TXIF TXIF/ RF/IF PLL TCXO VC-TCXO 19.68MHz TX_AGC_ADJ RX_AGC_ADJ DUPLEXER Converting-Down MIXER RF Rx BPF Tx IF BPF Converting-Up MIXER Tx RF BPF Power Amp. Revised date :2003. 03. 9Revised by :CS Knag LNA CDMA Rx IF BPF sw TRK_LO_ADJ DUAL PLL VCO PLL Control Rx IF VCO TANK Rx IF VCO Tank RXVCO_OUT RX V_CONT RFV_CONT RF VCO VCO TANK TX V_CONT Tx Band : 824 ~ 849 MHz Rx Band : 869 ~ 894 MHz ADC_IN1 (HPDT) SBI[3] (220.38MHz) IFR3000 TXIF PLL I Q D I V 2 RX VCO DAC[8] TX VCO Div 2 I Q TX / Control Registor ADC_IN1/2/3 ADC_IN2 (BATTERY) ADC_IN3 (TEMP) TXD[8] TX_CLK[2] ADC RX/Control Registor SBI[3] RXD[8] RX_CLK I_OFFSET Q_OFFSET TCXO/N CHIPx8 LOCAL Buffer Tx Drv Amp. Tx RF BPF

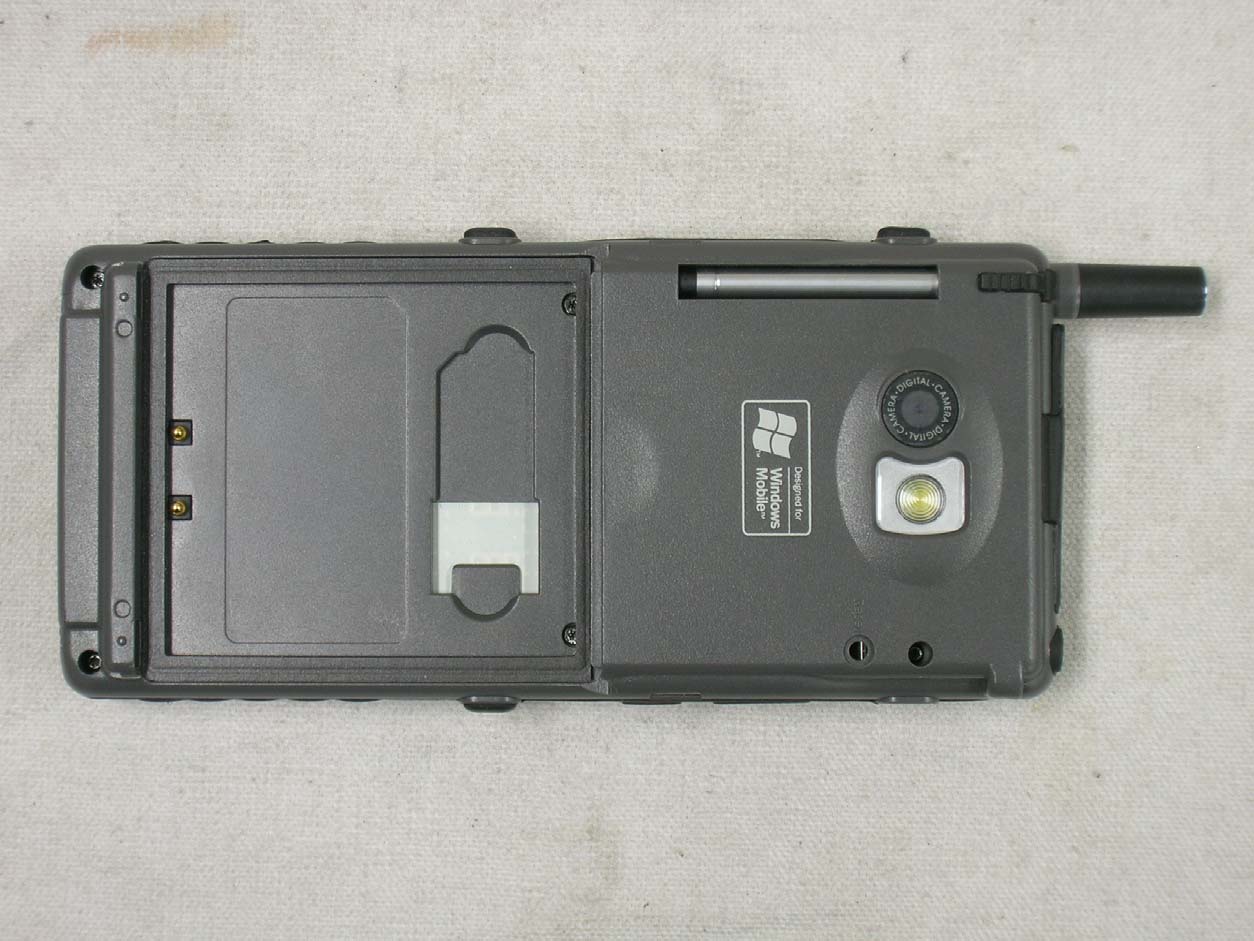

< FCC LABEL LOCATION > FCC ID: PGVCB-0880NP CDMA 800MHz PDA PHONE CYBERBANK Corp. “This device complies with part 15 of FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.”
Report Number: ESTR0503-006 Dates: March 25, 2005 Page 1 of 28 FCC ID: PGVCB-0880NP EUT Type: CDMA 800MHz PDA Phone HYghFYdcfh Report Number ESTR0503-006 Company Name CYBERBANK Corp. Address 3,4,5F., Mirae Bldg., 545-7 Dogok-dong, Kangnam-gu, Korea 135-857 Applicant Telephone82-2-526-8762 Product Name CDMA 800MHz PDA Phone Model No. CB-0880NP Manufacturer CYBERBANK Corp. Serial No. NONE Country of origin Korea Product Date of Issue 2005-03-25 Date of Test 2005-03-03 ~2005-03-24 Testing Lab. ESTECH. Co., Ltd Standard FCC PART 22 Subpart H, FCC PART 15 Tested by S.R. Kim/ Engineer (Signature) Approved by Jay Kim/ Engineering Manager (Signature) * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned Report Number: ESTR0503-006 Dates: March 25, 2005 Page 2 of 28 FCC ID: PGVCB-0880NP EUT Type: CDMA 800MHz PDA Phone TABLE OF CONTENTS ATTACHMENT: TEST RESULT CERTIFICATION............................ 1 1. INTRODUCTION.....................................................................3 2. DESCRIPTION OF EUT............................................................. 4 3. DESCRIPTION OF TEST.......................................................... .. 5 4. TEST DATA 4.1PART 15(CONDUCTED/RADIATED EMSSION) ...............................8 4.2 EFFECTIVE RADIATED POWER OUTPUT (E.R.P.).........................12 4.3OCCUPIED BANDWIDTH ...................................................14 4.4 FIELD STRENGTH OF SPURIOUS RADIATION.......................16 4.5 SPURIOUS EMISSION AT ANTENNA TERMINAL.....................19 4.6 FREQUENCY STABILITY......................................................21 5.TEST PLOTS 5.1 PLOTS OF EMISSIONS........................................................ 22 5.1.1 PLOTS OF EMISSION (CDMA): BAND EDGE.......................................22 5.1.2 PLOTS OF EMISSION (CDMA): OUT OF BAND....................................23 5.2 MOBILE EMISSION IN BASE FREQUENCY RANGE................26 5.3 PART 15 CONDEUCTED EMISSION DATA ..................................27 Report Number: ESTR0503-006 Dates: March 25, 2005 Page 3 of 28 FCC ID: PGVCB-0880NP EUT Type: CDMA 800MHz PDA Phone 1. INSTROCTION 1.1 General This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and tested in accordance with the measurement procedures as indicated in this report ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab., assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 1.2 Test Lab. Corporation Name: ESTECH Co. Ltd. Head Office: Rm. 1015, World Venture Center II, 426-5, Gansan-dong, Geumcheon-gu, Seoul, 153-803, Korea (Safety & SAR & Telecom. Test Lab) EMC Test Lab.: 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Report Number: ESTR0503-006 Dates: March 25, 2005 Page 4 of 28 FCC ID: PGVCB-0880NP EUT Type: CDMA 800MHz PDA Phone 2. Description of EUT 2.1 Summary of Equipment Under Test iFCC ID : PGVCB-0880NP i Freq. Range : Tx : 824.70 ~ 848.31 MHz Rx : 869.70 ~ 893.31 MHz i Power Rating : 3.7VDC(3.2 ~ 4.2VDC) i EUT Type : CDMA 800MHz PDA Phone i Modulation(s) : CDMA – F9W . Report Number: ESTR0503-006 Dates: March 25, 2005 Page 5 of 28 FCC ID: PGVCB-0880NP EUT Type: CDMA 800MHz PDA Phone 3. DESCRIPTION OF TEST 3.1 RF Power Output - The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. 3.5 Occupied Bandwidth The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% of the Emission bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. 3.6 Spurious and Harmonic Emission at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to 10GHz. Set the RES BW to 1% of the emission bandwidth to show compliance with the -13dBm, limit, in the 1MHz bands immediately outside and adjacent to the top and bottom edges of the frequency block. For the Out-of-Band measurements a 1MHz RBW was used to scan from 10MHz to 10xfo of the fundamental carrier for all frequency block. A display line was placed at -13dBm to show compliance for spurious, and harmonics. Mobile emission in base frequency range. The mean power of any emissions appearing in the base station frequency range from cellular mobile transmit antenna connector. 3.7 Radiation Spurious and Harmonic Emissions Radiation and harmonic emission are measured outdoors at our 3 meters test range. The equipment under test is placed on a wooden turntable 3 meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer(or receiver). A half wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator with the level of the signal generator being adjusted to obtain the same rece…
