PH7MV242

Axesstel Inc

CDMA 1xEV-DO Rev. A, 800/1900MHz dual-band, USB Modem

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Aug 25, 2010
Application Purpose: Original Equipment
Date of Application: Aug 25, 2010
Equipment Note: CDMA 1xEV-DO Rev. A, 800/1900MHz dual-band, USB Modem
Frequency Range: 1851.25000000 - 1908.75000000
Company: Axesstel Inc
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

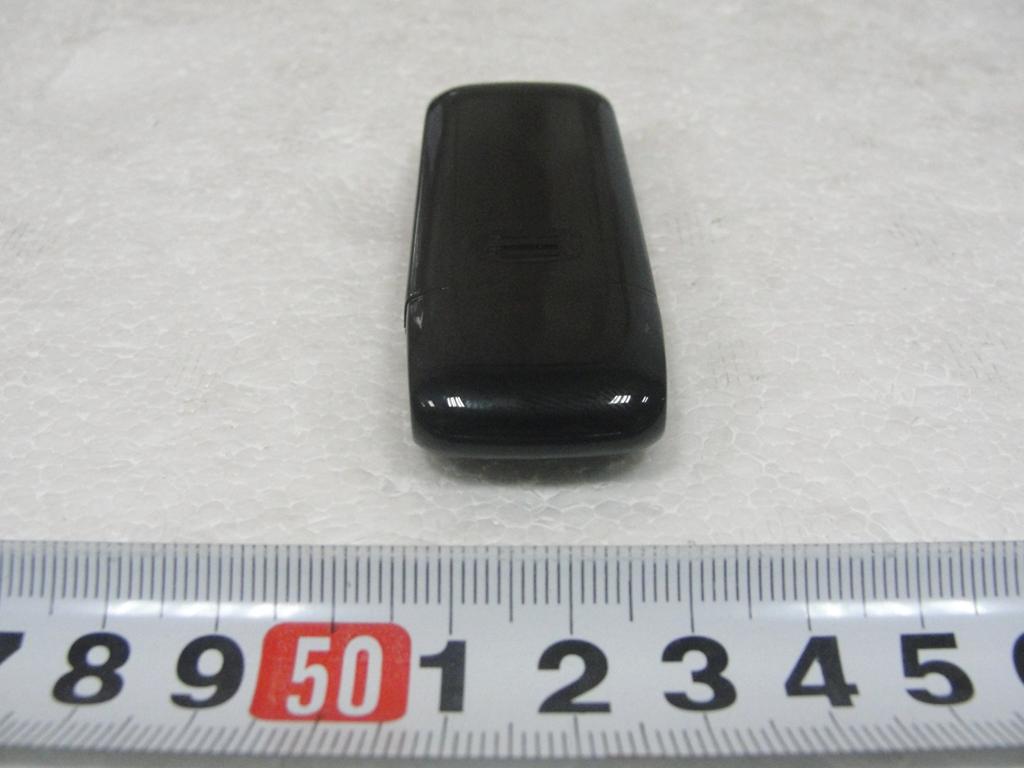

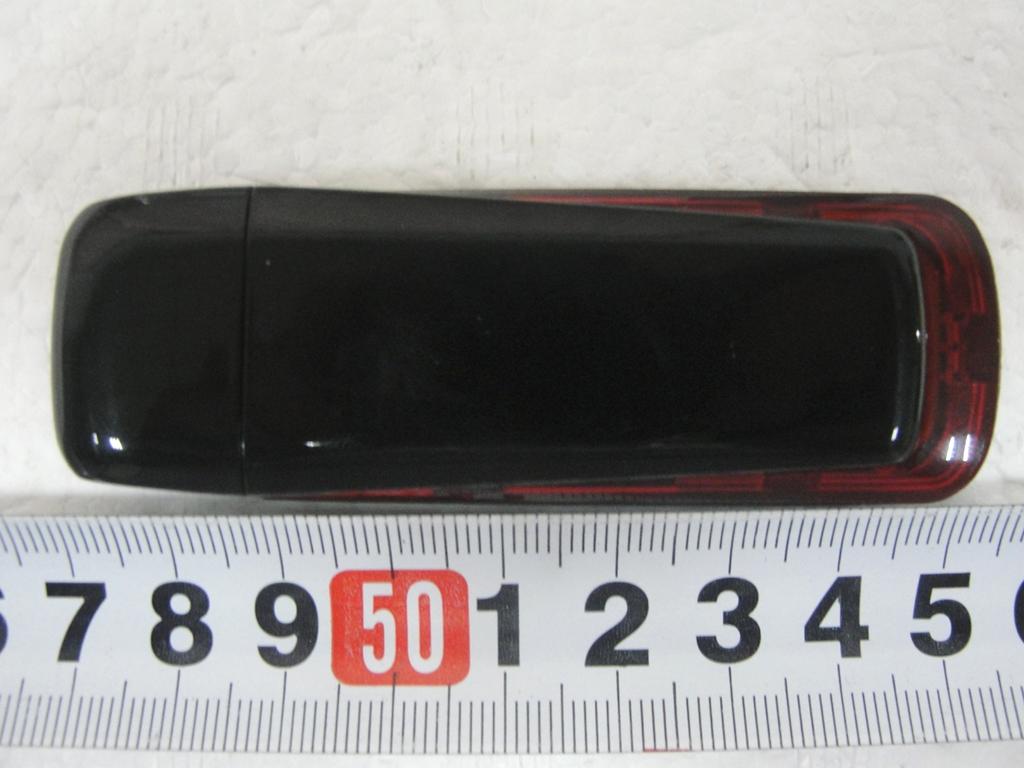

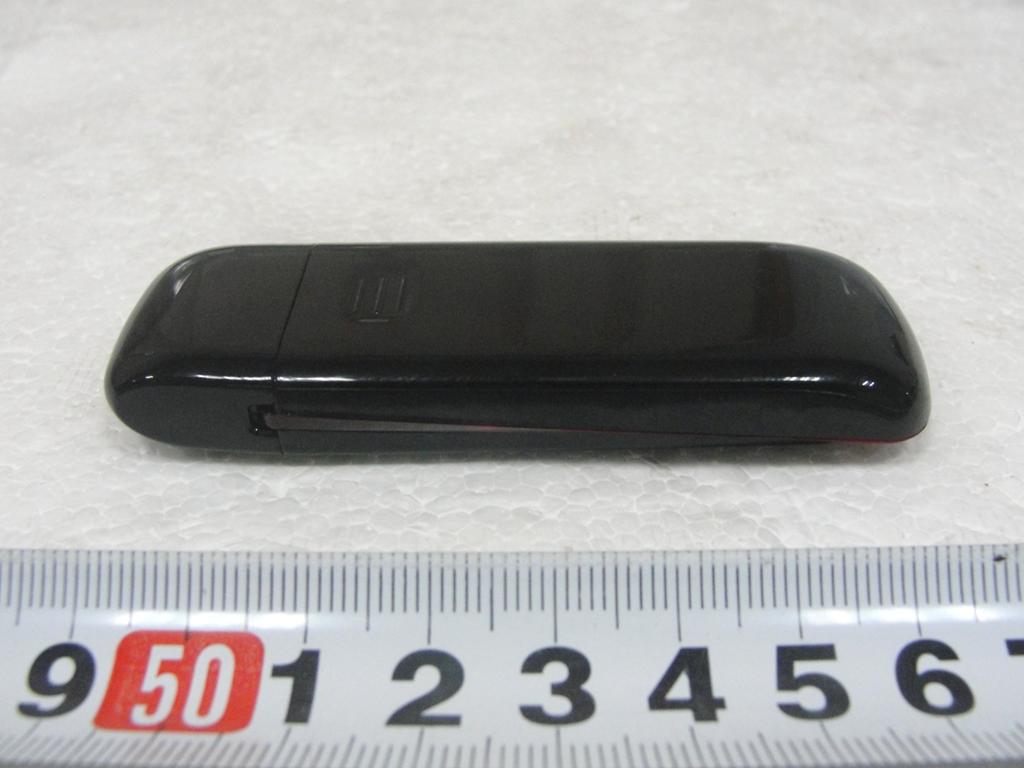

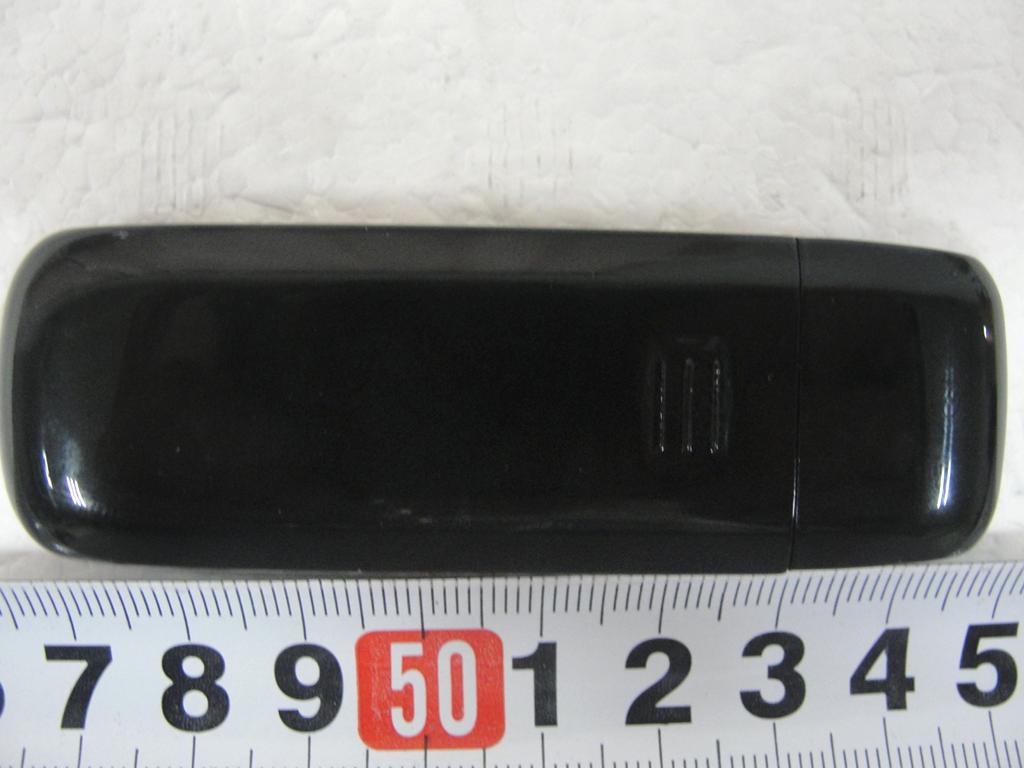

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	90.00 mW	1M28F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22 and EIRP for Part 24. SAR compliance has been established for direct laptop and USB plug-in configurations with a separation distance of 0.5 cm between the particular dongle orientation and flat phantom. End-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. The antenna(s) used for this transmitter must not be co located or operating in conjunction with any other antenna or transmitter within a host device. Highest measured body SAR values as documented in this filing are: CDMA 0.349 W/kg, PCS CDMA 0.788W/kg.
