PHDPLA-800Amplifier PLA-800

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 USERS MANUAL Appendix C APPENDIX C COPY OF SETUP AND OPERATING INSTRUCTIONS Please Read Before Operating Caution: Lethal High Voltage Present Before operating both the PLA 800 and the PSL 1000, certain precautions should be taken. The PSL 1000 Power Supply generates over 2000 volts Direct Current at a current capacity of over.6000 amperes. It also generates 350 Volts Direct Current at .150 amperes. Both voltages are Lethal and will cause death upon contact with the human body. Although there are several built-in safety features to protect YOU from exposure to high voltage, the following steps whould be followed at all times. NEVER OPERATE, EITHER THE PLA 800 OR PSL 1000, REMOVED FROM THEIR INDIVIDUAL ENCLOSURES. NEVER REMOVE ANY CONNECTORS FROM EITHER UNIT WHILE POWER IS APPLIED. NEVER INSERT METAL OBJECTS INTO THE COOLING VENT HOLES ON TOP OR BELOW EITHER UNIT, WHILE POWER IS APPLIED. WARNING THE VOLTAGES USED IN THIS EQUIPMENT ARE SUFFICIENTLY HIGH TO ENDANGER LIFE. ALL PERSONNEL ARE ADVISED TO BE THOROUGHLY FAMILIAR WITH THESE UNITS BEFORE TROUBLESHOOTING THEM IN A POWER-ON CONDITION. ALWAYS USE CAUTION. INTRODUCTION The PLA-800 Linear Amplifier uses a pair of 4CX250’s tetrodes as final amplifier tubes. These tubes have been used and are still used today by the military because of its compact size and ability to put out power ina compact space. They also have the ability to amplify signal from .1 MHz to 500 MHz. Therefore their power bandwidth is approximately 500 MHz. The 4CX250B’s have a control screen grid. The voltage and regulated current for the screens are supplied by the PSL 1000 Power Supply. Using screen voltage regulation, the grids have the advantage of self-limiting the current flow to the plates of the tubes. As a result, the tubes cannot be driven into saturation causing distortion. The maximum allowable screen current is regulated by the power supply. Once that point of current demand is reached, the screen limits the plate current flow to it’s maximum. Therefore, and ALC circuit, to prevent driver overload, is not required. The maximum plate and cathode current flow is measured by the 0-500 ma. meter on the front panel. The screen current only, is measured by the 0-50 ma. meter located also on the front panel. The band switch and plate and loading capacitors are also located on the front panel. The capacitors use a 6:1 vernier ball drive to give smooth, easy tuning. Also located on the front panel are the two lights indicating filament voltage on and plate current on. The filament supply is contained in the PLA-800 and is protected by the 3 AG fuse next to the indicator light. These bulbs are tungsten elements, with a life of 50,000 hours. The plate on and off switch is located in the middle of both lamps. Both the amplifier and power supply are inter-locked for your safety. The removal of the FOUR (4) thumbscrews will allow you to slide the units forward and out of their respective enclosures. NEVER open either unit with the AC and DC power applied. As an added safety feature, the power supply has a mechanical shorting rod, which, upon sliding the unit out of the enclosure beyond 1/4 of an inch, will ground the high voltage capacitor bank. This is done for your safety and should NOT be defeated. Built into the PSL 1000 power supply is a maximum current overload circuit. If more than 600 ma. is delivered to the load, the circuit will activate, opening the plate relay and removing the high voltage. At the same time, the current overload indicator lamp on the front panel of the power supply will light and an audible alarm will sound. To reset the high voltage back, simply push the reset button on the panel. The power supply is also equipped with a voltmeter allowing you to monitor the high voltage (0-500 vdc) and the screen voltage (0-500 vdc). Under normal loading conditions, the PLA-800 will deliver 600 watts key down or 1200 watts PEP output. However, the key down power level should not be maintained for more than 10 seconds. In cases where RTTY or AM is used, the amplifier should be operated at one-half power level. 1200 watts PEP can be operated at any time. Tuning Procedure On the rear panel of the PLA-800 you will see the Power Output Connector or RF Out (SO239), a High Voltage connector, a Control Voltage Connector, a Push-to-Talk jack, a Ground Connector, and the Power Input Connector (SO239) or RF In. Connect the Control Voltage Connector and High Voltage Connector between the amplifier and power supply. The power supply has the appropriate mating connectors along with the AC input power plug. The AC input power can be adapted to 115 VAC or 230 VAC service (See power change over section). Apply the RF in coax connector from your transceiver. A transceiver with a variable output control should be used. That is, one which can vary the amount of drive power to the amplifier. Set your drive control on the transceiver to minimum. Connect the PTT (push-to-talk) connection using the RCA jack to your transceiver. This will put the amplifier into the circuit when you transmit from your transceiver. In the receive mode, the amplifier will be in by-pass. Connect a coax line from the RF OUT to your tuner or directly into your antenna load. An output power watt meter should be used, in-line with the antenna. This should be used to tune the amplifier correctly. Upon completion of the above, double check all connections to make sure they are installed correctly and tightly. Apply AC power by switching on the Main Power Switch on the power supply front panel. The green indicator light will illuminate and the yellow filament light…

Text truncated - open the document above for the full version.

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission Block Diagram Appendix B

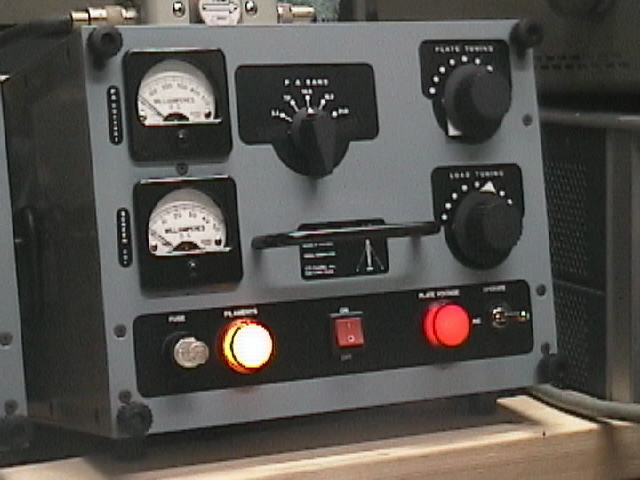

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 EXTERNAL PHOTOS Appendix F PLA-800 FRONT PANEL PLA-800 FRONT PANEL PLA-800 REAR VIEW PLA-800 TOP VIEW (OPEN) PLA-800 BOTTOM VIEW (PANEL REMOVED)

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 ID LABEL/LOCATION INFO SECTION 4.1 APPENDIX D 4 Other Compliance Information 4.1 CTI.ComTec FCC Equipment ID Plate Note: Drawings are not to scale. They are shown in expanded view for clarification purposes only. 3.25” The proposed FCC ID Label is PHD XXXX. The details of the label are shown in Figure 4.1-1 above. The FCC ID will be printed in black block lettering on the anodized chassis in font size of eight point (or greater). The FCC ID number located on the outside of the rear panel of the amplifier in the proximity to the RF input and RF output connections (both S0-239) is shown in Figure 4.1-2 on the next page. Model PLA-800 FCC ID PHD XXXX Serial No. _______________ CTI.ComTec, Inc 1 Classic Court North Palm Coast, FL 32137 USA 1.5” Figure 4.1-1 Details of CTI.ComTec FCC ID Equipment Label 11.25” FCC ID Label Placed Here RF OUTHVControl PowerPTTRF IN | - | - - | - | - - 8.5 ” Figure 4.1-2 Details of CTI.ComTec FCC ID Number on Outside Rear Panel APPENDIX D DRAWING OF EQUIPMENT ID PLATE NOTE: The above drawing is not to scale. It is shown for clarification purposes only. The FCC ID number will be located on the outside of the rear case panel on the amplifier. The proposed FCC ID is PHD XXXX. The FCC ID will be printed in black block lettering on the anodized chassis in font size of eight point (or greater).in the font of Times New Roman and a size of eight point (or greater). Model PLA-800 FCC ID PHD XXXX Serial No. _______________ CTI.ComTec, Inc 1 Classic Court North Palm Coast, FL 32137 USA

4 Other Compliance Information 4.1 CTI.ComTec FCC Equipment ID Plate Note: Drawings are not to scale. They are shown in expanded view for clarification purposes only. 3.25” The proposed FCC ID Label is PHD PLA-800. The details of the label are shown in Figure 4.1-1 above. The FCC ID will be printed in black block lettering on the anodized chassis in font size of eight point (or greater). The FCC ID number located on the outside of the rear panel of the amplifier in the proximity to the RF input and RF output connections (both S0-239) is shown in Figure 4.1-2 on the next page. Model PLA-800 FCC ID PHD PLA-800 Serial No. _______________ CTI.ComTec, Inc 1 Classic Court North Palm Coast, FL 32137 USA 1.5” Figure 4.1-1 Details of CTI.ComTec FCC ID Equipment Label

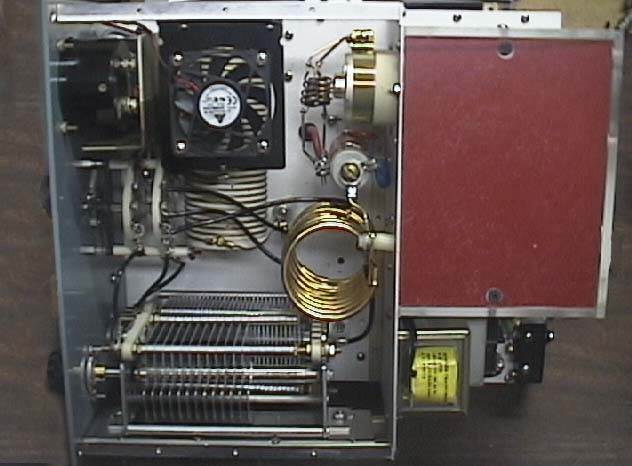

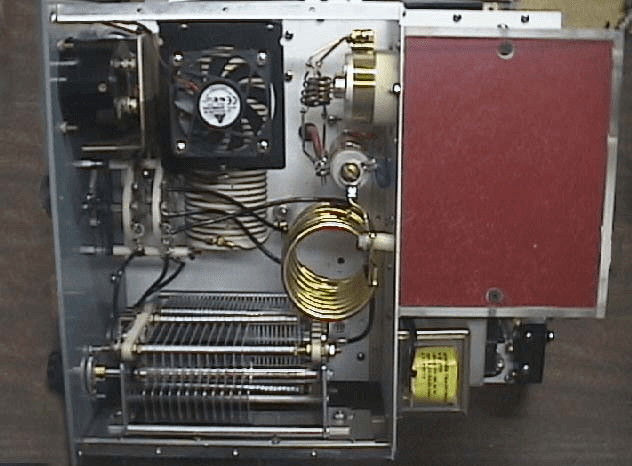

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 INTERNAL PHOTOS Appendix F PLA-800 INTERNAL TOP VIEW PLA-800 INTERNAL BOTTOM VIEW PLA-800 INTERNAL REAR VIEW PLA-800 INTERNAL LEFT SIDE VIEW PLA-800 INTERNAL GRID CAGE

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 OPERATIONAL DESCRIPTION Appendix C APPENDIX C COPY OF SETUP AND OPERATING INSTRUCTIONS Please Read Before Operating Caution: Lethal High Voltage Present Before operating both the PLA 800 and the PSL 1000, certain precautions should be taken. The PSL 1000 Power Supply generates over 2000 volts Direct Current at a current capacity of over.6000 amperes. It also generates 350 Volts Direct Current at .150 amperes. Both voltages are Lethal and will cause death upon contact with the human body. Although there are several built-in safety features to protect YOU from exposure to high voltage, the following steps whould be followed at all times. NEVER OPERATE, EITHER THE PLA 800 OR PSL 1000, REMOVED FROM THEIR INDIVIDUAL ENCLOSURES. NEVER REMOVE ANY CONNECTORS FROM EITHER UNIT WHILE POWER IS APPLIED. NEVER INSERT METAL OBJECTS INTO THE COOLING VENT HOLES ON TOP OR BELOW EITHER UNIT, WHILE POWER IS APPLIED. WARNING THE VOLTAGES USED IN THIS EQUIPMENT ARE SUFFICIENTLY HIGH TO ENDANGER LIFE. ALL PERSONNEL ARE ADVISED TO BE THOROUGHLY FAMILIAR WITH THESE UNITS BEFORE TROUBLESHOOTING THEM IN A POWER-ON CONDITION. ALWAYS USE CAUTION. INTRODUCTION The PLA-800 Linear Amplifier uses a pair of 4CX250’s tetrodes as final amplifier tubes. These tubes have been used and are still used today by the military because of its compact size and ability to put out power ina compact space. They also have the ability to amplify signal from .1 MHz to 500 MHz. Therefore their power bandwidth is approximately 500 MHz. The 4CX250B’s have a control screen grid. The voltage and regulated current for the screens are supplied by the PSL 1000 Power Supply. Using screen voltage regulation, the grids have the advantage of self-limiting the current flow to the plates of the tubes. As a result, the tubes cannot be driven into saturation causing distortion. The maximum allowable screen current is regulated by the power supply. Once that point of current demand is reached, the screen limits the plate current flow to it’s maximum. Therefore, and ALC circuit, to prevent driver overload, is not required. The maximum plate and cathode current flow is measured by the 0-500 ma. meter on the front panel. The screen current only, is measured by the 0-50 ma. meter located also on the front panel. The band switch and plate and loading capacitors are also located on the front panel. The capacitors use a 6:1 vernier ball drive to give smooth, easy tuning. Also located on the front panel are the two lights indicating filament voltage on and plate current on. The filament supply is contained in the PLA-800 and is protected by the 3 AG fuse next to the indicator light. These bulbs are tungsten elements, with a life of 50,000 hours. The plate on and off switch is located in the middle of both lamps. Both the amplifier and power supply are inter-locked for your safety. The removal of the FOUR (4) thumbscrews will allow you to slide the units forward and out of their respective enclosures. NEVER open either unit with the AC and DC power applied. As an added safety feature, the power supply has a mechanical shorting rod, which, upon sliding the unit out of the enclosure beyond 1/4 of an inch, will ground the high voltage capacitor bank. This is done for your safety and should NOT be defeated. Built into the PSL 1000 power supply is a maximum current overload circuit. If more than 600 ma. is delivered to the load, the circuit will activate, opening the plate relay and removing the high voltage. At the same time, the current overload indicator lamp on the front panel of the power supply will light and an audible alarm will sound. To reset the high voltage back, simply push the reset button on the panel. The power supply is also equipped with a voltmeter allowing you to monitor the high voltage (0-500 vdc) and the screen voltage (0-500 vdc). Under normal loading conditions, the PLA-800 will deliver 600 watts key down or 1200 watts PEP output. However, the key down power level should not be maintained for more than 10 seconds. In cases where RTTY or AM is used, the amplifier should be operated at one-half power level. 1200 watts PEP can be operated at any time. Tuning Procedure On the rear panel of the PLA-800 you will see the Power Output Connector or RF Out (SO239), a High Voltage connector, a Control Voltage Connector, a Push-to-Talk jack, a Ground Connector, and the Power Input Connector (SO239) or RF In. Connect the Control Voltage Connector and High Voltage Connector between the amplifier and power supply. The power supply has the appropriate mating connectors along with the AC input power plug. The AC input power can be adapted to 115 VAC or 230 VAC service (See power change over section). Apply the RF in coax connector from your transceiver. A transceiver with a variable output control should be used. That is, one which can vary the amount of drive power to the amplifier. Set your drive control on the transceiver to minimum. Connect the PTT (push-to-talk) connection using the RCA jack to your transceiver. This will put the amplifier into the circuit when you transmit from your transceiver. In the receive mode, the amplifier will be in by-pass. Connect a coax line from the RF OUT to your tuner or directly into your antenna load. An output power watt meter should be used, in-line with the antenna. This should be used to tune the amplifier correctly. Upon completion of the above, double check all connections to make sure they are installed correctly and tightly. Apply AC power by switching on the Main Power Switch on the power supply front panel. The green indicator light will illuminate and the yellow fil…

Text truncated - open the document above for the full version.

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 PARTS LIST AND TUNE UP INFORMATION Appendix C APPENDIX C COPY OF SETUP AND OPERATING INSTRUCTIONS Please Read Before Operating Caution: Lethal High Voltage Present Before operating both the PLA 800 and the PSL 1000, certain precautions should be taken. The PSL 1000 Power Supply generates over 2000 volts Direct Current at a current capacity of over.6000 amperes. It also generates 350 Volts Direct Current at .150 amperes. Both voltages are Lethal and will cause death upon contact with the human body. Although there are several built-in safety features to protect YOU from exposure to high voltage, the following steps whould be followed at all times. NEVER OPERATE, EITHER THE PLA 800 OR PSL 1000, REMOVED FROM THEIR INDIVIDUAL ENCLOSURES. NEVER REMOVE ANY CONNECTORS FROM EITHER UNIT WHILE POWER IS APPLIED. NEVER INSERT METAL OBJECTS INTO THE COOLING VENT HOLES ON TOP OR BELOW EITHER UNIT, WHILE POWER IS APPLIED. WARNING THE VOLTAGES USED IN THIS EQUIPMENT ARE SUFFICIENTLY HIGH TO ENDANGER LIFE. ALL PERSONNEL ARE ADVISED TO BE THOROUGHLY FAMILIAR WITH THESE UNITS BEFORE TROUBLESHOOTING THEM IN A POWER-ON CONDITION. ALWAYS USE CAUTION. INTRODUCTION The PLA-800 Linear Amplifier uses a pair of 4CX250’s tetrodes as final amplifier tubes. These tubes have been used and are still used today by the military because of its compact size and ability to put out power ina compact space. They also have the ability to amplify signal from .1 MHz to 500 MHz. Therefore their power bandwidth is approximately 500 MHz. The 4CX250B’s have a control screen grid. The voltage and regulated current for the screens are supplied by the PSL 1000 Power Supply. Using screen voltage regulation, the grids have the advantage of self-limiting the current flow to the plates of the tubes. As a result, the tubes cannot be driven into saturation causing distortion. The maximum allowable screen current is regulated by the power supply. Once that point of current demand is reached, the screen limits the plate current flow to it’s maximum. Therefore, and ALC circuit, to prevent driver overload, is not required. The maximum plate and cathode current flow is measured by the 0-500 ma. meter on the front panel. The screen current only, is measured by the 0-50 ma. meter located also on the front panel. The band switch and plate and loading capacitors are also located on the front panel. The capacitors use a 6:1 vernier ball drive to give smooth, easy tuning. Also located on the front panel are the two lights indicating filament voltage on and plate current on. The filament supply is contained in the PLA-800 and is protected by the 3 AG fuse next to the indicator light. These bulbs are tungsten elements, with a life of 50,000 hours. The plate on and off switch is located in the middle of both lamps. Both the amplifier and power supply are inter-locked for your safety. The removal of the FOUR (4) thumbscrews will allow you to slide the units forward and out of their respective enclosures. NEVER open either unit with the AC and DC power applied. As an added safety feature, the power supply has a mechanical shorting rod, which, upon sliding the unit out of the enclosure beyond 1/4 of an inch, will ground the high voltage capacitor bank. This is done for your safety and should NOT be defeated. Built into the PSL 1000 power supply is a maximum current overload circuit. If more than 600 ma. is delivered to the load, the circuit will activate, opening the plate relay and removing the high voltage. At the same time, the current overload indicator lamp on the front panel of the power supply will light and an audible alarm will sound. To reset the high voltage back, simply push the reset button on the panel. The power supply is also equipped with a voltmeter allowing you to monitor the high voltage (0-500 vdc) and the screen voltage (0-500 vdc). Under normal loading conditions, the PLA-800 will deliver 600 watts key down or 1200 watts PEP output. However, the key down power level should not be maintained for more than 10 seconds. In cases where RTTY or AM is used, the amplifier should be operated at one-half power level. 1200 watts PEP can be operated at any time. Tuning Procedure On the rear panel of the PLA-800 you will see the Power Output Connector or RF Out (SO239), a High Voltage connector, a Control Voltage Connector, a Push-to-Talk jack, a Ground Connector, and the Power Input Connector (SO239) or RF In. Connect the Control Voltage Connector and High Voltage Connector between the amplifier and power supply. The power supply has the appropriate mating connectors along with the AC input power plug. The AC input power can be adapted to 115 VAC or 230 VAC service (See power change over section). Apply the RF in coax connector from your transceiver. A transceiver with a variable output control should be used. That is, one which can vary the amount of drive power to the amplifier. Set your drive control on the transceiver to minimum. Connect the PTT (push-to-talk) connection using the RCA jack to your transceiver. This will put the amplifier into the circuit when you transmit from your transceiver. In the receive mode, the amplifier will be in by-pass. Connect a coax line from the RF OUT to your tuner or directly into your antenna load. An output power watt meter should be used, in-line with the antenna. This should be used to tune the amplifier correctly. Upon completion of the above, double check all connections to make sure they are installed correctly and tightly. Apply AC power by switching on the Main Power Switch on the power supply front panel. The green indicator light will illuminate and the…

Text truncated - open the document above for the full version.

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 SCHEMATICS Appendix E APPENDIX E SCHEMATICS

Submitted by: CTI.ComTec, Inc. 1 Classic Court, North Palm Coast, Florida 32137 386-445-5545 March 16, 2002 CTI.ComTec PLA-800 Power Amplifier Serial Number 1010 CTI.ComTec PSL-1000 Power Supply Serial Number 1010 Test Report for Grant of Certification For Use in Part 97 Amateur Service Under The Rules of the Federal Communications Commission PLA-800 TEST REPORT Appendix C APPENDIX C COPY OF SETUP AND OPERATING INSTRUCTIONS Please Read Before Operating Caution: Lethal High Voltage Present Before operating both the PLA 800 and the PSL 1000, certain precautions should be taken. The PSL 1000 Power Supply generates over 2000 volts Direct Current at a current capacity of over.6000 amperes. It also generates 350 Volts Direct Current at .150 amperes. Both voltages are Lethal and will cause death upon contact with the human body. Although there are several built-in safety features to protect YOU from exposure to high voltage, the following steps whould be followed at all times. NEVER OPERATE, EITHER THE PLA 800 OR PSL 1000, REMOVED FROM THEIR INDIVIDUAL ENCLOSURES. NEVER REMOVE ANY CONNECTORS FROM EITHER UNIT WHILE POWER IS APPLIED. NEVER INSERT METAL OBJECTS INTO THE COOLING VENT HOLES ON TOP OR BELOW EITHER UNIT, WHILE POWER IS APPLIED. WARNING THE VOLTAGES USED IN THIS EQUIPMENT ARE SUFFICIENTLY HIGH TO ENDANGER LIFE. ALL PERSONNEL ARE ADVISED TO BE THOROUGHLY FAMILIAR WITH THESE UNITS BEFORE TROUBLESHOOTING THEM IN A POWER-ON CONDITION. ALWAYS USE CAUTION. INTRODUCTION The PLA-800 Linear Amplifier uses a pair of 4CX250’s tetrodes as final amplifier tubes. These tubes have been used and are still used today by the military because of its compact size and ability to put out power ina compact space. They also have the ability to amplify signal from .1 MHz to 500 MHz. Therefore their power bandwidth is approximately 500 MHz. The 4CX250B’s have a control screen grid. The voltage and regulated current for the screens are supplied by the PSL 1000 Power Supply. Using screen voltage regulation, the grids have the advantage of self-limiting the current flow to the plates of the tubes. As a result, the tubes cannot be driven into saturation causing distortion. The maximum allowable screen current is regulated by the power supply. Once that point of current demand is reached, the screen limits the plate current flow to it’s maximum. Therefore, and ALC circuit, to prevent driver overload, is not required. The maximum plate and cathode current flow is measured by the 0-500 ma. meter on the front panel. The screen current only, is measured by the 0-50 ma. meter located also on the front panel. The band switch and plate and loading capacitors are also located on the front panel. The capacitors use a 6:1 vernier ball drive to give smooth, easy tuning. Also located on the front panel are the two lights indicating filament voltage on and plate current on. The filament supply is contained in the PLA-800 and is protected by the 3 AG fuse next to the indicator light. These bulbs are tungsten elements, with a life of 50,000 hours. The plate on and off switch is located in the middle of both lamps. Both the amplifier and power supply are inter-locked for your safety. The removal of the FOUR (4) thumbscrews will allow you to slide the units forward and out of their respective enclosures. NEVER open either unit with the AC and DC power applied. As an added safety feature, the power supply has a mechanical shorting rod, which, upon sliding the unit out of the enclosure beyond 1/4 of an inch, will ground the high voltage capacitor bank. This is done for your safety and should NOT be defeated. Built into the PSL 1000 power supply is a maximum current overload circuit. If more than 600 ma. is delivered to the load, the circuit will activate, opening the plate relay and removing the high voltage. At the same time, the current overload indicator lamp on the front panel of the power supply will light and an audible alarm will sound. To reset the high voltage back, simply push the reset button on the panel. The power supply is also equipped with a voltmeter allowing you to monitor the high voltage (0-500 vdc) and the screen voltage (0-500 vdc). Under normal loading conditions, the PLA-800 will deliver 600 watts key down or 1200 watts PEP output. However, the key down power level should not be maintained for more than 10 seconds. In cases where RTTY or AM is used, the amplifier should be operated at one-half power level. 1200 watts PEP can be operated at any time. Tuning Procedure On the rear panel of the PLA-800 you will see the Power Output Connector or RF Out (SO239), a High Voltage connector, a Control Voltage Connector, a Push-to-Talk jack, a Ground Connector, and the Power Input Connector (SO239) or RF In. Connect the Control Voltage Connector and High Voltage Connector between the amplifier and power supply. The power supply has the appropriate mating connectors along with the AC input power plug. The AC input power can be adapted to 115 VAC or 230 VAC service (See power change over section). Apply the RF in coax connector from your transceiver. A transceiver with a variable output control should be used. That is, one which can vary the amount of drive power to the amplifier. Set your drive control on the transceiver to minimum. Connect the PTT (push-to-talk) connection using the RCA jack to your transceiver. This will put the amplifier into the circuit when you transmit from your transceiver. In the receive mode, the amplifier will be in by-pass. Connect a coax line from the RF OUT to your tuner or directly into your antenna load. An output power watt meter should be used, in-line with the antenna. This should be used to tune the amplifier correctly. Upon completion of the above, double check all connections to make sure they are installed correctly and tightly. Apply AC power by switching on the Main Power Switch on the power supply front panel. The green indicator light will illuminate and the yellow filament light …
