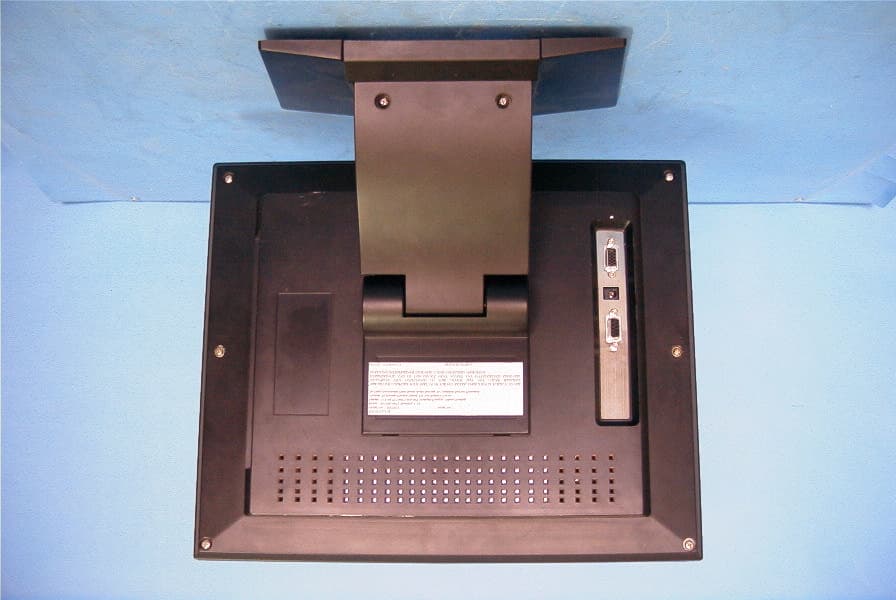

PIA2015XLSTFT-LCD Monitor

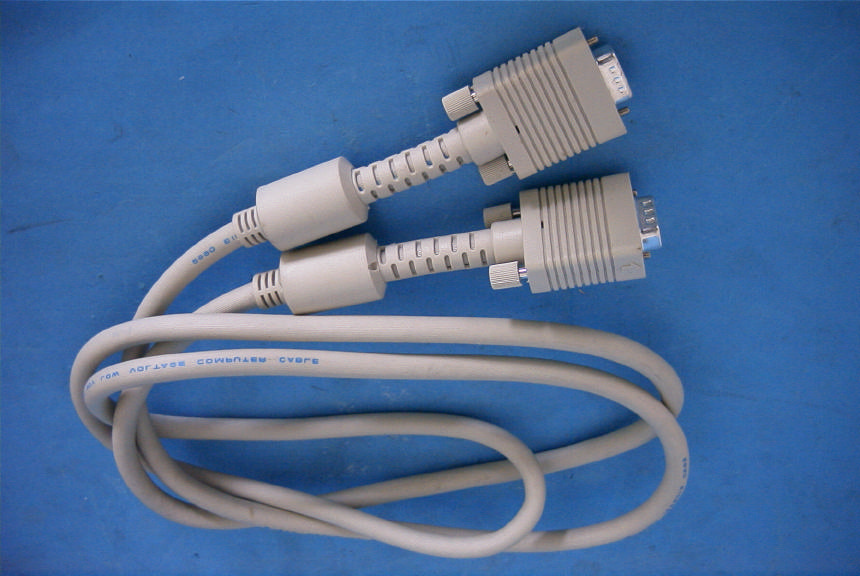

User’s Manual for the 2015XLS Virtual Window™ Virtual Window™ is a trademark of Dimension Technologies Inc. Rochester, N.Y. The contents of this manual are for informational purposes only and are subject to change without notice. Table of Contents 1.INTRODUCTION.......................................................................................................................................1 2.INSTALLATION........................................................................................................................................2 2.1.ITEMS INCLUDED WITH YOUR DTI VIRTUAL WINDOW™............................................................................2 2.2.CONNECTION OVERVIEW...........................................................................................................................2 2.3.COMPUTER CONNECTIONS.........................................................................................................................3 2.4.VIDEO CONNECTIONS................................................................................................................................3 3.GENERAL OPERATION..........................................................................................................................5 3.1.INTRODUCTION.........................................................................................................................................5 3.2.3D CONTROLS..........................................................................................................................................6 3.3.IMAGE ADJUSTMENT CONTROLS................................................................................................................6 3.3.1.Button Reference.............................................................................................................................7 3.3.2.Main Menu......................................................................................................................................7 3.4.FUNCTION.................................................................................................................................................8 3.5.OPERATING PROCEDURE............................................................................................................................9 3.6.SCREEN IMAGE ADJUSTMENT...................................................................................................................10 4.CARE AND HANDLING.........................................................................................................................11 4.1.HANDLING..............................................................................................................................................11 4.2.ENVIRONMENT........................................................................................................................................11 5.MAINTENANCE......................................................................................................................................12 6.SPECIFICATIONS...................................................................................................................................13 6.1.ENVIRONMENTAL....................................................................................................................................13 6.2.INTERFACES............................................................................................................................................13 6.2.1.VGA..............................................................................................................................................13 6.2.2.Video............................................................................................................................................13 6.2.3.Serial............................................................................................................................................13 6.2.4.Stereo Sync...................................................................................................................................13 6.3.ELECTRICAL............................................................................................................................................13 6.4.SCREEN...................................................................................................................................................13 FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment. Virtual Window User’s Guide1 1. Introduction The 2015XLS Virtual Window™ sets a new benchmark in autostereoscopic viewing. The Virtual Window™ produces clear, bright, full-color stereoscopic images t…

Text truncated - open the document above for the full version.

AD-Board-Block Diagram 3D-Formatter-Blockdiagram

ID Label / Location Info TOVIS Co.,Ltd. Model No. : 2015XLS Serial No. : Power : AC100-240V, 50-60Hz, 1.2A Patents : U.S.#4,717,949;5,410,345; Multiple Foreign; Others Pending. Caution: To Prevent Electric Shock, Do Not Remove Cover. No User- Serviceable Parts Inside Refer Serving To Qualified Service Personnel. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID : ***2015XLS MADE IN KOREA

RF Exposure Info “ Not Applicable”

File No. 00-IST-012/FB IST EMC LAB. Page 1 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 01-IST-012/FB Date of issue : Feb. 05, 2001. Model / Type No. Kind of product Applicant Manufacturer Address : 2015XLS : TFT-LCD Monitor. : TOVIS Co., Ltd : TOVIS Co., Ltd : 53B-2L/444-2, NamDong Industrial Area, NonHyun-Dong, NamDong-Gu, Inchon-City, Korea. Test result according to the regulation(s) n Positive o Negative at page 3. This test report without appendix consists of 15 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 00-IST-012/FB IST EMC LAB. Page 2 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setup (Pictures) Test-setup (Figures) Summary 2 3 3 4~5 6 7 8~9 10 15 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 11 ~ 13 14 C) Appendix File No. 00-IST-012/FB IST EMC LAB. Page 3 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ;  EN 50081-1 / 2. 1991.  EN 55011 / 3. 1991. Croup 1. Croup 2.  Class A. Class B.  EN 55014 / 4. 1993. Household appliances and similar  Portable tools  Semiconductor devices - EN 55014 / A2:1990 - EN 55015 / A1:1990  - EN 55015/ 2.1987  - EN 55015 / 12.1993 - EN 55022 / 8.1994- Class A  - Class B z - FCC Part 15, Subpart B (Unintentional Devices, Class B)  - BS  - VCCI  - CISPR All testing were conducted at IST EMC Laboratory. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 18 45 % 999 mbar File No. 00-IST-012/FB IST EMC LAB. Page 4 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : z - Shielded room. No.1  - Compact chamber 2 Used testing instruments : TypeManufacturerCalibration. DateSerial Number z ESH 3Rohde & SchwarzOct. 08, 2000861742/018 z- 3725/2EMCOOct. 08, 20009102-1788 z- 3825/2EMCODec. 20, 20009103-1788 Test - accessories : TypeManufacturer z Aneroid BarometerSato z HygrometerSato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “FCC procedure for measuring RF Emissions from Computing Devices”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50Ω/ 50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : B. K, Bae. / Research Engineer IST EMC Lab. File No. 00-IST-012/FB IST EMC LAB. Page 5 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : z - Open-site 1  - Compact chamber z - 3 meters.  - 10 meters Used testing instruments : TypeManufacturerCalibration. DateSerial Number z ESVPRohde & SchwarzJuly. 21, 2000861744/004 z VULB 9160SchwarzbeckJuly. 11, 20003048 Test - accessories : TypeManufacturer z Aneroid BarometerSato z HygrometerSato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “FCC Procedure for measuring RF Emissions from Computing Devices.” The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/ Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : B. K, Bae. / Research Engineer IST EMC Lab. File No. 00-IST-012/FB IST EMC LAB. Page 6 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the 15.1-inch TFT LCD Monitor of Tovis Co., Ltd. - Maximum Resolution: 1024 x 768, H-Sync: 60kHz / V-Sync: 75Hz - Frequeny Range: H-Sync: 30kHz - 61kHz , V-Sync: 55Hz - 80Hz - Display Area: 12.09”(W) x 9.07”(H) - Weight: 17 lbs;4.8kg - Power Supply Input: 100-220 Vac, 50/60Hz, 12 Vdc, 3.5A - Power Consumption: 23W(Max.) - Power Cord: Unshielded Operation - mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions :  Standby. z Test program (H – Pattern) : Scrolling “H” characters under MS Windows98  Test …
