PIOCLP100ACDMA Wireless Modem Card (PCMCIA)

Cyberlane Inc.

Click to zoom

Application Details

Equipment Class: PCT - PCS Licensed Transmitter worn on body
Date of Grant: Jun 03, 2001
Application Purpose: Original Equipment
Date of Application: Apr 29, 2001
Equipment Note: CDMA Wireless Modem Card (PCMCIA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Cyberlane Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Operating Requirements This device was tested in a notebook computer with the significant source of emissions (antenna) kept 1.5 cm. from the body. Please maintain a minimum of 1.5cm separation distance between the user’s body and the device to comply with FCC RF exposure requirements. WARNING! Read this information before using your phone

Cover Letter(s)

April 27, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: CYBERLANE, Inc. FCC ID: PIOCLP100A Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of CYBERLANE, INC., is an application for Part 24/22 Certification of the following CDMA Wireless Modem Card (PCMCIA): FCC ID: PIOCLP100A TRADE/MODEL(s): CYBERLANE / CLP-100A, NVW-CA81 EUT TYPE: CDMA Wireless Modem Card (PCMCIA) Tx Freq. Range(s): 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.27 W ERP CDMA (24.33 dBm) 0.26 W EIRP PCS CDMA (24.15 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned.

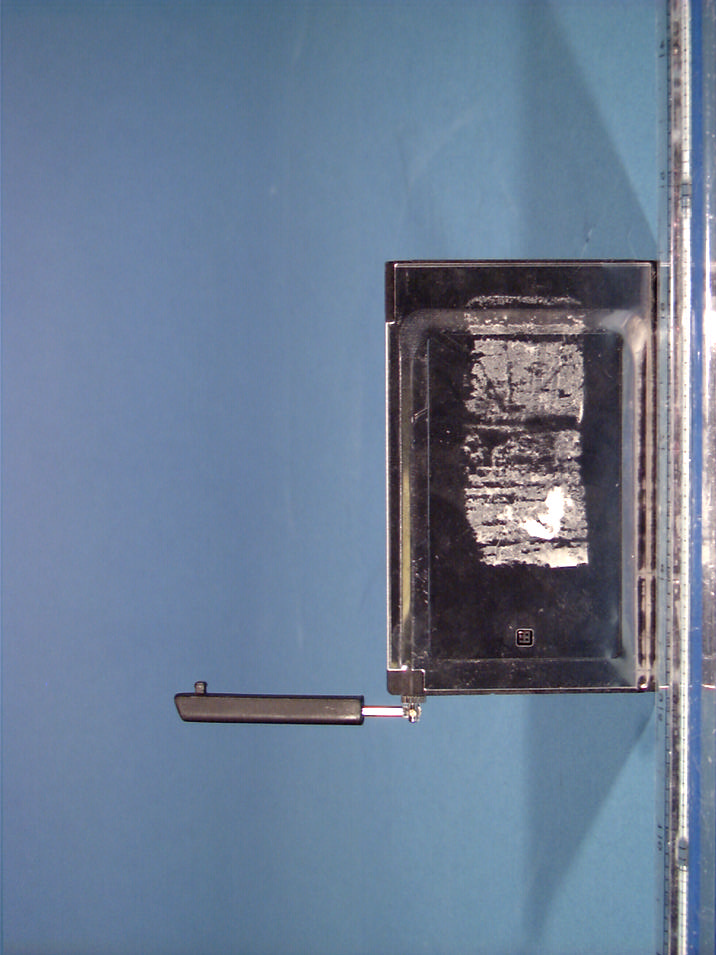

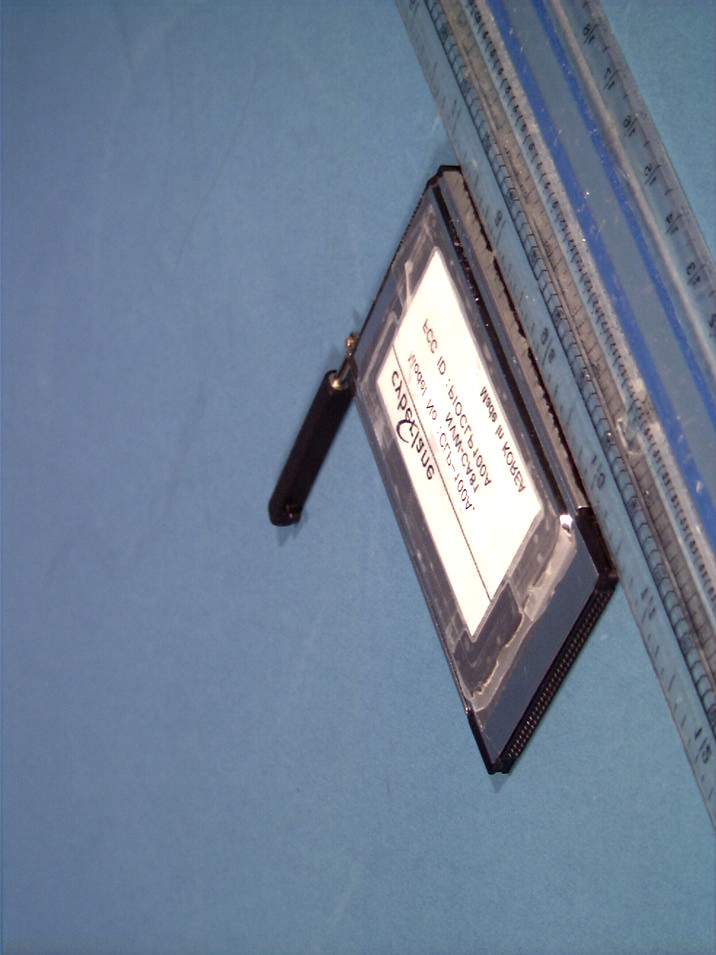

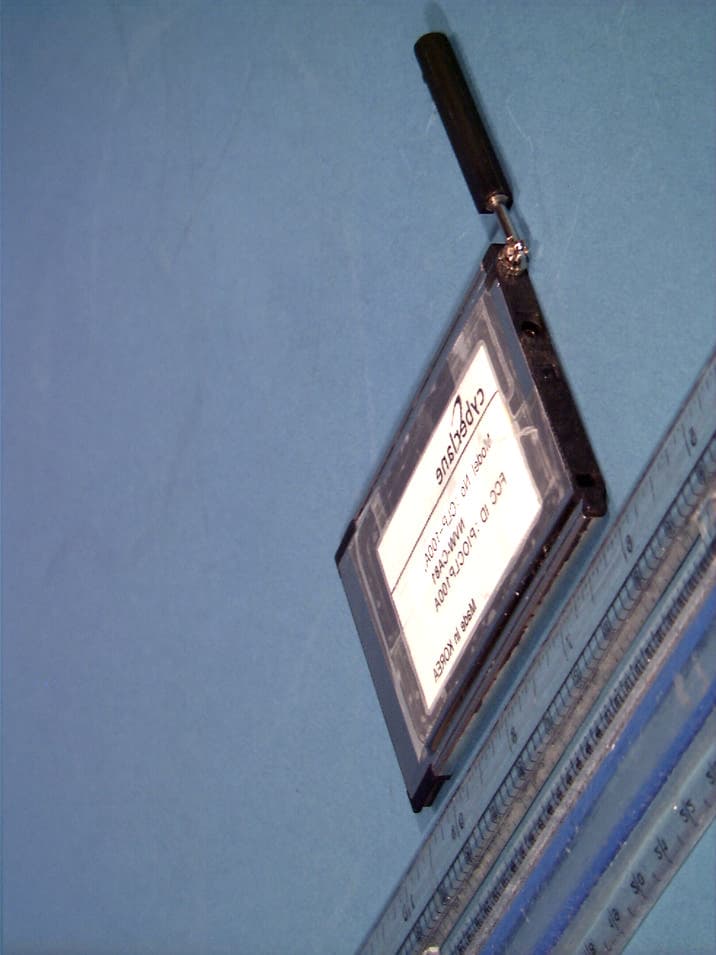

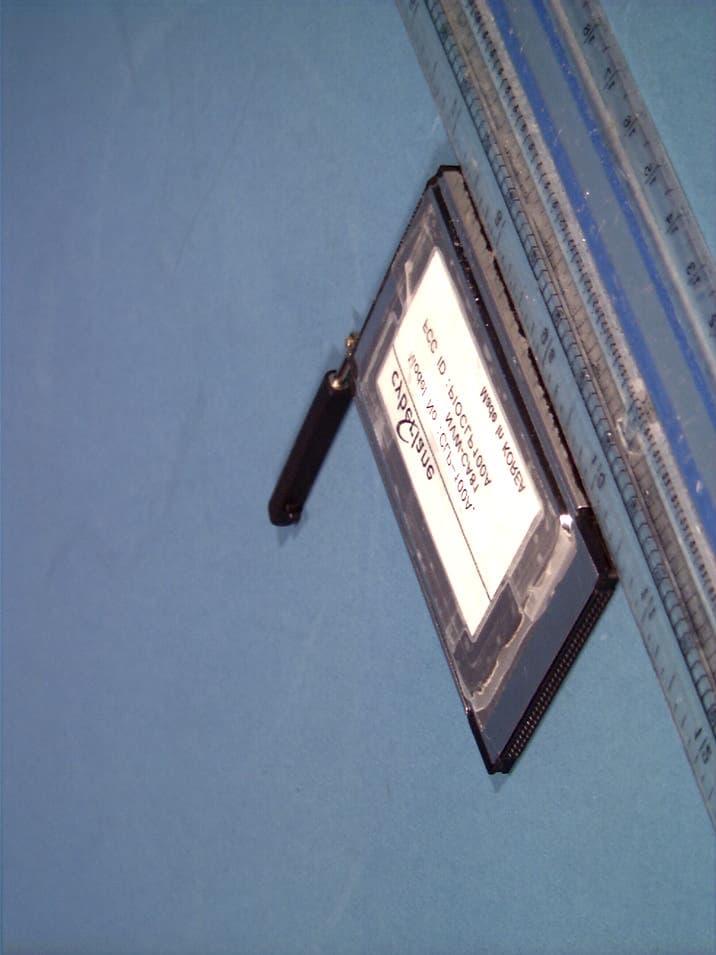

External Photos

© 2001 PCTEST Lab FCC ID: PIOCLP100A NVLAP Lab Code: 100431-0 CYBERLANE CDMA Wireless Modem Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PIOCLP100A NVLAP Lab Code: 100431-0 CYBERLANE CDMA Wireless Modem Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PIOCLP100A NVLAP Lab Code: 100431-0 CYBERLANE CDMA Wireless Modem Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PIOCLP100A NVLAP Lab Code: 100431-0 CYBERLANE CDMA Wireless Modem Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PIOCLP100A NVLAP Lab Code: 100431-0 CYBERLANE CDMA Wireless Modem Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PIOCLP100A NVLAP Lab Code: 100431-0 CYBERLANE CDMA Wireless Modem Card (PCMCIA)

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

RF Exposure Info

Peak SAR Location © 2001 PCTEST Lab FCC ID: PIOCLP100A (Models: CLP-100A, NVW-CA81) NVLAP Lab Code: 100431-0 CYBERLANE CDMA Wireless Modem Card (PCMCIA) Body SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01043018_ZOOM.VLT Start : 30-Apr-101 02:04:10 pm End : 30-Apr-101 02:19:28 pm Radio Type : CYBERLANE Model Number : CLP-100A Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : CYBERLANE WIRELESS PC CARD - CDMA MODE CHAN 1013 25.0 dBm Conducted CYBERLANE WIRELESS PC CARD Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -0.250, Y = -0.500, Z = 0.000 (cm) Value = 16.662 Measured Values (volts) = 1.609E-002 1.319E-002 1.093E-002 9.028E-003 7.285E-003 5.831E-003 4.811E-003 4.191E-003 3.845E-003 3.682E-003 3.589E-003 3.436E-003 3.078E-003 2.490E-003 1.875E-003 1.297E-003 8.634E-004 6.121E-004 6.605E-004 9.330E-004 1.160E-003 Calc. Voltage @ Surface (Vs) = 0.0195 Voltage @ 1.00 cm (Vt) = 0.0090 Ave. Voltage (Vs+Vt)/2 = 0.0143 Ave. SAR over 1 g (mW/g) = 1.1814 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01043018_ZOOM Start : 30-Apr-101 02:04:10 pm End : 30-Apr-101 02:19:28 pm CYBERLANE/CLP-100A/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01043018_ZOOM Start : 30-Apr-101 02:04:10 pm End : 30-Apr-101 02:19:28 pm CYBERLANE/CLP-100A/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.379 1.310 1.240 1.170 1.101 1.031 0.961 0.892 0.822 0.753 File : 01043018_ZOOM Start : 30-Apr-101 02:04:10 pm End : 30-Apr-101 02:19:28 pm CYBERLANE/CLP-100A/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.379 1.310 1.240 1.170 1.101 1.031 0.961 0.892 0.822 0.753 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01043023_ZOOM.VLT Start : 30-Apr-101 03:06:00 pm End : 30-Apr-101 03:16:37 pm Radio Type : CYBERLANE Model Number : CLP-100A Serial Number : 1 Frequency : 835.89 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : CYBERLANE WIRELESS PC CARD - CDMA MODE CHAN 0363 25.0 dBm Conducted CYBERLANE WIRELESS PC CARD Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.000, Y = -0.750, Z = 0.000 (cm) Value = 14.764 Measured Values (volts) = 1.416E-002 1.143E-002 9.299E-003 7.666E-003 6.244E-003 5.044E-003 4.144E-003 3.586E-003 3.331E-003 3.182E-003 3.102E-003 2.902E-003 2.588E-003 2.095E-003 1.618E-003 1.097E-003 7.229E-004 5.408E-004 5.686E-004 7.887E-004 1.045E-003 Calc. Voltage @ Surface (Vs) = 0.0175 Voltage @ 1.00 cm (Vt) = 0.0077 Ave. Voltage (Vs+Vt)/2 = 0.0126 Ave. SAR over 1 g (mW/g) = 1.0407 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01043023_ZOOM Start : 30-Apr-101 03:06:00 pm End : 30-Apr-101 03:16:37 pm CYBERLANE/CLP-100A/1;835.89MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01043023_ZOOM Start : 30-Apr-101 03:06:00 pm End : 30-Apr-101 03:16:37 pm CYBERLANE/CLP-100A/1;835.89MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.222 1.160 1.099 1.037 0.976 0.914 0.853 0.791 0.729 0.668 File : 01043023_ZOOM Start : 30-Apr-101 03:06:00 pm End : 30-Apr-101 03:16:37 pm CYBERLANE/CLP-100A/1;835.89MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.222 1.160 1.099 1.037 0.976 0.914 0.853 0.791 0.729 0.668 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01043021_ZOOM.VLT Start : 30-Apr-101 02:22:26 pm End : 30-Apr-101 02:33:03 pm Radio Type : CYBERLANE Model Number : CLP-100A Serial Number : 1 Frequency : 848.31 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : CYBERLANE WIRELESS PC CARD - CDMA MODE CHAN 0777 25.0 dBm Conducted CYBERLANE WIRELESS PC CARD Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -0.250, Y = -0.500, Z = 0.000 (cm) Value = 14.840 Measured Values (volts) = 1.454E-002 1.206E-002 9.831E-003 8.136E-003 6.567E-003 5.337E-003 4.352E-003 3.726E-003 3.544E-003 3.412E-003 3.295E-003 3.067E-003 2.745E-003 2.169E-003 1.602E-003 1.066E-003 6.953E-004 5.523E-004 6.407E-004 8.854E-004 1.124E-003 Calc. Voltage @ Surface (Vs) = 0.0177 Voltage @ 1.00 cm (Vt) = 0.0081 Ave. Voltage (Vs+Vt)/2 = 0.0129 Ave. SAR over 1 g (mW/g) = 1.0684 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01043021_ZOOM Start : 30-Apr-101 02:22:26 pm End : 30-Apr-101 02:33:03 pm CYBERLANE/CLP-100A/1;848.31MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01043021_ZOOM Start : 30-Apr-101 02:22:26 pm End : 30-Apr-101 02:33:03 pm CYBERLANE/CLP-100A/1;848.31MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.228 1.163 1.098 1.032 0.967 0.901 0.836 0.770 0.705 0.639 File : 01043021_ZOOM Start …

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) CYBERLANE, Inc. Dates of Tests: Apr. 25 & 30, 2001 10805 Rancho Bernardo Road, Suite 200 Test Report S/N: SAR.210411209.PIO San Diego, CA 92127 Test Site: PCTEST Lab, Columbia, MD USA Attn: Barry Lackmann Product Manager FCC ID PIOCLP100A APPLICANT CYBERLANE, Inc. EUT Type: CDMA Wireless Modem Card (PCMCIA) Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.270W ERP CDMA (24.33 dBm) 0.260W EIRP PCS CDMA (24.15 dBm) Trade Name/Model(s): CYBERLANE CLP-100A, NVW-CA81 FCC Classification: Licensed Portable Transmitter Held to Body (PCT) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.1814 W/kg CDMA Body SAR; 1.2613 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210411209.PIO Test Report S/N: SAR.210411209.PIO SAR Measurement Report Test Dates: APR. 25 & 30, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 2.2 SAR Definition.......................................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE EUT...............................................................10 10.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................11 11.1 MEASUREMENT UNCERTAINTIES.......................................................12 12.1 SAR TEST DATA SUMMARY................................................................13 13.1 SAR TEST EQUIPMENT.......................................................................15 14.1 CONCLUSION......................................................................................16 Test Report S/N: SAR.210411209.PIO SAR Measurement Report Test Dates: Apr. 25 & 30, 2001 FCC Part 22/24 Certification CYBERLANE FCC ID: PIOCLP100A (Model: CLP-100A, NVW-CA81) © 2001 PCTEST Lab CDMA Wireless Modem Card (PCMCIA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: CYBERLANE, Inc. Address: 10805 Rancho Bernardo Road, Suite 200 San Diego, CA 92127 Attention: Barry Lackmann Product Manager • EUT Type: CDMA Wireless Modem Card (PCMCIA) • Trade Name: CYBERLANE • Model(s): CLP-100A, NVW-CA81 • FCC IDENTIFIER: PIOCLP100A • Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Body (PCT) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.270W ERP CDMA (24.33 dBm) 0.260W EIRP PCS CDMA (24.15 dBm) • Date(s) of Tests: Apr. 25 & 30, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210411209.PIO 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210411209.PIO SAR Measurement Report Test Dates: Apr. 25 & 30, 2001 FCC Part 22/24 Certification CYBERLANE FCC ID: PIOCLP100A (Model: CLP-100A, NVW-CA81) © 2001 PCTEST Lab CDMA Wireless Modem Card (PCMCIA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 3…

Text truncated - open the document above for the full version.

Test Report

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification CYBERLANE, Inc. Dates of Tests: April 17-18, 2001 10805 Rancho Bernardo Road, Suite 200 Test Report S/N: 24/22.210411246.PIO San Diego, CA 92127 Test Site: PCTEST Lab, Columbia MD Attn: Barry Lackmann, Product Manager FCC ID PIOCLP100A APPLICANT CYBERLANE, INC. Classification: Licensed Portable Transmitter Worn on Body (PCT) FCC Rule Part(s): §24(E), §22.901(d), §2 EUT Type: CDMA Wireless Modem Card (PCMCIA) Trade Name/Model: CYBERLANE CLP-100A, NVW-CA81 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.27 W ERP CDMA (24.33 dBm) 0.26 W EIRP PCS CDMA (24.15 dBm) Emission Designator(s): 1M25F9W This equipment has been shown to be compliant with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210411246.PIO Test Report S/N: 24/22.210411246.PIO FCC Parts 24 & 22 Dates of Tests: April 17-18, 2001 Certification © 2001 PCTEST Lab FCC ID: PIOCLP100A 1 CYBERLANE CDMA Wireless Modem Card (PCMCIA) TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 7.1 RADIATED MEASUREMENTS 11-16 8.1 FREQUENCY STABILITY 17-20 9.1 PLOTS OF EMISSIONS 21 10.1 LIST OF TEST EQUIPMENT 22 11.1 SAMPLE CALCULATIONS 23 12.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24/22.210411246.PIO FCC Parts 24 & 22 Dates of Tests: April 17-18, 2001 Certification © 2001 PCTEST Lab FCC ID: PIOCLP100A 2 CYBERLANE CDMA Wireless Modem Card (PCMCIA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: CYBERLANE, INC. Address: 10805 Rancho Bernardo Road, Suite 200 San Diego, CA 92127 Attention: Barry Lackmann, Product Manager • FCC ID: PIOCLP100A • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.27 W ERP CDMA (24.33 dBm) 0.26 W EIRP PCS CDMA (24.15 dBm) • FCC Classification(s): Non-Broadcast Station Transmitter (TNB) • Equipment (EUT) Type: CDMA Wireless Modem Card (PCMCIA) • Modulation(s): CDMA / PCS • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H), §2 • Dates of Tests: April 17-18, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24/22.210411246.PIO Test Report S/N: 24/22.210411246.PIO FCC Parts 24 & 22 Dates of Tests: April 17-18, 2001 Certification © 2001 PCTEST Lab FCC ID: PIOCLP100A 3 CYBERLANE CDMA Wireless Modem Card (PCMCIA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure 1. Map of the Greater Baltimore and…

Text truncated - open the document above for the full version.

Test Setup Photos
