PIY80419-02A4RRemote Control Toy Receiver

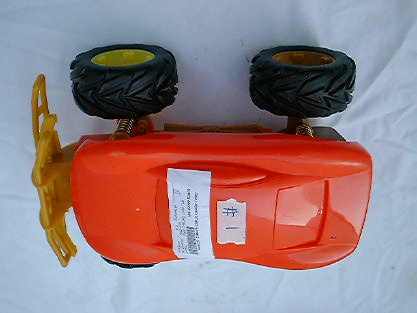

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Date: 2003-01-15 Test Report Page 1 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e ACCREDITED TESTING LABORATORY DAR Registration No.: TTI-P-G150/98-00e ACCREADITED BY Deutsche Akkreditierungsstelle Technik (DATech) e.v. FCC PART 15 SUBPART B TEST REPORT TEST REPORT No.:HM109368 Equipment Under Test [EUT]:6V Monster Truck 49RX Model Number:80421 Applicant:Mattel Asia Pacific Sourcing Limited. FCC ID:PIY80419-02A4R Reg.-Nr.: TTI-P-G150/98-00e Date: 2003-01-15 Test Report Page 2 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 Conclusion Page 4 of 16 1.0 General Details 1.1Test Laboratory Page 5 of 16 1.2Applicant Details Page 5 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 16 Description of EUT operation 1.4Date of Order Page 6 of 16 1.5Submitted Sample Page 6 of 16 1.6Test Duration Page 6 of 16 1.7Country of Origin Page 6 of 16 1.8 Additional Information of EUT Page 7 of 16 2.0 Technical Details 2.1Investigations Requested Page 8 of 16 2.2Test Standards and Results Summary Page 8 of 16 3.0 Test Results 3.1Emission Page 9-13 of 16 Date: 2003-01-15 Test Report Page 3 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e Appendix A List of Measurement Equipment Page 14 of 16 Appendix B Photographs Page 15-16 of 16 Date: 2003-01-15 Test Report Page 4 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2003-01-15 Test Report Page 5 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant MATTEL ASIA PACIFIC SOURCING LIMITED. 13/F., South Tower, World Finance Centre, Harbour City, TsimShaTsui, Kowloon, Hong Kong. Telephone:852 3185 5000 Fax:852 2735 3578 HKSTC Code Number for ApplicantLUC001 Manufacturer LUNG CHEONG TOYS LIMITED. Lung Cheong Building, 1 Lok Yip Road, On Lok Tsuen, Fanling,N.T., Hong Kong. Telephone:852 2677 6699 Fax:852 2682 2161 Date: 2003-01-15 Test Report Page 6 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e 1.3Equipment Under Test [EUT] Description of Sample Product:6V Monster Truck 49RX Manufacturer:Lung Cheong Toys Limited. Brand Name:N/A Model Number:80421 Input Voltage:9Vd.c. (“6F22” size battery x 1) 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is a Mattel Asia Pacific Sourcing Ltd., 6V Monster Truck 49RX. 1.4Date of Order 2002-11-28 1.5Submitted Sample(s): 1 sample per model 1.6Test Duration 2002-12-10 1.7Country of Origin China Date: 2003-01-15 Test Report Page 7 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC DOC Label Date: 2003-01-15 Test Report Page 8 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.109ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.107ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2003-01-15 Test Report Page 9 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e 3.0Test Results 3.1Emission 3.1.1Radiated Emissions (30 – 1000MHz) Test Requirement:FCC 47CFR 15.109 Class B Test Method:ANSI C63.4:2000 Test Date:2002-12-10 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2003-01-15 Test Report Page 10 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e Limited for Radiated Emissions [FCC 47 CFR 15.109 Class B]: Frequency RangeQuasi-Peak Limits [MHz] [μV/m] 30-88100 88-216150 216-960200 Above960500 The emission limits shown in the above table are based on measurement employing a CISPR quasi- peak detector and above 1000MHz are based on measurements employing an average detector. Results: Receiver Horizontal Vertical Date: 2003-01-15 Test Report Page 11 of 16 No.: HM109368 DAR-Registration No.: TTI-P-G150/98-00e Results: Receiver FrequencyCorrectionLimit @3mAntenna FactorPolarity MHz dB μ V/m μ V/m 49.86<1.010.0<11.0<3.5100Vertical 99.72<1.012.5<13.5<4.7150Vertical 149.58<1.09.8<10.8<3.5150Vertical 199.44<1.011.5<12.5<4.2150Vertical 249.30<1.015.9<16.9<7.0200Vertical 299.16<1.017.4<18.4<8.3200Vertical 349.02<1.017.2<18.2<8.1200Vertical 398.88<1.018.8<19.8<9.8200Vertical 448.74<1.019.7<20.7<10.8200Vertical 498.60<1.020.6<21.6<12…

Text truncated - open the document above for the full version.

1 Marianne Bosley To: [email protected] Subject: Metrak #13289 Mattel Asia Pacific FCC ID: PIY80419-02A4R Hi Alice, Here is the technical request from the engineer coming forth from his technical review: 1. Was an external signal used to cohere the EUT during radiated emission testing, per ANSI C63.4 Section 12.1.1.1? If not, please retest using this technique, and submit new data. Once you have submitted the info, we'll continue processing. Regards, Marianne Marianne T. Bosley EMC Administrator 410-354-3300 X 412 [email protected] Visit MET Labs for a demonstration of our new CETECOM BITE Test System at the Bluetooth Developers Conference, Booth 622, Dec. 10-12, San Jose, CA. For more information visit www.ibctelecoms.com/bluetoothdevcon . MET’S IN THE NEWS! Get the latest at: http://www.metlabs.com/pages/Sun.html?coll=bal-business-headlines

Close From: alice_wong [SMTP:[email protected]] To: [email protected] Cc: EED - Choy, Kitty Subject: Metrak #13289 Mattel Asia Pacific FCC ID: PIY80419-02A4R Sent: 1/21/2003 8:06 PM Importance: Normal Hi Marianne, Please see the following information for the answer. Thanks. Best Regards Alice > Answer: > Yes , During the test, We would used signal generator transmit the signal to > EUT (Receiver) in order to make sure EUT is function (Receive signal). > Because while EUT receive signal will be emit worst interference. > > > > ----- Original Message ----- > > From: <[email protected]> > > To: <[email protected]> > > Sent: Wednesday, January 22, 2003 2:40 AM > > Subject: Metrak #13289 Mattel Asia Pacific FCC ID: PIY80419-02A4R > > > > > > > > > > Hi Alice, > > > > > > Here is the technical request from the engineer coming forth from his > > > technical review: > > > > > > 1. Was an external signal used to cohere the EUT during radiated > emission > > > testing, per ANSI C63.4 Section 12.1.1.1? If not, please retest using > > this > > > technique, and submit new data. > > > > > > Once you have submitted the info, we'll continue processing. > > > > > > Regards, > > > > > > Marianne > > > > > > Marianne T. Bosley Page 1 of 2Metrak #13289 Mattel Asia Pacific FCC ID: PIY80419-02A4R 1/22/2003https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=000... > > > EMC Administrator > > > 410-354-3300 X 412 > > > [email protected] > > > > > > Visit MET Labs for a demonstration of our new CETECOM BITE Test System > at > > > the Bluetooth Developers Conference, Booth 622, Dec. 10-12, San Jose, > CA. > > > For more information visit www.ibctelecoms.com/bluetoothdevcon. > > > > > > MET'S IN THE NEWS! Get the latest at: > > > http://www.metlabs.com/pages/Sun.html?coll=bal-business-headlines > > > > > > > > > > > > > > > > > > > > > > > > Page 2 of 2Metrak #13289 Mattel Asia Pacific FCC ID: PIY80419-02A4R 1/22/2003https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=000...

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
