PIYB2219-03B4TDODGE RAM STREET BEAST

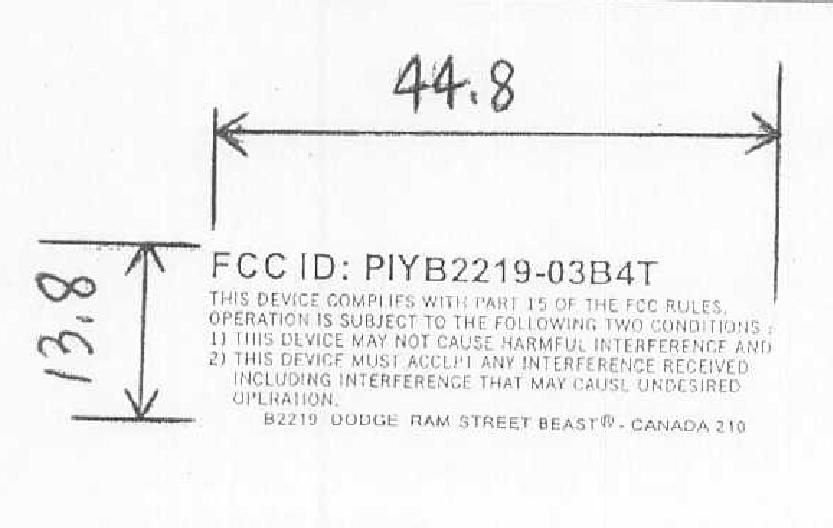

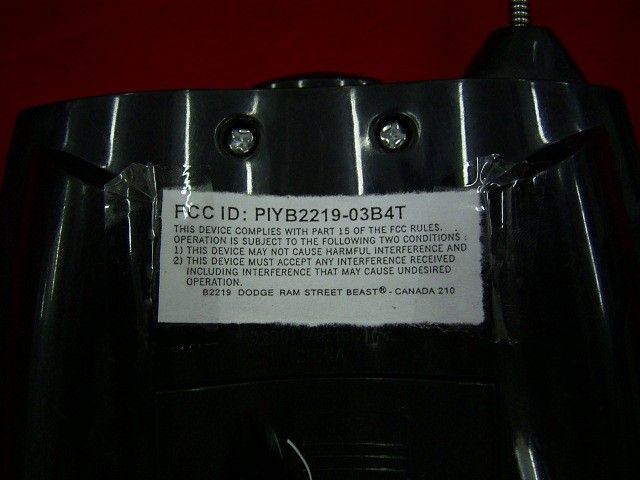

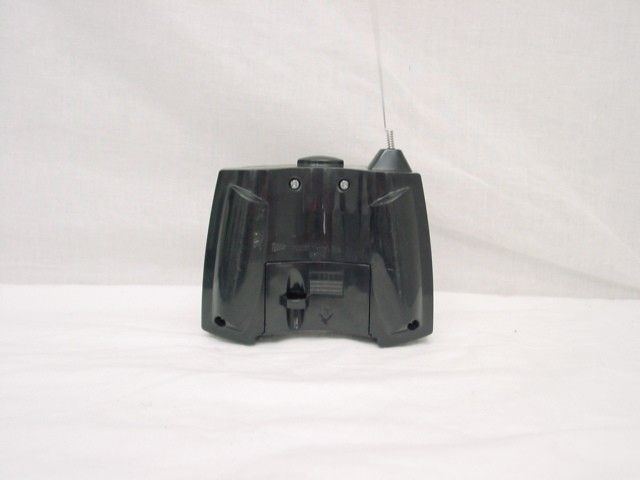

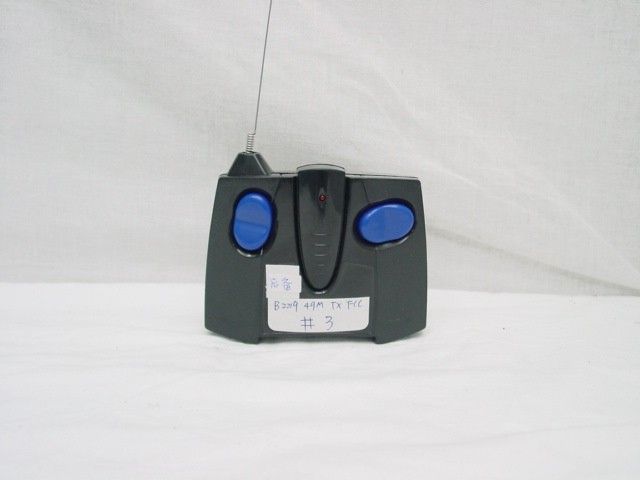

49 MHz Dodge Ram Product Description (FCC Application) Dodge Ram Street Beast has two main parts, a controller and a car. The car is powered by 9.6V Ni-cd battery and a power switch is on the back of the car. Antenna is built inside the car. The controller is powered by one 9V battery and has 4 switches incorporated on two button, forward and backward are on left-hand side of the controller, Left turn and right turn are on right hand-side of the controller. There is no power switch on the transmitter because it is working only when either Forward/Backward or Left/Right switch is activated(pressed). When both controller and car are installed with batteries and the power switch of the car is set to on, user can control the car moving forward or backward or, turning left or right when running forward/backward simultaneously. Electrical description of the controller (transmitter) The RF link (control method) is established by encoding a pulse train which includes 4 codes. These codes will be interpreted by receiver decoder for forward/backward and left/right control. The controller is a pulse wide modulation transmitter which has 3 main parts, an encoder, an oscillator and a RF amplifier. Whenever a key is pressed(SW1-L/R, SW2-F/B), the VSS of the encoder IC1 (U1) will be connected (via D3~D6)to the negative terminal of 9V battery and the battery power is applied to the VDD of the encoder via R3. The operating voltage (4.3V) is regulated by a zener diode (D1). At the same time, the IC(U1) is operating and generating a pulse train from pin8 to Q4. The content of pulse train depends on key(s) pressed. Q2 is a crystal control oscillation and the power is applied when a key (SW1-L/R, SW2-F/B) is pressed. It outputs to RF amplifier via C16. Q4 is a RF amplifier and it receives signal from oscillator (RF frequency) and modulating pulse from encoder. A band pass filter (C13, T1 & C14) is placed between the amplifier and antenna to reduce upper harmonic & spurious emission. Electrical description of the car (receiver) D9 is voltage regulator circuit. After power swith is on, the regulated voltage(3.3V) is applied to super-regenerative circuit and encoder IC. Q1 and its circuit is a super-regenerative receiver, the modulated RF signal is received by antenna and interpreted to function code (forward, backward, left and right). The function code is sent to pin14 of encoder IC (U1) viaR4, C7 and encoded by IC, and then the control signal is output from pin6, pin7, pin10, pin11. The control signal from pin10 and pin11 is sent to driving circuit consisted of Q13, Q14, Q16, Q17, relay RL1 and RL2, the back motor will be drived forward or backward. The control signal from pin6 and pin7 is sent to steering circuit consisted of Q2, Q9, Q10, Q5, Q6, Q7 and Q8, the front motor will be drived left and right. Servo PCB, Q2control the steering motor to turn left or right, or control front wheel to center position when there is no left/right control signal.

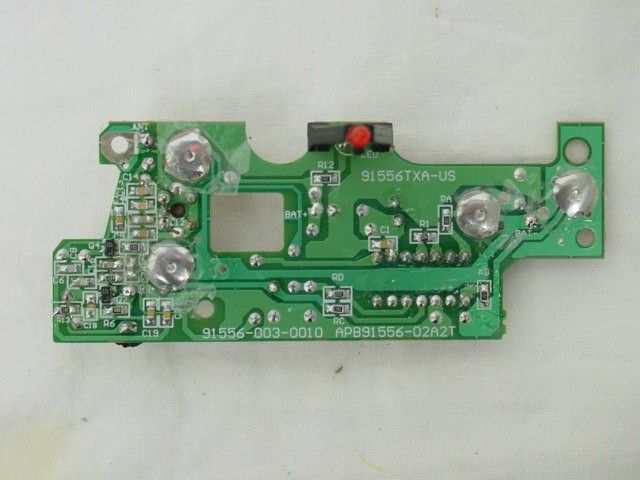

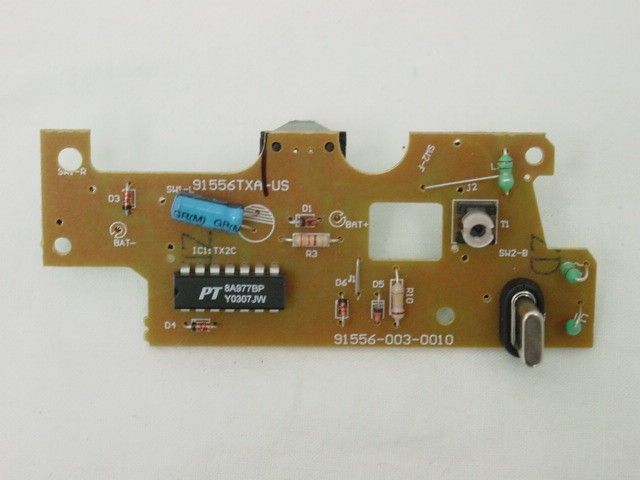

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 6-Jun-2003 Sheet of File: D:\Andrew\..\B2219TX49-01.sch Drawn By: C6 8PF C3 0.01UF C14 33PF C13 33PF C1 0.01uF C7 100PF C9 0.01UF C8 8PF D3 1N4148 D6 1N4148 D5 1N4148 D4 1N4148 BT19V ANTENNA C2 47uF Q4 2SC2712 O/Y/GR D1 4.3V L3 2.2UH L21.2UH T1 7B-ZT3330-4 R3330 RB 1K RC1K RD 1K RA1K R668K R10180K R8100 R1 120K/120K/140K 9.6V Dodge Ram (49M) B2219 JETTA HBEE 01 LT RT BW FW 1 1 Q2 2SC2712 O/Y/GR R9220 C1247PF 1 2 3 4 5 6 78 9 10 11 12 13 14 IC1 PT8A977/NK2622/TX2C C1647PF R12 1K 1/2W L1 1.2UH Y1 49.860MHz LED1 red3mm C4 0.01UF R131k C19 0.01UF SW1-LSW1-R SW1-FSW1-B

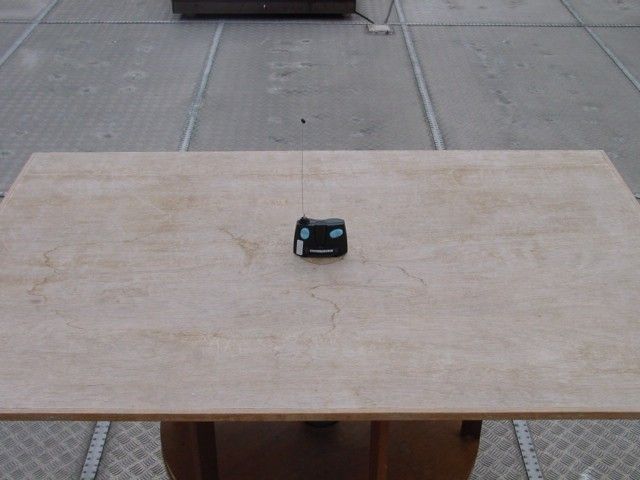

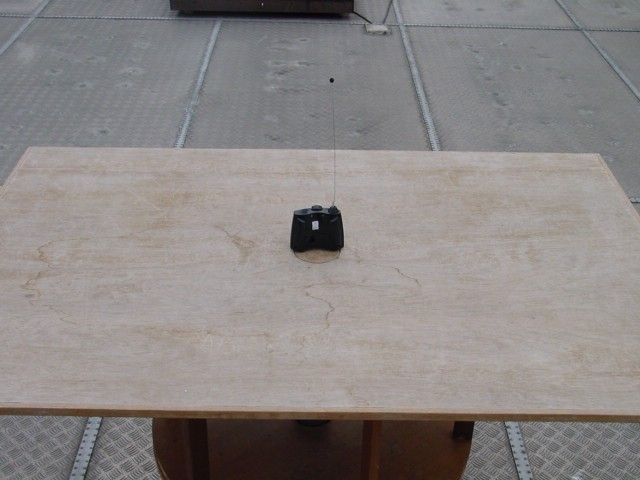

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009755-1 Date : 2003 July 19 Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Center, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Dodge Ram Street Beast of Model No. B2219 . Rating : 9 V battery No. of sample(s) : One(1) piece *** Date Received : 2003 May 30. Test Period : 2003 May 30 – 2003 July 18. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB2219-03B4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009755-1 Date : 2003 July 19 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYB2219-03B4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009755-1 Date : 2003 July 19 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Dodge Ram Street Beast operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by 9 V battery. There are four buttons in the center of the EUT. When the forward/backward button is pressed once, it will transmit a radio frequency for receiver going forward/backward. When the left/right button is pressed, it will transmit a radio frequency for receiver left/right. The brief circuit description is saved with filename : OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 11 FCC ID : PIYB2219-03B4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009755-1 Date : 2003 July 19 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 1992. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AD009755-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AD009754-1 Bandwidth Plot Bandwidth 1
