PIYB2878-03A4RRemote Control Toy Receiver

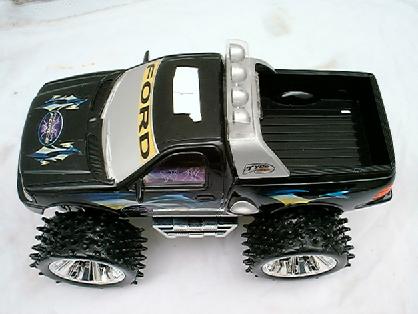

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID Label

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Mattel #B2878 6.0V TRUCK 49. 860 MHz Receiver Operational Description The TRUCK (6.0V NiCD) powered, radio controlled toy vehicle. It is designed to operate on a single fixed frequency in the 49.82 – 49.90 MHz band. See the attached block diagram and schematic. The vehicle receiver receives and demodulates the AM transmitted signal from the transmitter, using a standard super-regenerative AM receiver/demodulator circuit comprised of ANT1, Q1, L1, L3, L4 and associated passive components. L4 is a tunable core slug inductor that is used to tune the receiver for maximum sensitivity. The output of the AM receiver/demodulator is AC coupled to a high input impedance CMOS inverter stage of the U1 decoder IC biased into their linear region through C12, C14, C9, R4, R13, R6, R7 which amplify, filter and shape the data. After the last inverter stage the incoming waveform is a digitized enough to be fed into the SI pin for on-chip decoding. A Zener regulator circuit comprised of C11, C18, R3, D1, C8, C15, creates the supply voltage, VDD for the super-regenerative radio, decoder IC and Comparator section. Drive motors M are controlled by the U1 decoder IC, low power switching transistors Q6, Q7, and a high power H-bridge comprised of Q4, Q5, Q8, Q9, The Steering Motor M1 are controlled by the U1 decoder IC low power switching transistors Q12,Q14,and a high power H-bridge comprised of Q10,Q11,Q13,Q15, All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

Date: 2003-09-30 Test Report Page 1 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 ACCREDITED TESTING LABORATORY DAR Registration No.: TTI-P-G150/98-01 ACCREADITED BY Deutsche Akkreditierungsstelle Technik (DATech) e.v. FCC PART 15 SUBPART B TEST REPORT TEST REPORT No.:HM110689 Equipment Under Test [EUT]:6V Car / Truck Model Number:B2878 Applicant:Mattel Asia Pacific Sourcing Limited FCC ID:PIYB2878-03A4R Reg.-Nr.: TTI-P-G150/98-01 Date: 2003-09-30 Test Report Page 2 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 CONTENT: Cover Page 1 of 15 Content Page 2-3 of 15 Conclusion Page 4 of 15 1.0 General Details 1.1Test Laboratory Page 5 of 15 1.2Applicant Details Page 5 of 15 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 15 Description of EUT operation 1.4Date of Order Page 6 of 15 1.5Submitted Sample Page 6 of 15 1.6Test Duration Page 6 of 15 1.7Country of Origin Page 6 of 15 1.8 Additional Information of EUT Page 7 of 15 2.0 Technical Details 2.1Investigations Requested Page 8 of 15 2.2Test Standards and Results Summary Page 8 of 15 3.0 Test Results 3.1Emission Page 9-12 of 15 Date: 2003-09-30 Test Report Page 3 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 Appendix A List of Measurement Equipment Page 13 of 15 Appendix B Photographs Page 14-15 of 15 Date: 2003-09-30 Test Report Page 4 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verified by Ivan Toa Patrick Wong for Chief Executive Date: 2003-09-30 Test Report Page 5 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, TsimShaTsui, Kowloon, Hong Kong HKSTC Code Number for ApplicantLUC001 Manufacturer Lung Cheong Toys Limited Lung Cheong Building, 1 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Date: 2003-09-30 Test Report Page 6 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 1.3Equipment Under Test [EUT] Description of Sample Product:6V Car / Truck Manufacturer:Lung Cheong Toys Limited Brand Name:N/A Model Number:B2878 Input Voltage:6.0Vd.c. 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is a Mattel Asia Pacific Sourcing Limited, 6V Car / Truck. 1.4Date of Order 2003-05-28 1.5Submitted Sample(s): 3 samples per model 1.6Test Duration 2003-06-07 to 2003-06-10 1.7Country of Origin China Date: 2003-09-30 Test Report Page 7 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC DOC Label Date: 2003-09-30 Test Report Page 8 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.109ANSI C63.4:2000Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.107ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2003-09-30 Test Report Page 9 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 3.0Test Results 3.1Emission 3.1.1Radiated Emissions (30 – 1000MHz) Test Requirement:FCC 47CFR 15.109 Class B Test Method:ANSI C63.4:2000 Test Date:2003-06-10 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. Note: According to ANSI C63.4: 2000 Section 12. During the test, signal generator would be transmit unmodulated CW signal and adjust the signal level to a EUT in order to measure the worst case emission. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2003-09-30 Test Report Page 10 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 Limits for Radiated Emissions [FCC 47 CFR 15.109 Class B]: Frequency RangeQuasi-Peak Limits [MHz] [μV/m] 30-88100 88-216150 216-960200 Above960500 The emission limits shown in the above table are based on measurement employing a CISPR quasi- peak detector and above 1000MHz are based on measurements employing an average detector. Results: Receiver 0 10 20 30 40 50 60 70 30130230330430530630730830930 Level (dB 猩 /m) Frequency (MHz) Limit Results Date: 2003-09-30 Test Report Page 11 of 15 No.: HM110689 DAR-Registration No.: TTI-P-G150/98-01 Results: Receiver FrequencyCorrectionLimit @3mE-Field FactorPolarity MHz dBμV/mμV/m 49.8626.010.036.063.1100Vertical 99.72<1.012.5<13.5<4.7150Vertical 149.58<1.09.8<10.8<3.5150Vertical 199.44<1.011.5<12.5<4.2150Vertical 249.…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
