PIYB5062-03A4RHYPERTUNERS HONDA CIVIC

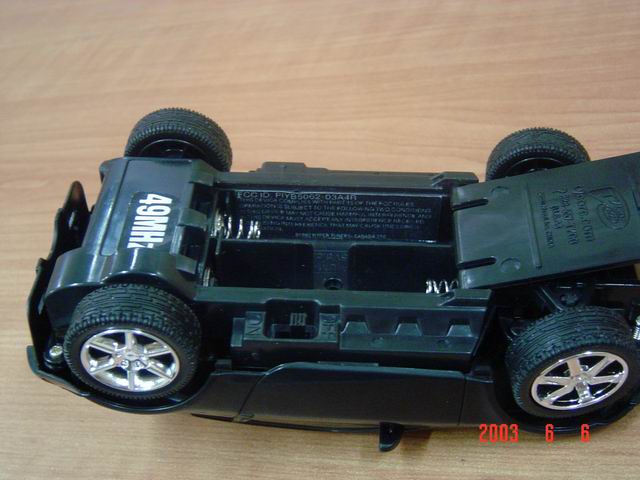

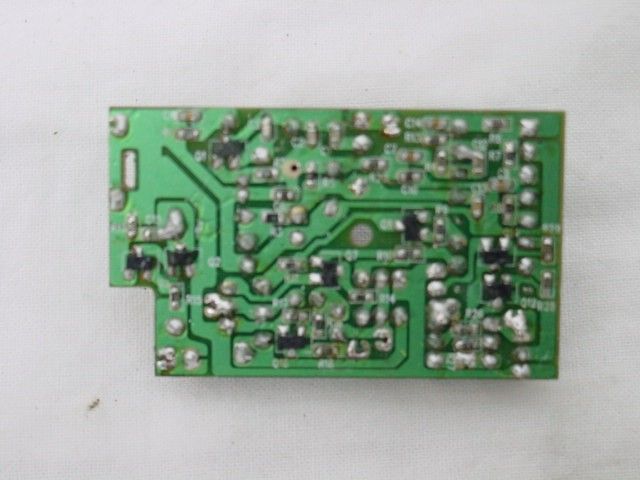

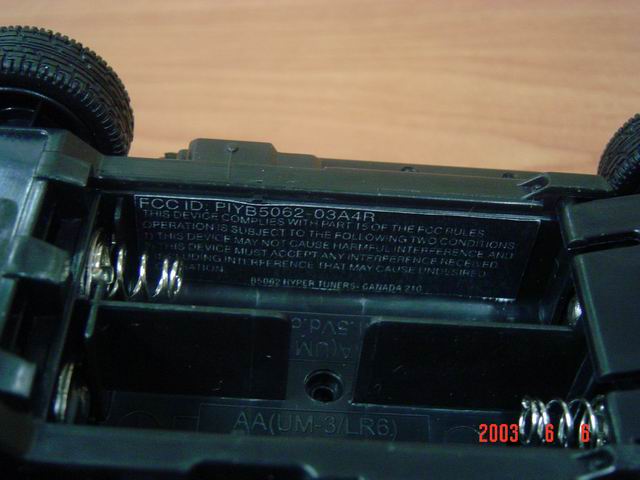

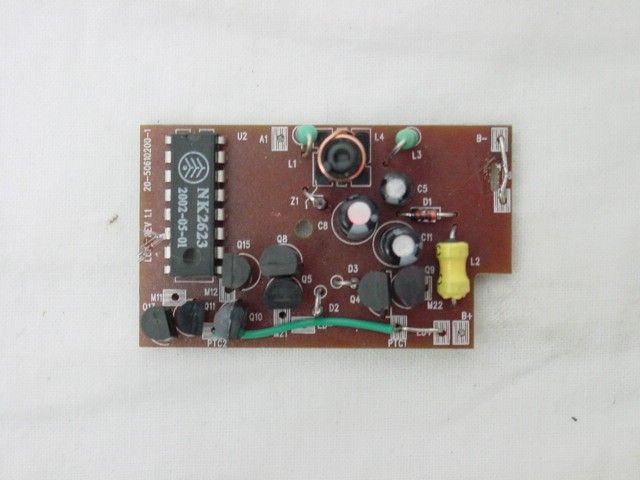

Mattel B5061 HyperTuners B5061 Hyper Tuners 49.860MHz Receiver Operational Description The Hyper Tuners (3.0V AA) powered, radio controlled toy vehicle. It is designed to operate on a single fixed frequency in the 49.82 ñ 49.90 MHz band. See the attached block diagram and schematic. The vehicle receiver receives and demodulates the AM transmitted signal from the transmitter, using a standard super-regenerative AM receiver/demodulator circuit comprised of ANT1, Q1, L1, L3, L4 and associated passive components. L4 is a tunable core slug inductor that is used to tune the receiver for maximum sensitivity. The output of the AM receiver/demodulator is AC coupled to a high input impedance CMOS inverter stage of the U2 decoder IC biased into their linear region through C12, C14, C9, R4, R13, R6, R7 which amplify, filter and shape the data. After the last inverter stage the incoming waveform is a digitized enough to be fed into the SI pin for on-chip decoding. A Zener regulator circuit comprised of C11, C13, Z1, Q2, Q3, R15, L2, and R12 creates the Dc-Dc convert supply voltage, VDD for the super-regenerative radio, decoder IC and Comparator section. Drive motors M are controlled by the U1 decoder IC, low power switching transistors Q6, Q7, and a high power H-bridge comprised of Q4, Q5, Q8, Q9, The Steering Motor M1 are controlled by the U1 decoder IC low power switching transistors Q12,Q14 and a high power H-bridge comprised of Q10,Q11,Q13,Q15, All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

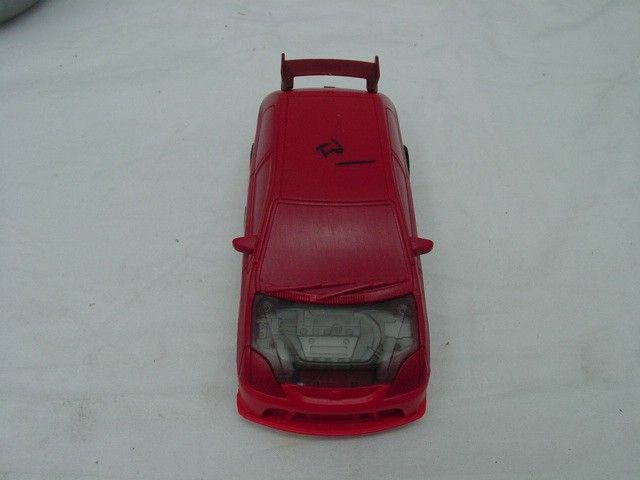

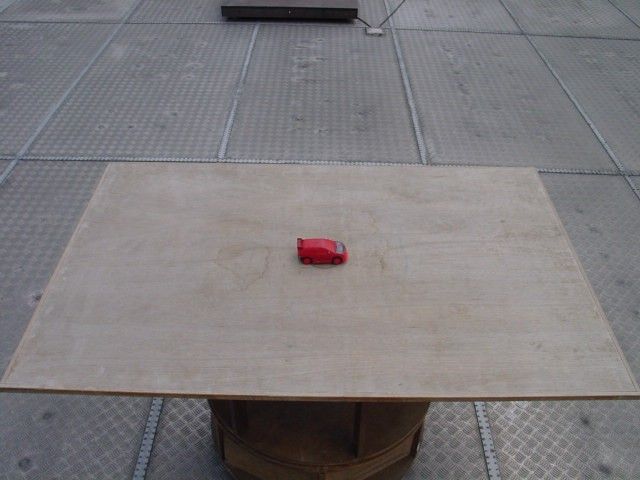

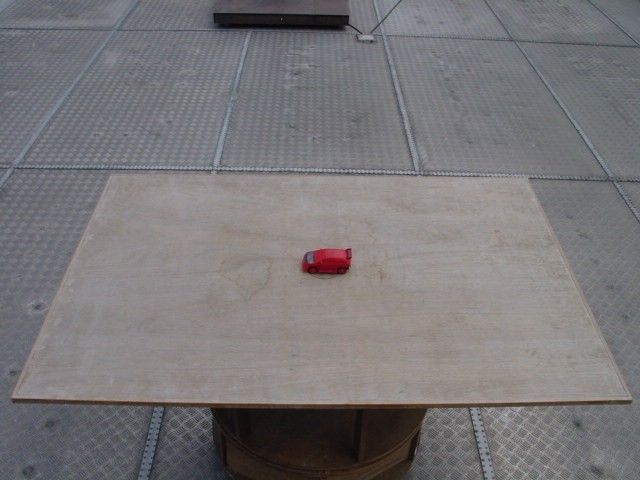

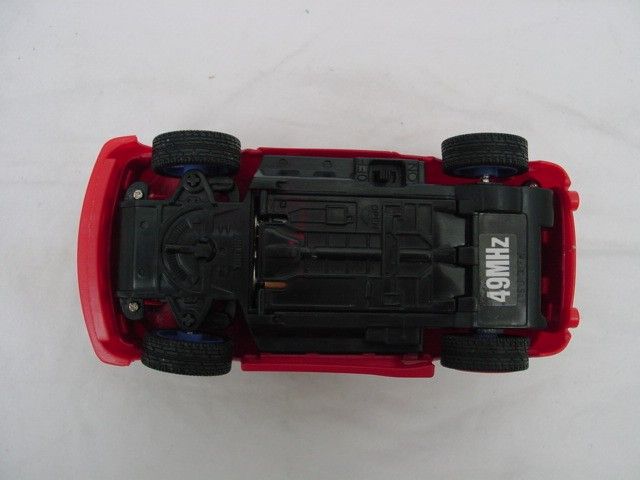

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009004-2 Date : 2003 July 08 Applicant : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Hypertuners Honda Civic of Model No. B5062 . Rating : 2 x 1.5 V AA size batteries No. of sample(s) : Two(2) pieces *** Date Received : 2003 May 20. Test Period : 2003 May 20 – 2003 June 28. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 10. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 10 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB5062-03A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009004-2 Date : 2003 July 08 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document................................................................................................................. 9 5.1 Bandwidth............................................................................................................................... 9 6 Appendices............................................................................................................................... 10 Page 2 of 10 FCC ID : PIYB5062-03A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009004-2 Date : 2003 July 08 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative for Hypertuners Honda Civic operating at 49.860 MHz which is controlled by a LRC circuit. The EUT is powered by 2 x 1.5 V AA size batteries. When received forward/backward signal, it will going forward/backward. When received left/right signal, it will going left/right. The brief circuit description is saved with filename : OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure. Page 3 of 10 FCC ID : PIYB5062-03A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009004-2 Date : 2003 July 08 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 1992. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken…
