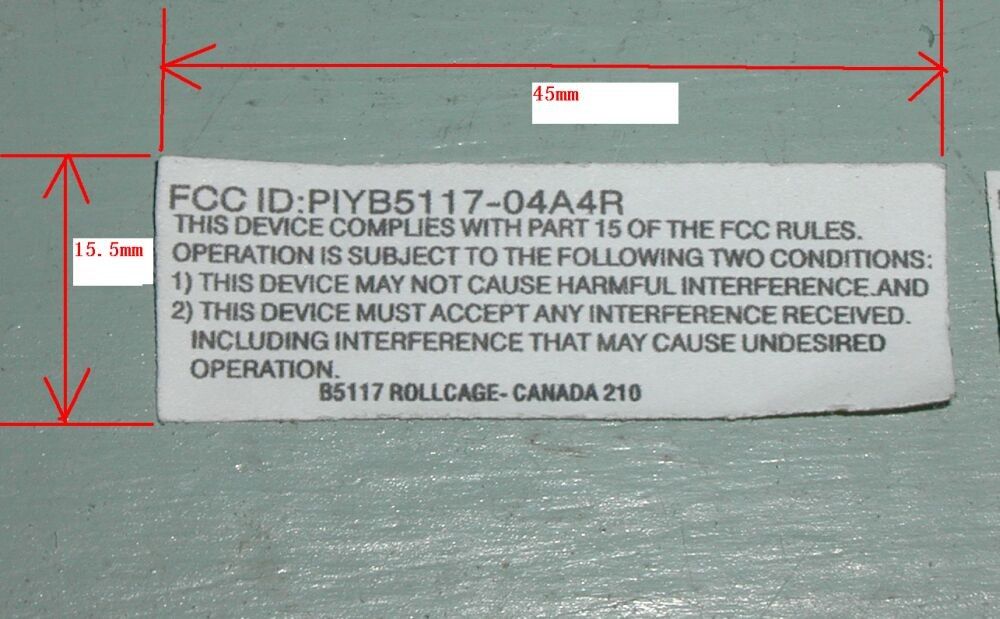

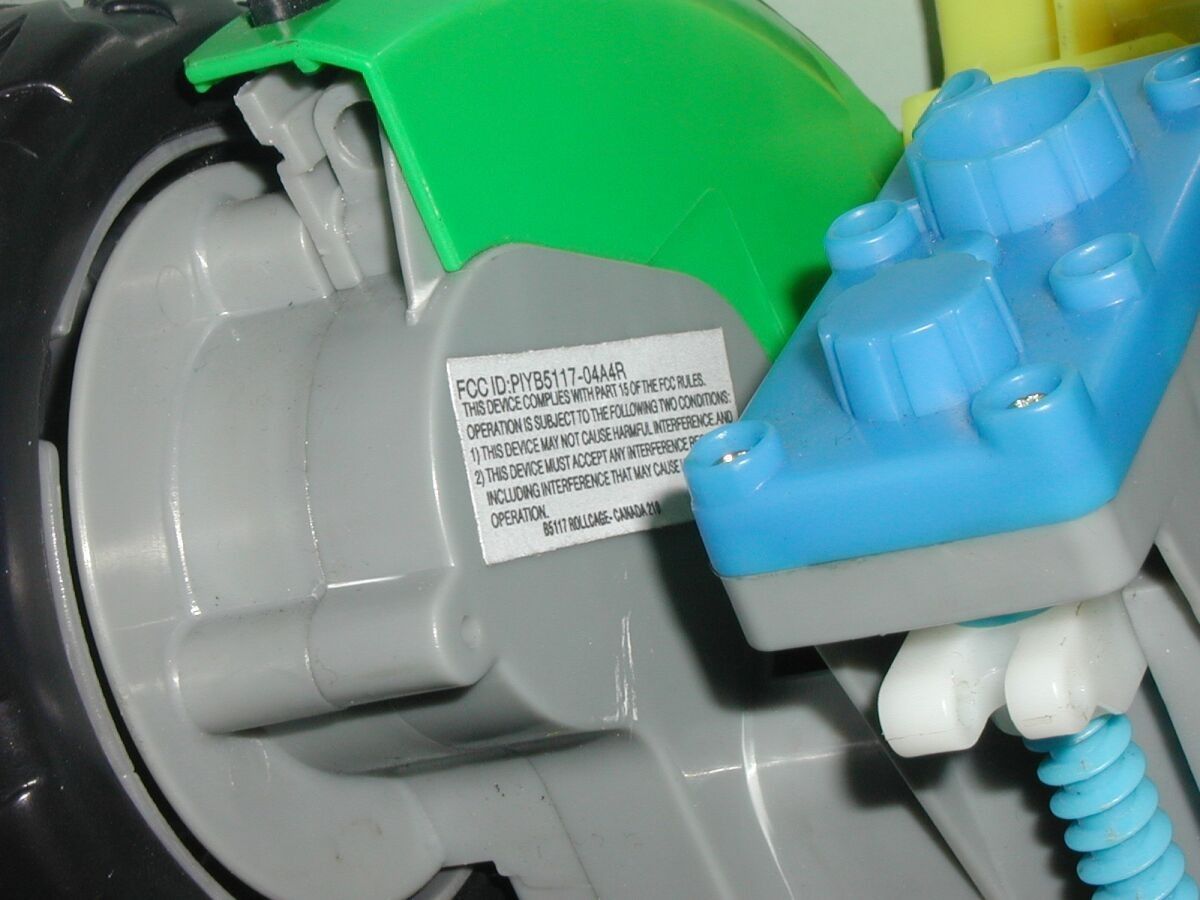

PIYB5117-04A4RRoll Cage

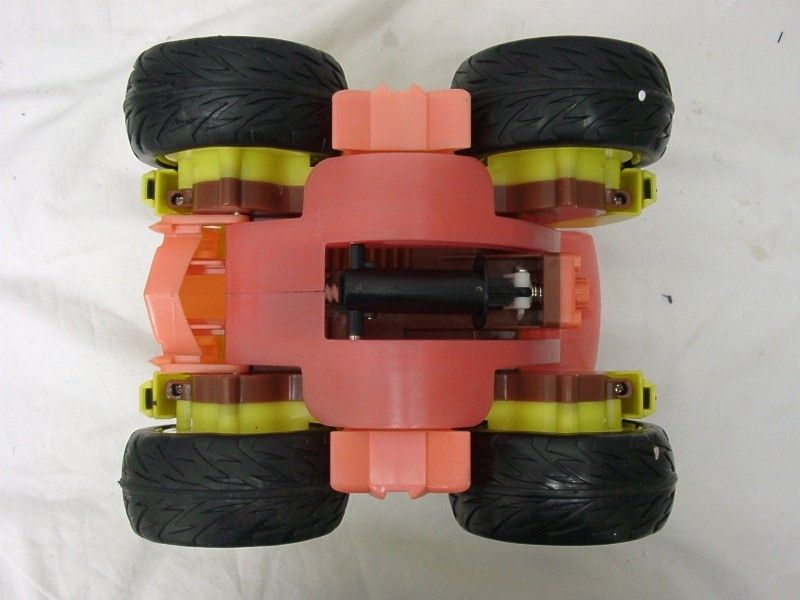

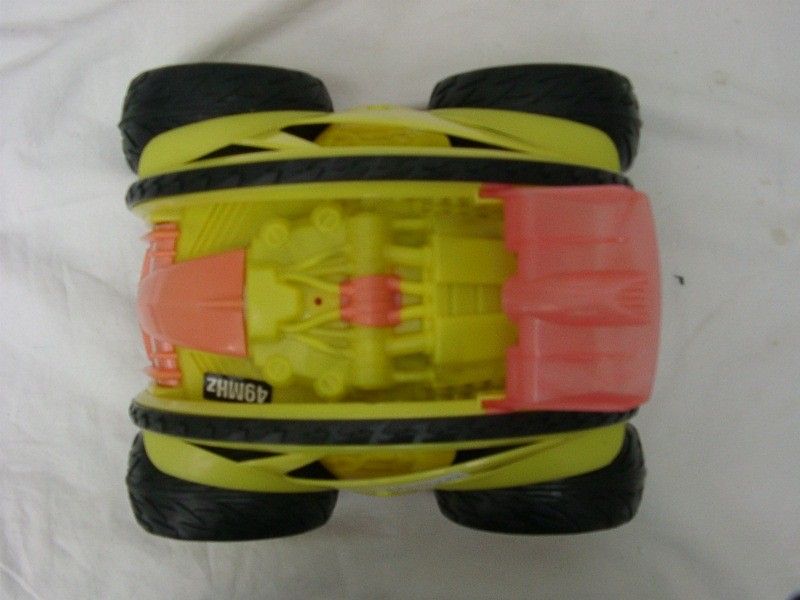

TYCO R/C SUPPORT Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. 1 888 557-TYCO (8926) ® tycorc.com B5115-0920 Vehicle This manual contains important information about the use and maintenance of your vehicle. The included DRIVER’S GUIDE tells you how to drive your vehicle...and how to do the wildest stunts ever! Keep these instructions for future reference: they contain important information. IMPORTANT: Please read all “Consumer Information” (last page) before operating your vehicle. CONTENTS/FEATURES USER’S MANUAL q t r y w q = Front = Rear qWhen your vehicle starts to lose power, it may lose functions or performance. It's time for a recharge. For best stunt performance, always start with a fully-charged battery. Your vehicle's running time may change depending on your driving style. wRadio interference can make your vehicle run badly. Interference can be caused by other R/C vehicles running on the same frequency; electrical wires; large buildings; CB radios; or other wireless gear. Try to stay away from these! ePoint your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won't work properly. rDon’t drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe with a towel and allow to dry completely. tDon’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. We recommend that you store your vehicle with the super stunt arm retracted. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy (product). To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the toy before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the toy. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this toy in a fire. The batteries inside may explode or leak. Battery Performance Note: For best performance use regular or high-performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. SAFETY TIPS • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. XCAUTION:To prevent entanglement, keep hair away from wheels. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Always turn the vehicle OFF before removing batteries. ìCONSUMER INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. QUICK TIPS ©2004 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA.All Rights Reserved. MATTEL, TYCO and associated trademarks and trade dress are owned by Mattel, Inc. Retain this address for future reference: Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628 500303.Mattel Australia Pty Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1300 135 312. Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P) Lot 13.5, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel: 03-78803817, Fax: 03-78803867. COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY)) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC which are designed to provide reasonable protection against such interference. NOTE:Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. 90-DAY LIMITED WARRANTY – TYCO® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will replace the product in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Replacement and return shipment will be free of charge. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liabi…

Text truncated - open the document above for the full version.

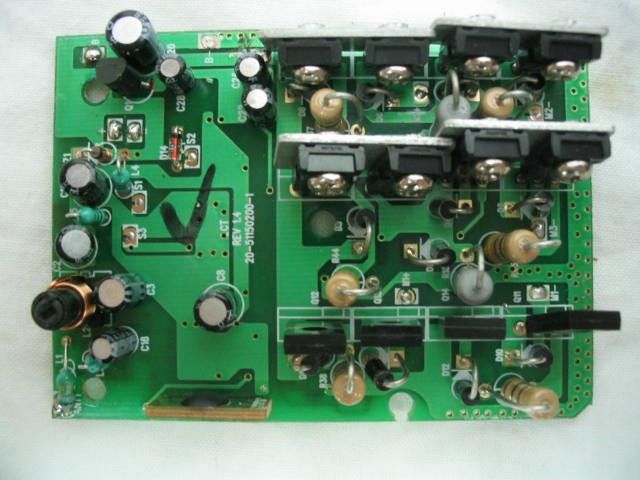

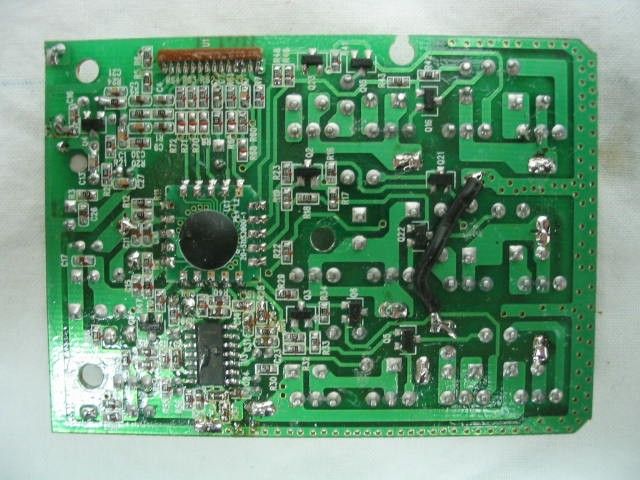

49.860MHZ Receiver Operational Description The Roll Cage is full function radio controlled toy car, it operates on 7.2v volts supplied by a 7.2v NIMH battery pack , It is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band . Please see the attached block diagram and schematic. The vehicle receiver receives and demodulates the AM transmitted signal from the transmitter, using a standard super-regenerative AM receiver/demodulator circuit comprised of ANT1 Q4, L1, L3, L2 and associated passive components. L2 is a tunable core slug inductor that is used to tune the receiver for maximum sensitivity. The output of the AM receiver / demodulator is AC coupled to a high input impedance COMS inverter is connected to the U1 decoder IC, It is biased into their linear region through C9, C4, C5, R1, R4, R5 and R6 and function as amplifier, filter and shape the data. After passing through the last inverter stage, the incoming waveform is a digitized enough to be fed into the IN1 pin for on-chip decoding. The left motor forward/reverse command is controlled by the U2 IC low power switching transistors Q21, Q22 and a high power H-bridge comprised of Q17, Q18, Q19, Q20. The right motor forward/reverse command is controlled by the U2 IC low power switching transistors Q5, Q6 and a high power H-bridge comprised of Q7, Q8, Q9 and Q10. The opening /closing motor is controlled by the U2 IC low power switching transistors Q15, Q16 and a high power H-bridge comprised of Q11, Q12, Q13 and Q14. The current protection is controlled by low switching transistors Q23, Q2 and Q3 A zener regulator circuit comprised of Q1, C20, R13, Z1, C19 and C17, it supplied voltage VDD for the super-regenerative radio ,decoder IC U1 , MCU IC U2. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

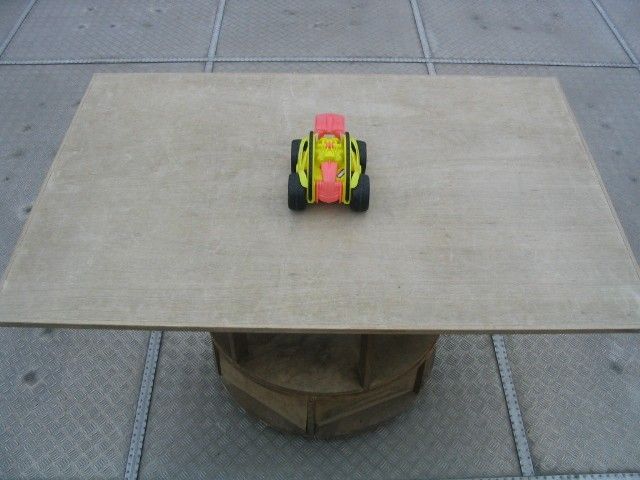

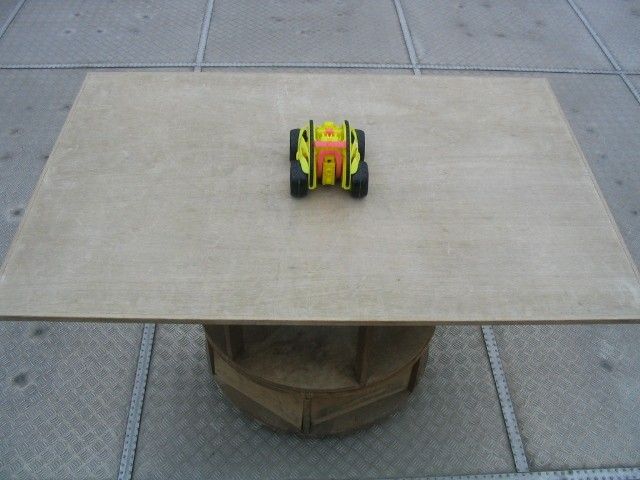

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006711-1 Date : 2004 June 07 Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Roll Cage of Model No. B5117. Rating : 7.2 V Rechargeable battery No. of sample(s) : Two(2) pieces *** Date Received : 2004 April 29. Test Period : 2004 April 29 ñ 2004 May 28. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB5117-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006711-1 Date : 2004 June 07 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYB5117-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006711-1 Date : 2004 June 07 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for Roll Cage operating at 49.860 MHz which is controlled by a LRC circuit. The EUT is powered by 7.2 V rechargeable battery. When it received a forward or backward signal, it will going forward or backward. When it received a left or right signal, it will turn left or right. The brief circuit description is listed as follows : - Q4 and associated circuit act as superregenerative - U1 and associated circuit act as receiver IC - U2, Q24 and associated circuit act as decoder - R7 and associated circuit act as oscillator for U1 - R12 and associated circuit act as oscillator for U2 - Q17-Q22 and associated circuit act as left motor control - Q5-Q10 and associated circuit act as right motor control - Q11-Q16 and associated circuit act as open/close driving motor control - Q2, Q3, Q23, U3 and associated circuit act as motor protection control - Q1 and associated circuit act as voltage adjust 1.2 Related Submittal Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure. Page 3 of 11 FCC ID : PIYB5117-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St…

Text truncated - open the document above for the full version.
