PIYB5117-04A4TRoll Cage

TYCO R/C SUPPORT Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. 1 888 557-TYCO (8926) ® tycorc.com B5115-0920 Vehicle This manual contains important information about the use and maintenance of your vehicle. The included DRIVER’S GUIDE tells you how to drive your vehicle...and how to do the wildest stunts ever! Keep these instructions for future reference: they contain important information. IMPORTANT: Please read all “Consumer Information” (last page) before operating your vehicle. CONTENTS/FEATURES USER’S MANUAL q t r y w q = Front = Rear qWhen your vehicle starts to lose power, it may lose functions or performance. It's time for a recharge. For best stunt performance, always start with a fully-charged battery. Your vehicle's running time may change depending on your driving style. wRadio interference can make your vehicle run badly. Interference can be caused by other R/C vehicles running on the same frequency; electrical wires; large buildings; CB radios; or other wireless gear. Try to stay away from these! ePoint your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won't work properly. rDon’t drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe with a towel and allow to dry completely. tDon’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. We recommend that you store your vehicle with the super stunt arm retracted. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy (product). To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the toy before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the toy. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this toy in a fire. The batteries inside may explode or leak. Battery Performance Note: For best performance use regular or high-performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. SAFETY TIPS • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. XCAUTION:To prevent entanglement, keep hair away from wheels. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Always turn the vehicle OFF before removing batteries. ìCONSUMER INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. QUICK TIPS ©2004 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA.All Rights Reserved. MATTEL, TYCO and associated trademarks and trade dress are owned by Mattel, Inc. Retain this address for future reference: Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628 500303.Mattel Australia Pty Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1300 135 312. Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P) Lot 13.5, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel: 03-78803817, Fax: 03-78803867. COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY)) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC which are designed to provide reasonable protection against such interference. NOTE:Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. 90-DAY LIMITED WARRANTY – TYCO® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will replace the product in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Replacement and return shipment will be free of charge. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liabi…

Text truncated - open the document above for the full version.

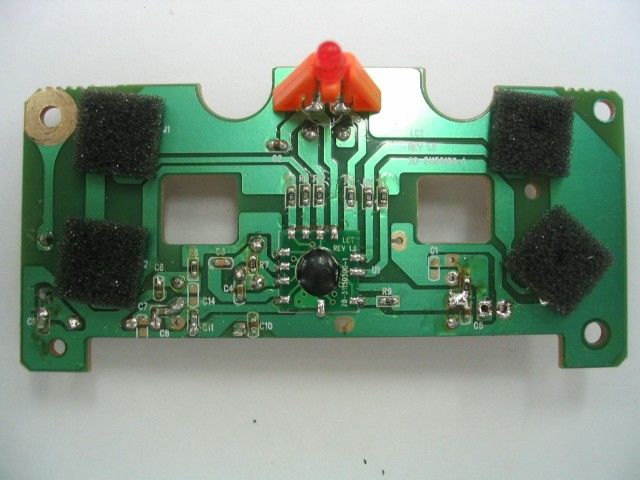

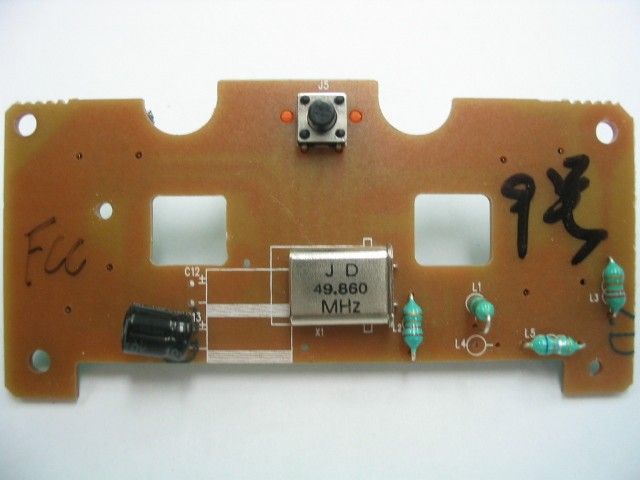

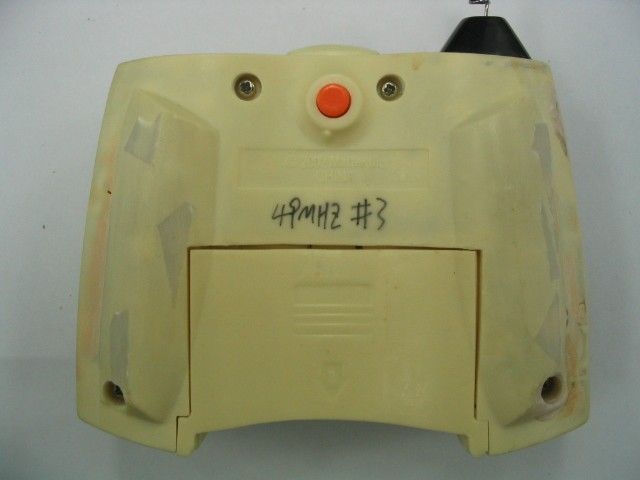

Transmitter Operational Description The transmitter device is used 1.5v *2 ‘AA’ batteries, it is designed to operate a single fixed frequency in the 49.860MHz band. Please see the attached block diagram and schematic. Transmitter is using a five-function Remote Control Encorder-SPRC205A integrated circuit, the SPRC205A is able to encode five sequences of binary information into a serial bit-stream data. When push any one of the button keys, it will have information activated, via built-in crystal oscillator and power amplifier, the controlling signal will be encoder into a bit-stream data, and as same time, the red LED D6 is flashing indicated that a controller in activation state, that means a bit-stream data sending from the RFO pin of integrated circuit, After five information sequences are becomes inactive, the SPRC205A will transmitter addition fifteen data frames to increase transmission reliability. Furthermore, capacitors C11, C7, C8, C9 and transistor T1 form a high frequency attenuator, it using to match antenna and reduce harmonic emission of carrier wave signal.

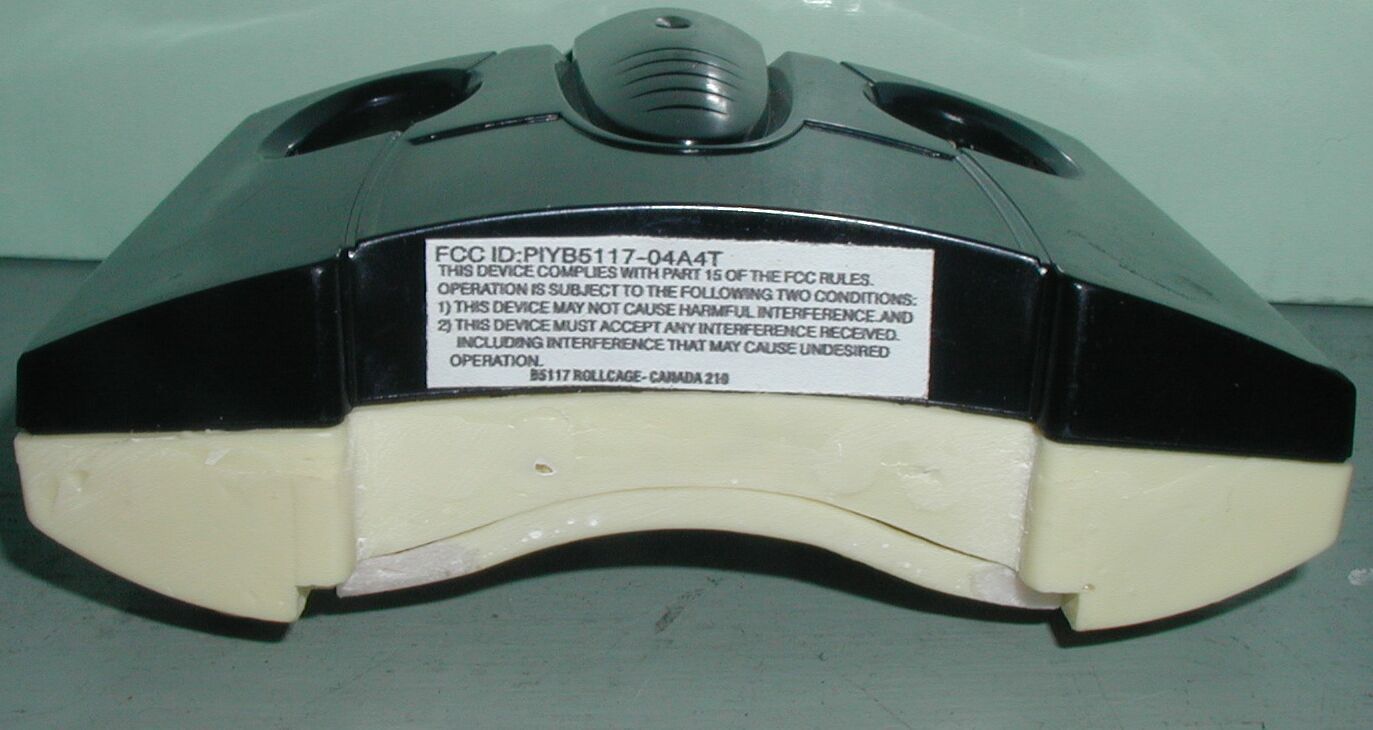

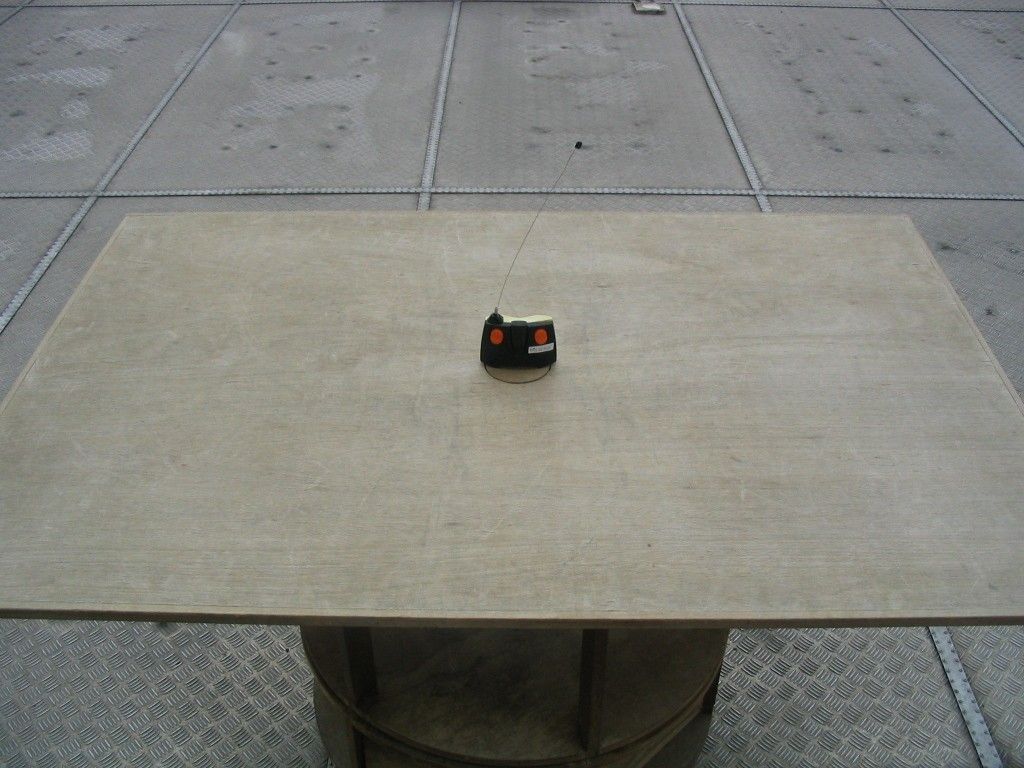

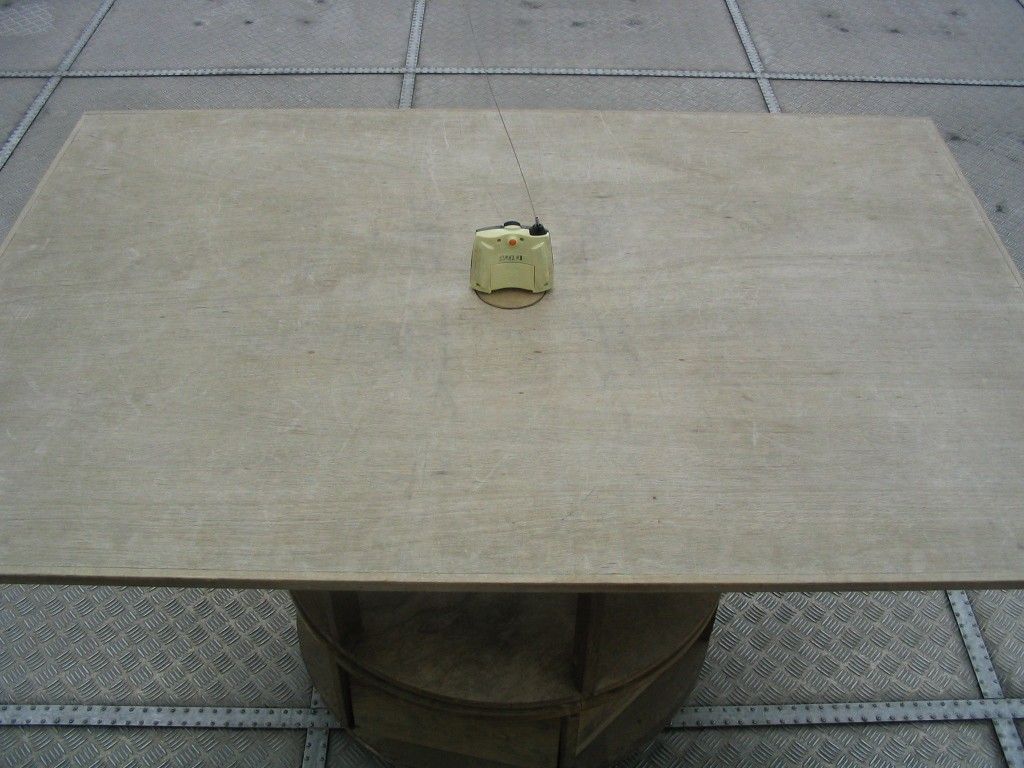

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006718-1 Date : 2004 May 18 Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Roll Cage of Model No. B5117. Rating : 2 x 1.5 V AA size battery No. of sample(s) : Two(2) pieces *** Date Received : 2004 April 30. Test Period : 2004 April 30 ñ 2004 May 13. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB5117-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006718-1 Date : 2004 May 18 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYB5117-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006718-1 Date : 2004 May 18 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Roll Cage operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5 V AA size battery. There are four buttons in the front of EUT. When the forward or backward button pressed once, it will transmit a radio frequency for receiver going forward or backward. When the left or right button pressed once, it will transmit a radio frequency for receiver turn left or right. The brief circuit description is listed as follows : - X1 and associated circuit act as oscillator - U1 and associated circuit act as encoder - L5, L3 and associated circuit act as filter 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 11 FCC ID : PIYB5117-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006718-1 Date : 2004 May 18 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 ñ 2001. An Open Area Te…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AE006718-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AE006718-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AE006718-1 Duty Cycle 2 Duty Cycle 3
