Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

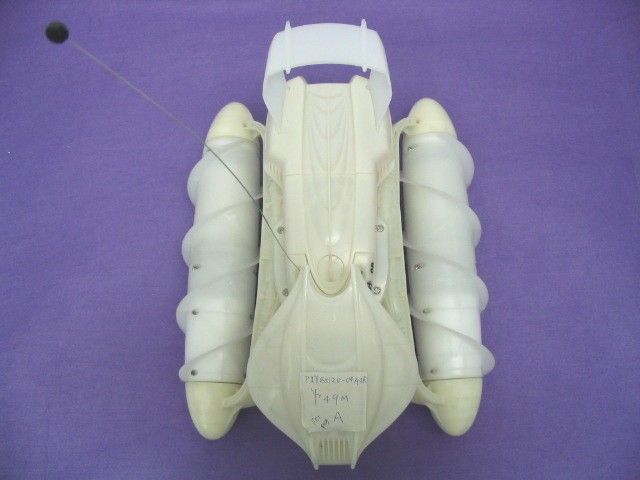

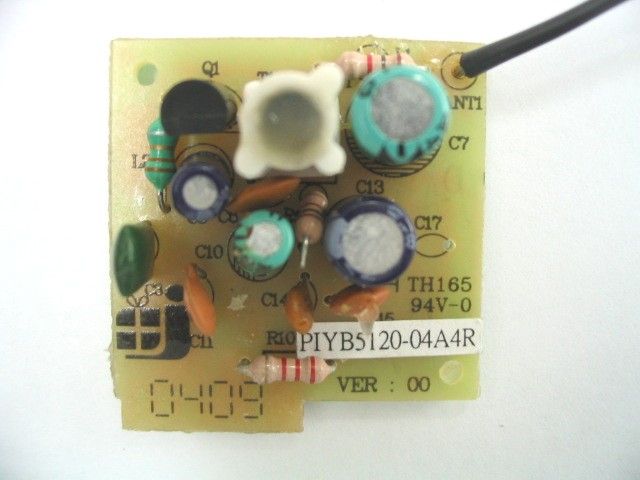

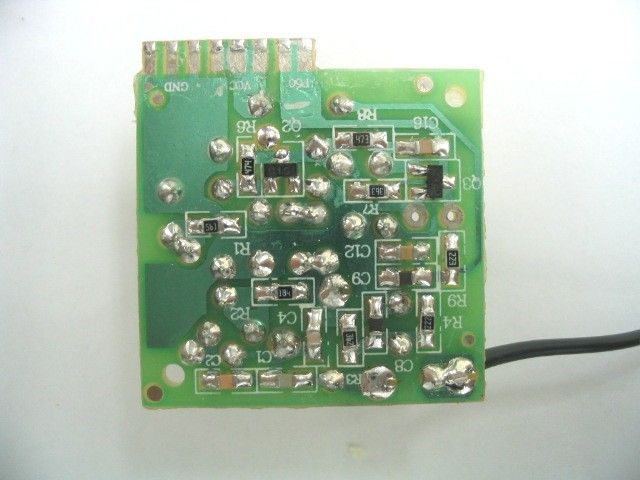

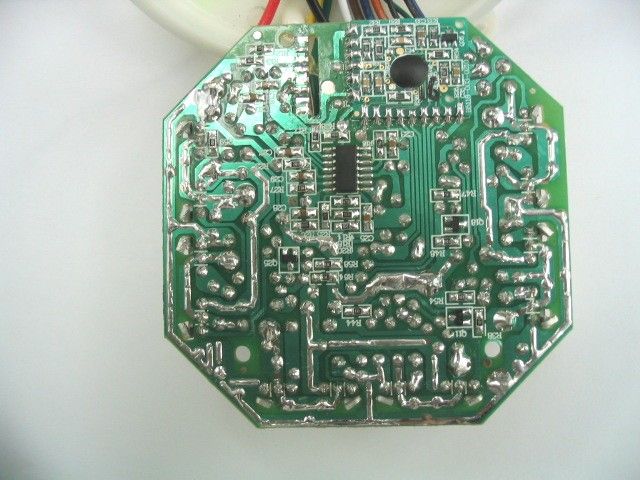

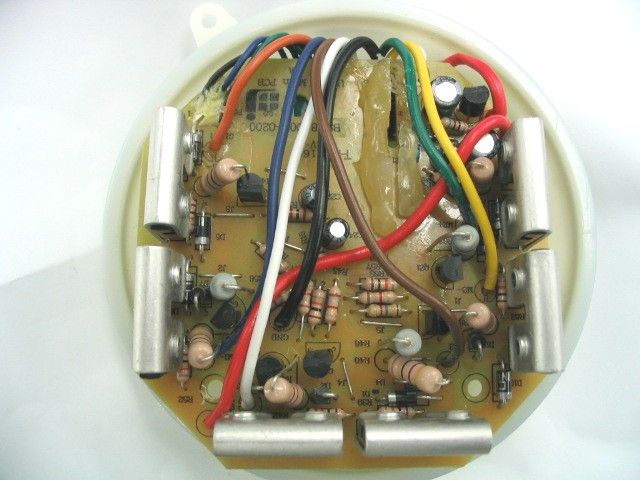

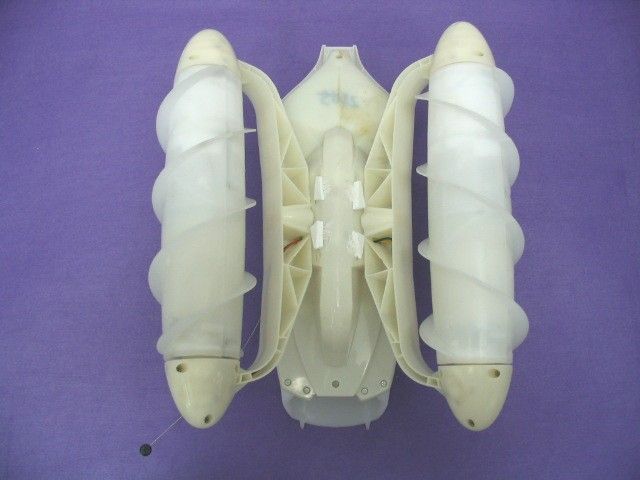

TERRAIN TWISTER B5120 49.860 MHz TRANSMITTER The EUT is a full function radio controlled toy car. It operates on 7.2 volts rechargeable NIMH pack battery and is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band. See the attached block diagram and schematic. The modulated RF signal from the transmitter induces an electrical signal into the carís permanently attached metal external antenna. The electrical signal is selectively amplified by a super regenerative input circuit (Q1, T1, L2, C2- C5). An amplifier consist of the transistors Q2, Q3 & itís associated components. The amplified signal is then input into an integrated circuit (U1) where the signal is decoded. Six pairs of digital outputs from the integrated circuit (U1) drives three full H-bridge drive circuit (Q5, Q6, Q8, Q9, Q12, Q13, Q15, Q17, Q19, Q20, Q22, Q23) for controlling the direction of three drive motors. Two micro switches SW2, SW3 feedback the movement position information of steering motor (M3), When release the related key on transmitter, the steering motor can move to center. (auto-center) The battery voltage is detected by a Low voltage protection circuit (R24~R27, C28, C29, U2). The voltage of U2ís pin1 will turn to low level (from high level) when the battery voltage drop to preset low level. When the low level at U2ís pin 1 maintain preset time, U1 will cut off its output until re-power off/on. The operating current of motors is detected by a over current protection circuit (R14~R23, C22~C27, R46, R56, R66, U2). The voltage of U2ís pin2 (or pin13, pin14) will turn to low level (from high level) when the operating current is rising up to preset value. When the low level at U2ís pin2 (or pin13, pin14) maintain preset time, U1 will cut off its output until retoggle the transmitter. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the user. No external ground is required or used with this receiver.
1 2 3 4 56 A B CD 6 5 4 3 2 1 D C B A Title Number Revision Size B Date: 2-Apr-2004 Sheet of File: D:\ly-b5118\..\B5120 RX(49M fcc)).sch Drawn By: Q1 2SC380Y/O R2 180K R5 100 C2 27pF C1 5pF ANT R40 47/1W Q7 SS8050 C/D R43 47/1W Q10 SS8050 C/D R4110K R3810K R44 10K C4 6PF L2 3.3uH BATT 7.2V R1 560 C12 0.1uF R3 3.6K R29 3.01K 1% C3 2200pF mylar R17 10K T1 7.5T R11 51 54 2 312 U2A LM339 R12 1K C33 0.1uF R2810K D1 1N4001 D3 1N4001 1110 13 U2D R15 1K R16 750 +/-1% R14 47K +/-1% D2 1N4001 D4 1N4001 76 1 U2BLM339 R24 10K +/-1% 98 14 U2C LM339 ZD14.3V Q4 2SC1015GR/Y R34 910K +/-1% 1 of 1 R35 100K R37 1.8K R3651K R33 210K +/-1% M3 Q8 2SC3420Y/O Q9 2SC3420Y/O SW1 C5 4.7uF C34 20pF Q6 2SA1357Y/O Q5 2SA1357Y/O C8 0.01uF Q2 2SC1623 C6 0.01uF C10 0.1uF C11 0.033uF R7 36K C150.047uF C14 1000pF Q3 2SC1623 L6/L7 R922K R4 2.2K R6 470K R8 47K C16 100pF R25 100K +/-1% R27 10K+/-1 % C29 0.1uF R26 866 +/-1% C28 0.1uF Q11 2SC1623 L6/L7 Vbatt R50 47/1W Q14 SS8050 C/D R53 47/1W Q16 SS8050 C/D R51 10K R4810K R54 10K D5 1N4001 D7 1N4001 D6 1N4001 D8 1N4001 R47 1.8K M2 Q15 2SC3420Y/O Q17 2SC3420Y/O Q13 2SA1357Y/O Q12 2SA1357Y/O Q18 2SC1623 L6/L7 Vbatt R60 47/1W Q21SS8050 C/D R63 47/1W Q24 SS8050 C/D R61 10K R5810K R6410K D9 1N4001 D11 1N4001 D10 1N4001 D12 1N4001 R57 1.8K M1 Q22 2SC3420Y/O Q23 2SC3420Y/O Q20 2SA1357Y/O Q19 2SA1357Y/O Q25 2SC1623 L6/L7 Vbatt P50P51P52P53VDDGND RST TCCOSC0OSC1P60P61 P62P63P66P67P64P65 U1 EM78156EH C23 0.1uF R19 1K R18 47K +/-1% R20 1K +/-1% C25 0.1uF R22 1K R21 47K +/-1% R23 1K +/-1% C27 0.1uF C300.1uF C31 0.1uF R32 51K R31 51K R30 51K C35 0.01uF C20 0.1uF C18 0.1uF R39 10K R42 10K R4910K R52 10K R62 10K R59 10K R46 0.02/1W R56 0.02 / 1W R66 0.02/ 1W FCC(00) TERRAIN TWISTER ly LM339 Q26 STA1037 /FHT9015Y R45 1.8K R551.8K R65 1.8K Vbatt VCC ABC BCA VCC VCC Vbatt VCC VCC VCCVCC B5120 Receiver (49MHz) C36 0.1uF C37 0.1uF C38 0.1uF C41 0.1uF C39 0.1uF C40 0.1uF C44 0.1uF C42 0.1uF C43 0.1uF R13 10K C9 0.047uF C7 470uF C13 100uF C19 220uF C21 220uF C22 3.3uF C24 3.3uF C26 3.3uF SW2 SW3 R10 2.2K + + + - - - L6/L7 Ra 1K /2SB1658 /2SB1658/2SB1658 /2SB1658 /2SB1658 /2SB1658 /2SD2583 /2SD2583 /2SD2583 /2SD2583 /2SD2583 /2SD2583

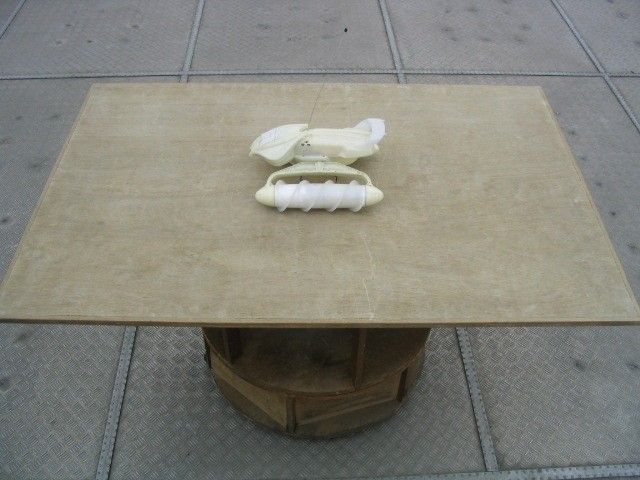

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-3 Date : 2004 April 27 Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Terrain Twister of Model No. B5120. Rating : 7.2 V rechargeable battery No. of sample(s) : Two(2) pieces *** Date Received : 2004 March 15. Test Period : 2004 March 15 ñ 2004 April 26. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB5120-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-3 Date : 2004 April 27 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYB5120-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-3 Date : 2004 April 27 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for Terrain Twister operating at 49.860 MHz which is controlled by LRC circuit. The EUT is powered by 7.2 V rechargeable battery. When received forward or backward signal, it will go forward or backward. When received left or right signal, it will turn left or turn right. The brief circuit description is saved with filename : descri.pdf 1.2 Related Submittal Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure. Page 3 of 11 FCC ID : PIYB5120-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-3 Date : 2004 April 27 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 ñ 2001. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 ñ 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and als…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15B | 49.86 MHz - 49.86 MHz | - |
