PIYB5120-04A4Tterrain twister

ANTENNA CRYSTALOSCILLATOR MODULATORRF AMPLIFIER VOLTAGEREGULATOR BLOCK-DIAGRAMB5120 TRANSMITTERMAIN PCB :PIYB5120-04A4T FILTER 49.86MHZ 9V BATTERY POWER ON/OFF LED EM78156EH OSC1 VDDVSS U1 Forward BackwardLeftRightSteering Motor ForwardSteering Motor Backward Clock 2.01MHz

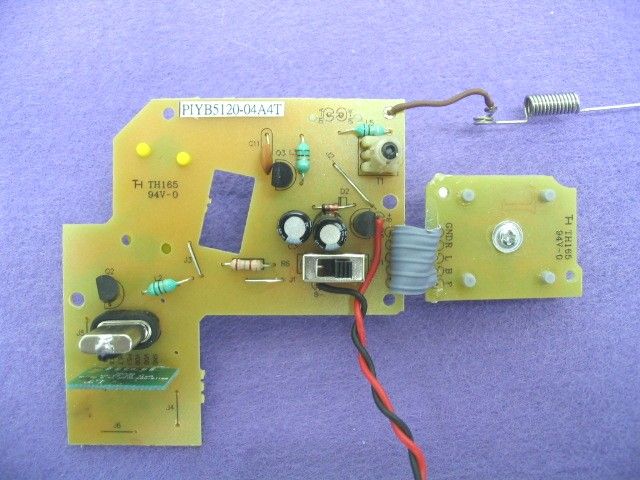

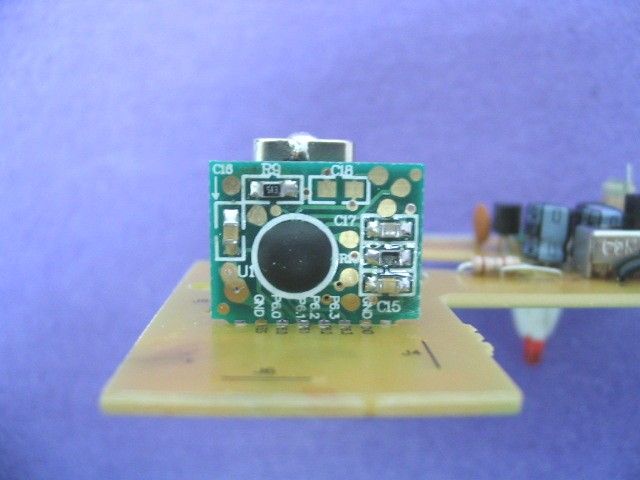

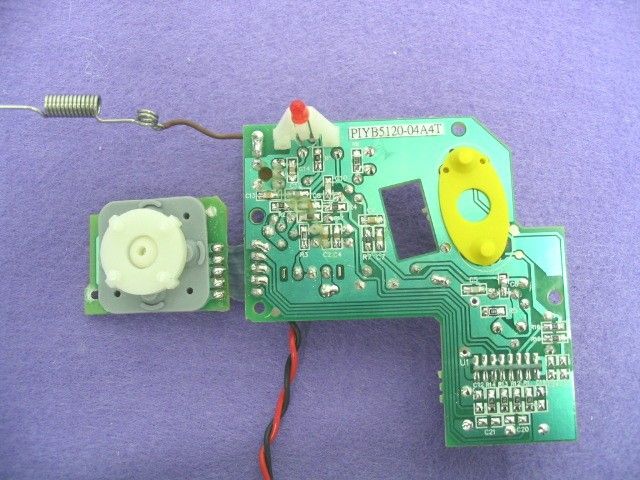

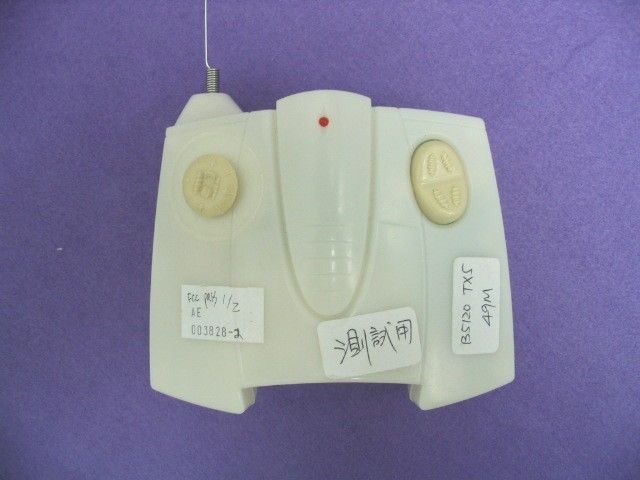

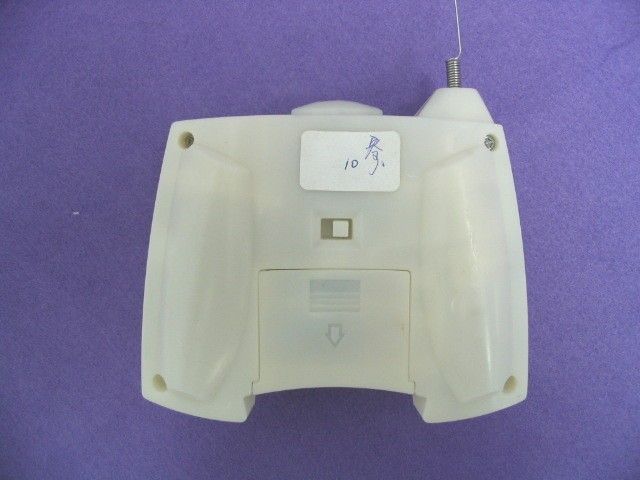

TERRAIN TWISTER B5120 49.86 MHz TRANSMITTER The EUT is a low powered, hand held unit for controlling the movement of a toy car. The EUT is powered by a 9-volt battery. It is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band. See the attached block diagram and schematic. Input switches trigger an integrated circuit (U1) which produces the digital control signals that will modulate the carrier signal. The carrier signal is generated by a crystal oscillator circuit comprised of a 49.86 MHz crystal (Y1) and a pnp transistor (Q2). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage (Q3). The modulated output signal of the RF amplifier is coupled to the antenna (via C12) through a ìpiî matching network comprised of C13, T1 and C14. The antenna is about 15 inches long and permanently attached. A LED acts as a power-on indicator.

1 2 3 4 56 A B CD 6 5 4 3 2 1 D C B A Title Number Revision Size A4 Date: 1-Apr-2004 Sheet of File: D:\ly-b5118\..\B5120 TX (49M).sch Drawn By: R15 1K R14 1K R13 1K R12 1K R11 1K SW6 Steering Motor Forward SW5 Right SW4 Left SW3 Backward SW2 Forward C1 220 uF C2 0.1uF D2 4.3V R4220 C3 220 uF C4 0.1uF R3 22 R2 1K Q1 2SA1015GR B1 9V BATTERY SW1 Y1 49.86MHZ Q2 2SA1015GR R6 180 R5 68K C58PF C6 39PF C722PF C9 330PF R768k Q3 2SC1815GR R8 100 C1256PF C13 33PF C110.01uF C14 33PF C17 22pF ANT C8 0.01uF ON OFF T1 7B-ZT3330-4 C10 8PF L2 1.2uH R1680 D1 3 mm Red LED R10 TBD +/-1% L3 1.2uH C15 0.1uF R16 1K SW7 Steering Motor Backward R9 51K C16 0.1UF P5.1 VDD RST VSS OSCI TCC B5120 Transmitter (49MHz) FCC(00) TERRAIN TWISTER P60P61P62P63P66P67 L52.2uH R17 1 EM78156EH ly C230.1uF C24 0.1uF C20 0.1uF C22 0.1uF C21 0.1uF C19 0.1uF U1 1 1 Remark : R10 value is to be adjusted per each lot of IC , typically it is 4.12k ohm 2 2 C19~C24 is only prepared on layout

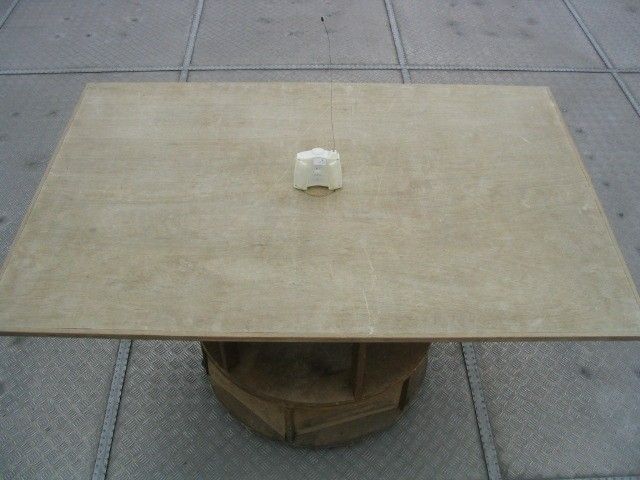

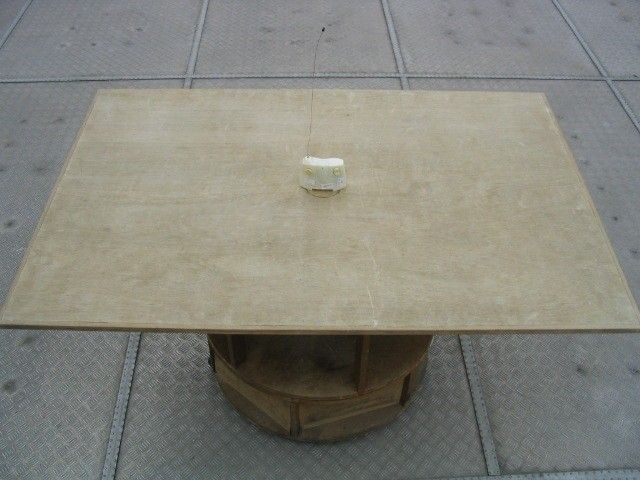

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-2 Date : 2004 April 27 Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Terrain Twister of Model No. B5120. Rating : 9 V battery No. of sample(s) : Two(2) pieces *** Date Received : 2004 March 15. Test Period : 2004 March 15 ñ 2004 April 26. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB5120-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-2 Date : 2004 April 27 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYB5120-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-2 Date : 2004 April 27 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Terrain Twister operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by 9 V battery. There are four button keys in the front of the EUT. When the forward or backward button is pressed once, it will transmit a radio frequency for receiver going forward or backward. When the left or right button is pressed once, it will transmit a radio frequency for receiver going left or right. The brief circuit description is saved with filename : descri.pdf 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 11 FCC ID : PIYB5120-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE003828-2 Date : 2004 April 27 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 ñ 2001. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 ñ 13 Wong Chuk Yeung …

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AE003828-2 Bandwidth Plot Bandwidth 1 Bandwidth 2 N/A

CMA Testing and Certification Laboratories P. of Report No.: AE003828-2 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AE003828-2 Duty Cycle 2 Duty Cycle 3
