PIYB6463-03A2TXFO

TYCO® R/C XFO™ CAUTION – ELECTRIC TOY: NOT RECOMMENDED FOR CHILDREN UNDER 10 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. INPUT: 120VAC, 60Hz, 18W. OUTPUT: 15.6VDC, 0.6A, 9.36VA. l CAUTION: Stay clear of the rotor at all times when operating this vehicle. Contact with spinning rotor may cause injury or damage, or may damage the rotor. Keep these instructions for future reference: they contain important information. SAFETY INFORMATION Adults, this toy is recommended for children 10 years of age and older. To ensure that the child’s play is both safe and fun, please review the operating instructions and these general safety rules with the child. Keep fingers, hair and loose clothing away from the rotor while the vehicle is switched ON. Maintain a minimum 10’/3m distance between yourself and the vehicle during operation. DO NOT operate the vehicle indoors. NEVER hold the vehicle while operating. ALWAYS launch the vehicle from level ground. NEVER stand under the vehicle during flight. During operation, maintain a minimum 10’/3m distance between the vehicle and other people or animals. Keep small children away from the vehicle at all times. In the event that the vehicle comes too close to a person, animal or obstacle during flight, push the control stick all the way down to activate the stop feature. Adult supervision is recommended AT ALL TIMES during operation of this toy. To avoid accidental operation, remove the transmitter battery when not in use. If the vehicle and/or charger get wet, discontinue use until they are completely dry. Thoroughly wipe off all moisture and allow them to air-dry completely before use. DO NOT fly in or near the street! Make sure you have plenty of open space in all directions (please read Section VI carefully before operating). DO NOT stand (or allow others to stand) downwind of the vehicle while flying. NEVER operate the vehicle if the rotor blades are broken or damaged. ALWAYS make sure the rotor blades are properly attached and the screws holding them are fully tightened. NEVER operate the vehicle unless it is fully assembled. NEVER throw foreign objects into the path of the rotor. INTRODUCTION Please read this manual thoroughly for detailed operating instructions and important safety information. • The XFO™ vehicle is an advanced-technology vertical-takeoff flying machine with cool features. It’s easy to fly, challenging to master...and lots of fun! • You will need to assemble your vehicle before use. This is a simple, one-time process (please see Section II for assembly instructions). This is an advanced flying machine! Assembly is a fun “science project” you get to play with after it’s done. • This vehicle is powered by a NiMH battery that is permanently installed. The vehicle must be fully charged before using. • The vehicle is recharged with a handy Field Charger that can be used at your selected flight location. • The Field Charger must be charged at a wall outlet before it can be used to recharge the vehicle. You will need to charge the Field Charger for at least 16 hours before use (please see Section III for details). Once the Field Charger is fully charged, it will be able to recharge the vehicle many times. NOTE: you must disconnect the Field Charger from the vehicle before operating the vehicle. I. CONTENTS/FEATURES 1. XFO™ vehicle (shown fully assembled; please see Section II for assembly instructions) q Rotor w Lightweight body e ON/OFF switch r Recharging connector (Field Charger plugs in here) t Landing legs (x4) 2. Field Charger q Vehicle recharge cord (plugs into vehicle) w Vehicle recharge cord storage (insert cord into groove as shown) e CHARGE button r LED charge indicators (2): red and green 3. Wall Charger q This end plugs into wall outlet w This end plugs into Field Charger l CAUTION: Use only the charger supplied with this toy. Do not use any other charging source. 4. Transmitter q Joystick flight control (please see Section V for detailed operation) w ON/OFF switch e LED indicator r Antenna 5. Battery installation – Transmitter (1) To install transmitter battery, unscrew and open battery cover as shown. (Screwdriver not included.) (2) Install one 9V battery with polarity (+/-) as shown inside battery compartment. (3) Replace battery cover and tighten screw. II. VEHICLE ASSEMBLY Vehicle assembly is a one-time process. It’s easy and fun...just follow the easy steps below. Before you begin: remove all vehicle components from the package and check them against this list: (1) Motor/power module (2) Lightweight body panels (x3) (3) Rotor (4) Landing legs (x4) (5) Retaining rings (x2) (6) Self-adhesive nosecone label STEP-BY-STEP ASSEMBLY 1. The first step is to assemble the vehicle body panels over the motor/power module. Begin by locating the body panel with holes in it (these are for the switch and the recharging jack). 2. Fit this body panel over the motor/power module, making sure that the switch and the recharging connector are accessible through the body panel holes. 3. Add the remaining 2 body panels as shown. 4. The body panels are secured by 2 retaining rings. NOTE: the two retaining rings are different sizes: one has a larger diameter than the other. Slide the smaller retaining ring over the nosecone (top) of the vehicle as shown, fitting it securely into the groove. Slide the larger retaining ring over the bottom of the vehicle as shown, fitting it securely into the groove. 5. Attach the self-adhesive nosecone label to the top of the vehicle as shown. Be sure to overlap the edges as shown. NOTE: the nosecone label adds strength to the vehicle! 6. Attach the 4 landing legs to the vehicle as shown. Make sure the legs slide in and click securely in place. 7. Snap the rotor onto the vehicle as shown. Make sure the rotor clicks securely in place. NOTE: If the rotor detaches after a landing, simply reattach it as described in this step. NOTE: If the rot…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 9-Jun-2003 Sheet of File: \\Kpe-hqh\D\B6463\emc\dw\ C.sch 示示示 Drawn By: ROS 11 C1 8 C2 7 C6 6 C7 5 D6 3 D7 4 RESET 13 VCC 9 VSS 5 SPC11A1 SW2 SW3 SW4 SW5 LED CRYSTAL OSCILLATOR MODULAROR & RF AMP Y1 27.14MHz VOLTAGE RAGULATOR 9V BATTERY SW1 ANTENNA BLOCK DIAGRAM B6463 TR ANSMITTER PCB TX C1791-6508 (U27)




                   !"             #!$%&'()    *+ ,!-%&              *    .*/-012  34   !-% & !%       5! 6    -7-58/
            #  5   9
  #    6    *. -
    6 5   68/
 !
:1;6<
5-5&.*/*/ ,               -7!            4 *  90!$%&'()2    3
       6&1%!5
        6 *+!*+!        %0$2<          6   8
5+          +      +!
0    :1;6,2  5* +!     .*/% <7   :1;65+<                %=5+85+<               *  :1;6    +!      .*/%
=$:                - .&.*/*/   &.*/*/ , 93
  ì  î ,0>6              2
7? 6 5    8  6 %  5    7?
    7? @ A7?  ÖÖ   A7?   ÖÖ      7?  ÖÖ    786   6       7?  ÖÖ   :16  5          7? A7?   ÖÖ  6   &.*/*/   &.*/*/ ,

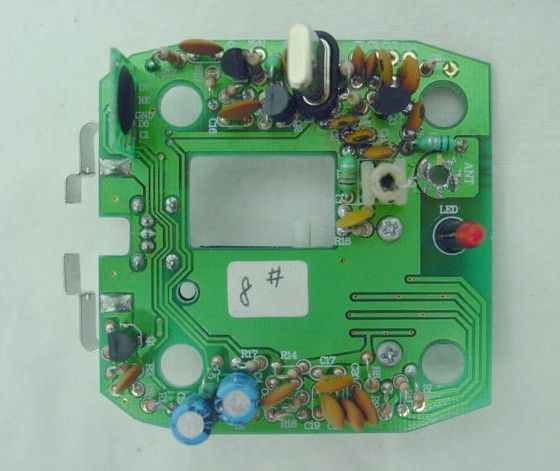

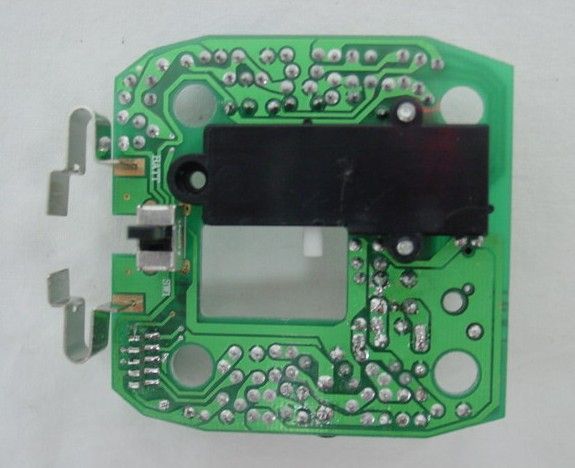

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 11-Jun-2003 Sheet of File: \\..\B6463TX.sch Drawn By: R14 1KR15 1K R16 1K R17 1K R8 10K R9 10K R10 10K R11 10K SW5SW4 SW3 SW2 R1351K R12 82K R31K R422 R1 120 D1 4.3V1N5229B L5100uH Q1 2SA1015 9V BATTERY R2390 Q2 2SA1015 C7 47pF Y1 27.145MHz R5 68K L4 1.2uH C1247pF C9 47pF C13 100pF C8 47pF Q32SC1815 R6 100 C140.01uF R7 6.8K R191K C2 22pF C11 150pF C10 12pF L1 1.2uH L2 0.56uH T1 1.5uH C4 220uF C3 220uF Antenna Q4 9014B/C R18680 R20 5.6K D2 Red LED VCC XFO ( 27MHz) TX EMC C15 0.1uF C17 0.1uF C18 0.1uF C190.1uF C20 0.1uF C16 0.1uF C5 0.1uF C6 0.1uF C1 0.01uF SUPLUS Rosc 11 D0 1 C1 8 D1 2 C2 7 D6 3 C6 6 D7 4 TEST 12 C7 5 AUD 14 VSS 10 RESET 13 VDD 9 U1 Sunplus SPC11A1 SW1 SPDT SLIDB B6463 VCC

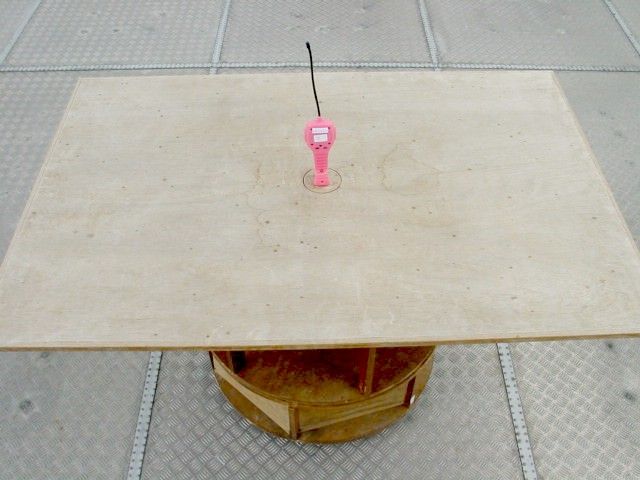

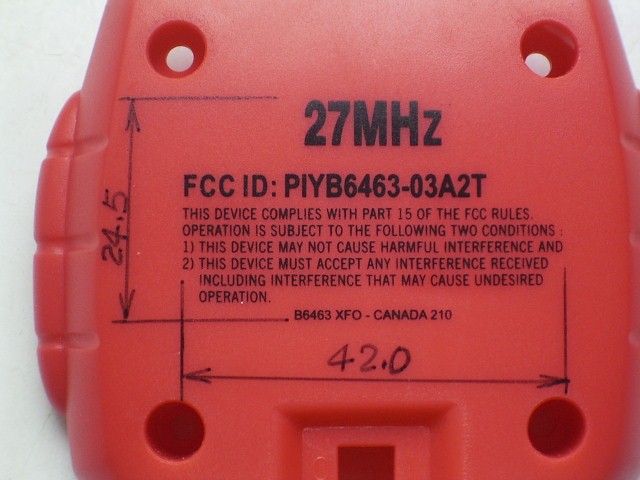

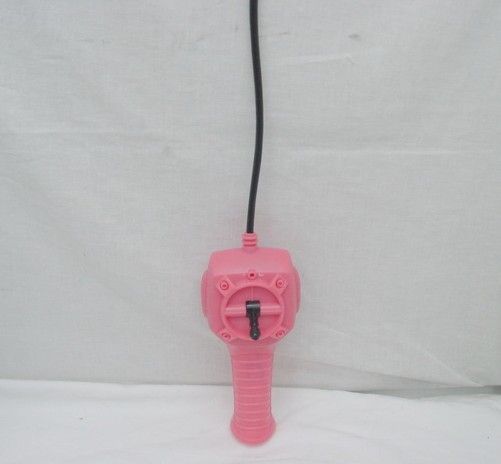

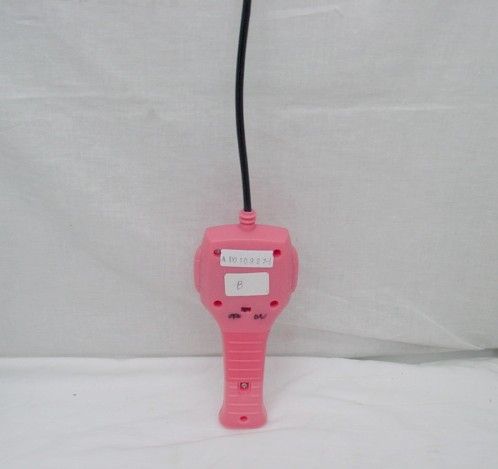

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010927-1 Date : 2003 July 08 Client : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be XFO of Model No. B6463. Rating : 9 V size battery No. of sample(s) : Two(2) pieces *** Date Received : 2003 June 14. Test Period : 2003 June 14 – 2003 July 02. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB6463-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010927-1 Date : 2003 July 08 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYB6463-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010927-1 Date : 2003 July 08 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for XFO operating at 27.145 MHz which is controlled by a crystal. The EUT is powered 9 V battery. There a joystick in the center of the EUT. When the joystick push up once, it will transmit a radio frequency for receiver flying up. When the joystick push down once, it will transmit a radio frequency for receiver stop flying. The brief circuit description is saved with filename : OpDes.pdf 1.2 Related Submittal Grants The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : PIYB6463-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010927-1 Date : 2003 July 08 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 1992. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures o…
