PIYB6723-03A2TFORD F-150 STREET BEAST

ANTENNA 006P(9V) LEFTB FOSC OSC1 OSC0 PC VDD SO RIGHTB TESTB GND BACKWARDB FORWARDB TURBOB SC IC1 OSCILLATOR TIMING GENERATOR ENCODINGCIRCUIT LOGIC LATCH CIRCUIT CRYSTALOSCILLATOR MODULATORRF AMPLIFIER VOLTAGE REGULATOR BLOCK-DIAGRAMB6723 TRANSMITTER 27.145MHzMAIN PCB : PIYB6723-03A2T FILTER 27.145MHz

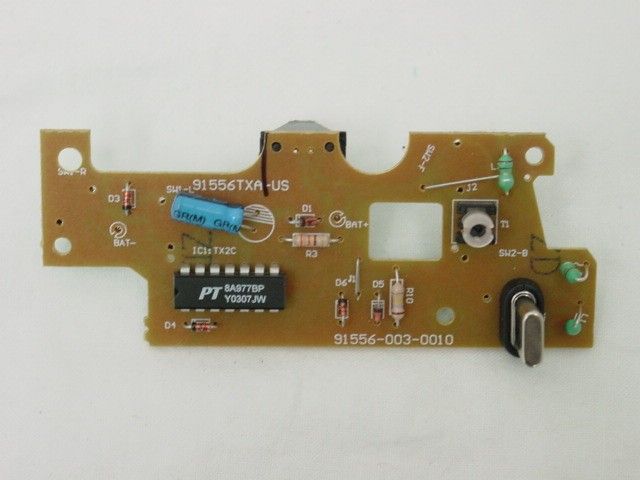

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 4-Jun-2003 Sheet of File: D:\Andrew\FCC \sch\B6723TX27US.sch 原原原 Drawn By: C6 33PF C3 0.01UF C14 15PF C13 100PF C1 0.01uF C7 150PF C9 0.01UF C8 33PF D3 1N4148 D6 1N4148 D5 1N4148 D4 1N4148 BT19V ANTENNA C2 47uF Q4 2SC2712 O/Y/GR D1 4.3V L3 5.6uH L22.2uH T1 TH07-866868 R3330 RB 1K RC1K RD 1K RA1K R668K R106.8K R8100 R1 120K/120K/140K 9.6V Ford F-150 (27M US) B6723 JETTA HBEE 00 LT RT BW FW 1 1 Q2 2SC2712 O/Y/GR R9220 C1247PF 1 2 3 4 5 6 78 9 10 11 12 13 14 IC1 PT8A977/NK2622/TX2C C1647PF R12 1K 1/2W C1820PF L1 2.2uH Y1 27.145MHz LED1 red3mm C4 0.01UF R13100OHM C19 0.01UF SW1-LSW1-R SW1-FSW1-B

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009754-1 Date : 2003 July 19 Client : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Ford F-150 Street Beast of Model No. B6723 . Rating : 9 V battery No. of sample(s) : One(1) piece *** Date Received : 2003 May 30. Test Period : 2003 May 30 – 2003 July 18. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB6723-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009754-1 Date : 2003 July 19 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYB6723-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009754-1 Date : 2003 July 19 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Ford F-150 Street Beast operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 9 V battery. There are four buttons in the center of the EUT. When the forward/backward button is pressed once, it will transmit a radio frequency for receiver going forward/backward. When the left/right button is pressed, it will transmit a radio frequency for receiver going left/right. The brief circuit description is saved with filename : OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : PIYB6723-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009754-1 Date : 2003 July 19 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 1992. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 – 13 Wong Chuk Yeu…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AD009754-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AD009754-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AD009754-1 Duty Cycle 2 Duty Cycle 3
