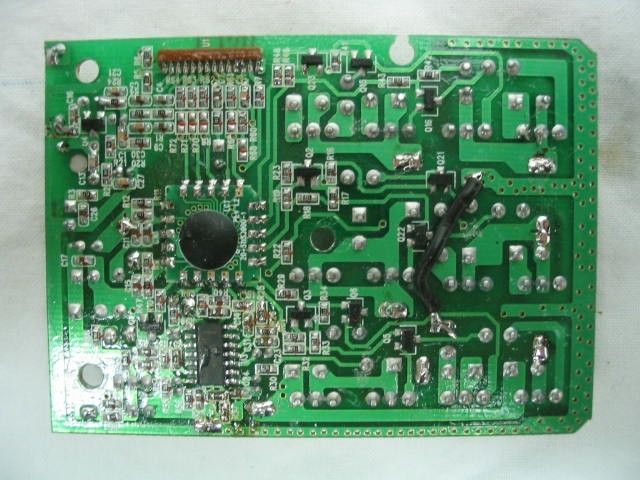

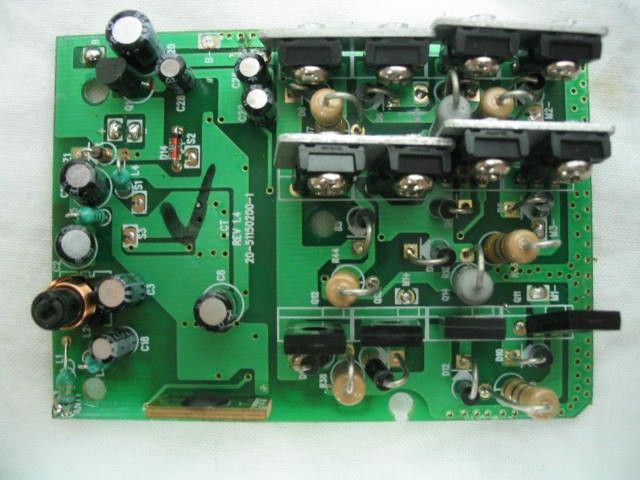

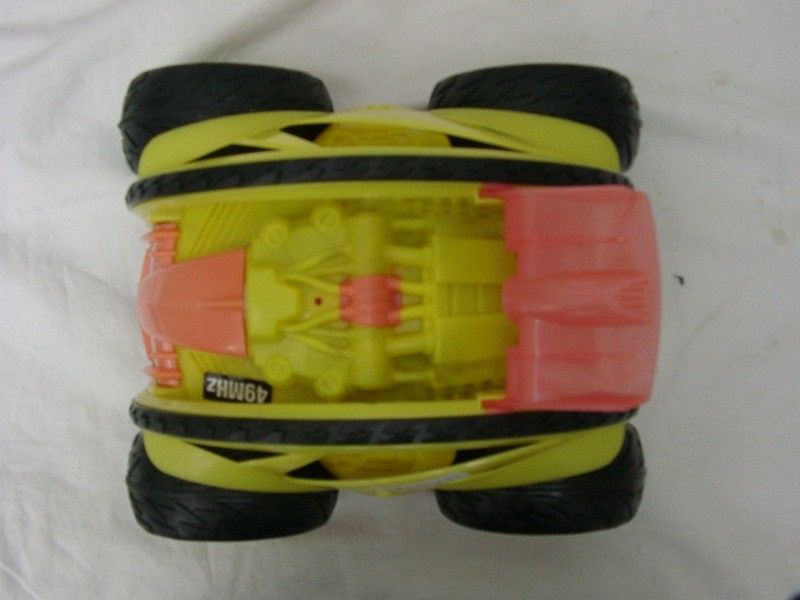

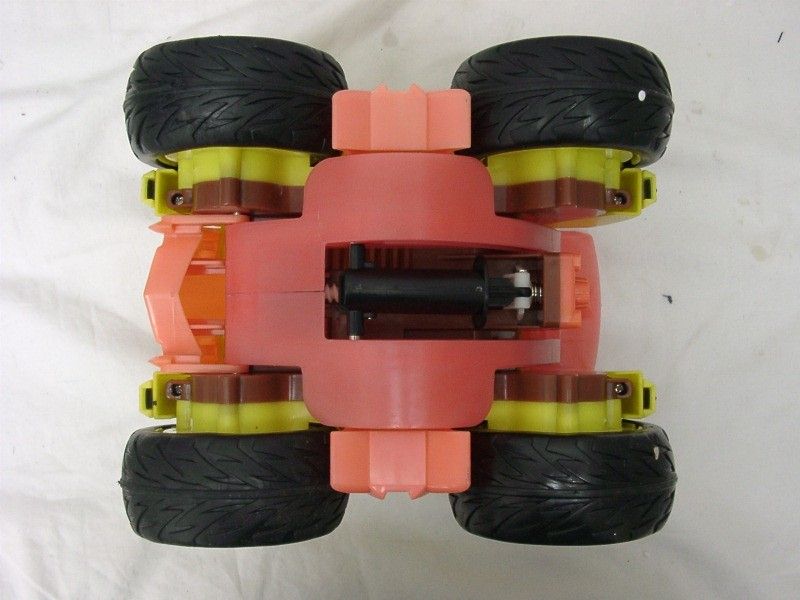

49.860MHZ Receiver Operational Description The Roll Cage is full function radio controlled toy car, it operates on 9.6v volts supplied by a 9.6v NIMH battery pack , It is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band . Please see the attached block diagram and schematic. The vehicle receiver receives and demodulates the AM transmitted signal from the transmitter, using a standard super-regenerative AM receiver/demodulator circuit comprised of ANT1 Q4, L1, L3, L2 and associated passive components. L2 is a tunable core slug inductor that is used to tune the receiver for maximum sensitivity. The output of the AM receiver / demodulator is AC coupled to a high input impedance COMS inverter is connected to the U1 decoder IC, It is biased into their linear region through C9, C4, C5, R1, R4, R5 and R6 and function as amplifier, filter and shape the data. After passing through the last inverter stage, the incoming waveform is a digitized enough to be fed into the IN1 pin for on-chip decoding. The left motor forward/reverse command is controlled by the U2 IC low power switching transistors Q21, Q22 and a high power H-bridge comprised of Q17, Q18, Q19, Q20. The right motor forward/reverse command is controlled by the U2 IC low power switching transistors Q5, Q6 and a high power H-bridge comprised of Q7, Q8, Q9 and Q10. The opening /closing motor is controlled by the U2 IC low power switching transistors Q15, Q16 and a high power H-bridge comprised of Q11, Q12, Q13 and Q14. The current protection is controlled by low switching transistors Q23, Q2 and Q3 A zener regulator circuit comprised of Q1, C20, R13, Z1, C19 and C17, it supplied voltage VDD for the super-regenerative radio ,decoder IC U1 , MCU IC U2. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

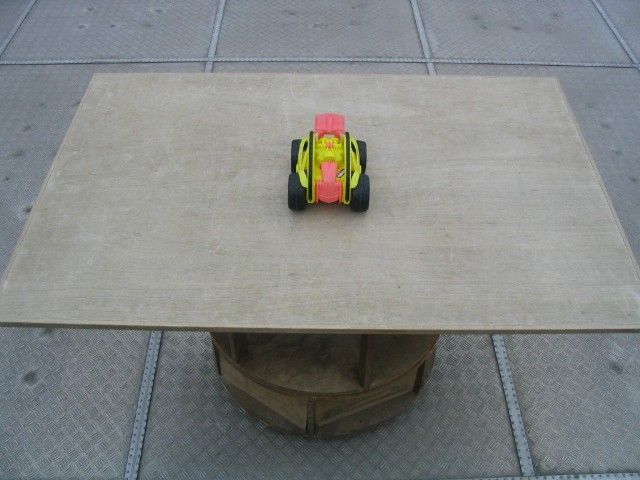

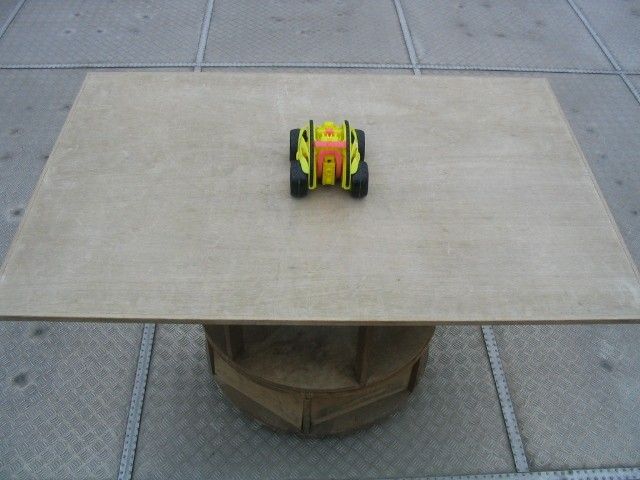

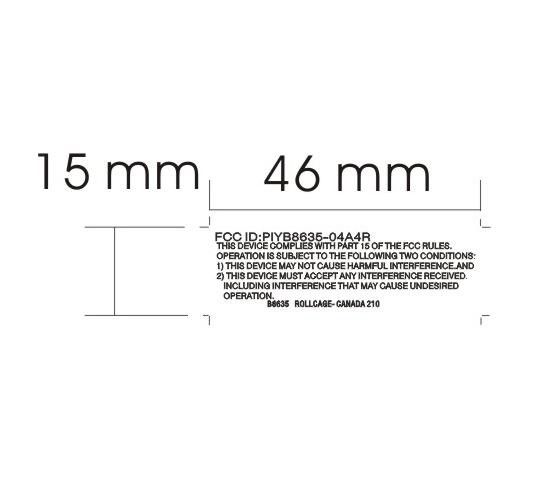

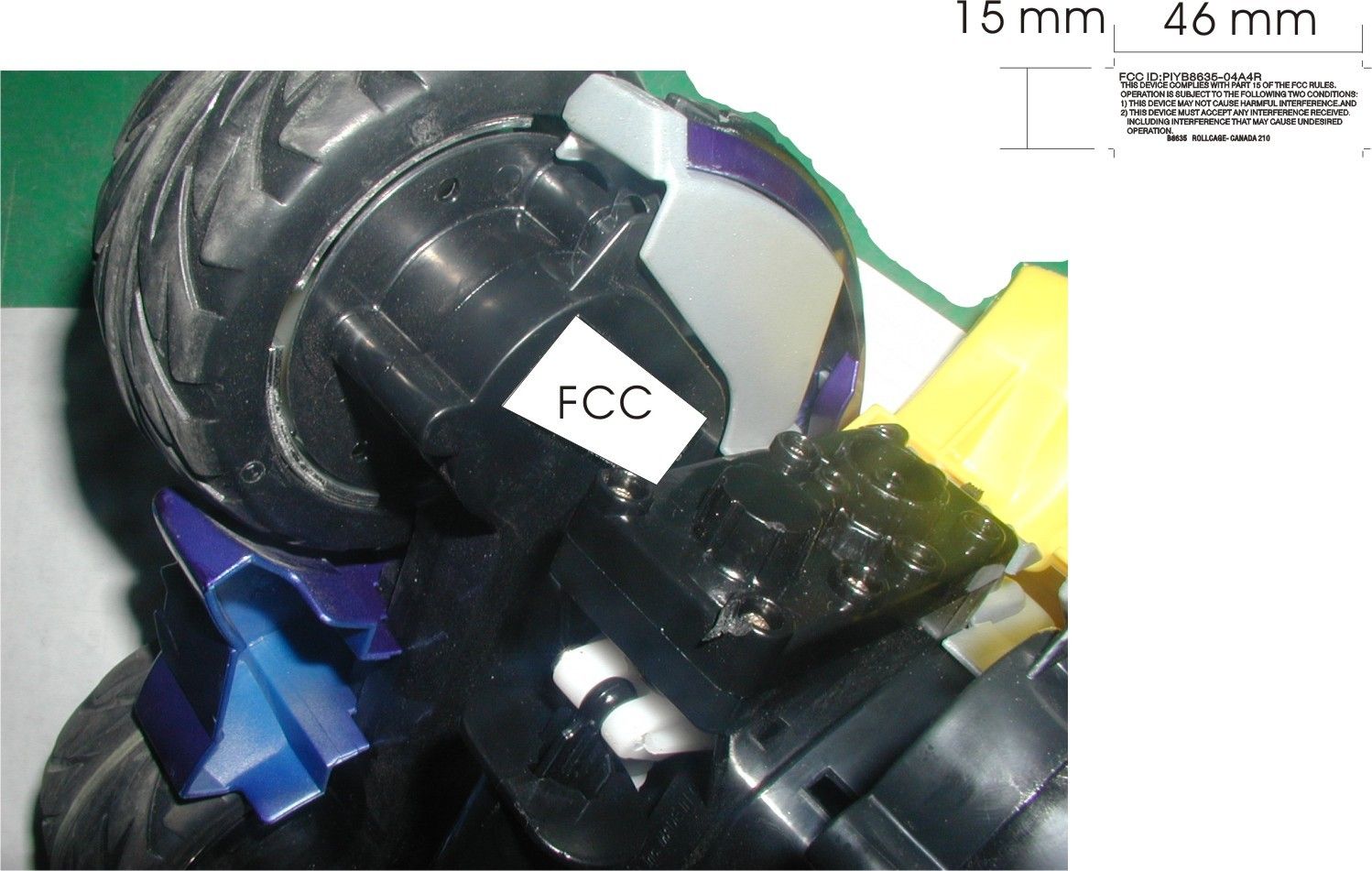

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, N.T., Hong Kong. Tel : (852) 2698 8198 Fax : (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006710-1 Date : 2004 July 08 Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Roll Cage of Model No. B8635. Rating : 9.6 V Rechargeable No. of sample(s) : Two(2) pieces *** Date Received : 2004 April 29. Test Period : 2004 April 29 – 2004 June 30. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – Dec 2003 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. FOR AND ON BEHALF OF CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB8635-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, N.T., Hong Kong. Tel : (852) 2698 8198 Fax : (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006710-1 Date : 2004 July 08 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result...............................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices...............................................................................................................................11 Page 2 of 11 FCC ID : PIYB8635-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, N.T., Hong Kong. Tel : (852) 2698 8198 Fax : (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006710-1 Date : 2004 July 08 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for Roll Cage operating at 49.860 MHz which is controlled by a LRC circuit. The EUT is powered by 9.6 V rechargeable battery. When it received a forward or backward signal, it will going forward or backward. When it received a left or right signal, it will turn left or right. The brief circuit description is listed as follows : - Q4 and associated circuit act as superregenerative - U1 and associated circuit act as receiver IC - U2, Q24 and associated circuit act as decoder - R7 and associated circuit act as oscillator for U1 - R12 and associated circuit act as oscillator for U2 - Q17-Q22 and associated circuit act as left motor control - Q5-Q10 and associated circuit act as right motor control - Q11-Q16 and associated circuit act as open/close driving motor control - Q2, Q3, Q23, U3 and associated circuit act as motor protection control - Q1 and associated circuit act as voltage adjust 1.2 Related Submittal Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure. Page 3 of 11 FCC ID : PIYB8635-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk…
