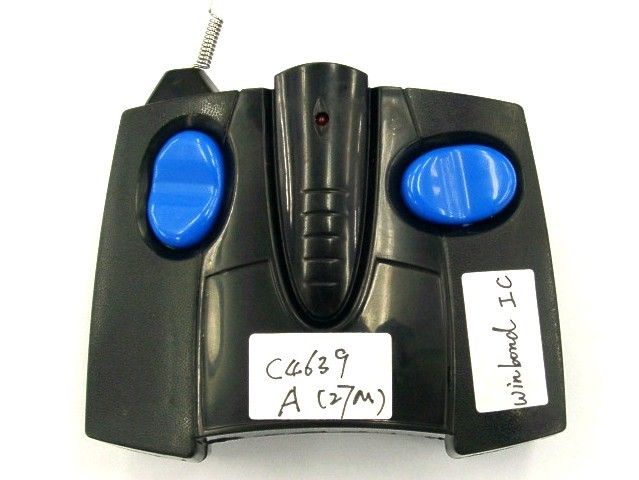

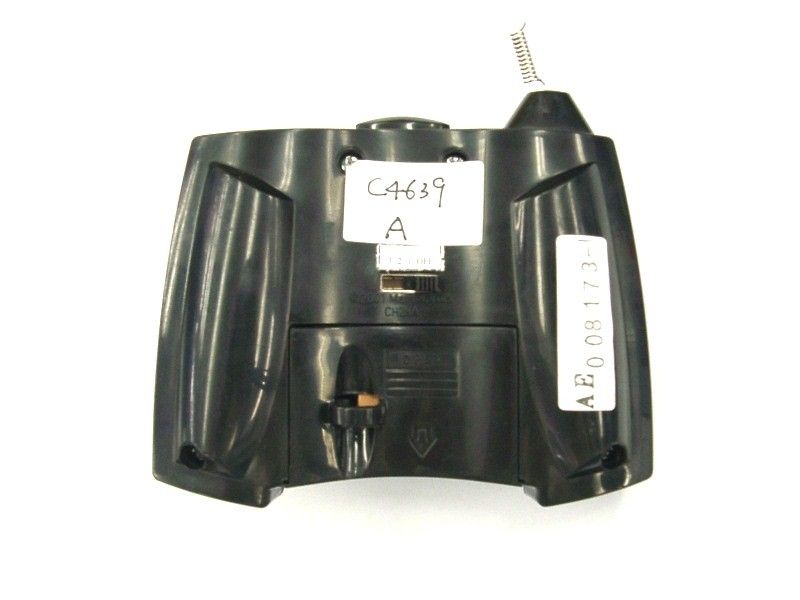

PIYB8925-04A2T1/6 MONSTER TRUCK W / WINBOND IC

第 1 頁，共 1 頁 2004/6/21file://D:\Project\TQ990\FCC\B8925%20FCC%20DOC\FCC%20ID%20SIZE%20AND%20L...

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE008173-1 Date : 2004 July 30 Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be 1/6 Monster Truck W/Winbond IC of Model No. B8925. Rating : 9 V battery No. of sample(s) : Two(2) pieces *** Date Received : 2004 May 24. Test Period : 2004 May 24 – 2004 July 20. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – Dec 2003 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with the requirements of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB8925-04A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE008173-1 Date : 2004 July 30 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result...............................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices...............................................................................................................................11 Page 2 of 11 FCC ID : PIYB8925-04A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE008173-1 Date : 2004 July 30 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1/6 Monster Truck W/Winbond IC operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 1 x 9 V battery. There are four buttons on the transmitter. When the forward or backward button is pressed, it will transmit a radio frequency signal for receiver go forward or backward. When the left or right button is pressed, it will transmit a radio frequency signal for the receiver go left or right. The brief circuit description is listed as follows : - Y1 and associated circuit act as oscillator. - L3, L4 and associated circuit act as filter. - D4 and associated circuit act as voltage regulator. - U1 and associated circuit act as encoder. 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : PIYB8925-04A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE008173-1 Date : 2004 July 30 1.3 Location of the test site Radiated emissions m…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Report No.: AE008173-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AE008173-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AE008173-1 Duty Cycle 2 Duty Cycle 3
