PIYB9385-03A4RRC Car

B8930-0720 COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY - VALABLE AUX É.-U. SEULEMENT) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device generates and uses radio frequency energy and if not used properly may cause inter- ference to radio and television reception. It has been tested and found to comply with the limits set by the FCC which are designed to provide rea- sonable protection against such interference. NOTE:Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. RSS - 210 (Canada) (VALID FOR CANADA ONLY - VALABLE AU CANA- DA SEULEMENT) This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est autorisée seule- ment aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’utilisateur du disposi- tif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. CNR-210 d'Industrie Canada26.995 MHz TX RF =78 dBÌV/m @ 3m. (CANADA SEULEMENT)27.045 MHz TX RF =78 dBÌV/m @ 3m. ©2003 Mattel, Inc., Mount Laurel, N.J. 08054 U.S.A. PRINTED IN CHINA.All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. IMPRIMÉ EN CHINE.Tous droits réservés. Mattel Canada Inc., Mississauga, Ontario L5R 3W2. Importado y distribuido por Mattel de México, S.A. de C.V., Camino a Santa Teresa No. 1040, 7o. Piso, Col. Jardines en la Montaña, Delegación Tlalpan, 14210 México, D.F. R.F.C. MME-920701-NB3. TEL: 54-49-41-00. Mattel Chile, S.A., Avenida Américo Vespucio 501-B, Quilicura, Santiago. Mattel de Venezuela, C.A., Ave. Mara, C.C. Macaracuay Plaza, Torre B, Piso 8, Colinas de la California, Caracas 1071. Mattel Argentina S.A., Curupaytí 1186, (1607) - Villa Adelina, Buenos Aires. Mattel Colombia, S.A., calle 123#7-07 P.5, Bogotá. Register your vehicle online! U.S. consumers may also register at the toll-free number below. Questions or problems with your vehicle? DON’T RETURN IT TO THE STORE! Just click or call. ¡Registre su vehículo en línea! O llámenos por teléfono para regis- trar su vehículo, marcando el número que aparece más abajo. Si tiene alguna pregunta o problema con el vehículo, NO DEVUELVA EL PRODUCTO AL LOCAL DONDE LO ADQUIRIÓ. Simplemente haga clic o llámenos. Enregistrer le véhicule en ligne! Les consommateurs des États-Unis peu- vent aussi enregistrer leur véhicule en composant le numéro sans frais ci-dessous. Des questions sur votre véhicule ou des problèmes? NE PAS LE RETOURNER AU MAGASIN! Il suffit de cliquer ou d’appeler. U.S.A. 90-DAY LIMITED WARRANTY – TYCO® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will replace the product in the event of such a defect within the war- ranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Replacement and return shipment will be free of charge. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under this warranty shall be limited to replacement, and in no event shall we be responsi- ble for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A.This warranty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 5:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052 CANADA 90-DAY LIMITED WARRANTY Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. If defective, return the product along with proof of the date of purchase, postage prepaid to Mattel Canada Inc., Consumer Service, 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2 for replacement with an identi- cal toy or a similar toy of equal or greater value according to availability. This warranty gives you specific legal rights and you may have other rights which vary from province to province. This warranty does not cover damage resulting from accident, misuse or abuse. Valid for products sold in Canada only. YOU MAY CALL US FREE AT 1-800-665-6288 Monday – Friday, 8:00 a.m. – 5:00 p.m. EST; 5:00 a.m. – 2:00 p.m. PST. CANADA GARANTIE LIMITÉE DE 90 JOURS M…

Text truncated - open the document above for the full version.

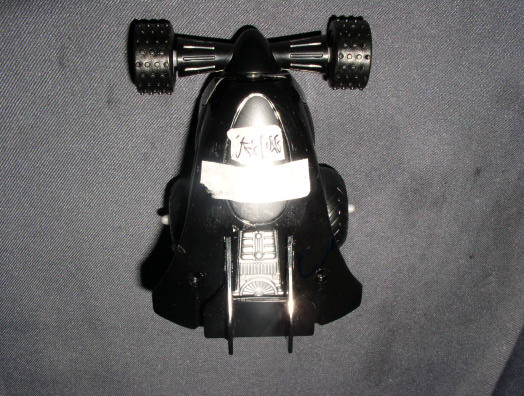

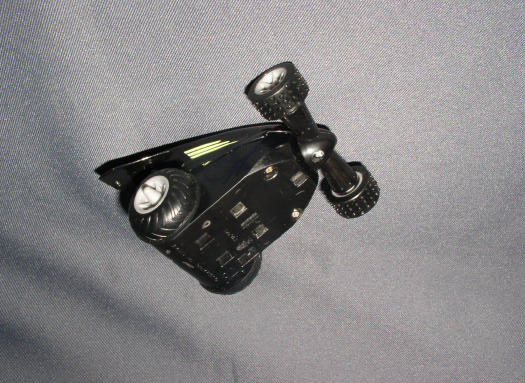

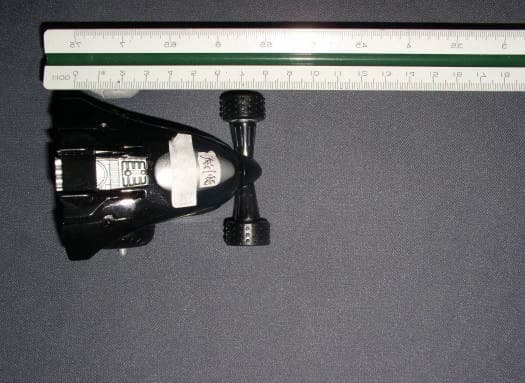

FCC ID : PIYB9385-03A4R Ophoto1 Ophoto2 FCC ID : PIYB9385-03A4R Ophoto3 Ophoto4

FCC ID : PIYB9385-03A4R Iphoto1 Iphoto2 FCC ID : PIYB9385-03A4R Iphoto3 Iphoto4 FCC ID : PIYB9385-03A4R Iphoto5 Iphoto6

FCC ID: PIYB9385-03A4R Technical Description : The brief circuit description is listed as follows : - Q1 and associated circuit act as Super Regenerative Receiver. - U2 and associated circuit act as Decoder. - Q3 ~ Q14 and associated circuit act as Motor Drivers. - Qa and associated circuit act as DC-DC Convertor. - Qb and associated circuit act as RF Pre-amplifier. Antenna Used : A permanent wire antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : PIYB9385-03A4R Mattel Asia Pacific Sourcing Limited Application For Certification (FCC ID: PIYB9385-03A4R) Superregenerative Receiver Sample Description : Mattel’s Item : Stuntsters Tantrum (49 MHz), Model : #B9385 0311798 WN/at July 28, 2003 INTERTEK TESTING SERVICES FCC ID: PIYB9385-03A4R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PIYB9385-03A4R ii MEASUREMENT/TECHNICAL REPORT Mattel Asia Pacific Sourcing Limited - MODEL: #B9385 FCC ID: PIYB9385-03A4R July 28, 2003 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: PIYB9385-03A4R iii Table of Contents 1.0 General Description.......................................................................................................................2 1.1 Product Description...................................................................................................................2 1.2 Related Submittal(s) Grants......................................................................................................2 1.3 Test Methodology......................................................................................................................3 1.4 Test Facility...............................................................................................................................3 2.0 System Test Configuration ...........................................................................................................5 2.1 Justification................................................................................................................................5 2.2 EUT Exercising Software..........................................................................................................5 2.3 Support Equipment List and Description..................................................................................5 2.4 Equipment Modification...........................................................................................................6 2.5 Special Accessories...................................................................................................................6 3.0 Emission Results ............................................................................................................................8 3.1 Field Strength Calculation.........................................................................................................9 3.2 Radiated Emission Configuration Photograph........................................................................10 3.3 Radiated Emission Data..........................................................................................................11 4.0 Equipment Photographs.............................................................................................................14 5.0 Product Labelling........................................................................................................................16 6.0 Technical Specifications..............................................................................................................18 7.0 Instruction Manual......................................................................................................................20 8.0 Miscellaneous Information.........................................................................................................22 8.1 Stabilization Waveform..........................................................................................................23 8.2 Emissions Test Procedures......................................................................................................24 8.2 Emissions Test Procedures (cont'd)........................................................................................25 INTERTEK TESTING SERVICES FCC ID: PIYB9385-03A4R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: PIYB9385-03A4R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PIYB9385-03A4R 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Car operating at 49.860 MHz. The EUT is powered by two 1.2V rechargeable batteries. The EUT can be controlled to move forward…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Front View Back View
