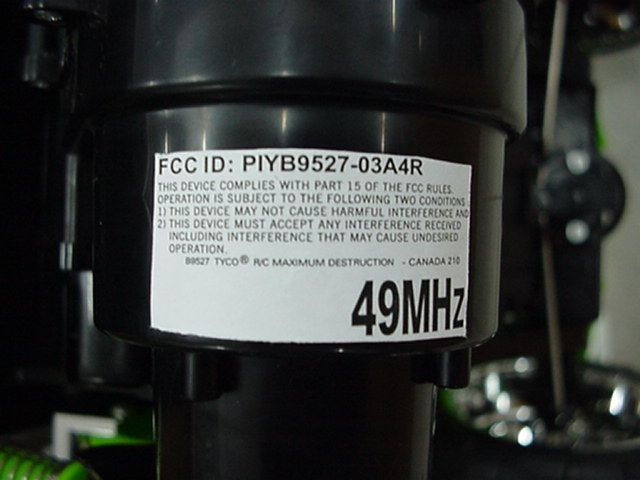

PIYB9527-03A4R1/6th Maximum Destruction

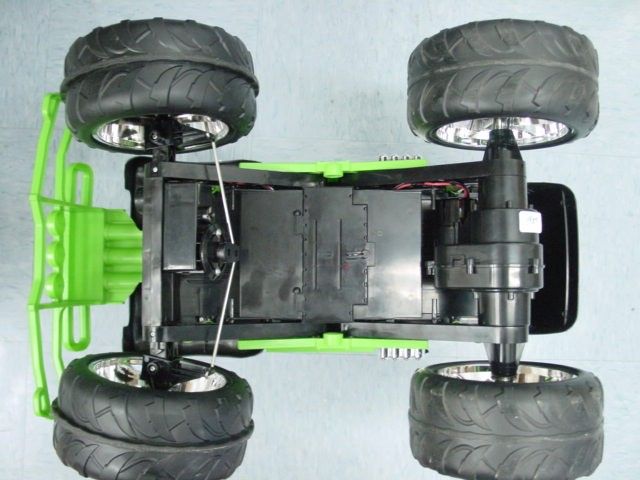

1/6 th Maximum Destruction #B9527 49.860MHz RECEIVER OPERATIONAL DESCRIPTION 1/6 th Maximum Destruction car is a full function radio controlled toy car. It operates on 7.2 volts supplied by one rechargeable NICD battery (six 1.2V stack up batteries.). It is designed to operate on a single fixed frequency in 49.82- 49.90MHz band. See the attached block diagram and schematic. The modulated RF signal from the transmitter induces an electrical signal into the car’s permanently attached wire wound antenna. The electrical signal is selectively amplified by a super regenerative input circuit (Q1,L2,L3,C1,C2,C3,C5,C22). The signal is then capacitively coupled (via C7) to an integrated circuit (U1) where the signal is further amplified and decoded. The control signal is output from Pin6,Pin7,Pin10,Pin11. The control signals from pin 10 and pin 11 are sent to driving circuit consisted of Q3,Q8,Q11,Q17, relay RL1 and RL2, the back motor will be drived forward or backward. The control signals from pin 6 and pin 7 are sent to steering circuit consisted of Q4,Q5,Q6,Q7,Q9 and Q10, the front motor will be drived left and right. Servo PCB, Q14,Q20,Q21 control the steering motor to turn left or right, or control front wheel to center position when there is no left/right control signal. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the user. No external ground is required or used with this receiver.

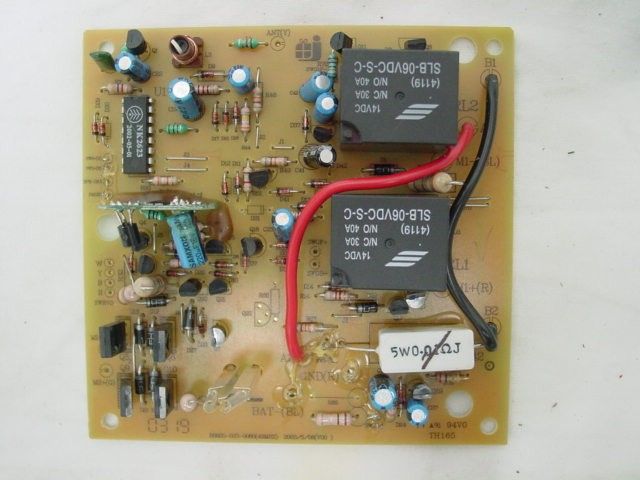

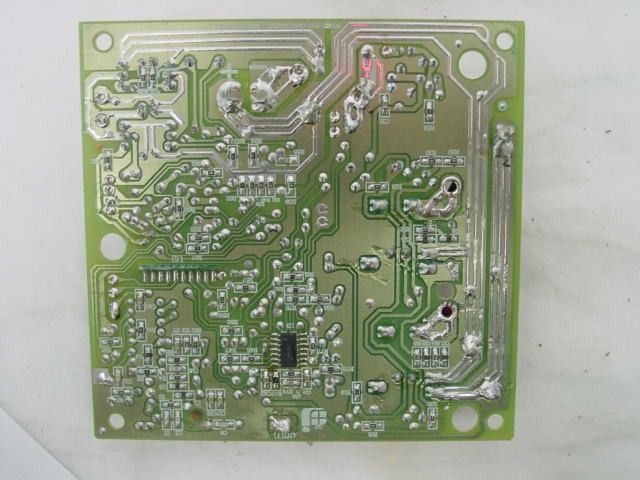

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 18-Jun-2003 Sheet of File: D:\YXZ\..\B9527RX (49MHz US)(02).sch Drawn By: 1 02 1/6 Maximum Destruction(49MHz US) L23.3uH L1 1.2UH C1 30pF Q1 C380Y/O C2 6pF C3 0.01uF C5 2200pF L3 7.5T(KB46-ZT7.5TS-YT01005) R1 180K R2 560 C62PF R3 2.2K/3.3K/2.2K C7 0.1uF C16 120pF/470pF/120pF C8 0.1uF/0.01uF/0.1uF R4 2.2K/330/2.2K R8 2.2M/3.9M/2.2M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 U1 PT8A978BP/NK2623/RX2C R10 4.3K L4 100uH C17 0.047uF C19 220uF D9 3.0V R14 820(AXI) R15820(AXI) R18 10K R30200 RL1 6V 30A D1 1N4001 M1 DRIVE MOTOR C9 0.1uF C10 0.1uF R1910K R20 10K Q3 S8550D Q4 S8550D Q5 B772/2SB1658/2SA1357 R21 10K R22 10K Q6 B772/2SB1658/2SA1357 Q7 S8550D R23 10K R2410K M2 DV MOTOR Q9 D882/2SD2583/2SC3420 R32 47/1W(AXI) R2510K R33 47/1W(AXI) R26 10K C12 0.1uF C13 0.1uF R16820 R17 820(AXI) R35 1K(AXI) R38 22K D6 1N4148 D7 1N4148 R3933K R36 1K(AXI) R2710K R2810K R4033K R371K(AXI) R9 2.2M/3.9M/2.2M R7 2.2K/4.7K/2.2K(AXI) C21 1000pF /4700pF R41 120K/130K/140K+/-1% BAT NiCd BATTERY PACK C22 4.7uF C4 0.01uF R29 10K RL2 6V 30A D8 1N4001 R31 200 Mylar Q8 S8550D SERVO PCB W B Y R D10 1N4148 D18 1N4001 D19 1N4001 D20 1N4001 D21 1N4001 FW BW RT LT * RIGHT STATE Q14 S9014D Q15S9014D Q16 S9014D Q10 D882/2SD2583/2SC3420 Q17S9014D D22 1N4001 R42 0.01/5W(AXI) D11 1N4148 D12 1N4148 D13 1N4148 D14 1N4148 R44 390K(AXI) R45 560+/-1% R46 36+/-1% R47 1.5K+/-1% D15 1N4148 D161N4148 D17 1N4148 R48 51K(AXI) C23 3.3uF R50 100K C24 10uF Q18 2SC1815GR/Y R51 1.8K(AXI) R49 51K(AXI) C15 0.1uF C25 0.01uF R52 22 C26 0.01uF R53 22(AXI) C27 0.01uF R5422 C28 0.01uF R55 22 C18 0.1uF B9527-RX C29 0.1uF SPK 3" 16 OHM 1W Q11 S9014D L5 10uH L6 10uH R57 2.7K R582.7K R56 75K+/-1% C31 0.1uF C34 220uF V BATT V BATT VDD VCC AVDD 3 VDD 1 ROSC 11 TG4 6 TG3 7 TG2 8 TG1 9 AUDP 5 AUDN 2 AVSS 4 VSS 10 U2 SPES209B1 R59 150 C36 220uF D24 5.1V C35 0.1uF C37 10uF Q19S8050D VSS VSS VSS VCC D27 1N4001 D251N4148 D26 1N4001 R622.4K R64 2.2K R61 4.3K D281N4148 R63 22/2W(AXI) Q21 S8050D R7122(AXI) C32 0.1uF Q24S9014D Q23S9014D R6710K R68 10K VSS VSS R7051K R6951K VSS SW1 SSW-23K-01G7 D41 1N4148 D29 1N4148 D30 1N4148 D33 1N4148 D32 1N4148 D34 1N4148 D361N4148 S_A S_B S_A S_B SWITCH PCB BOND PCB R13 120(AXI) 98 14 U3C1/4LM339 76 1 U3B 1/4LM339 54 2 312 U3A 1/4LM339 D37 1N4148 C38 0.1uF R72 33K+/-1%(AXI) R73 4.75K+/-1% R74 1K+/-1% V BATT VCC 1110 13 U3D1/4LM339 R87 51K(AXI) C42 3.3uF R78 2.7(AXI) R79 3.9/2W(AXI) VCC W/SOUND OFF WO/SOUND R84 10K R83 10K VSS VSS R8047K R8147K 3 12 VCC VCC VSS C40 3.3uF #26 700mmANTENNA Q20 S9014D Q25 S9014D C4133uF R86 1.5M D42 1N4148 D43 1N4148 U3C 8 U3C 8 R75 1.5K+/-1% R77 51+/-1% VCC R89 0.1/0.5W(AXI) SW3(B) PS-12F72-A3.3NS(B) SW2(F) PS-12F72-A3.3NS(B) C43 0.1uF R90 39K(AXI) WEIGHT SWITCH*2 C46 0.1uF C11 0.1uF C14 0.1uF th

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010963-1 Date : 2003 July 24 Applicant : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Mattel Item : 1/6 th Maximum Destruction of Model No. B9527 . Rating : 7.2 V NiCd rechargeable battery No. of sample(s) : One(1) piece *** Date Received : 2003 June 14. Test Period : 2003 June 14 – 2003 July 21. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 10. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 10 Danny Chui EMC Engineer - EL. Division FCC ID : PIYB9527-03A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010963-1 Date : 2003 July 24 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 10 Page 2 of 10 FCC ID : PIYB9527-03A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010963-1 Date : 2003 July 24 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for 1/6 th Maximum Destruction operating at 49.860 MHz. The EUT is powered by 7.2 V rechargeable battery. When the EUT received forward/backward signal, it will going forward/backward. When the EUT received left/right signal, it will turn left/right. The brief circuit description is saved with filename : OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a receiver. Page 3 of 10 FCC ID : PIYB9527-03A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010963-1 Date : 2003 July 24 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 1992. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 1992. A double shielded…
