PIYB9527-04A4RMonster Truck Receiver

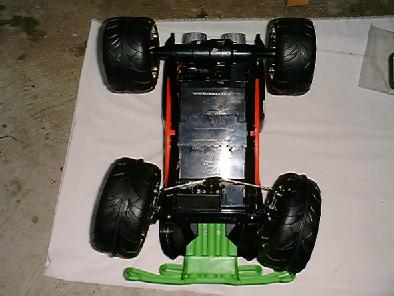

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Date: 2004-01-30 Test Report Page 1 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 ACCREDITED TESTING LABORATORY DAR Registration No.: TTI-P-G150/98-01 ACCREADITED BY Deutsche Akkreditierungsstelle Technik (DATech) e.v. FCC PART 15 SUBPART B TEST REPORT TEST REPORT No.: HM112557 Equipment Under Test [EUT]: 1/6th Monster Truck Model Number: B9527 Applicant: Mattel Asia Pacific Sourcing Ltd. FCC ID: PIYB9527-04A4R Reg.-Nr.: TTI-P-G150/98-01 Date: 2004-01-30 Test Report Page 2 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 CONTENT: Cover Page 1 of 15 Content Page 2-3 of 15 Conclusion Page 4 of 15 1.0 General Details 1.1 Test Laboratory Page 5 of 15 1.2 Applicant Details Page 5 of 15 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 6 of 15 Description of EUT operation 1.4 Date of Order Page 6 of 15 1.5 Submitted Sample Page 6 of 15 1.6 Test Duration Page 6 of 15 1.7 Country of Origin Page 6 of 15 1.8 Additional Information of EUT Page 7 of 15 2.0 Technical Details 2.1 Investigations Requested Page 8 of 15 2.2 Test Standards and Results Summary Page 8 of 15 3.0 Test Results 3.1 Emission Page 9-12 of 15 Date: 2004-01-30 Test Report Page 3 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 Appendix A List of Measurement Equipment Page 13 of 15 Appendix B Photographs Page 14-15 of 15 Date: 2004-01-30 Test Report Page 4 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verified by Ivan Toa Patrick Wong for Chief Executive Date: 2004-01-30 Test Report Page 5 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong HKSTC Code Number for Applicant JEC002 Manufacturer Jetta Company Limited Jetta House, 19 On Kui Street, On Lok Tsuen, Fanling, N.T., Hong Kong Date: 2004-01-30 Test Report Page 6 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 1.3 Equipment Under Test [EUT] Description of Sample Product: 1/6th Monster Truck Manufacturer: Jetta Company Limited Brand Name: N/A Model Number: B9527 Input Voltage: 7.2V Remark: The test is for the Mobile Truck only, the transmitter not do the test. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) (49MHz Superregenerative receiver) is a Mattel Asia Pacific Sourcing Ltd., 1/6th Monster Truck. 1.4 Date of Order 2004-01-09 1.5 Submitted Sample(s): 2 samples per model 1.6 Test Duration 2004-01-20 1.7 Country of Origin N/A Date: 2004-01-30 Test Report Page 7 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC DOC Label Date: 2004-01-30 Test Report Page 8 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.109 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.107 ANSI C63.4:2003 Class B Note: N/A - Not Applicable Date: 2004-01-30 Test Report Page 9 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30MHz to 1GHz) Test Requirement: FCC 47CFR 15.109 Class B Test Method: ANSI C63.4:2003 Test Date: 2004-01-20 Mode of Operation: Rx mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2004-01-30 Test Report Page 10 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 Limits for Radiated Emissions [FCC 47 CFR 15.109 Class B]: Frequency Range Quasi-Peak Limits [MHz] [ μ V/m] 30-88 100 88-216 150 216-960 200 Above960 500 The emission limits shown in the above table are based on measurement employing a CISPR quasi- peak detector and above 1000MHz are based on measurements employing an average detector. Results: 0 10 20 30 40 50 60 70 30130230330430530630730830930 Level (dB 猩 /m) Frequency (MHz) Limit Results * Operating conditions. According to ANSI C63.4 2003, Section 12.1.1.1, During the test a signal generator, shall be used to radiated an un-modulated CW signal to a superregenerative receiver at its operating frequency in order to “cohere”. Date: 2004-01-30 Test Report Page 11 of 15 No.: HM112557 DAR-Registration No.: TTI-P-G150/98-01 Results: 0 10 20 30 40 50 60 70 3023043063…

Text truncated - open the document above for the full version.

1 Chris Harvey From:alice_wong [[email protected]] Sent:Thursday, February 26, 2004 10:03 PM To:[email protected]; [email protected] Cc:[email protected] Subject:RE: Additional information needed for Mattel FCC ID: PIYB9527-04A4R HM112557_Mattel r1.pdf (154 KB... Hi Marianne, Sorry, here is the revised report. Thanks Best Regards Alice -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Friday, February 27, 2004 10:58 AM To: [email protected]; [email protected] Cc: [email protected]; [email protected] Subject: RE: Additional information needed for Mattel FCC ID: PIYB9527-04A4R Alice, Chris may answer you also, but I thought I'd let you know that there isn't an attachment here. Marianne -----Original Message----- From: alice_wong To: Chris Harvey Cc: Kitty Choy; Marianne Bosley Sent: 2/26/2004 9:40 PM Subject: RE: Additional information needed for Mattel FCC ID: PIYB9527-04A4R Thanks Chris, I have re-create the file, please see the attachment for revise report. Thanks & Have a nice day Alice -----Original Message----- From: [email protected] [mailto:[email protected]]On Behalf Of Chris Harvey Sent: Thursday, February 26, 2004 8:44 PM To: Alice Wong 2 Cc: Kitty Choy; Marianne Bosley Subject: FW: Additional information needed for Mattel FCC ID: PIYB9527-04A4R Alice, I think something happened when you created the PDF document because much of the text is not regular tesxt. Please re-create the pdf and send again :-) Thanks, Chris -----Original Message----- From: alice_wong [mailto:[email protected]] Sent: Wednesday, February 25, 2004 7:08 AM To: Chris Harvey; [email protected] Cc: 'Marianne Bosley' Subject: RE: Additional information needed for Mattel FCC ID: PIYB9527-04A4R Hi Chris, Please see attached file for update test report. Thanks Best Regards Alice -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Tuesday, February 24, 2004 1:27 AM To: 'alice_wong'; [email protected] Cc: 'Marianne Bosley' Subject: RE: Additional information needed for Mattel FCC ID: PIYB9527-04A4R Alice, please update the report to include the information about how the Superregenerative receiver was operated. Please describe the test setup and the method in accordance with ANSI C63.4 section 12.1.1.1. This is the reason for the report revision. Please remember to include this information for future receiver reports, as the FCC requires this in their reviews. As long as you are revising the report, please update the Standard reference to 2001. 3 Best regards, Chris Harvey -----Original Message----- From: alice_wong [mailto:[email protected]] Sent: Sunday, February 22, 2004 10:29 PM To: Chris Harvey; [email protected] Cc: 'Marianne Bosley' Subject: RE: Additional information needed for Mattel FCC ID: PIYB9527-04A4R Dear Chris / Marianne, The product was tested already (signal was transmit from a signal generator to activate the receiver) according to 12.1.1.1 on ANSI C63.4:2000. Could you reply that we have already performed the required test and see if a new revision of test report really necessary (as the requirement is the same as 2001 version). If the reply is a must, I will revise the report as soon as possible. Thanks & Best Regards, Alice -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Friday, February 20, 2004 4:05 AM To: [email protected] Cc: 'Marianne Bosley' Subject: Additional informqation needed for Mattel FCC ID: PIYB9527-04A4R Alice, A Superregenerative receiver is required to be cohered when it is tested (see ANSI C63.4:2001 Section 12.1.1.1). There is no indication in the test report that this receiver was operating while it was cohered by an external signal. Please retest and update the test report as necessary (please indicate in the report that this is a superregenerative receiver) Please note that the FCC has now accepted the 2001 version of ANSI C63.4. Please be sure 4 that your procedures are updated to include this version (report indicates 2000 version). Please respond directly to [email protected] <mailto:[email protected]> Best regards, Chris Harvey

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
