PIYBHX87-14A2TMy First Car Racer

51 BHX87 fisher-price.com Keep this instruction sheet for future reference, as it contains important information. Vehicle requires four AA (LR6) alkaline and remote control requires two AA (LR6) alkaline batteries. Batteries are not included. Battery installation is required. Only adults should install batteries. Tool required for battery installation: Phillips screwdriver (not included). Frequency: 27.145MHz Field Strength: 80dBuV/m @ 3m or 10,000uV/m @ 3m Consumer Information FCC Statement (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/TV technician for help. Note: Changes or modifi cations not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Hereby, Mattel declares that the toy is in compliance with the essential requirements and other relevant provisions of Directives 99/5/EC, 2004/108/EC, 88/378/EEC. Suitable for use in all EU member states. A copy of the Declaration of Conformity may be obtained from Mattel UK Ltd., Vanwall Business Park, Maidenhead SL6 4UB. CONSUMER ASSISTANCE 1-800-432-5437 (US & Canada) 1300 135 312 (Australia) Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Hearing-impaired consumers: 1-800-382-7470. Outside the United States: Canada: Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2; www.service.mattel.com. Great Britain: Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB. Helpline: 01628 500303. www.service.mattel.com/uk Mattel Europa B.V., Gondel 1, 1186 MJ Amstelveen, Nederland. Australia: Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond, Victoria 3121 Australia. New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland. ©2014 Mattel. All Rights Reserved. PRINTED IN CHINA BHX87pr-0920 This Category II radio communication device complies with Industry Canada Standard RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d’Industrie Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, meme si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. • If vehicle does not move forward or backward in a straight line, you may want to adjust the front wheels. Adjust the drift position dial to either the right or left. • When movement from the vehicle slows or stops, it is time for an adult to change the batteries. • If the vehicle does not respond to the remote controller, it is time for an adult to change the batteries. TroubleshootingCare • Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. • If the remote control or vehicle are accidentally dropped in the water, remove the batteries and allow them to air dry. Replace with fresh batteries before operation. • Wipe toy with a clean, damp cloth. Do not immerse. This toy has no consumer serviceable parts. Do not take apart. 234 To prevent entanglement, keep hair away from wheels. CAUTION Let’s Go! • Slide the speed switch on the bottom of the vehicle to low speed (beginner) or high speed (expert). Hint: If the speed switch does not move easily, rotate the rear wheels on the vehicle. • Press the button on the top of the vehicle. The ready light turns ON. • We do not recommend using the vehicle on carpets. For best performance, use on hard, flat surfaces. • Operating multiple vehicles with the same frequency in close proximity will cause interference and poor performance. Works best away from high voltage power lines, large buildings and walls. SPEED SWITCHSPEED SWITCH PRESSPRESS • Point the antenna of the remote control toward the vehicle and press a button. Beginner “Drivers” - Press top arrow to drive forward. - Press bottom arrow to drive in reverse. - Press the left button to turn left. - Press the right button to turn right. Expert “Drivers” -While pressing the bottom arrow, press the left arrow to drive in reverse to the left. -While pressing the bottom arrow, press the right arrow to drive in reverse to the right. • For best performance, be sure the remote control antenna is pointing towards the vehicle. • If you do not operate the remote control for approximately 5 minutes, the vehicle will shut OFF. Press the button on top of the vehicle to turn power ON again. • Maximum …

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Di st r i but ed t o SMT: No Yes Rev. : on demand. Lt d. / Radi ca Games Lt d. , and must be r et ur ned det r i ment al t o t he i nt er est of Radi ca Chi na covenant s i t wi l l not be used i n any manner Games Lt d. Thi s pr i nt i s l oaned and r eci pi ent expr ess consent of Radi ca Chi na Lt d. / Radi ca ot her s, i n par t or i n whol e, wi t hout t he r epr oduced, r eveal ed t o or appr opr i at ed by conf i dence and i s not t o be copi ed, Games Lt d. Thi s i nf or mat i on i s di scl osed i n i s t he pr oper t y of Radi ca Chi na Lt d. / Radi ca per t ai ni ng t o t he ar t i cl e shown on t hi s sheet Al l desi gn, oper at i ve and pr ocess dat a Descr i pt i on: Model No. : Dr awn by: Checked by: Appr oved by: Dr awi ng No. : Dat e: Dat e: Dat e: I NNOVATI ONS RADI CA: A MEMBER OF RADI CA GAMES GROUP Sheet of Changed byDat eDescr i pt i onRev. A A11 My Fi r st Car Recer BHX87 LIAO MINGHUAPRODUCTION RELEASE Jan,,15.14 Jan,15,14 Block Diagram of BHX87Transmitter Function Control Key Encoder/Modulator/RF AMP U1 W55RFST1B Y1 27.145MHZ OSCILLATOR Matching ANT BATTERY AA X2 Circuit NLAA X2 NLANT NLBATTERY NLBlock Diagram of BHX87Transmitter NLCircuit NLControl Key NLEncoder0Modulator0RF AMP NLFunction NLJan015014 NLMatching NLOSCILLATOR NLU1 W55RFST1B NLY1 270145MHZ

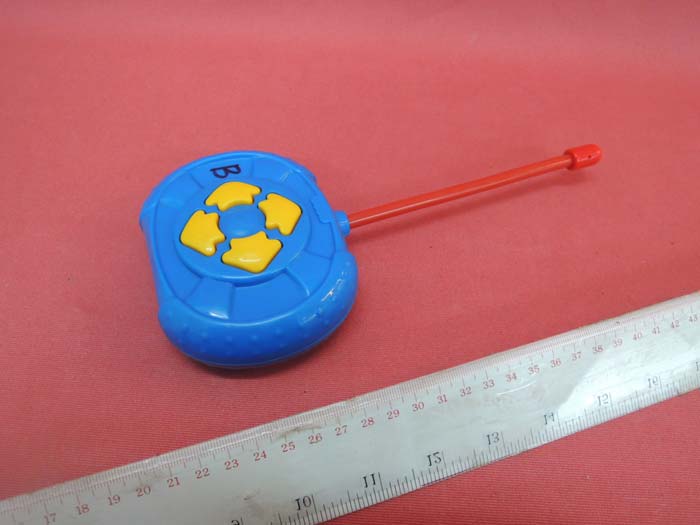

INTERTEK TESTING SERVICE Report No.:14010737HKG-001 Equipment Photographs Model : BHX87 (External) FCC ID: PIYBHX87-14A2T

9.50 5 1.20 2.50 1.20 1.35 FISHER-PRICE ©2014 MATTEL 1186 MJ, 1, NL MADE IN CHINA Model:BHX8727MHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PIYBHX87-14A2T Canada 310 CAN ICES-3 (B)/NMB-3 (B) TY-BHX87 Date code Hot stamp Engravement 40 20 6 Label BHX87 Legal Marking-01212014 Added "FISHER-PRICE"

INTERTEK TESTING SERVICE Report No.:14010737HKG-001 Equipment Photographs Model : BHX87 (Internal) FCC ID: PIYBHX87-14A2T INTERTEK TESTING SERVICE Report No.:14010737HKG-001 Equipment Photographs Model : BHX87 (Internal) FCC ID: PIYBHX87-14A2T INTERTEK TESTING SERVICE Report No.:14010737HKG-001 Equipment Photographs Model : BHX87 (Internal) FCC ID: PIYBHX87-14A2T INTERTEK TESTING SERVICE Report No.:14010737HKG-001 Equipment Photographs Model : BHX87 (Internal) FCC ID: PIYBHX87-14A2T

FCC ID: LU9513049 Model: BHX87 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: RT, BW,LT, FW (keys) 2. An RF Oscillator consisting: Y1 3. An Antenna Matching Network consisting: C6,C7,C8,C9,L3,L4,L5 4. An Encoder, Mixer and Amplifier consisting: U1 (W55RFS27T1B) 5. A Power Supply consisting: two 1.5V AA batteries The transmitter uses an external, integral and non-detachable antenna.

Analysis Report Report No.: 14010737HKG-001 The Equipment Under Test (EUT) is a transmitter of a RF controlled ca r, which is operating at 27.145MHz as dictated by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. The EUT have four control keys. After switching ON the EUT and the corresponding car(Receiver), ac tivating the control keys on the EUT can control the car moving forward, backward, left and right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 68.5dBμV/m at 3m Maximum allowed field strength of production toleranc e: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 71.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.004mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.004mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusio n threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA 1 Standard Common part for master 0.1uF chip 50V +80-20% Y5V, 50V SMD0603 3 110 ohm +/-5% 0603 4 100 ohm +/-5% 0603 5 1K ohm +/-5% 0603 7 8 10k ohm +/-5% 0603 9 100kohm +/-5% 0603 Part ValueNo: 1IN4001PKG: DO-41 50V 2IN4148 PKG: DO-35 50V 1 S8050DNPN ( 1.5A )SOT-23.V: 40; W: 0.3; 4 B772 PNP A: 3; V: 40; Max. W: 1.25; PKG: TO-126; 2 S9014D NPN (1.5A )SOT-23.V: 40; W: 0.3; 5 D882 NPN A: 3; V: 40; Max. W: 1.25; PKG: TO-126; Inductor 4 Non Standard parts Guide Line (2nd priority) 1M ohm +/-5% 0603 Diode: Transistor Resistor: 5 2 8 10uF 25V +/-20% AL EL PKG:5x11mm 10 100uF 25V +/-20% AL EL PKG:5x11mm 220uF 25V +/-20% AL ELPKG:5x11mm 1000pF chip 50v +80-20% SMD 0603 10PF chip 50v +80-20% SMD 0603 25pF chip 50v +80-20% SMD 0603 4.7Kohm +/-5% 0603 6 2.2M ohm +/-5% 0603 3 Choke Coil DESC: 5.6uH 10% 1/2W 7 0.033uF 25V,Y5V ,PKG: dia 4mm x 3.5 3 S8550D PNP(1.5A )SOT-23.V: 40; W: 0.3; Capacitor 1 PTC MF-R400-0-99 47k ohm +/-5% 0603 10 6 2 20pF chip 50v +80-20% SMD 0603 9 47uF 25V +/-20% AL EL PKG:5x11mm 0.1uF 25V +80-20% Y5V, PKG: Ceramic dia 6mm x 3.5 220k ohm +/-5% 0603 History IC information:TEST MODE: REMARKS: 1 1N5817: DO-41 50V MAPS All rights reserved Using E3 value for resistor, capacitor and inductor Using E6 value for resistor, capacitor and inductor (1st priority) Non Standard parts Guide Line (3rd priority) Project Name : MAPS Engineer : Standard IEC E3 Decade Value = 100, 220 & 470 Standard IEC E6 Decade value =100,150,220,330,470 & 680 Size A3 Revision Number 1/16/2014Date : File : Sheet of D:\LMH\project-2013\BHX87\FEP\SCH\BHX87 TX sch R1 20140108.SchDoc 3 4 BAT54 SOT23 30V R0 11 BHX87 My First Car Chin VCC ANT GND VCC S2 16 S1 15 TXOUT 14 ID0 13 ID1 12 X2 11 S3 1 S4 2 CKSEL 3 TEST 4 CKSEL1 5 ANT 6 VSS 7 VSPLY 8 X1 10 RESET 9 U1 W55RFS27T1B 2XAA Battery 10R R1 0.1uF C12 10uF C11 27pF C1 27pF C3 N/A C4 27.145MHz Y1 20K R2 BWFW LTRT 47pF C5 0.1uF C10 0.047uF C14 56pF C6 10pF C8 68pF C7 20p C9 1.5uH L4 8.2uH L5 0.27uH L2 1.0uH L3 N/A L1 27 Mhz only GND 1kR3 1kR4 0.1uF C13 0.1uF C15 1K R7 1K R6

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14010737HKG-001 i FCC ID: PIYBHX87-14A2T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Mattel Asia Pacific Sourcing Limited BRAND NAME: N/A, MODEL: BHX87 FCC ID: PIYBHX87-14A2T Grantee: Mattel Asia Pacific Sourcing Limited Grantee Address: 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Ivan Chang Tel: 86 769 8555 1775 Fax: -- e-mail: -- Manufacturer: Mattel Electronics Dongguan Manufacturer Address: Long Yan Management Area, Humen Town, Dongguan City. Buyer: Mattel Brand Name: N/A Model: BHX87 Type of EUT: Transmitter Description of EUT: My First Car Racer Serial Number: N/A FCC ID: PIYBHX87-14A2T Date of Sample Submitted: January 20, 2014 Date of Test: January 20, 2014 to February 07, 2014 Report No.: 14010737HKG-001 Report Date: March 7, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14010737HKG-001 ii FCC ID: PIYBHX87-14A2T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Mattel Asia Pacific Sourcing Limited BRAND NAME: N/A, MODEL: BHX87 FCC ID: PIYBHX87-14A2T TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14010737HKG-001 iii FCC ID: PIYBHX87-14A2T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 3 2.6 Support Equipment List and Description............................................................. 3 3.0 Emission Results ................................................................................................ 4 3.1 Field Strength Calculation .................................................................................. 4 3.2 Radiated Emission Configuration Photograph .................................................... 5 3.3 Radiated Emission Data .................................................................................... 5 4.0 Equipment Photographs ..................................................................................... 7 5.0 Product Labelling ................................................................................................ 7 6.0 Technical Specifications ..................................................................................... 7 7.0 Instruction Manual.............................................................................................. 7 8.0 Miscellaneous Information ...................................…
