PIYC0638-03A2T1/64 Hot Wheels R/C

C0638_27.145MHz Tx Block Diagram ANT Battery Encode Amplifier







 U1 Q5 POWER 27.145MHz Control Oscillator Q1 Q2 Q7&X1

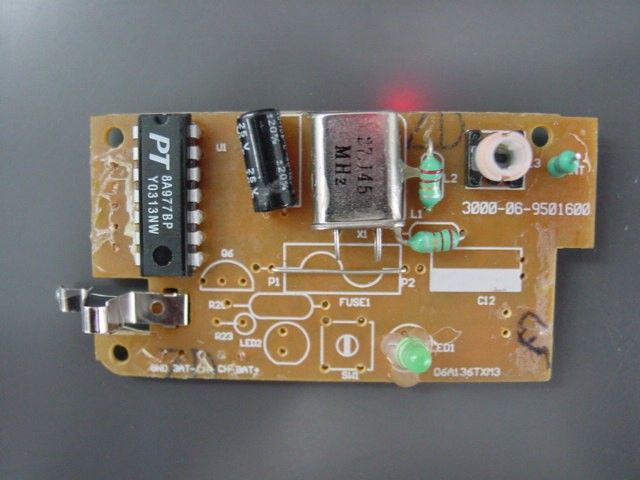

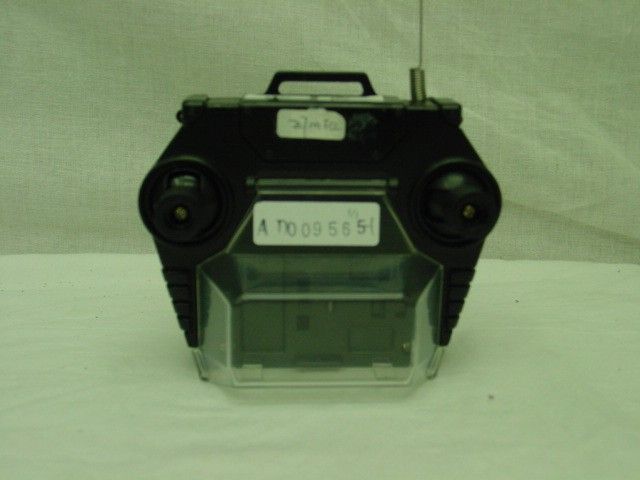

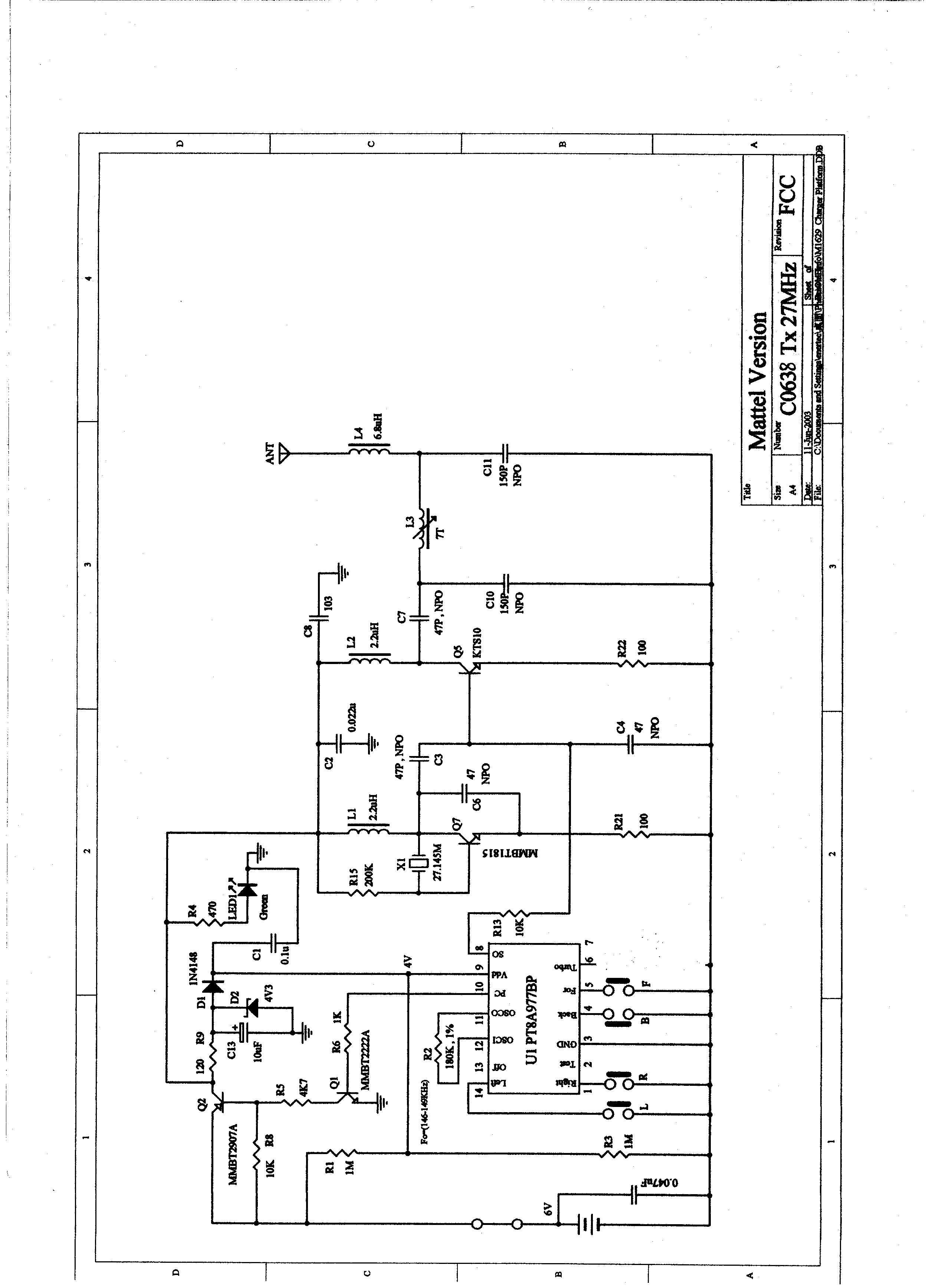

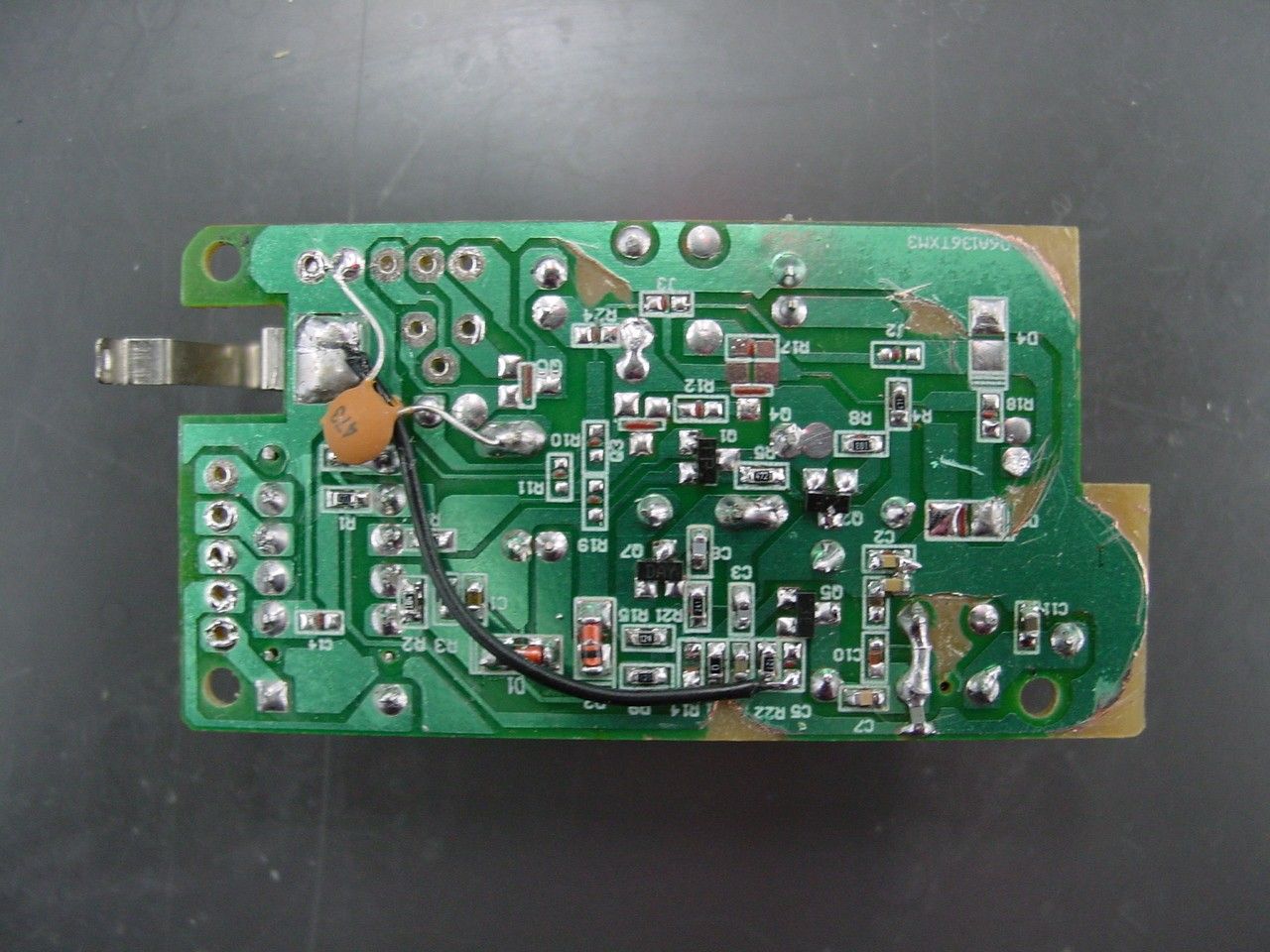

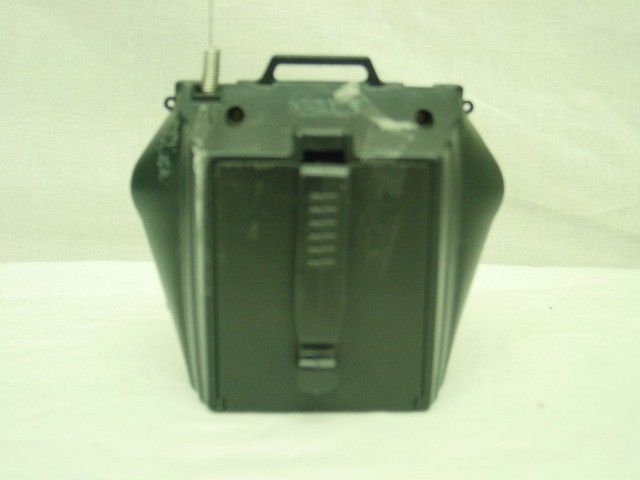

Operation Description of transmitter for 1/64 Hot Wheels R/C The 1/64 Hot Wheels R/C is a transmitter operating at 27.145 MHz which is controlled by a crystal. It is powered by 6V battery. There two joystick in the front of the EUT. When the forward/backward joystick pushed once, it transmits a radio frequency for receiver going forward/backward. When the left/right joystick pushed once, it transmits a radio frequency for receiver turn left/right. Refer to the circuit design, the circuit description is listed as follows: - Q7, X1 and associated circuit act as oscillator - Q5 and associated circuit act as amplifier - U1 and associated circuit act as encode - Q1, Q2 and associated circuit act as power control

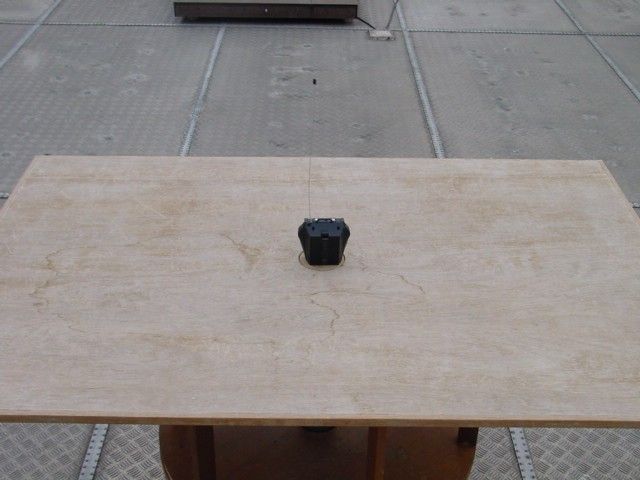

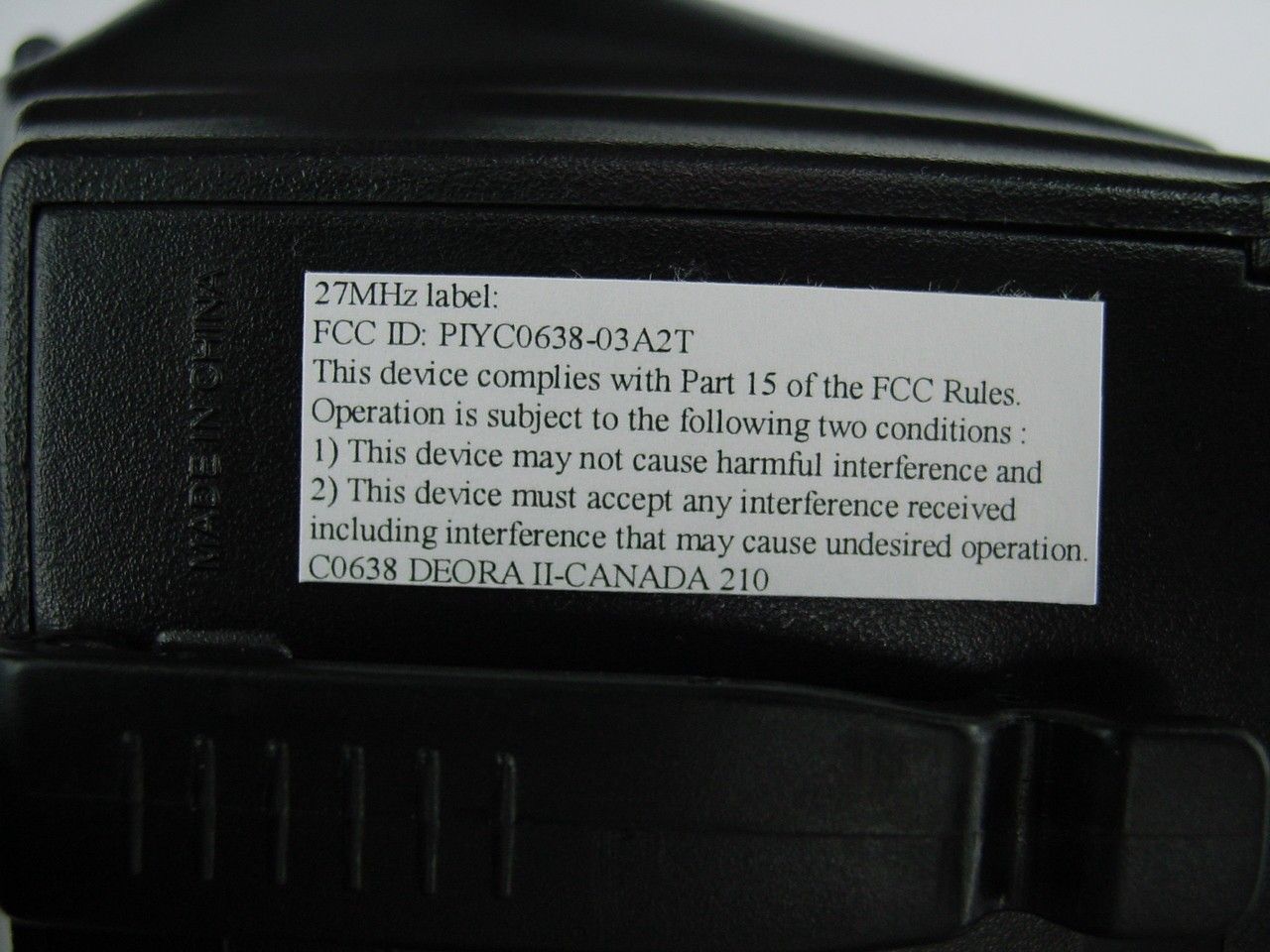

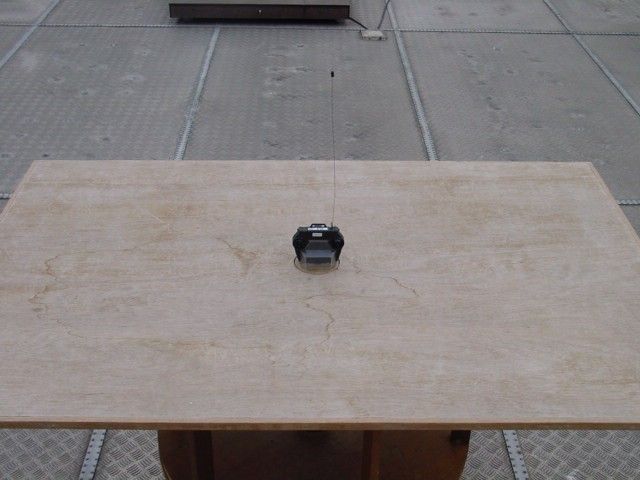

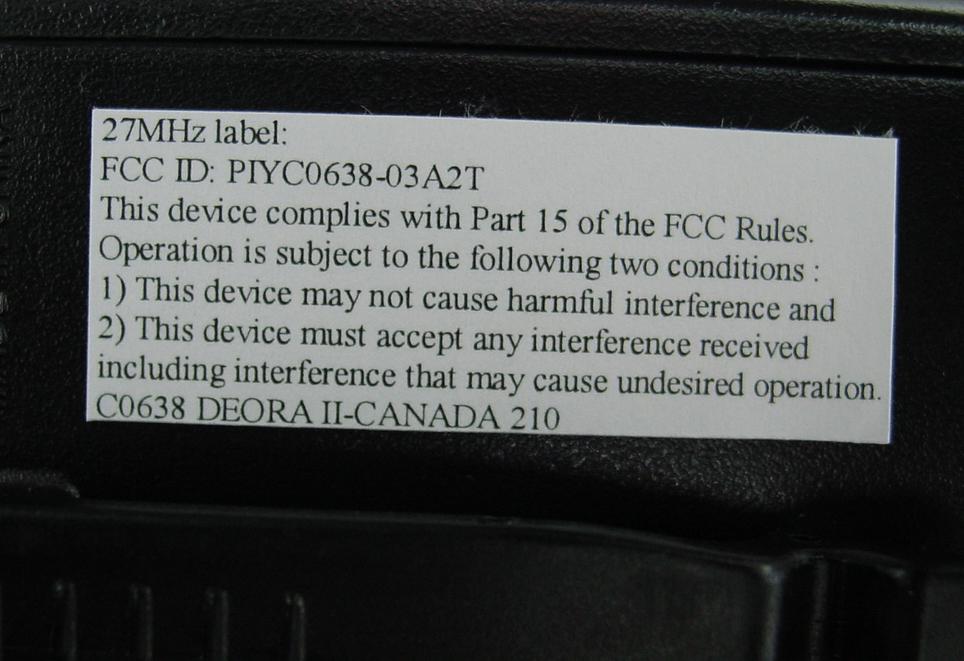

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009565-1 Date : 2003 July 19 Applicant : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be 1/64 Hot Wheels R/C of Model No. C0638 Deora 2 . Rating : 4 x 1.5 V button cells No. of sample(s) : Two(2) pieces *** Date Received : 2003 May 27. 2003 May 30. Test Period : 2003 May 30 – 2003 July 18. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYC0638-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009565-1 Date : 2003 July 19 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : PIYC0638-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009565-1 Date : 2003 July 19 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1/64 Hot Wheels R/C operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 4 x 1.5 V button cells. There two joystick in the front of the EUT. When the forward / backward joystick pushed once, it transmit a radio frequency for receiver going forward / backward. When the left / right joystick pushed once, it transmit a radio frequency for receiver turn left / right. The brief circuit description is listed as follows : - Q7, X1 and associated circuit act as oscillator - Q5 and associated circuit act as amplifier - U1 and associated circuit act as encode - Q1, Q2 and associated circuit act as power control 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : PIYC0638-03A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009565-1 Date : 2003 July 19 1.3 Location of the test site Radiated emissions meas…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AD009565-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AD009565-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AD009565-1 Duty Cycle 2 Duty Cycle 3
