PIYC4639-04A4TBatman RC Transmitter

CONTENTS/FEATURES Vehicle Transmitter 7.2V Battery Pack 7.2V Wall Charger Vehicle qSteering Adjuster * Turn with a screwdriver (not included) to keep vehicle running straight. wBattery Door eBattery Latch rON/OFF/SOUND Switch * This switch has 3 positions: = Vehicle ON (cool engine sounds). In this position, your vehicle will run with cool “revving” engine sound effects as you drive. = Vehicle OFF = Vehicle ON (no sounds). In this position, your vehicle will run with engine sound effects off. t MultiBand™ Selector Switch * Please see the “MultiBand™ Feature” Section for more information. Transmitter q Vehicle Controls w Antenna e MultiBand™ Selector Switch * Please see the “MultiBand™ Feature” Section for more information. TYCO R/C SUPPORT Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. 1 888 557-TYCO (8926) ® tycorc.com Keep these instructions for future reference: they contain important information. IMPORTANT: Please read all “Consumer Information” (last page) before operating your vehicle. 7.2V R/C 7.2V R/C CAUTION:Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. FORWARDREVERSELEFT RIGHT VEHICLE OPERATION NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. CAUTION-ELECTRIC TOY:
C4639-0920 INPUT: 120VAC, 60Hz, 12VA. OUTPUT: 8.5VDC, 420mA, 3.6W. q w e 123 r t 3 2 1 321 q w e MULTIBAND™ FEATURE • Your vehicle features the advanced Tyco® R/C MultiBand™ system. This system lets you race your vehicle head-to-head – against up to two of your friends (up to 3 drivers total) – without any radio interference from your friends’ transmiters or vehicles. You must be racing against another Tyco® R/C MultiBand™-equipped vehicle for this feature to work. • There’s one MultiBand™ Selector Switch on your vehicle chassis, and another one on your transmitter. The vehicle switch has 3 positions: one for each MultiBand™ setting. The transmitter switch has 3 positions: one for each MultiBand™ setting. • For successful operation, the vehicle switch and the transmitter switch must be set to the same MultiBand™ setting. When you’re driving by yourself, you can set the switches to any of the 3 MultiBand™ settings (as long as they match). • When you want to race head-to-head, just make sure that each driver (up to 3 drivers total) has a vehicle and transmitter set to a different MultiBand™ setting. * The transmitter’s MultiBand™ Selector Switch also serves as the transmitter’s power switch. To operate your vehicle, just turn the vehicle ON; then set the transmitter switch to the desired MultiBand™ setting. Push any transmitter control and you will be able to run and control your vehicle. * You must be racing against another Tyco® R/C MultiBand™-equipped vehicle for this feature to work. A non-MultiBand™ vehicle, running on the same frequency as your vehicle, may interfere with operation of your vehicle. If you are racing against a non-MultiBand™ vehicle, make sure that vehicle operates on a frequency different from yours. * If you need to change the MultiBand™ setting, first make sure that your vehicle is turned OFF. Change the switch position as desired, making sure to change both the transmitter AND the vehicle switches. Then turn your vehicle back ON for more racing action. NOTE: Make certain you’re not pressing a transmitter control while changing selector switch position. 123 3 2 1 Transmitter 1. To install transmitter battery, open battery cover as shown. 2. Install 2 AA alkaline batteries with polarity (-/+) as shown inside battery compartment. 3. Replace battery cover. 7.2V d.c. For detailed information regarding rechargeable battery charging and safety, please refer to the “Battery Charging/Care” Section. Vehicle 1. Rotate the battery door latch to unlocked position and open the battery door. 2. Insert the charged battery pack into the battery compartment as shown. 3. Connect the battery pack’s wire connector to the vehicle’s charging jack as shown. Make certain the connector is securely connected. 4. Close the battery door and rotate the battery door latch to locked position. BATTERY INSTALLATION 321 Use only Tyco® R/C 7.2V NiCd battery packs. Other batteries may leak or rupture, causing personal injury and damage. 1. Plug wall pack charger into standard wall outlet. 2. Connect the battery pack’s wire connector to the wall pack charger connector. Make certain the two connectors are tightly snapped together. 3. To disconnect wires, push down on the connector clip and pull apart. 4. After charging, the battery will feel warm. This condition is normal for fully charged batteries. 5. New battery packs must be charged for 5 1/2 hours the first two times charged. Subsequent charges will require 4 hours. Charging the battery pack for more than 5 1/2 hours will not give you a longer running time. 5 1/2 hours is all that is required for a fully charged battery pack. 6. Unlike alkaline batteries, which lose power gradually, a NiCd (Nickel- Cadmium) battery will run for its normal running time and then lose most of its power at once. It is time to recharge the battery pack. 7. After use, the battery pack will be hot! Wait at least 20 minutes until the battery pack cools before recharging. Recharging a warm or hot battery pack will greatly reduce the number of times your battery pack can be recharged. RECHARGEABLE BATTERY INFORMATION:
DO NOT RECHARGE BATTERY PACK IF IT’S HOT. ALLOW IT TO COOL BEFORE RECHARGING.
DO NOT RECHARGE A BATTERY PACK THAT SHOWS LEAKAGE OR CORROSION.
DO NOT DISASSEMBLE THE BATTERY PACK. THE BATTERY PACK IS A SEALED RECHARGEABLE NICKEL- CADMIUM BATTERY.
EXERCISE CAUTION IN HANDLING A HOT BATTERY PACK.
IF BATTERY PACK AND/OR CHARGER ARE WET, THOROUGHLY DRY BEFORE CHARGING.
DO NOT RECHARGE NON- RECHARGE…

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA ANTENNA AA * 2 3V FILTER PA POR X Oscillation 49.860MHz Control X1 X2 ANT ID0 ID1 TEST BACKWARDFORWARD RIGHT LEFT S1S2 S3 S4 RESET TXOUT GND VDD BLOCK-DIAGARMC4639 Batman 49.860MHzMAIN PCB: PIYC4639-04A4T EncoderCircuit FUNCTION SELECTOR CKSEL1 CKSEL0

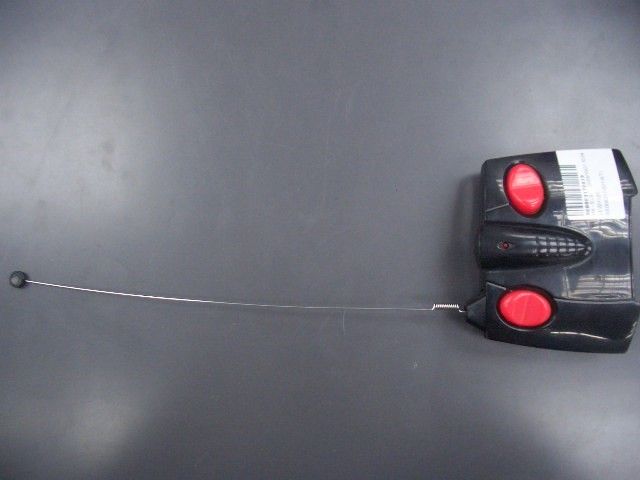

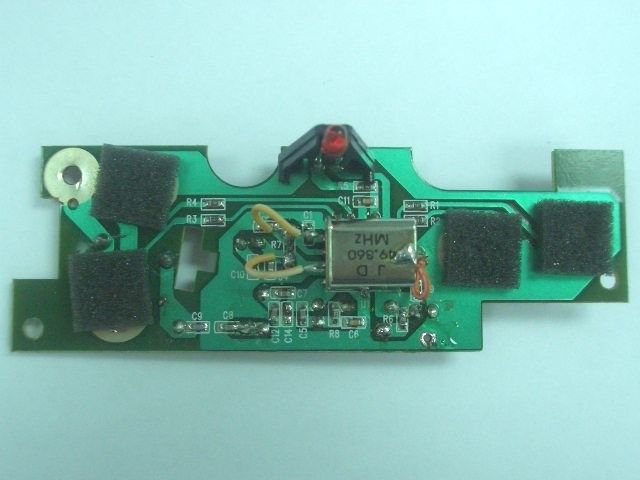

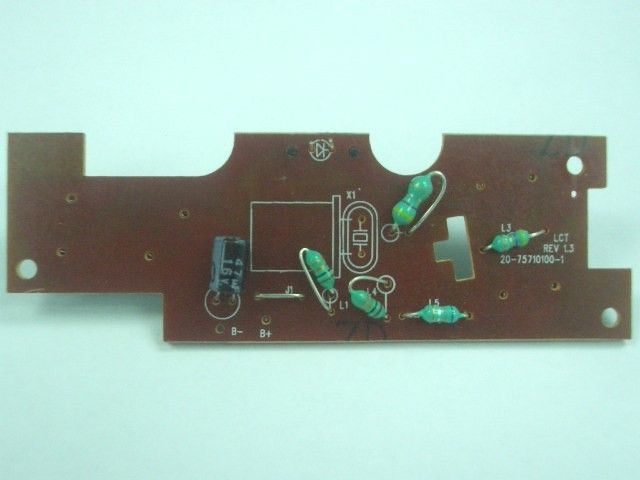

C4639 BATMAN 49.860MHz TRANSMITTER OPERATIONAL DESCRIPTION The BATMAN radio control transmitter is a low powered, hand held unit for controlling the movement of a toy car .The transmitter is powered by two 1.5-volt battery .It is designed to operate on a single fixed frequency in the 49.82~49.90MHz band. See the attached block diagram and schematic. Input pin ID0, ID1 of U1 is connected to a slide switch, the slide switch on bottom cover is used to select different channel to control the corresponding car. Input switches (SW1~SW4) trigger integrated circuit (U1) which produces the digital control signals and these signals modulate the carrier signal .The carrier signal is generated by a crystal oscillator / amplifier circuit comprised of a 49.86MHz crystal (Y1). The modulated output from pin ANT of U1 is capacitive coupled (via C7 )to the antenna through a “Pi” matching network comprised of C5、C6 and T1 .The antenna is 11 inches long and permanently attached. The manufacturer performs all tuning and verifications and there are no adjustments that can be made by the user. No external ground is required or used with this transmitter.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 15-Nov-2004 Sheet of File: D:\lmh\..\C4639TX-01.sch Drawn By: (Triband) 00 Y1 49.86MHz S3 1 S4 2 CKSEL0 3 TEST 4 CKSEL1 5 ANT 6 VSS1 7 X1 10 X2 11 ID1 12 ID0 13 TXDOUT 14 S1 15 S2 16 VDD 8 REST 9 U1 W55RFS27T3B D3 LED R4100 SW1 LT SW2 RT SW3 FW SW4 BW + C13100uF D1 1N4148 D2 1N4148 C4639 L4 0.1uH C7 33pF C10 68PF C9 0.047uF C12 0.1uF R3 4.7 C1 6.8pF C2 6.8pF R120K C5 33PF C6 33PF ANTENNA L1 2.2uH T17B-ZTR40K 2 X AA VCC L3 1uH L5 1uH C3 0.047uF C8 68PF R5 1K R6 1K R7 56R8 1K R9 1K R10 100K R11 100K VCC VCC car3 car2 SW5 car1 1/6 Batman (US 49M) CX68PF

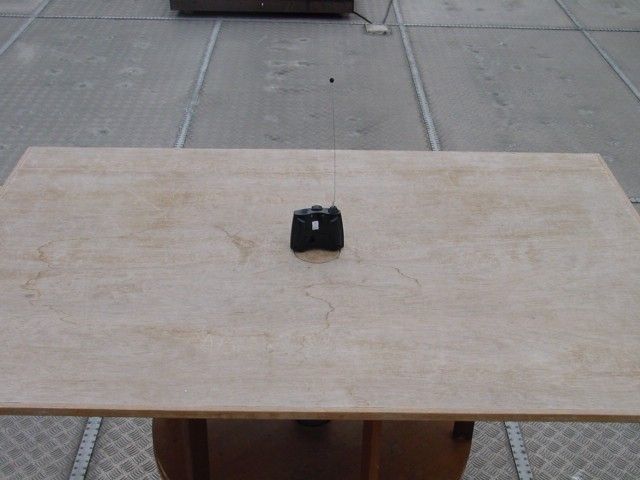

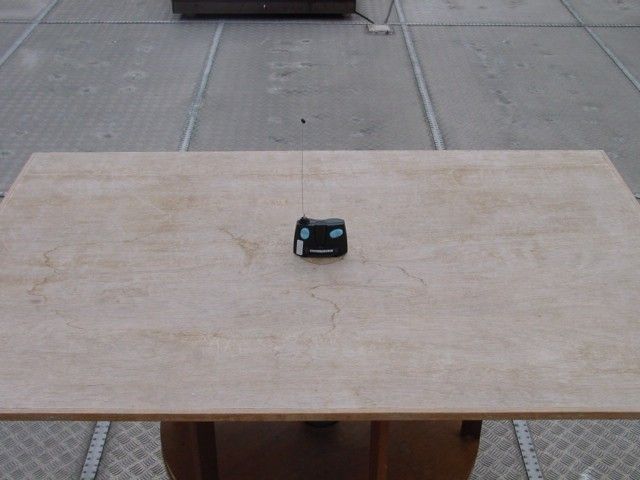

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE023770-001 Date : 2004 December 14 Application No. : LE201025(0) Client : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be 1/6 Batman of Model No. C4639 Rating : 2 x 1.5V “AA” size battery No. of sample(s) : Two (2) piece(s) *** Date Received : 2004 October 10. Test Period : 2004 October 10 – 2004 December 10. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYC4639-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE023770-001 Date : 2004 December 14 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result...............................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices...............................................................................................................................11 Page 2 of 11 FCC ID : PIYC4639-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE023770-001 Date : 2004 December 14 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1/6 Batman. Operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5V “AA” size battery. There are two control button in the front of EUT. When the “Forward”, “Backward” , “Turn Left” and “Turn Right” button is pressed once, it will transmit a radio signal for receiver moving to difference direction. It has a encoding switch for select 3 difference coding. The brief circuit description is listed as follows : - Y1 and associated circuit act as oscillator. - U1 and associated circuit act as encoder. 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 11 FCC ID : PIYC4639-04A4T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE023770-001 Date : 2004 December 14 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. An O…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Job No.: J00010393 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Job No.: J00010393 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Job No.: J00010393 Duty Cycle 2 Duty Cycle 3
