PIYG4925-04A2T1/3 SUZUKI GSX-R1000

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 14-Jul-2004 Sheet of File: D:\LZ-2004\PJX\G4925\G4925.DDB Drawn By: Reference Counter Divided BLOCK DIAGRAM G4925 TRANSMITTER TX PCB: G4925TXA Oscillator Phase Detector Prescaller & Programmable Counter Control Logic ROM code TX BUFFER Volt Reference & Bandgap RF Amp VCO XTAL CPO VCO1 VCO2 ENB GND VDD TXO D0D1 D2 D3 VDD VARACTOR 1234 CHANNEL SWITCH VDD R-OSCDATA LATCH DIVIDE/64 PATTERN GEN DIVIDE/4 DOUT SELECTION ROSC DI4DI5 DI6 DI7 DI8 DI9 VDD DOUTTEN TEN VSS LED VDD SOUNDTURBO FORWARD BRAKE LEFT RIGHT POWER SWITCH Voltage Regulator VDD 6V BATTERY 4XAA U2 SPRC201A U1 ET13X221 Low Pass Filler ANTENNA 27.075MHz27.105MHz 27.135MHz27.165MHz 4.0MHz 4.0 MHZ 128 KHZ

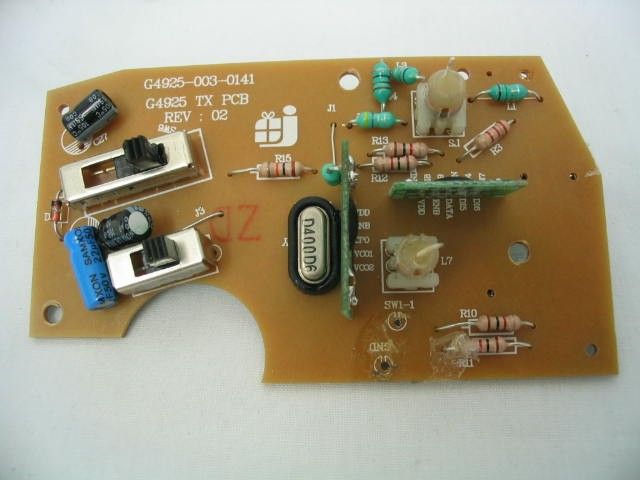

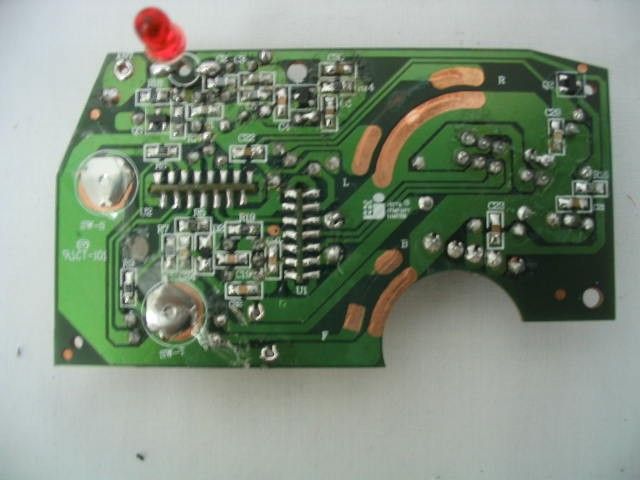

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 8-Jul-2004 Sheet of File: \\Hbpe-panjxiong\D\Project\Product\G4925\B6463 FCC DOCUMENT\G4925 TX_FCC.DDB Drawn By: ANT1ANT-TX SW-FSW-B SW-L SW-R R1 200K 1% BATT1 9V D1 3.3V C18 27nF R3 2.2K L4 12uH C5 220pF L3 680nH C3 6pF C4 82pF C2150pF C1 12pF L1 1.5uH Y1 4MHZ R4 12K R19 6.8K R7 560 R5 120K SW1 1/3 SUZUKI-TX G4925 03 L2 1.5uH Q1 2SC2712 CLCLK 1 VDD2 2 VCO1 3 VCO2 4 GND2 5 CPO 6 GND1 7 XTAL 8 VDD1 9 TXO 10 GND 11 ENB 12 D0 13 D1 14 D2 15 D3 16 U1 ETOMS ET13X221 R8 1K R9 1K R10 1K R11 1K R12 1K R13 1K VCC R1447 C60.001uF L5470nH C827pF C939pF L6470nHC106pF R15 10K DI3 5 DI4 6 DI5 7 DI6 12 DI7 13 DI8 15 DI9 16 VSS 3 TEN 10 TEN 11 DOUT 8 ROSC 14 D12 4 D11 2 D10 1 VDD 9 U2 SUNPLUS SPRC201A Q28050 C20 22uF C210.1uF C27100uF C220.1uF C290.001uF R16 200 C23 0.1uF C28 100uF C301uF L71.5uH C3115pF C19120PFC3230PF D21SV229 DATA C24 0.001uF C250.1uF VDD DATA Q3 9014 R173.3K R18390 D3 5mm Red LED VCC 1234 SW2 RP SS-24E11 CHANNEL SELECT SWITCH C110.1uF VCC VDD C380.1uF SW-S SW-T

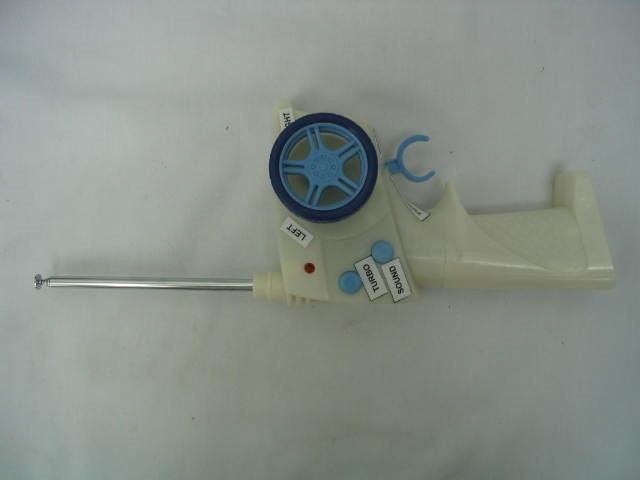

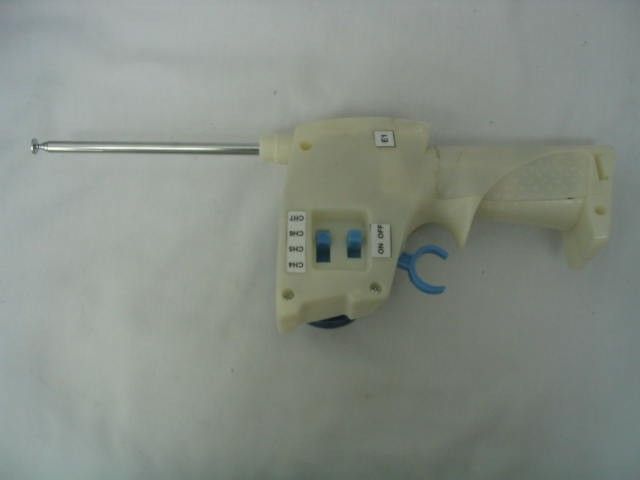

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE011016-1 Date : 2004 August 27 Client : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be 1/3 Suzuki GSX – R1000 of Model No. G4925 Rating : 4 x 1.5V “AA” size battery No. of sample(s) : Two (2) pieces *** Date Received : 2004 July 02. Test Period : 2004 July 02 – 2004 August 25. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – Dec 2003 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 12. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 12 Danny Chui EMC Engineer - EL. Division FCC ID : PIYG4925 – 04A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE011016-1 Date : 2004 August 27 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 9 3.1 Test Procedure......................................................................................................................... 9 3.2 Test Result...............................................................................................................................9 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 9 4 Photograph................................................................................................................................... 10 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission......................... 10 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 10 5 Supplementary document............................................................................................................... 11 5.1 Bandwidth............................................................................................................................. 11 6 Appendices...............................................................................................................................12 Page 2 of 12 FCC ID : PIYG4925 – 04A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE011016-1 Date : 2004 August 27 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1/3 Suzuki GSX – R1000. Operating at 27.075MHz ~ 27.165MHz which is controlled by a crystal. The EUT is powered by 4 x 1.5V AA size battery. There are 2 function keys in the front of EUT and a channel select switch in the back of EUT. When the forward or brake control switch pushed once, it will transmit a radio frequency for receiver go forward or stop. When the left or right control wheel pushed once, it will transmit a radio frequency for receiver turn left or right. It provide a channel switch for select 4 differences channel, and the channel spacing is 30KHz. The brief circuit description is listed as follows : - U2 and associated circuit act as encoder. - R1 and associated circuit act as oscillator for U2. - Q2 and associated circuit act as voltage regulator. - U1, D2 and associated circuit act as RF IC. - Y1 and associated circuit act as oscillator for U1. - Q1 and associated circuit act as RF Amp. - SW2 and associated circuit act as channel select switch. 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 12 FCC ID : PIYG4925 – 04A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approv…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Job No.: AE011016-1 Bandwidth Plot Bandwidth 1 (Frequency 27.075MHz) Bandwidth 2 (Frequency 27.165MHz)

CMA Testing and Certification Laboratories P. of Job No.: AE011016-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Job No.: AE011016-1 Duty Cycle 1 Duty Cycle 2
