PIYH2369-05A4RJEEP LIBERTY

CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. PRECAUCIÓN: Si las piezas electrónicas se mojan, es posible que las superficies se calienten y causen quemaduras. Nousar el vehículo en agua ni nieve. MISE EN GARDE: Les surfaces peuvent devenir chaudes et causer des brûlures si les composantes électroniquessont mouillées. Ne pas faire rouler ce véhicule sur des surfacesmouillées ou enneigées. U.S.A. 90-DAY LIMITED WARRANTY – TYCO® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanshipfor ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will replace the product in t he event of such a defect within the warranty period.In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solvedin this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below.Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Replacement and return shipment willbe free of charge.This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product isreturned without a dated sales receipt the product may be excluded from coverage under this warranty.Mattel’s liability for defects in material and workmanship under this warranty shall be limited to replacement, and in no eventshall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow thisexclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A. This warranty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do notallow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you.TOLL-FREE NUMBER: 1-800-524-8697 (valid only in U.S.A.) Hours: 8:00 A.M. - 5:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number.ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052Mattel de México, S.A. de C.V., garantiza este producto por unperiodo de 90 días en todas sus partes y mano de obra, a partirde la fecha de entrega. Condiciones: 1.- El consumidorpresentará el producto, junto con el comprobante de compra, enel lugar donde lo adquirió o lo presentará o enviará a nuestrocentro de servicio ubicado en Av. Tejocotes S/N, Lote 7(domicilio conocido), San Martín Obispo, Cuautitlán Izcalli, C.P.54769, Edo. de México, Tel.: (01 55) 59 05 51 00 Ext. 5206 ynúmero de atención gratuita 01-800 463 5989. 2.- Durante la vigencia de esta póliza nos comprometemos aefectuar sin cargo la reparación, en un plazo que no excederá de30 días a partir de la fecha de recepción del producto, ennuestro centro de servicio, o al cambio del producto defectuosoen su caso. Así mismo cubrimos gastos que se deriven de la presente garantía. Esta garantía se invalida cuandono se sigan las instrucciones especificadas en el instructivoanexo y/o cuando se le dé un uso indebido al producto (conforme a lo especificado en la NOM-015 SCFI en vigor). NOMBRE DEL CONSUMIDOR:_________________________________DIRECCIÓN Y TELÉFONO:_____________________________________LÍNEA DE PRODUCTO:_______________SERIE:___________________MODELO:____________________MARCA:_______________________NOMBRE DEL DISTRIBUIDOR:_________________________________DIRECCIÓN:________________________________________________SELLO O FIRMA DEL DISTRIBUIDOR:____________________________FECHA DE COMPRA:_________________________________________FECHA DE ENTREGA:_________________________________________ CANADA 90-DAY LIMITED WARRANTY Mattel, Inc. warrants to the original consumer purchaser thatthis product will be free of defects in material andworkmanship for ninety (90) days (unless specified in alternatewarranties) from the date of purchase. If defective, return theproduct along with proof of the date of purchase, postageprepaid to Mattel Canada Inc., Consumer Service, 6155Freemont Blvd., Mississauga, Ontario L5R 3W2 forreplacement with an identical toy or a similar toy of equal orgreater value according to availability. This warranty gives youspecific legal rights and you may have other rights which varyfrom province to province. This warranty does not coverdamage resulting from accident, misuse or abuse. Valid for products sold in Canada only.YOU MAY CALL US FREE AT 1-800-524-8697 Monday – Friday,8:00 a.m. – 5:00 p.m. EST; 5:00 a.m. – 2:00 p.m. PST. CANADA GARANTIE LIMITÉE DE 90 JOURS Mattel garantit à l’acheteur initial que le produit est couvertcontre les vices de matériau ou de fabrication pour une périodede 90 jours (à moins d’indication contraire dans d’autresgaranties) à compter de la date d’achat. Tout produitdéfectueux doit être retourné, accompagné d’une preuve de ladate d’achat et dûment affranchi, au Service à la clientèle deMattel Canada Inc., 6155, Freemont Blvd., Mississauga(Ontario) L5R 3W2, où il sera remplacé par un produitidentique ou un produit semblable de valeur égale ousupérieure, selon la disponibilité. La présente garantie procurecertains droits légaux à l’acheteur, qui peut égalementbénéficier de droits supplémentaires qui varient d’une provinceà l’autre. La présente garantie ne couvre pas les dommagesoccasionnés par un accident ou un usage abusif ouinapproprié. Valable pour les produits vendus au Canada seulement.QUESTIONS OU COMMENTAIRES? COMPOSEZ SANS FRAISLE 1 800 524-MATTEL (1 800 524-8697) du lundi au vendredi,de 8 h à 17 h (HNE) ou de 5 h à 14 h (HNP). MÉXICO PÓLIZA DE GARANTÍA 6.0V R/C h Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for …

Text truncated - open the document above for the full version.

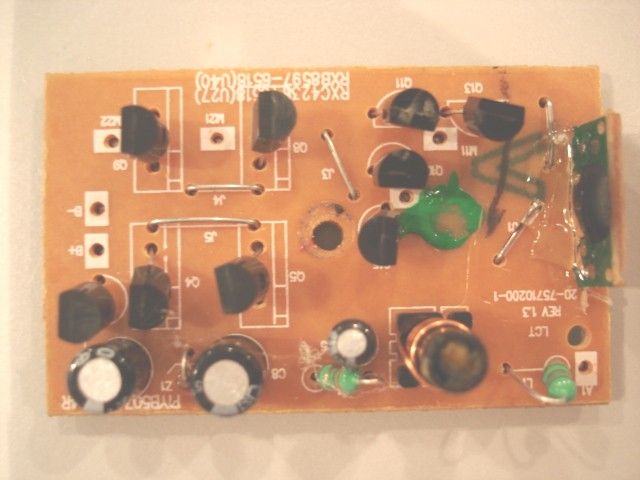

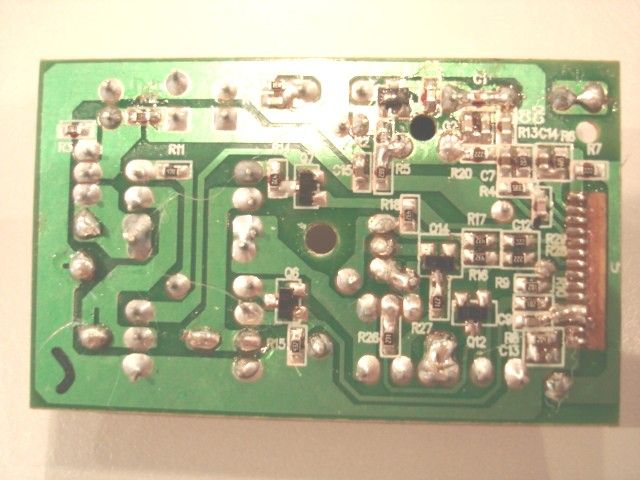

Mattel #H2369 RX 49. 860 MHz Receiver Operational Description The 9.0V Truck is full function radio controlled toy car . It operates on 9.0 volts supplied by six 1.5 volts alkaline AA batteries . It is designed to operate on a single fixed frequency in the 49.82 ñ 49.90 MHz band. See the attached block diagram and schematic. The vehicle receiver receives and demodulates the AM transmitted signal from the transmitter, using a standard super-regenerative AM receiver/demodulator circuit comprised of ANT1, Q1, L1, L3, L4 and associated passive components. L4 is a tunable core slug inductor that is used to tune the receiver for maximum sensitivity. The output of the AM receiver/demodulator is AC coupled to a high input impedance CMOS inverter is connected to the U1 decoder IC, it is biased into their linear region through C12, C14, C9, R4, R13, R6, R7 and function as amplify, filter and shape the data. After passing through the last inverter stage, the incoming waveform is a digitized enough to be fed into the IN1 pin for on-chip decoding. A Zener regulator circuit comprised of C11, C13, R3, Z1, C8, C15, it supplied voltage VDD for the super-regenerative radio, decoder IC. Drive motor is controlled by the U1 decoder IC, low power switching transistors Q6, Q7, and a high power H-bridge comprised of Q4, Q5, Q8, Q9, The Steering Motor is controlled by the U1 decoder IC low power switching transistors Q12,Q14,and a high power H-bridge comprised of Q10,Q11,Q13,Q15, All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

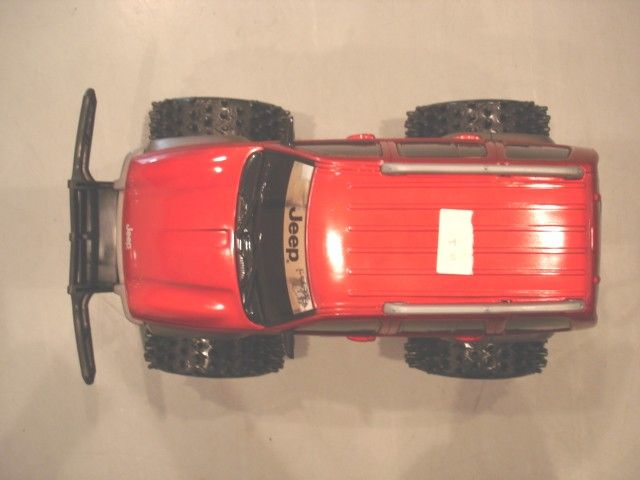

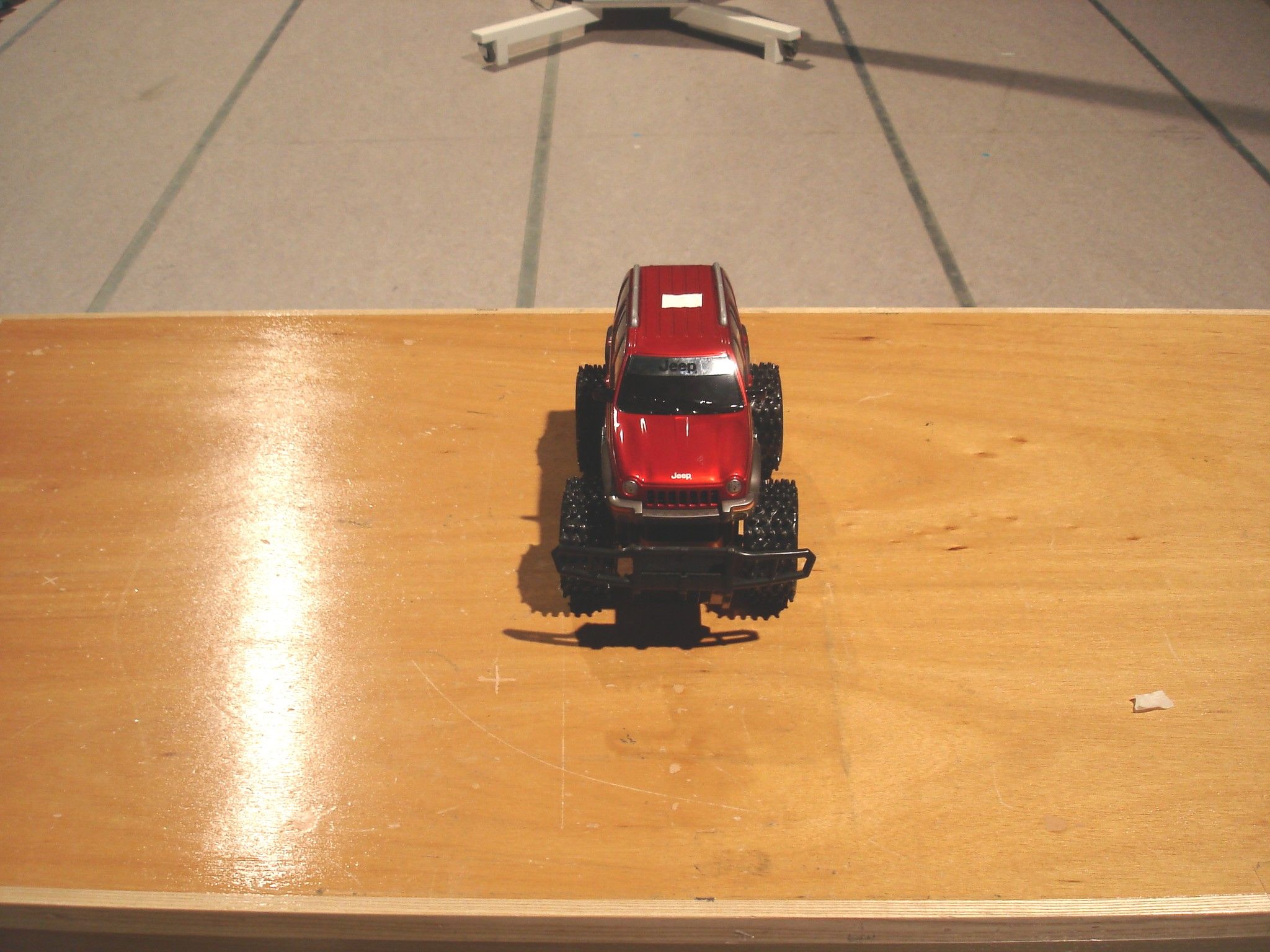

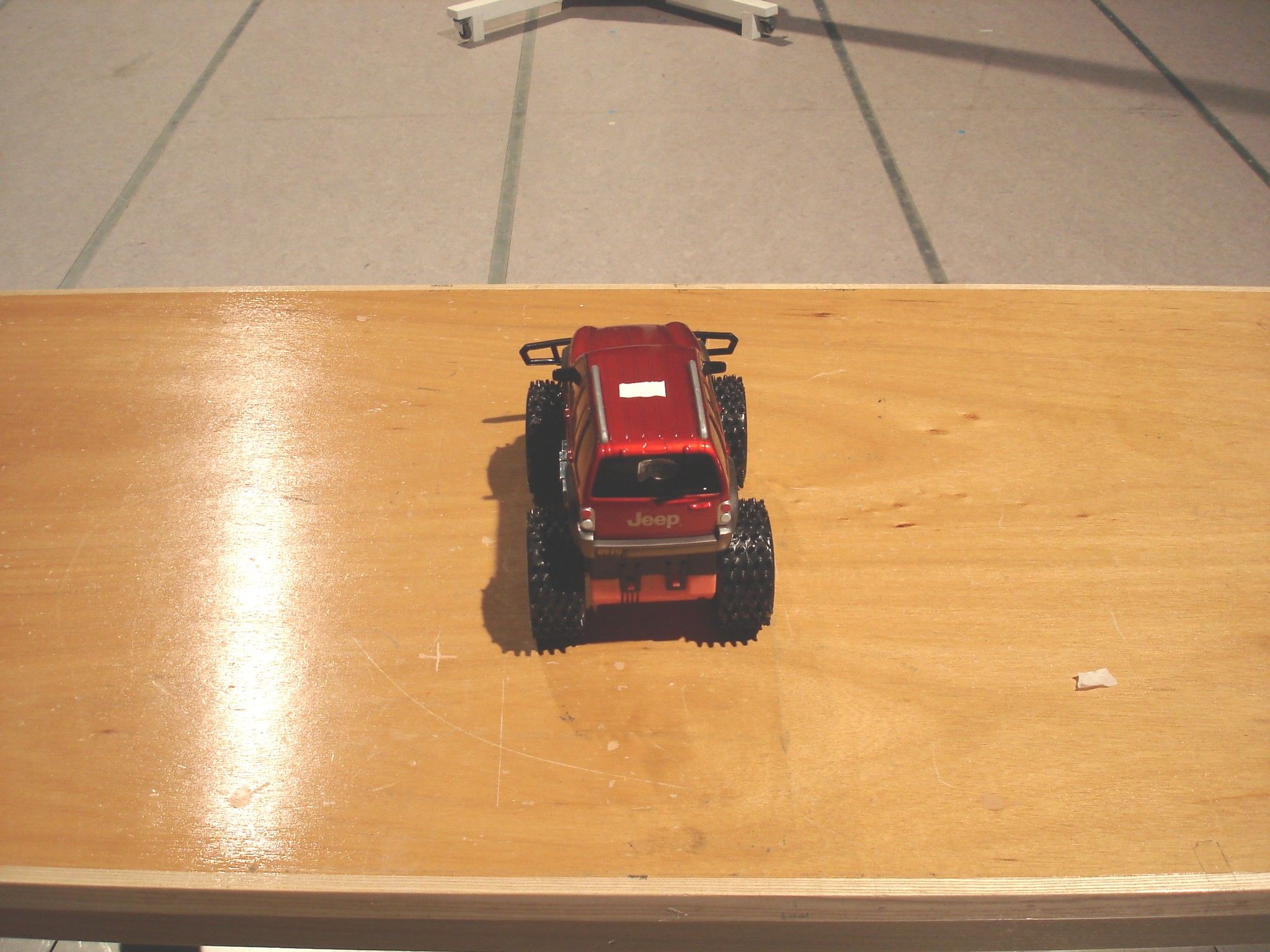

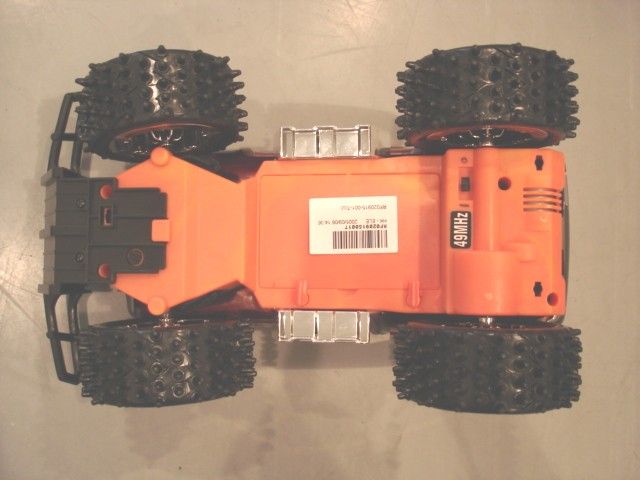

TEST REPORT Report No. : AF024132-001 Date : 2005 October 25 Page 1 of 11 FCC ID: PIYH2369-05A4R This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF219691(6) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample(s) stated to be Jeep Liberty of Model No. H2369 Rating : 6 x 1.5V AA size batteries No. of submitted sample : Three (3) piece(s) Date Received : 2005 October 14 Test Period : 2005 October 14 – 2005 October 25 Test Requested : FCC Part 15 Certification. Test Method : FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : ____________________________________________________ Danny Chui EMC Engineer - EL. Division TEST REPORT Report No. : AF024132-001 Date : 2005 October 25 Page 2 of 11 FCC ID: PIYH2369-05A4R This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information ................................................................................................................................................. 3 1.1 General Description ......................................................................................................................................... 3 1.2 Location of the test site .................................................................................................................................... 4 1.3 List of measuring equipment ........................................................................................................................... 5 2 Description of the radiated emission test.................................................................................................................. 6 2.1 Test Procedure ................................................................................................................................................. 6 2.2 Test Result ....................................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................................ 7 3 Description of the Line-conducted Test ................................................................................................................... 8 3.1 Test Procedure ................................................................................................................................................. 8 3.2 Test Result ....................................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data .........................................................................8 4 Photograph................................................................................................................................................................ 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................................... 9 4.2 Photographs of the External and Internal Configurations of the EUT.............................................................9 5 Supplementary document ....................................................................................................................................... 10 5.1 Bandwidth...................................................................................................................................................... 10 5.2 Duty cycle ...................................................................................................................................................... 10 5.3 Transmission time .......................................................................................................................................... 10 6 Appendices ............................................................................................................................................................. 11 TEST REPORT Report No. : AF024132-001 Date : 2005 October 25 Page 3 of 11 FCC ID: PIYH2369-05A4R This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Test Result : 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for Jeep Liberty. Operating at 49.860MHz which is controlled by a LRC circuit. The EUT is powered by 6 x 1.5V AA size battery, and it has a internal antenna. When it power on, it can receive a radio signal and running to difference direction. The brief circuit description is listed as follows : - Q1 and associated circuit act as super regenerative circuit. - Q4 ~ Q9 and associated circuit act as forward and backward motor control. - Q10 ~ Q15 and associated circuit act as turn left and turn right motor control. - Q2 and…
