PIYH2552-04A4RSWAMP BLASTER AIRBOAT

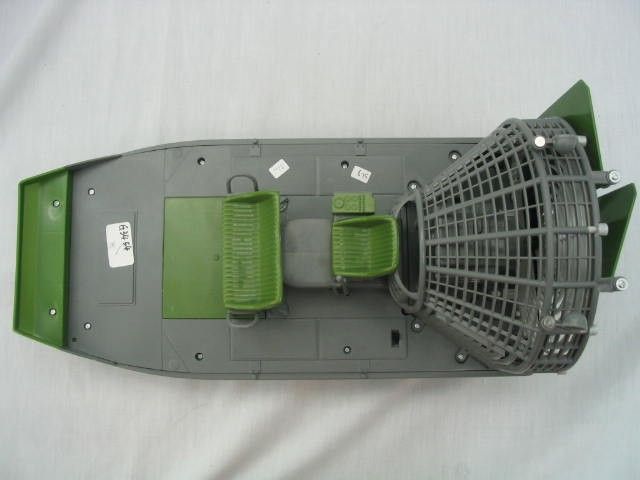

I. CONTENTS/FEATURES • Boat • Transmitter • 9.6 V NiCd Battery Pack • 9.6 V NiCd Wall Charger • 2 AA batteries for transmitter Boat q Trim Adjuster: For more info refer to the "Tips & Hints" section. w Battery Door e Battery Latches r ON/OFF Switch Transmitter q Antenna w Left Button Controls Forward & Reverse e Right Button Controls Turning r Battery Door ÄYour transmitter is equipped with a special automatic ON battery-saving feature. Just turn your vehicle ON. Then push either transmitter button and you will be able to run and control your vehicle. II. BOAT OPERATION Ä If your boat doesn’t move when you use the transmitter there’s a good chance your battery’s ready for a recharge. TYCO R/C SUPPORT Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. 1 888 557-TYCO (8926) ® tycorc.com Keep these instructions for future reference: they contain important information. 9.6V R/C 9.6V R/C CAUTION:Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. CAUTION-ELECTRIC TOY:
INPUT: 120VAC, 60Hz, 0.10A. OUTPUT: 11.5VDC, 1.05VA. G3454-0920 q w e r FORWARDREVERSELEFT RIGHT w q r e e O I X CAUTION:To prevent entanglement, keep hair away from wheels. III. BATTERY INSTALLATION For more info on rechargeable battery charging and safety, you’ll want to check out Section IV, “Battery Charging/Care.” Boat 1. Rotate the battery latches to open position. Lift up the seat to open the battery door. 2. Insert the battery pack into the battery compartment as shown. 3. Plug the wire connector into the battery compartment as shown. 4. Close the battery door. Rotate the battery latches to the locked position. 5. To remove the battery pack: turn the latches, open the battery door, unplug the wire connector and lift out the battery pack. Ä The battery door is designed to be removable so don’t worry if it comes off the hinges. Just stick it back on. Transmitter 1. Open the battery door as shown. 2. Install two “AA” batteries inside the battery compartment as shown. 3. Close the battery door. 9.6V d.c. NiCd, 1 x 8 AA, 700 mAh 2AA IV. BATTERY CHARGING/CARE XCAUTION:Use only the charger supplied with this toy. Do not use any other charging source. Use only Tyco® R/C 9.6V NiCd battery packs. Other batteries may leak or rupture, causing personal injury and damage. BATTERY CHARGING/CARE 1. Plug the wall pack charger into a standard wall outlet. 2. Connect the wires leading from the battery pack to the wall pack charger connector. Make certain the two connectors are tightly snapped together. 3. To disconnect the wires, push down on the connector clip and pull apart. 4. After charging, the battery will feel warm. Have no fear, that’s normal for fully charged batteries. 5. New battery packs must be charged for 5 1/2 hours the first two times. After that you’re looking at 4 hours per charge. Charging the battery pack for more than 4 hours won’t extend your running time but if it makes you happy, charge away. 6. Unlike alkaline batteries, which lose power gradual- ly, a NiCd (Nickel-Cadmium) battery will operate for its normal running time and then lose most of its power at once. When that starts to happen, recharge the battery pack. 7. Okay, you’re loving this toy and you want to slam that spent battery back into the charger for more splash action. Bad move. Here’s why: Recharging a warm or hot battery pack will greatly reduce the number of times your battery pack can be recharged. 8. Less run time means less fun time and we don’t want that do we? Ä General rule of thumb: Wait at least 20 minutes until the battery pack cools before recharging. 1. 2. 3. 1. 2. RECHARGEABLE BATTERY INFORMATION:
DO NOT RECHARGE BATTERY PACK IF IT’S HOT. ALLOW IT TO COOL BEFORE RECHARGING.
DO NOT RECHARGE A BATTERY PACK THAT SHOWS LEAKAGE OR CORROSION.
DO NOT DISASSEMBLE THE BATTERY PACK. THE BATTERY PACK IS A SEALED RECHARGEABLE NICKEL-CADMIUM BATTERY PACK.
EXERCISE CAUTION IN HANDLING A HOT BATTERY PACK.
IF BATTERY PACK AND/OR CHARGER ARE WET, THOROUGHLY DRY BEFORE CHARGING.
DO NOT RECHARGE NON-RECHARGEABLE BATTERIES.
REMOVE RECHARGEABLE BATTERIES BEFORE RECHARGING. Note to Adults: It’s probably a good idea to recharge the battery pack yourself to make sure everything’s done correctly. Who wants to wait four hours only to discover the battery’s been put into the charger backwards? Recharge batteries only under adult supervision. Kids will inevitably ram, slam and kablam the toy during usage. Always check for damage to the plug, housing, or other parts that may result in the risk of fire, electric shock or injury. If the product is damaged, do not use it. This transformer is not a toy. M THIS PRODUCT USES A NICKEL-CADMIUM RECHARGEABLE BATTERY PACK. THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPER- LY. FOR FURTHER INFORMATION REGARDING BATTERIES OR THEIR DISPOSAL PLEASE CON- TACT THE APPROPRIATE LOCAL OFFICE. V. TIPS & HINTS TIPS & HINTS – FOR ALL DRIVING ENVIRONMENTS 1. When your boat starts to lose power, you’ll start to lose performance. It's time for a recharge. As a rule, you should always start with a fully-charged battery. 2. Are you the full-throttle sort or a more a steady as you go type? Your boat's running time may change depending on your driving style. 3. Radio interference can mess up the signals you’re sending to the boat, causing it to perform erratically. Things to look for that may be causing the interfer- ence: other R/C boats running on the same frequency, electrical wires, large buildings, CB radios, UFOs (kid- ding) or other wireless gear that can cause interfer- ence. 4. Point your transmitter antenna up - not down toward your boat. If your boat gets too far away, you can kiss proper functio…

Text truncated - open the document above for the full version.

23mm 45mm The FCC ID label's size

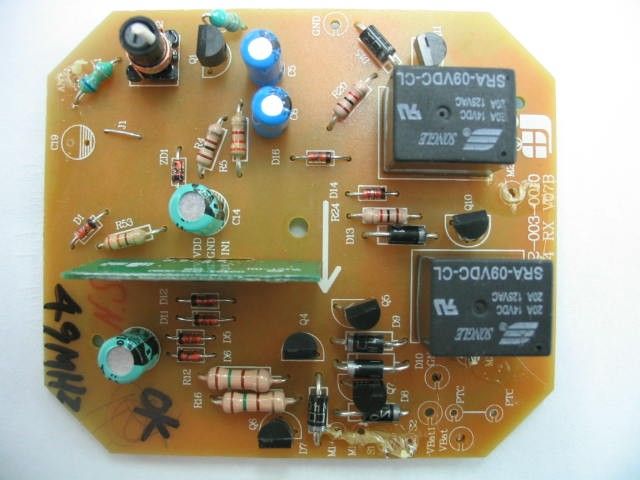

DiamondBack Airboat’RX Function Description Product No: H2552 Product name: SWAMP BLASTER TM Airboat Customer: Mattel Ver: US The DiamondBack Airboat requires 9.6v batteries for full function operating Left / Right steering Forward / Back. It is composed of the following parts. 1.Voltage Regulator. Comprise a NPN transistor Q2, zener diode D1, ON / OFF switch and its associated components. 2.RF receiver. Comprise a transistor Q1, coil L2 and its associated components. 3.RF receiver Amplifier. Use SPRC206A’s (U1) two inverter amplifiers, the two inverters’ gain depend on the external resistor and capacitor. 4.Decoder. Comprise SPR206A and its associated components, the SPR206A decodes the serial bit- stream data and interprets the information as output data to control the motor driver 1 and driver 2. 5.Driver 1. Forward / Back motor driver, comprise transistor Q9, Q12, relay RL1, RL2 and its associated components. 6.Driver 2. Left / Right motor driver, comprise transistor Q3, Q8 and its associated components. 7.Protection. Comprise Q13 and its associated components, turn off the motor driver circuit when the batteries’ voltage lower than 6V.

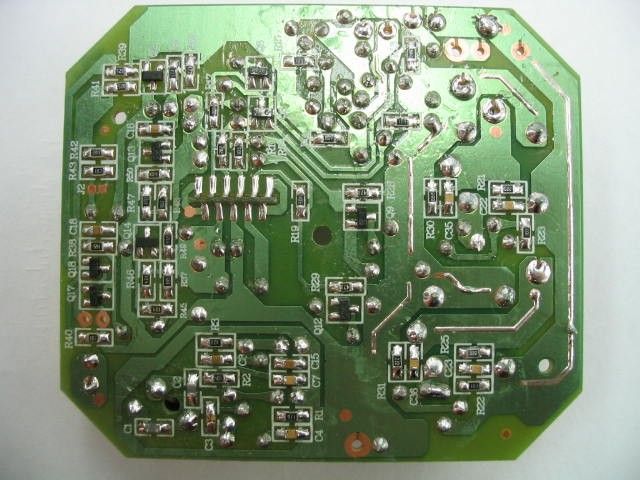

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 7-Oct-2004 Sheet of File: D:\LZ-2004\CQ\MyDesign.ddb Drawn By: Q1 2SC380 R3 10K R2 100K C7 0.01uF C3 27pF C1 10PF ANT1 C2 10pF L3 3.3uH R1 910 C4 2200pF L2 6.5T C8 0.1uF L1 6.8uH R5 3.3K C5 4.7uF C6 4.7uF IN1 11 OUT 12 IN2 13 OUT2 14 RXD 4 VSS 1 D4 10 ROSC 2 CLKO 3 D0 5 D1 6 D2 8 D3 9 VDD 7 U1 SPRC206 R6 3.9M C10 120pF C110.1uF R7 3.3K R9 3.3K C12 1000pF R8 3.9M R10200K +/-1% C13 0.1uF C14220uF ZD13.3VR53 330 Q6 8550D Q7 8050D R16 150 1W M1 Q8 C1623 Ca 0.1uF R15 10K D8 1N4001 D10 1N4001 R1810K R172K Right Q4 8550D Q5 8050D R12 150 1W Q3 C1623 R14 10K D7 1N4001 D9 1N4001 R13 10K R11 2K Left VBatt1 C9 0.01uF Left Right R4 100 C16 0.1uF C17220uF R5110K R52 47K Q2 9015 BATT 9.6V S1 ON/OFF VCC VBatt VDD Bonding PCB D5 1N4148 D6 1N4148 D VBatt1 R391.2M R3751K R41 1.2M +/-1% Q18 C1623 Q17 C1623 R381.2M R42 20K D1 1N4148 R40 100 1% VDD +/-1% R43 1K Q13 C1623 Q14 9015 R45 100K R46 100K R47 10K R4810K R494.7K R50 100K C18 0.1uF C150.1uF R2847K R24 1K RL19V 20A D13 1N4001 M1 DRIVE MOTOR R2947K R2210K Q10 8550D R23 10K RL2 9V 20A D15 1N4001 R20 1K Q11 8550D Q9 C1623 C22 0.01uF R21 22 C35 0.01uF R30 22 C23 0.01uF R25 22 C36 0.01uF R31 22 Q12 C1623 Cb 0.1uF R54 10K R1910K D11 1N4148 D12 1N4148 1 2 D16 1N4148 D14 1N4148 VBatt Forward Backward D G3454 RX V05 R4,R53,R24,R20,R12,R16 are DIP VBatt1

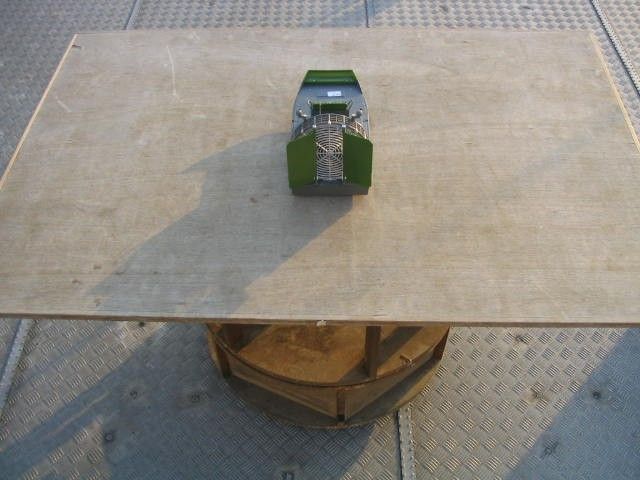

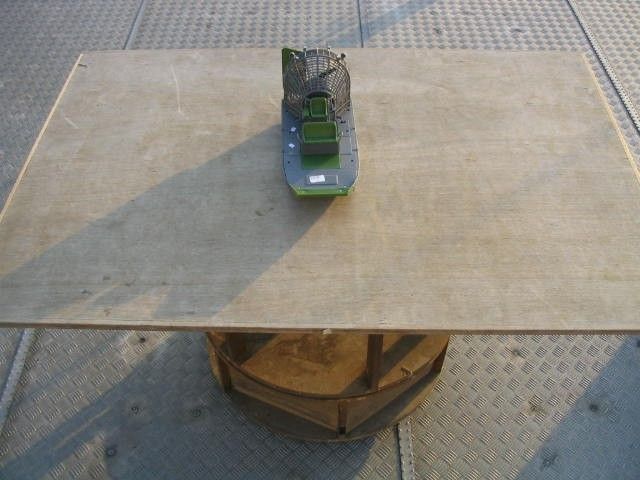

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE019179-001 Date : 2004 November 02 Application No.: LE211474(8) Client : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Swamp Blaster Airboat of Model No. H2552 Rating : 9.6V Rechargeable battery No. of sample(s) : Two (2) piece(s) *** Date Received : 2004 October 11. Test Period : 2004 October 11 - 2004 October 25. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – April 2004 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYH2552-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE019179-001 Date : 2004 October 21 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result...............................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices...............................................................................................................................11 Page 2 of 11 FCC ID : PIYH2552-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE019179-001 Date : 2004 October 21 1 General Information 1.1 General Description The equipment under test (EUT) is a super regenerative receiver for Swamp Blaster Airboat. Operating at 49.860 MHz which is controlled by a LRC circuit. The EUT is powered by 9.6V rechargeable battery. When it received Forward, Backward, Turn Left & Turn Right radio signal, it will moving to difference direction. The brief circuit description is listed as follows : - Q1 and associated circuit act as RF demodulcation. - Q13, Q14, Q17, Q18 and associated circuit act as low voltage protection. - U1 and associated circuit act as decoder. - RL1, RL2 & Q9 ~ Q12 and associated circuit act as main motor driver. - Q3 ~ Q8 and associated circuit act as steering motor driver. 1.2 Related Submittal Grants This is a single application for certification of a receiver. Page 3 of 11 FCC ID : PIYH2552-04A4R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE019179-001 Date : 2004 October 21 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63…
