PIYH3622-05A2T1:10 Drifting Vehicle Mazda Rx7

MATTEL: G3451 27MHZ TX 27.145MHZ Transmitter Operational Description The 1:10 Drifting R/C radio control transmitter is a low powered, hand held V.R for controlling the movement of a toy car

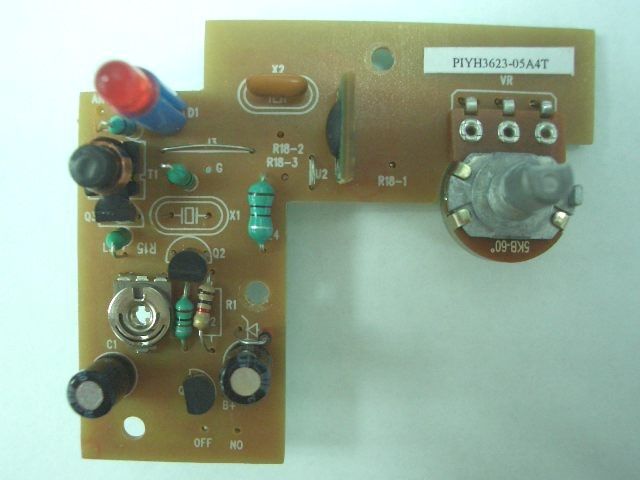

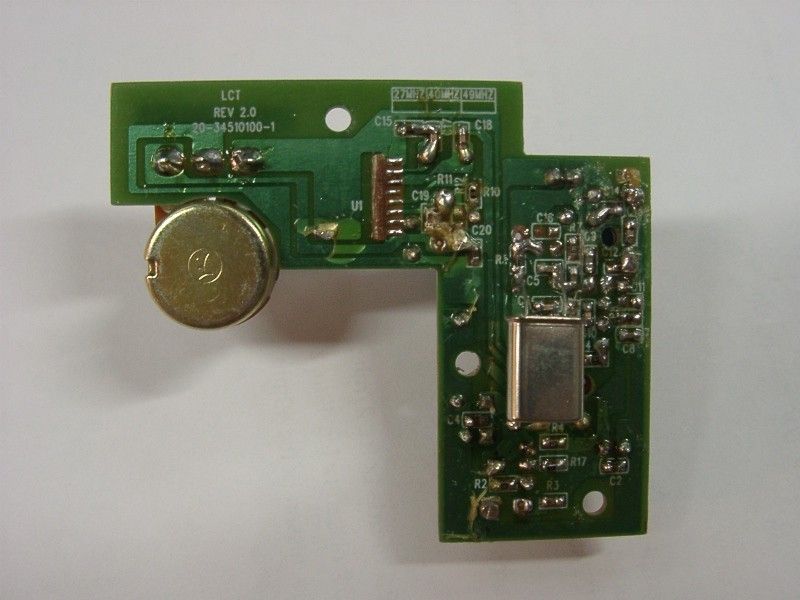

the transmitter is powered by a 6.0V battery(4XAA) ,it is designed to operate on a single fixed frequency in the 27.1450MHZ band .please see the attached block diagram and schematic. Transmitter is being used a proportional Remote Control EM78458 integrated circuit, the EM78458 is able to Dual pulse width modulation with 10-bit resolution with programmable pull-high I/O pins. When set any where of the V.R, it will have digital control signals, via built-in crystal oscillator and power amplifier, circuit comprised of a crystal X1. The RF carrier signal is modulated by digital control signal. The modulated output of pin57 is capacitably coupled via R10, C16, R7 to the antenna through a pi matching network comprised of C13 C14 and L5. T1 is adjustable. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the User. No external ground is required or used with this transmitter

G3451TX-E 27HMZ FCC.sch-1 - Fri Jan 28 15:36:54 2005

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF002026-001 Date : 2005 January 31 Applicant No. : LF200156(3) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be 1 : 10 Drifting Vehicle Mazda RX7 of Model No. H3622 Rating : 4 x 1.5V “AA” size battery No. of sample(s) : Three (3) piece(s)*** Date Received : 2005 January 18 Test Period : 2005 January 18 – 2005 January 28 Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYH3622-05A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF002026-001 Date : 2005 January 31 Table of Contents 1 General Information ...................................................................................................................................3 1.1 General Description ............................................................................................................................3 1.2 Related Submittal Grants ....................................................................................................................3 1.3 Location of the test site .......................................................................................................................4 1.4 List of measuring equipment...............................................................................................................5 2 Description of the radiated emission test ...................................................................................................6 2.1 Test Procedure ....................................................................................................................................6 2.2 Test Result ..........................................................................................................................................6 2.3 Radiated Emission Measurement Data ...............................................................................................7 3 Description of the Line-conducted Test .....................................................................................................8 3.1 Test Procedure ....................................................................................................................................8 3.2 Test Result ..........................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................8 4 Photograph .................................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission..............................9 4.2 Photographs of the External and Internal Configurations of the EUT................................................9 5 Supplementary document ..........................................................................................................................10 5.1 Bandwidth .........................................................................................................................................10 5.2 Duty cycle .........................................................................................................................................10 6 Appendices .................................................................................................................................................11 Page 2 of 11 FCC ID : PIYH3622-05A2T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF002026-001 Date : 2005 January 31 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1:10 Drifting Vehicle Mazda RX7 operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 4 x 1.5V “AA” size battery. There are two control stick and a on / off switch in the EUT. When switched “on” the unit and push the forward or backward control stick once, it will transmit a radio signal for receiver go forward or backward. When the turn left or turn right wheel trigger once, it will transmit a radio signal for receiver turn left or turn right. The brief circuit description is listed as follows: - U2 and associated circuit act as encoder - Q2, X1 and associated circuit act as oscillator - Q3 and associated circuit act as amplify - Q1 and associated circuit act as voltage readjust 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3…
