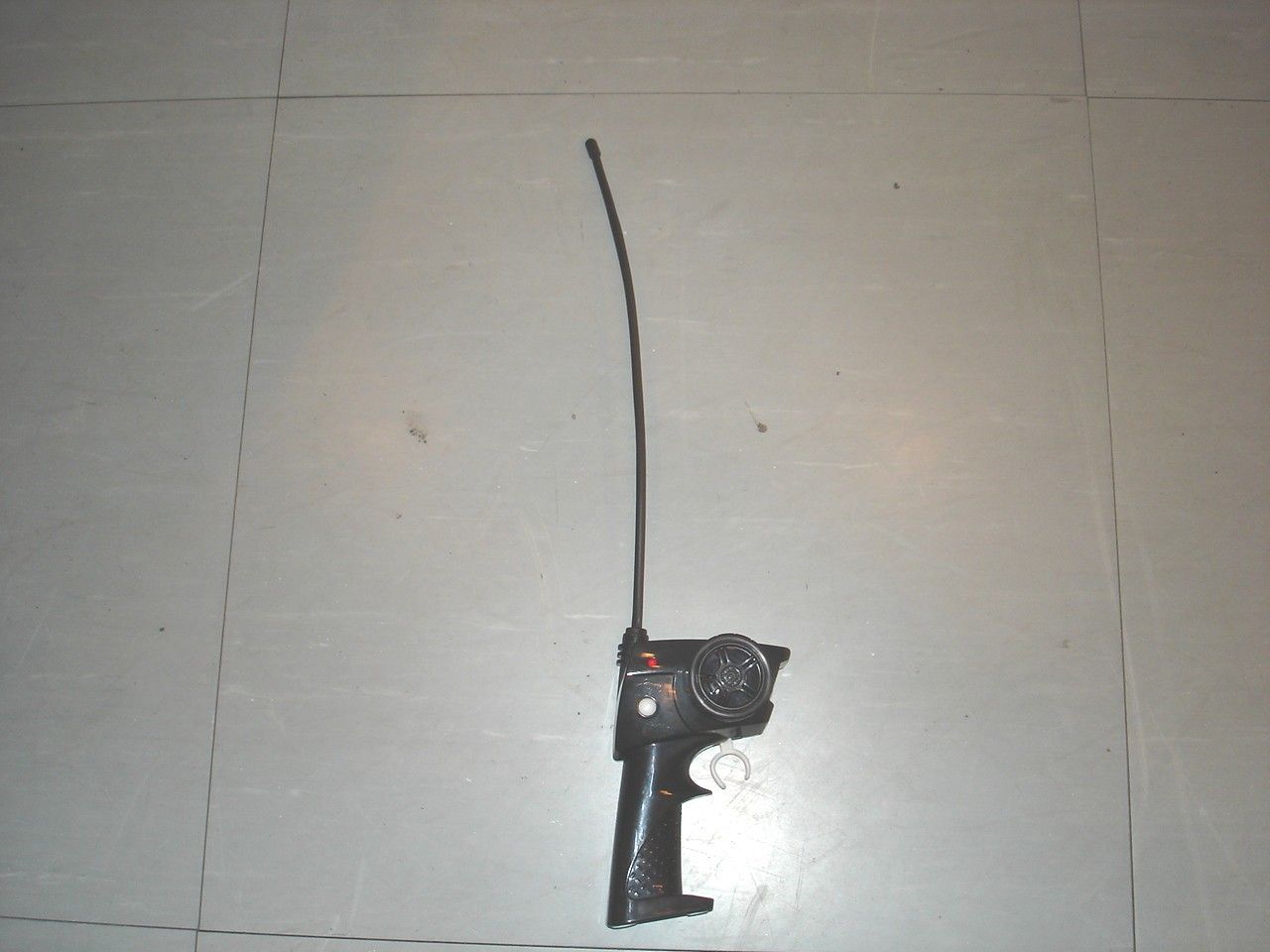

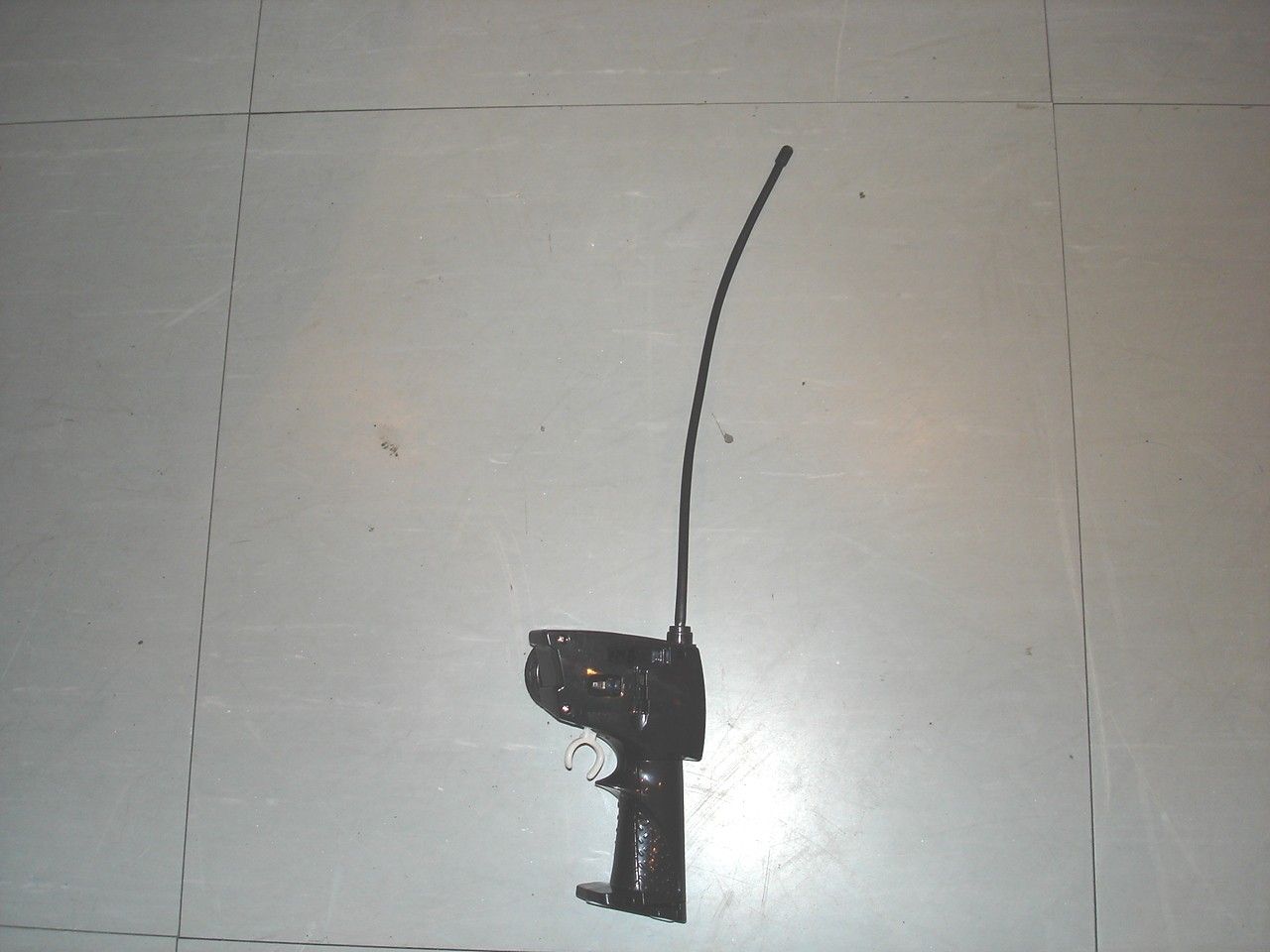

REBOUND SUPER BIKE H6917 27.145MHZ Transmitter Operational Description The REBOUND SUPER BIKE radio control transmitter is a low powered, hand held unit for controlling the movement of a toy car

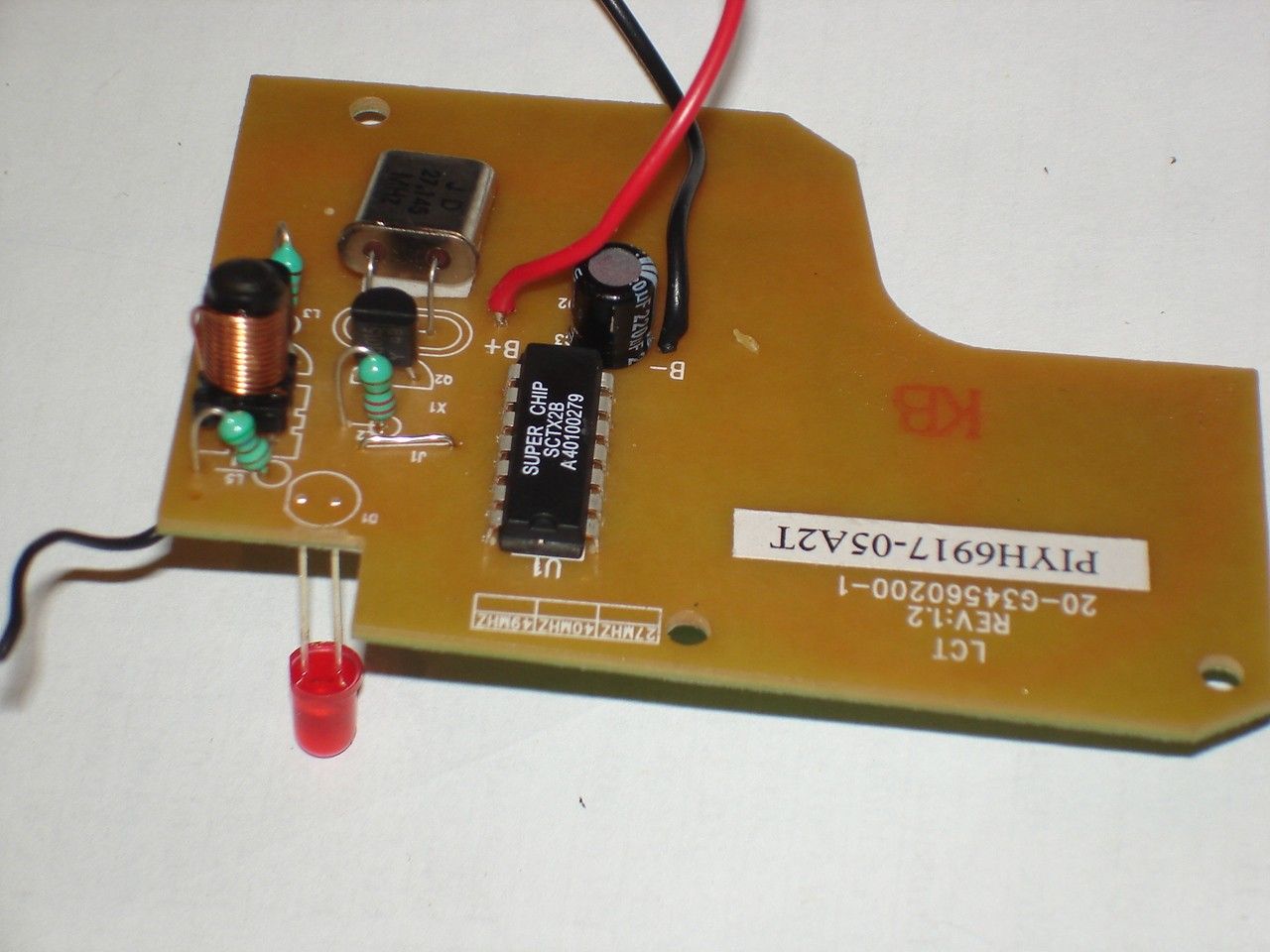

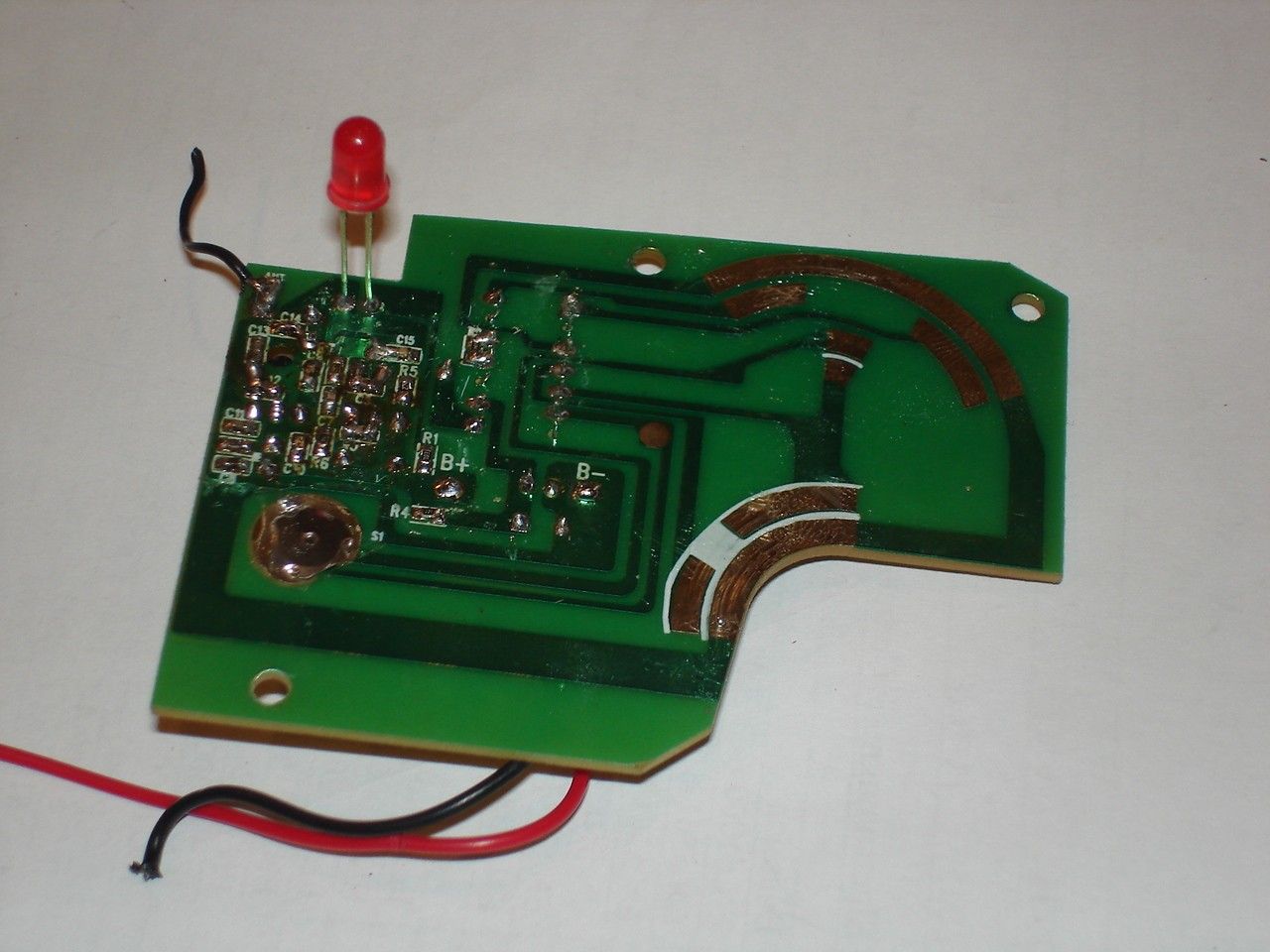

the transmitter is powered by a 6.0V battery(4XAA) ,it is designed to operate on a single fixed frequency in the 26.98-27.28MHZ band . See the attached block diagram and schematic. Position of SW2 to SW6 trigger an integrated circuit(U1)which produces the digital control signals that will modulate the carrier signal . The carrier signal is generated by a crystal oscillator circuit comprised of a 27.145MHZ crystal (x1) and a pnp transistor (Q2). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage (Q3). The modulated output of the RF amplifier stage is capacitively Coupled (via C12) to the antenna through a ìpiî matching network comprised of C13,T1 C14.The antenna is about 15 inches long and permanently attached. A LED acts as a power-on indicator. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the User. No external ground is required or used with this transmitter . REBOUND SUPER BIKE 27.145MHZ MATTEL PART H6917 TRANSMITTER FCC ID :PIYH6917-05A2T

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

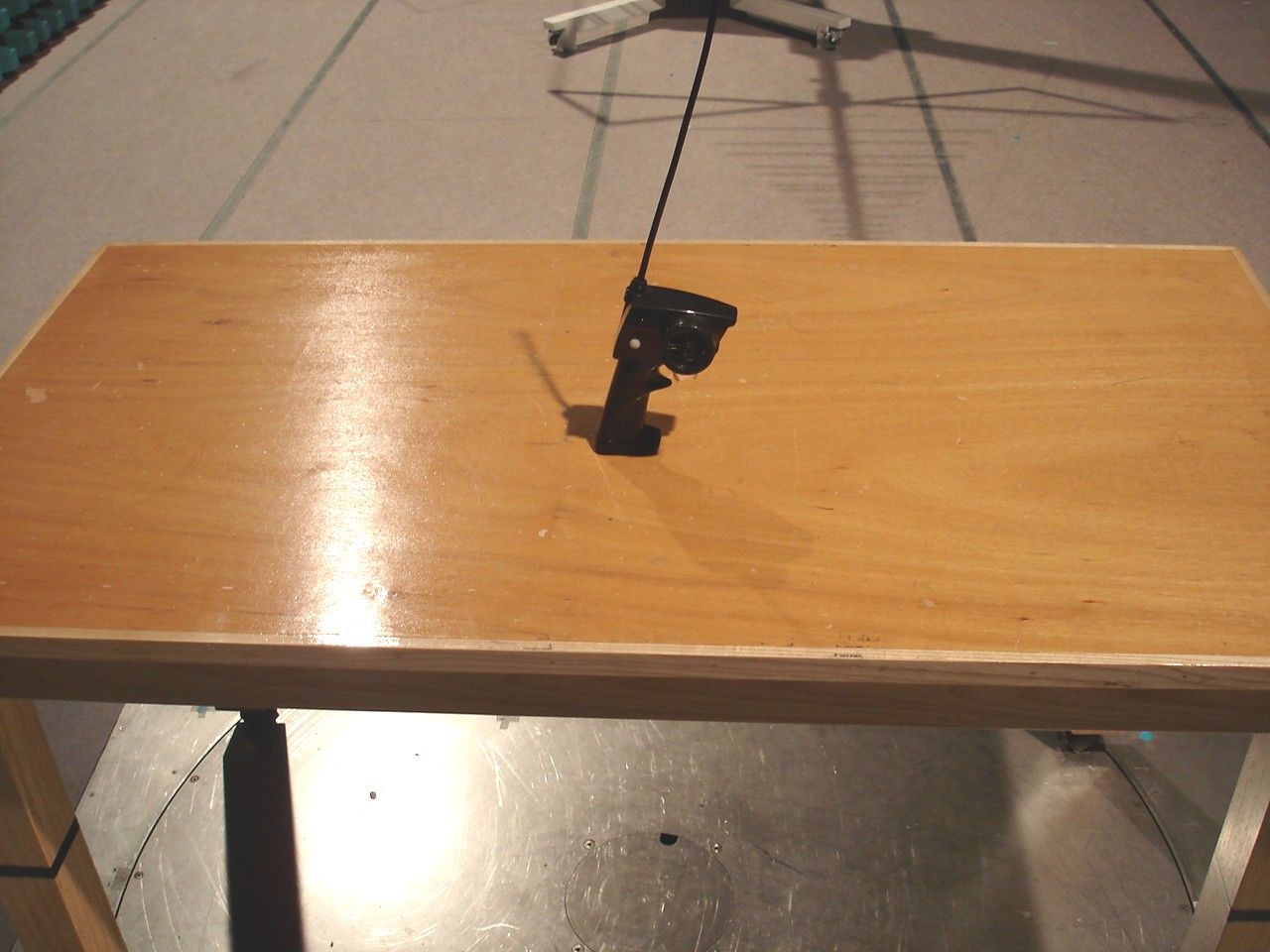

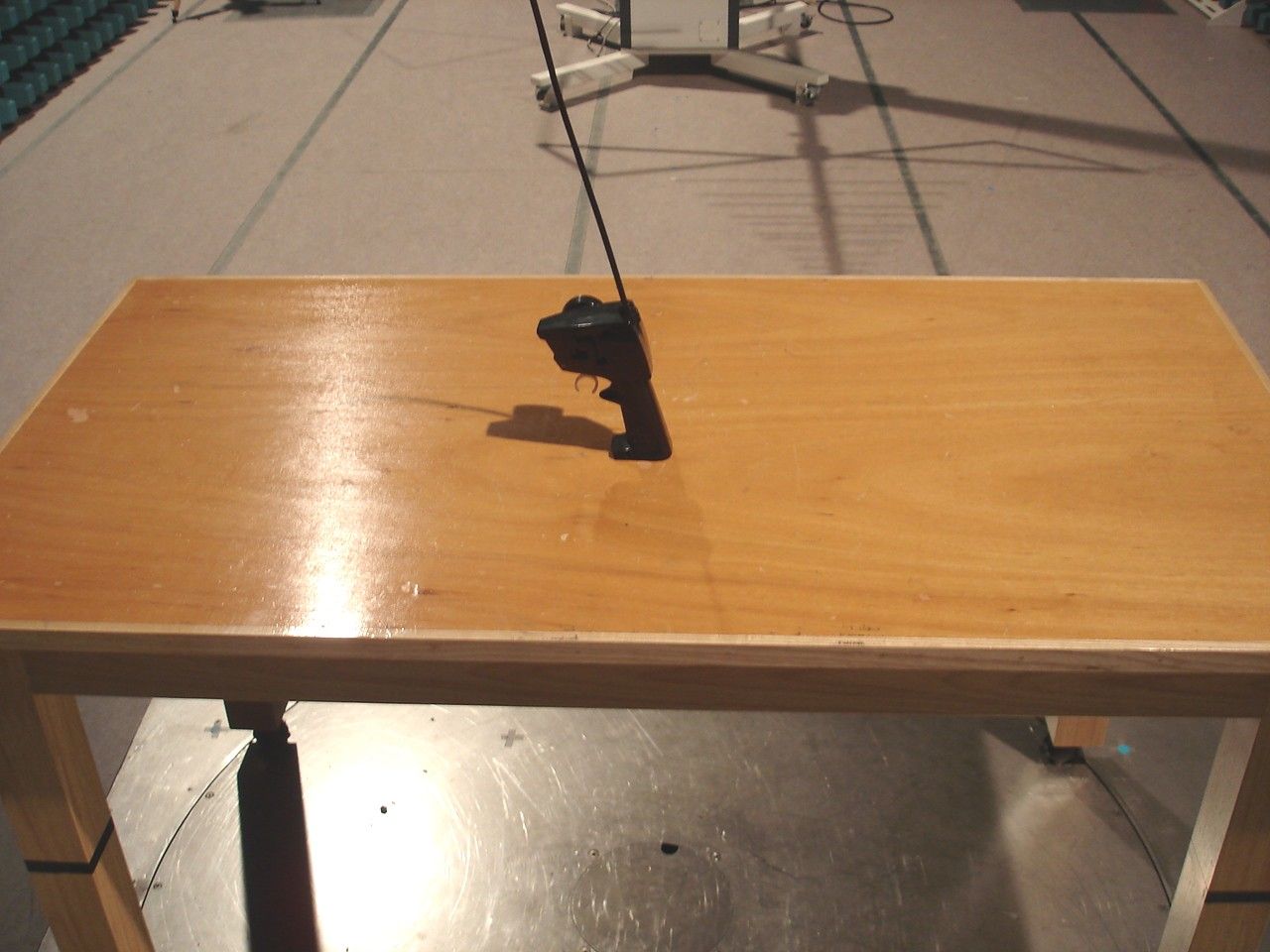

TEST REPORT Report No. : AF013695-001 Date : 2005 June 27 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYH6917-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF209282(1) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Rebound Super Bike of Model No. G3456 Rating : 4 x 1.5V AA size batteries No. of submitted sample : One (1) piece*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 June 08 2005 June 08 – 2005 June 20 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 11. The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AF013695-001 Date : 2005 June 27 Page 2 of 11 FCC ID : PIYH6917-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .................................................................................................................................. 3 1.1 General Description ........................................................................................................................... 3 1.2 Location of the test site ...................................................................................................................... 4 1.3 List of measuring equipment.............................................................................................................. 5 2 Description of the radiated emission test .................................................................................................. 6 2.1 Test Procedure ................................................................................................................................... 6 2.2 Test Result ......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data .............................................................................................. 7 3 Description of the Line-conducted Test .................................................................................................... 8 3.1 Test Procedure ................................................................................................................................... 8 3.2 Test Result ......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ........................................................... 8 4 Photograph ................................................................................................................................................ 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission............................. 9 4.2 Photographs of the External and Internal Configurations of the EUT............................................... 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ........................................................................................................................................ 10 5.2 Duty Cycle ....................................................................................................................................... 10 6 Appendices ............................................................................................................................................... 11 TEST REPORT Report No. : AF013695-001 Date : 2005 June 27 Page 3 of 11 FCC ID : PIYH6917-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Rebound Super Bike. Operating at 27.145MHz which is controlled by a crystal. The EUT is powered by 4 x 1.5V AA size battery. When the trigger key is pressed once, it will transmit difference radio signal to receiver unit. The brief circuit description is listed as follows : - Q2, X1 and associated circuit act as oscillator. - U2 and associated circuit act as encoder. - Q3 and associated circuit act as amplifier. TEST REPORT Report No. : AF013695-001 Date : 2005 June 27 Page 4 of 11 FCC ID : PIYH6917-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Job No.: J00029857 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Job No.: J00029857 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 CMA Testing and Certification Laboratories Job No.: J00029857 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 3
