PIYHGJ69-21A5THGJ69 Chatter Telephone with BT

123 Chatt er Telephone ™ HGJ69 Owner’s Manual Give your childhood a call. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Fisher-Price is under license. Other trademarks and trade names are those of their respective owners. ©2021 Mattel. ® and ™ designate U.S. trademarks of Mattel, except as noted. PRINTED IN CHINA HGJ69-0970-DOM Parts Rotary Dial Hands-Free Butt on “Wiggly” Eyes Handset Cable Rolling Wheels USB Charger Input USB Charging Cable Handset 3 456 Charging 1. To charge, turn the phone around and locate the USB port. 2. Connect the included micro USB cable to the phone’s USB port. 3. Plug the opposite end of the micro USB cable into a powered computer’s USB port or connect to a 5V/1000mAH USB charger (not included) and plug into an outlet. A red LED will light up on the USB port to indicate that the battery is charging. 4. The red LED will go off when the battery is fully charged (approx. 4 hours). 5. Disconnect the micro USB cable. Note: A 5V/1000 mAH USB charger is not included with Chatter Telephone™ and must be purchased separately. This type of charger is universal and can be purchased at any major retailer. Setup 1. Locate the red power button on the underside of the phone. 2. Press and hold the power button for approx. 3 seconds until a blue LED light turns on and the phone says, “Hi there!” Press and hold again for 3 seconds to turn the phone off, and it will say, “Love you, bye!” 3. Open the Settings menu on your device and turn on Bluetooth. 4. Select “Chatter Telephone” on the Bluetooth® device list. You will hear the phone say “Good to go” when the devices are successfully paired. Hint: If you cannot pair your device with the phone, try moving the device closer to the phone. Placing and Receiving Calls 1. Place your finger in the opening of the number that you would like to dial and rotate clockwise until you reach the finger stop. 2. Allow the dial to return to its original position before dialing the next number. (You should hear the phone say each digit as you are dialing the numbers.) 3. After you finish dialing, wait for approx. 5 seconds for your call to connect. 789 Placing and Receiving Calls Speakerphone Receiving calls is as easy as picking up the handset when the phone rings! You can adjust the speaker volume of the Chatter Telephone™ by adjusting the volume on the Bluetooth® device that it is paired with. Press the red button at any time during a call to enter speakerphone. You can then return the handset to the phone cradle. To return to handset mode, pick up the handset and continue your call. If pressed when the phone rings, it will answer in speakerphone. Press again to end the call. Ready to Roll? Work can be play with the Chatter Telephone™! Take a break with a childhood friend with these rolling wheels and “wiggly” eyes. Or if you want the phone to stay put, slide the latch on the underside to lock the wheels in place. Simply slide the latch back when you want to roll again! Handset Cable A 4 pole 3.5 mm audio cable is included with Chatter Telephone™ for use of the handset. The handset cable is segmented for safety reasons. If the cable becomes disconnected at any time, simply reconnect it to return function to the handset. If the handset cable is lost or damaged, a new one can be purchased separately at any major retailer. 101112 Consumer Information Compatible with all Bluetooth®-enabled devices. Approximately 9 hours of talk time. Approximately 72 hours of stand by time on a full battery charge. Approximately 15 ft. Bluetooth® range. Recharges via micro USB cable (included). If lost or damaged, a new micro USB cable charger can be purchased separately at any major retailer. Reset If the phone begins to operate erradically, you may need to reset the electronics. Press the main reset button with the point of a pen (or similar object). FCC STATEMENT (UNITED STATES ONLY) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifications no t expressly approved by the manufacturer responsible for co mpliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3 (B) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) il doit pouvoir tolérer tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre son fonctionnement. F CC:PIYHGJ69-21A5T IC:…

Text truncated - open the document above for the full version.

Mattel Asia Pacific Sourcing Limited 美 泰 玩 具 亞 太 有 限 公 司 Date: June 15, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The MATTEL, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the MATTEL solely in matters relating to the application for an FCC equipment authorization for FCC ID: PIYHGJ69-21A5T including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the MATTEL in connection with the Application shall have the same effect as acts of the MATTEL. MATTEL also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: Joule Mak Title: Director of Electronic Engineering Tel: (852) 31855000 Email: [email protected] Company name: Mattel Asia Pacific Sourcing Ltd.

Mattel Asia Pacific Sourcing Limited 美 泰 玩 具 亞 太 有 限 公 司 Date: June 15, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: PIYHGJ69-21A5T To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, MATTEL hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality till date 12/01/2021(max time 180 days from grant date) as outlined in Public Notice DA04-1705. This provision will give MATTEL temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up procedure SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory Name：Joule Mak Company name：Mattel Asia Pacific Sourcing Limited Address：13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong Tel：31855000 Email：[email protected]

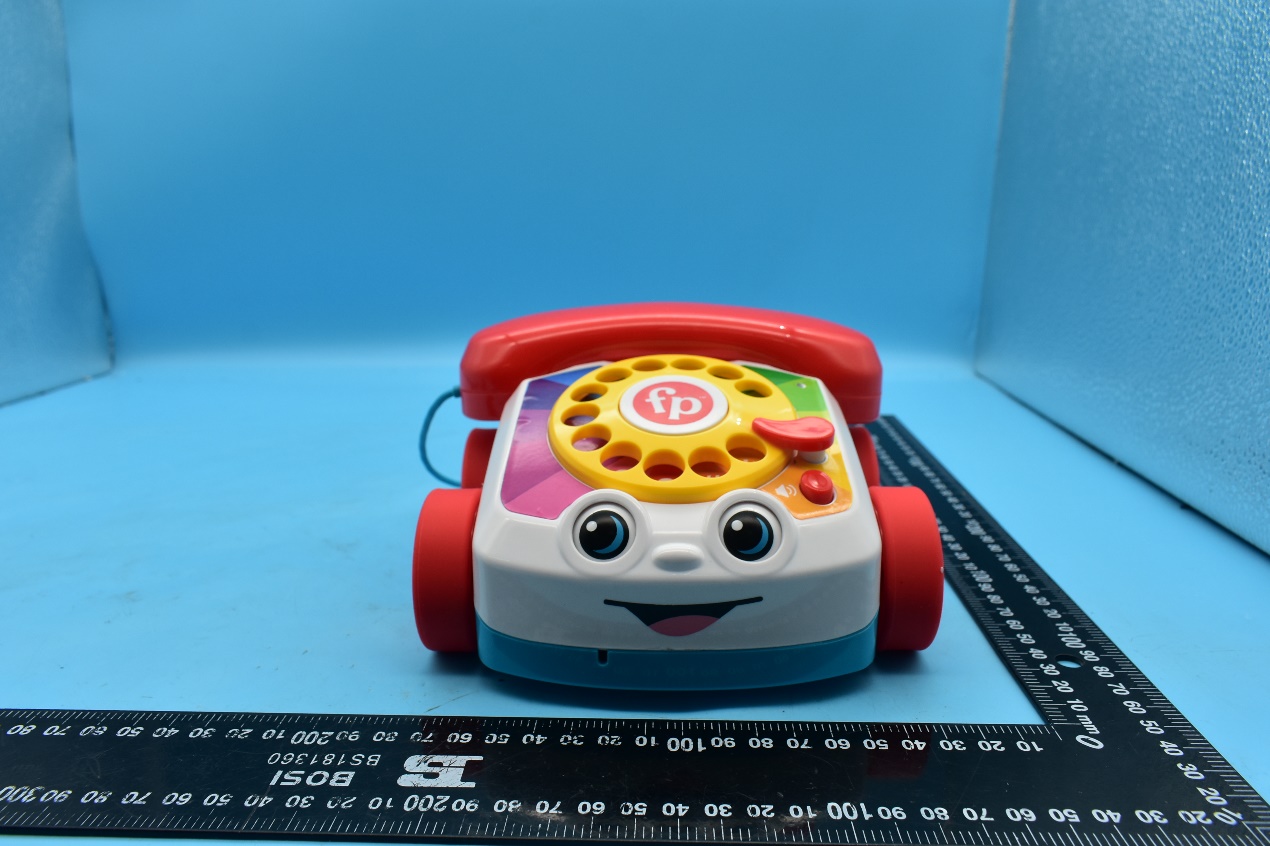

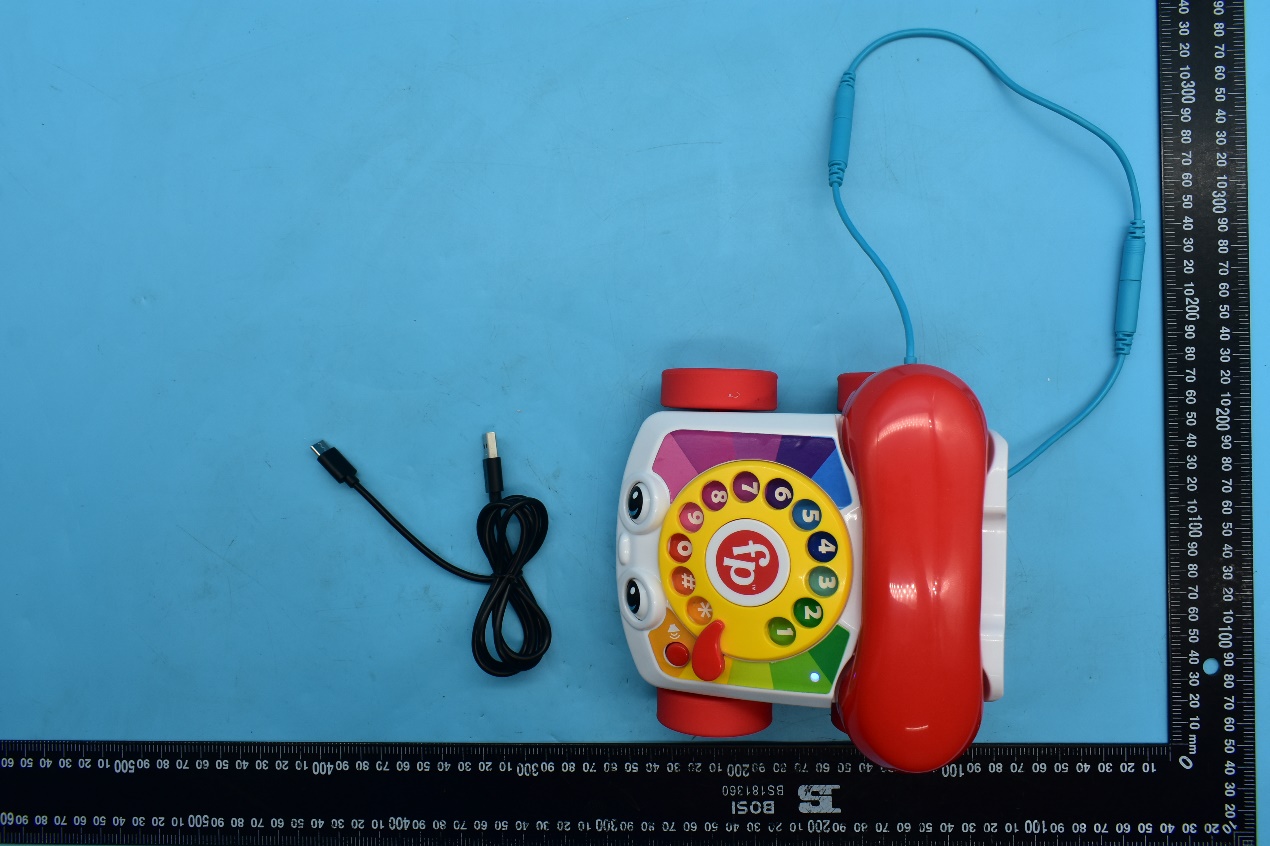

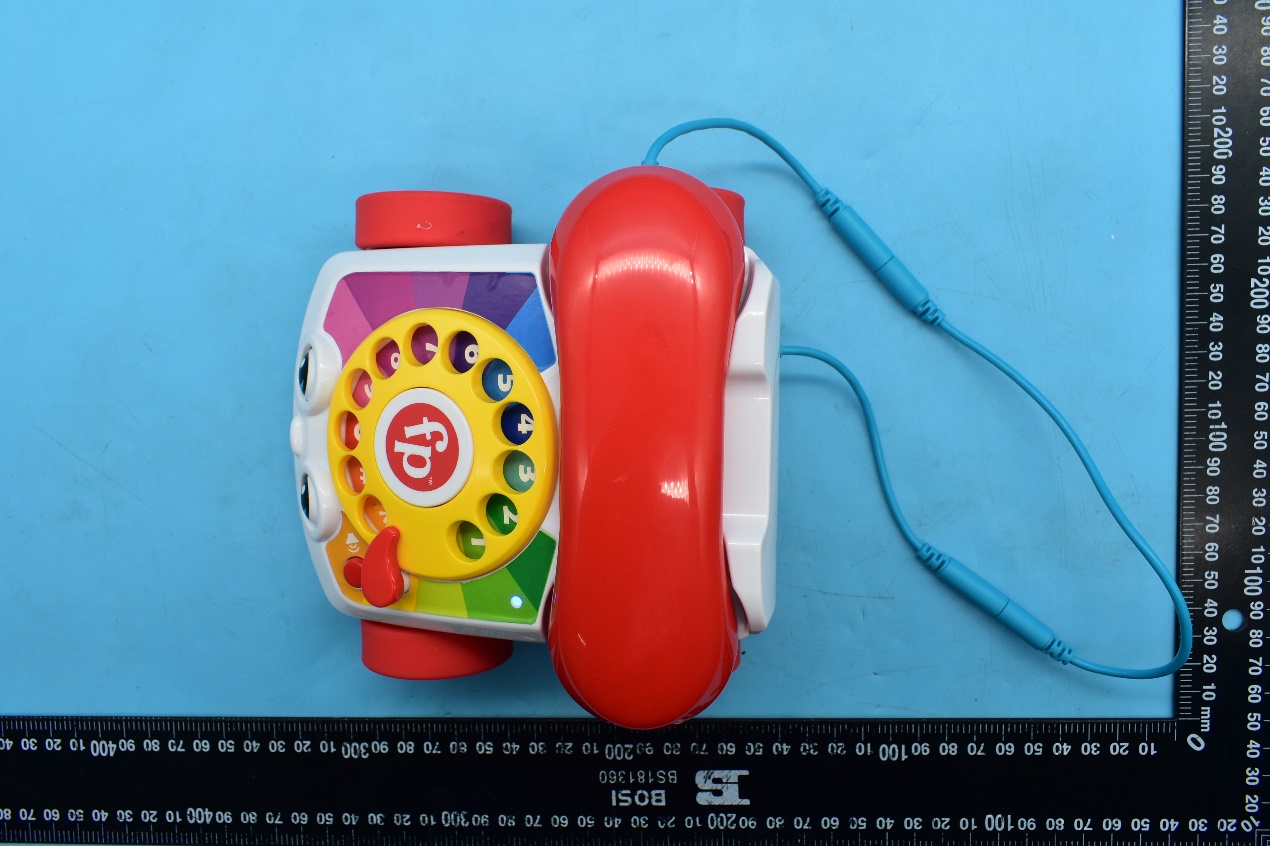

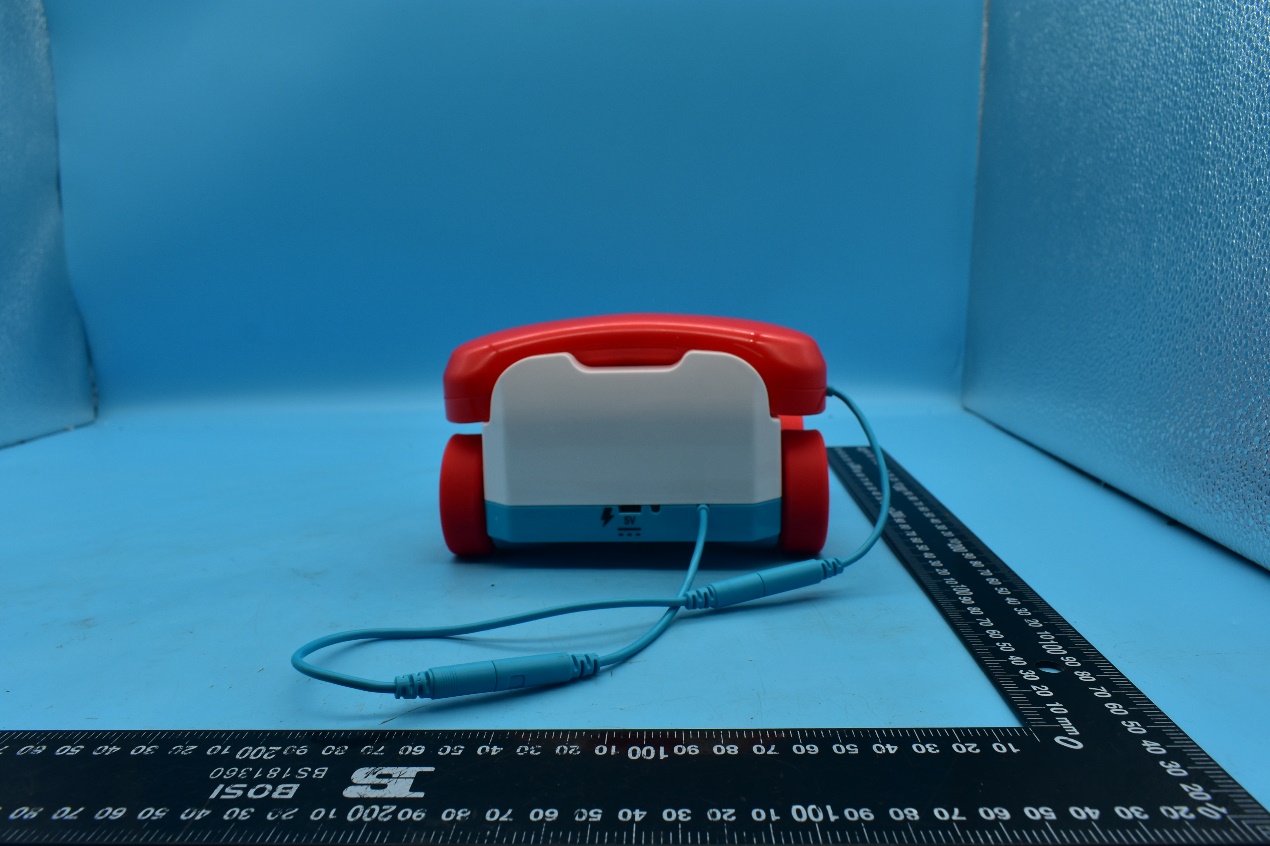

FCC ID:PIYHGJ69-21A5T, IC:4390C-HGJ6921A5T External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

Label： Location：

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 8 REPORT No.：SZ21060022S01 RF EXPOSURE EXEMPT REPORT APPLICANT : Mattel Asia Pacific Sourcing Ltd. PRODUCT NAME : HGJ69 Chatter Telephone MODEL NAME :HGJ69 BRAND NAME : Fisher-Price (Mattel) FCC ID : PIYHGJ69-21A5T STANDARD(S) : FCC 47CFR Part 2(2.1093) RECEIPT DATE : 2021-05-28 TEST DATE :2021-05-28 to 2021-06-16 ISSUE DATE :2021-07-07 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 8 REPORT No.：SZ21060022S01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Evaluation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 Change History Version Date Reason for change 1.0 2021-07-07 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 8 REPORT No.：SZ21060022S01 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Mattel Asia Pacific Sourcing Ltd. Applicant Address: 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong Manufacturer: Mattel Asia Pacific Sourcing Ltd. Manufacturer Address: 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong 1.2 Equipment Under Test (EUT) Description Product Name: HGJ69 Chatter Telephone EUT No.: 4# Serial No.: (N/A, marked #1 by test site) Hardware Version: 0.34 Software Version: 1.02 Equipment Type: Bluetooth LE Bluetooth Version: 5.0 Operating Frequency Range: 2402MHz-2480MHz Modulation Type: FHSS (GFSK(1Mbps), π/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Antenna Type: PCB Antenna Antenna Gain: -0.58dBi MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 8 REPORT No.：SZ21060022S01 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method determination /Remark FCC 47CFR Part 2(2.1093) Radio Frequency Radiation Exposure Assessment: Portable devices No deviation KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 8 REPORT No.：SZ21060022S01 2. Device Category and RF Exposure Limit Per user manual, this device is a HGJ69 Chatter Telephone. Based on 47CFR 2.1093, this device belongs to portable device category with General Population/Uncontrolled exposure. Portable Devices: 47CFR 2.1093(b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. General Population/Uncontrolled Exposure: 47CFR 2.1093(d) (2) Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the hands, wrists, feet and ankles where the spatial peak SAR shall not exceed 4 W/kg, as averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). General Population/Uncontrolled limits apply when the general public may be exposed, or when persons that are exposed as a consequence of their employment may not be fully aware of th…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 81 REPORT No.：SZ21060022W01 TEST REPORT APPLICANT : Mattel Asia Pacific Sourcing Ltd. PRODUCT NAME : HGJ69 Chatter Telephone MODEL NAME :HGJ69 BRAND NAME : Fisher-Price (Mattel) FCC ID :PIYHGJ69-21A5T STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2021-05-28 TEST DATE :2021-05-28 to 2021-06-16 ISSUE DATE :2021-07-07 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 81 REPORT No.：SZ21060022W01 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ························································ 3 1.2. Equipment Under Test (EUT) Description ······················································· 3 1.3. The Channel Number and Frequency ····························································· 4 1.4. Test Standards and Results ·········································································· 5 1.5. Environmental Conditions ············································································ 6 2. 47 CFR Part 15C Requirements ······································································ 7 2.1. Antenna Requirement ·················································································· 7 2.2. Hopping Mechanism ···················································································· 7 2.3. Number of Hopping Frequency ····································································· 8 2.4. Duty Cycle of Test Signal ············································································ 11 2.5. Maximum Peak Conducted Output Power ····················································· 12 2.6. Maximum Average Conducted Output Power ················································· 19 2.7. 20 dB Bandwidth ························································································ 21 2.8. Carried Frequency Separation ····································································· 28 2.9. Time of Occupancy (Dwell time) ··································································· 31 2.10. Conducted Spurious Emissions ································································· 38 2.11. Conducted Emission ················································································· 51 2.12. Restricted Frequency Bands ······································································ 55 2.13. Radiated Emission ··················································································· 65 Annex A Test Uncertainty ················································································ 78 Annex B Testing Laboratory Information ··························································· 79 Change History Version Date Reason for change 1.0 2021-07-07 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 81 REPORT No.：SZ21060022W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Mattel Asia Pacific Sourcing Ltd. Applicant Address: 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong Manufacturer: Mattel Asia Pacific Sourcing Ltd. Manufacturer Address: 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong 1.2. Equipment Under Test (EUT) Description Product Name: HGJ69 Chatter Telephone EUT No.: 4# Serial No.: (N/A, marked #1 by test site) Hardware Version: 0.34 Software Version: 1.02 Equipment Type: Bluetooth classic Bluetooth Version: 5.0 Modulation Type: FHSS (GFSK(1Mbps), π/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Operating Frequency Range: 2402MHz–2480MHz Antenna Type: PCB Antenna Antenna Gain: -0.58dBi Note 1: We use the dedicated software to control the EUT continuous transmission. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 81 REPORT No.：SZ21060022W01 1.3. The Channel Number and Frequency Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20 2422 40 2442 60 2462 1 2403 21 2423 41 2443 61 2463 2 2404 22 2424 42 2444 62 2464 3 2405 23 2425 43 2445 63 2465 4 2406 24 2426 44 2446 64 2466 5 2407 25 2427 45 2447 65 2467 6 2408 26 2428 46 2448 66 2468 7 2409 27 2429 47 2449 67 2469 8 2410 28 2430 48 2450 68 2470 9 2411 29 2431 49 2451 69 2471 10 2412 30 2432 50 2452 70 2472 11 2413 31 2433 51 2453 71 2473 12 2414 32 2434 52 2454…

Text truncated - open the document above for the full version.

FCC ID:PIYHGJ69-21A5T, IC:4390C-HGJ6921A5T Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (Bluetooth BR+EDR)
