PIYJ2358-06A1TRadar Gun

J2358-0720 SIZE: 10 x 11 “ Color: 1C + 1CP4 of 4J2358-0720 SIZE: 10 x 11 “ Color: 1C + 1CP1 of 4 J2358-0720 SIZE: 10 x 11 “ Color: 1C + 1CP2 of 4J2358-0720 SIZE: 10 x 11 “ Color: 1C + 1CP3 of 4 1:1 SCALE MODE • ESCALA 1:1 MODE ÉCHELLE 1:1 1 4 2 3 A 6 5 COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY - VALABLE AUX É.-U. SEULEMENT) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. RSS - 210 (Canada) (VALID FOR CANADA ONLY - VALABLE AU CANADA SEULEMENT) This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-210. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif de radiocommunication rencontre toutes les exigences de la norme CNR-210 d'Industrie Canada. L’utilisation de ce produit est sujette aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) il doit pouvoir tolérer tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre son fonctionnement. CNR-210 d'Industrie Canada (CANADA SEULEMENT) 10.525 GHz © 2006 Mattel, Inc. All Rights Reserved. Tous droits réservés. Mattel, Inc., 333 Continental Blvd., El Segundo, CA 90245 U.S.A. Consumer Relations 1 (800) 524-8697.Mattel Canada Inc., Mississauga, Ontario L5R 3W2. You may call us free at 1-800-524-8697. Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628500303 Mattel Australia Pty., Ltd., Richmond, Victoria. 3121.Consumer Advisory Service - 1300 135 312.Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China.Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel:03-78803817, Fax:03-78803867.Mattel France, 27/33 rue d'Antony, Silic 145, 94523 Rungis Cedex N° Indigo 0 825 00 00 25 (0,15 € TTC/mn) ou www.allomattel.com. Mattel Belgium, Trade Mart, Atomiumsquare, Bogota 202 – B 275, 1020 Brussels.Schweiz: Mattel AG, Monbijoustrasse 68, CH-3000 Bern 23.Mattel España, S.A., Aribau 200. 08036 Barcelona. [email protected] Tel: 902.20.30.10 http://www.service.mattel.com/esMattel Portugal Lda., Av. da República, nº 90/96, 2º andar Fracção 2, 1600-206 Lisboa Importado y distribuido por Mattel de México, S.A. de C.V., Insurgentes Sur # 3579, Torre 3, Oficina 601, Col. Tlalpan, Delegación Tlalpan, C.P. 14020, México, D.F. MME-920701-NB3. 59-05-51-00. Ext. 5206 ó - 01-800-463 59-89Mattel Chile, S.A., Avenida Américo Vespucio 501-B, Quilicura, Santiago. Mattel de Venezuela, C.A., RIF J301596439, Ave. Mara, C.C. Macaracuay Plaza, Torre B, Piso 8, Colinas de la California, Caracas 1071. Mattel Argentina S.A., Curupaytí 1186, (1607) - Villa Adelina, Buenos Aires. Mattel Colombia, S.A., calle 123#7-07 P.5, Bogotá. TO OPERATE: Your radar gun has a digital readout screen which will show instantaneous real speed or Hot Wheels® 1/64th scale speed of objects coming toward you or moving away. What does Hot Wheels® scale speed mean? Hot Wheels® cars are 1/64th the size of a real car. So if a Hot Wheels® car goes 10 MPH / 16 KPH calculate: 10 MPH X 64 = 640 MPH or 16 KPH x 64 = 1024 KPH! FUNCIONAMIENTO: Tu Pistola Radar incorpora una pantalla de lectura digital que muestra instantáneamente la velocidad real o bien la velocidad Hot Wheels a escala 1/64 de aquellos objetos que se dirijan hacia ti o que se alejen de ti. ¿Qué significa “velocidad Hot Wheels a escala”? Los coches Hot Wheels tienen un tamaño que representa1/64 del tamaño de un coche real. Si un coche Hot Wheels va a una velocidad de 16 km/h, la velocidad a escala se calcula así: 16 km/h x 64 = ¡1024 km/h! FONCTIONNEMENT: Le pistolet radar est équipé d’un écran à affichage numérique qui indique instantanément la vitesse réelle ou à échelle 1/64 Hot Wheels d’objets s’approchant ou s’éloignant. Que signifie l’échelle de vitesse Hot Wheels ? Les voitures Hot Wheels sont à l’échelle 1/64 des vraies voitures. Ainsi, si une voiture Hot Wheels roule à 16 km/h, le calcul est le suivant : 16 km/h x 64 = 1024 km/h! CONTENTS / FEATURES 1. SCALE SWITCH 2. UNIT SWITCH 3. RESET BUTTON 4. LCD 5. TRIGGER (Activates radar) 6. BATTERY COVER Please keep these instructions for future reference as they contain important information. Sírvanse guardar estas instrucciones para futura referencia, ya que contienen información de importancia acerca de este juguete. Conserver ce mode d’emploi pour s’y référer au besoin car il contient des info…

Text truncated - open the document above for the full version.

IC Label Location Of J2358

Report Number 3089938BOX.001b Page 2 of 17 1.0 Job Description 1.1 Client Information This EUT has been tested at the request of: Company: Mattel Asia Pacific Sourcing Limited 13/F, South Tower, World Finance Center Harbor City, Tsimshatsui Kowloon, Hong Kong Contact: Ng Chung Chin Telephone: Fax: Email: 011 852 31855185 011 852 27359758 [email protected] 1.2 Equipment Under Test Equipment Type: 10.525 GHz Toy Radar Gun Model Number(s): J2358 Serial number(s): 30ms ON, #3 Manufacturer: Dongguan Lung Cheong Toys Co., Ltd. EUT receive date: 1/3/06 EUT received condition: Prototype in good condition Test start date: 2/01/2006 Test end date: 3/09/2006 1.3 Test Plan Reference: Tested according to the standards listed and ANSI C63.4:2003. 1.4 Test Configuration 1.4.1 Block Diagram Toy Radar Gun Turntable Report Number 3089938BOX.001b Page 3 of 17 1.4.2. Cables: Cable Shielding Connector Length (m) Qty. None 1.4.3. Support Equipment: Name: Model No.: Serial No.: None 1.5 Mode(s) of Operation: The EUT was transmitting a pulse repetitively during testing, and was operated from fresh batteries at 6VDC. Report Number 3089938BOX.001b Page 4 of 17 2.0 Test Summary TEST STANDARD RESULTS FCC Part 15 Subpart C 15.245 SUB-TEST TEST PARAMETER COMMENT Fundamental Field Strength and Radiated Spurious Emissions FCC 15.205, 15.209, 15.245 Fundamental field strength shall not exceed 2500 mV/m (128 dBuV/m) at 3 meters. Harmonic emission field strength shall not exceed 25 mV/m (88.5 dBuV/m) at 3 meters, unless in a restricted band above 17.7 GHz, in which case the harmonic field strength shall not exceed 7.5 mV/m (77.5 dBuV/m). All other emissions must be attenuated at least 50 dB below the level of the fundamental or below 15.209 limits, whichever is the lesser attenuation. Pass Radiated Spurious Emissions, 40 – 53 GHz FCC 15.205, 15.209, 15.245 Harmonic emission field strength shall not exceed 25 mV/m (88.5 dBuV/m) at 3 meters, unless in a restricted band above 17.7 GHz, in which case the harmonic field strength shall not exceed 7.5 mV/m (77.5 dBuV/m). All other emissions must be attenuated at least 50 dB below the level of the fundamental or below 15.209 limits, whichever is the lesser attenuation. Pass Duty Cycle Fundamental and harmonic emissions levels can be adjusted by a duty cycle correction factor. No Requirements REVISION SUMMARY – The following changes have been made to this Report: Date Project No. Project Handler Page(s) Item Description of Change Report Number 3089938BOX.001b Page 5 of 17 3.0 Sample Calculations The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBμV/m RA = Receiver Amplitude (including preamplifier) in dBμV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBμV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBμV/m. This value in dBμV/m was converted to its corresponding level in μV/m. RA = 52.0 dBμV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBμV/m Level in μV/m = [10( 32 dBμV/m)/20] = 39.8 μV/m The following is how net line-conducted readings were determined: NF = RF + LF + CF + AF Where NF = Net Reading in dBμV RF = Reading from receiver in dBμV LF = LISN Correction Factor in dB CF = Cable Correction Factor in dB AF = Attenuator Loss Factor in dB To convert from dBμV to μV or mV the following was used: UF = 10 (NF / 20) where UF = Net Reading in μV Example: NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBμV UF = 10 (48.1 dBμV / 20) = 254 μV/m Report Number 3089938BOX.001b Page 6 of 17 3.1 Measurement Uncertainty Compliance of the product is based on the measured value. However, the measurement uncertainty is included for informational purposes. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±3.5 dB at 10m, ±3.8 dB at 3m The expanded uncertainty (k = 2) for mains conducted emissions from 150 kHz to 30 MHz has been determined to be: ±2.6 dB The expanded uncertainty (k = 2) for telecom port conducted emissions from 150 kHz to 30 MHz has been determined to be: ±3.2 for ISN and voltage probe measurements ±3.1 for current probe measurements Report Number 3089938BOX.001b Page 7 of 17 3.2 Site Description Test Site(s): 2 Our OATS are 3m and 10m sheltered emissions measurement ranges located in a light commercial environment in Boxborough, Massachusetts. They meet the technical requirements of ANSI C63.4-2003 and CISPR 22:1993/EN 55022:1994 for radiated and conducted emission measurements. The shelter structure is entirely fiberglass and plastic, with outside dimensions of 33 ft x 57 ft. The structure resembles a quonset hut with a center ceiling height of 16.5 ft. The testing floor is covered by a galvanized sheet metal groundplane that is earth-grounded via copper rods around the perimeter of the site. The joints between individual metal sheets are bridged with a 2 inch wide metal strips to provide low RF impedance contact throughout. The sheets are screwed in place with stainless steel, round-head screws every three inches. Site illumination and HVAC are provided from beneath the ground reference plane through flush entry ports, the port covers are electrically bonded to the ground plane. A flush metal turntable with 12 ft. diameter and 5000 lb. load capacity (12,000 lb. in Site 3) is provided for floor-standing equipment. A wooden table 80 cm high is used for table-top equipment. The turntable is electrically connected to the ground plane with three copper straps. …

Text truncated - open the document above for the full version.

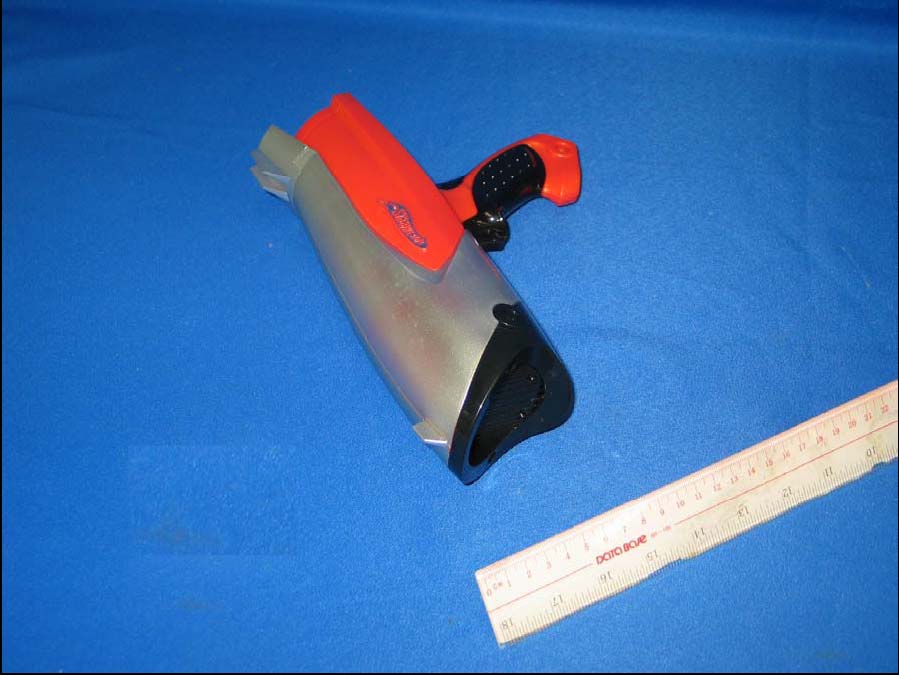

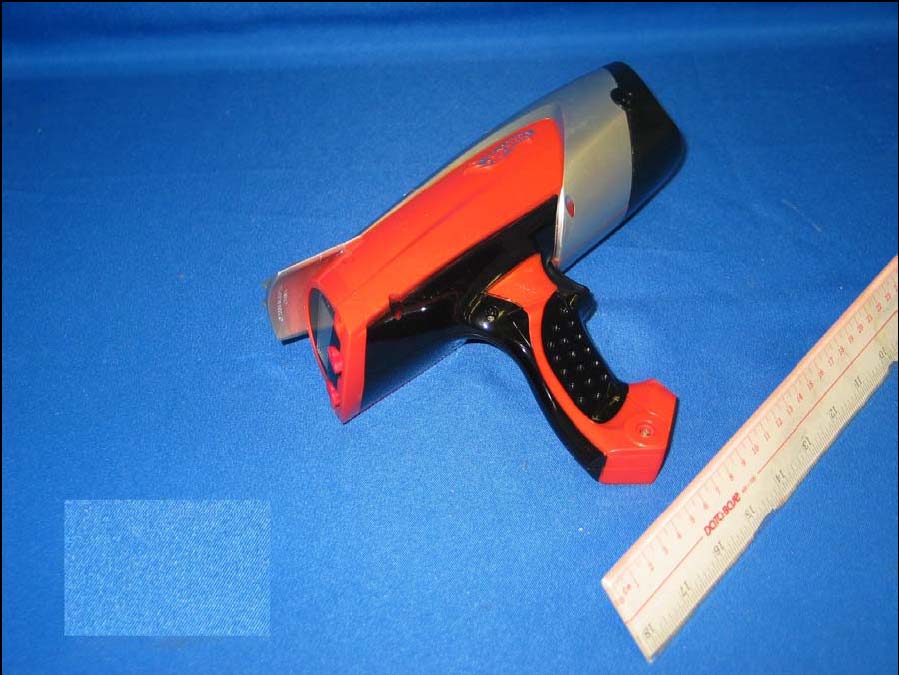

Report Number 3089938BOX.001b Page 11 of 17 Setup Photos Report Number 3089938BOX.001b Page 12 of 17
