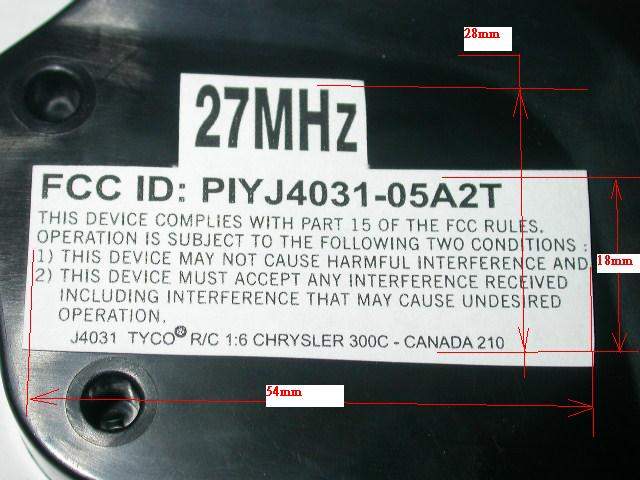

PIYJ4031-05A2TCHRYSLER 300C

TYCO R/C SUPPORT Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. 1 888 557-TYCO (8926) ® tycorc.com Keep these instructions for future reference: they contain important information.IMPORTANT: Please read all “Consumer Information” before operating your vehicle. NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. INPUT: 120VAC, 60Hz, 12VA. OUTPUT:8.5VDC, 420mA, 3.6W. CAUTION-ELECTRIC TOY:
G3474-0920 G3474-S1 I.CONTENTS/FEATURES Vehicle Transmitter 7.2v Battery pack 7.2v wall charger 6AA Batteries Vehicle q Steering adjuster control * For when your vehicle appears to veer to either the right or left. use screwdriver (not included) to turn the knob in the direction necessary to correct the vehicle's alignment. w Try-Me button to activate lights and sounds e 4AA battery door r 7.2v battery latch t 7.2v battery door y ON/Fender lights/OFF/Try-Me (lights and music) switch * This switch has 4 positions: I Vehicle On: Vehicle runs with music effects and lights as you drive (In this mode vehicle will perform at low speed) Ä Fender lights "on" only (Vehicle no movement forward) OVehicle OFF Ä / F Try-Me On: Activates 'try me' function with lights and music effects(In this mode vehicle cannot be driven) u Media player music(MP3/CD’s)/OFF/Cruise music switch * This switch has 3 positions: ß Vehicle runs with internally stored music (In this mode vehicle will perform at low speed) O Vehicle runs with no music (In this mode vehicle will perform at maximum speed) H Vehicle runs with your MP3 or CD music player (In this mode vehicle will perform at low speed) * Note: Both the switches turn to "0" position after run your vehicle or your MP3/CD music end. i Fender lights o Trunk lock-use coin (not included) to open trunk after trunk lock aMedia player plug (for direct input into most media players) * Media player should first be placed into the the protective sleeve and then plugged in. (The music player is not included) * Adjust the volume of the music using the volume control on your music player. s Protective media player sleeve Transmitter q Antenna w Left & Right controls e Forward & Reverse controls r Battery door 7.2V R/C 7.2V R/C X CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. I O O ß H I O O ß H S Q u y e r t w q i i o a w e q r s 7.2 v d.c. 7.2 v d.c. III. BATTERY INSTALLATION There are two power sources: a 7.2v SubC NiCd rechargeable battery pack (which powers all the driving and turning) and a 4 AA alkaline battery pack (which powers the lights and sounds). For detailed information regarding rechargeable battery charging and safety, please refer to the “Battery Charging/Care” section. Vehicle For lights and music sounds position battery installation: 1. Use a screwdriver (not included) to unscrew the power clip cover screw, open the battery cover as shown. 2. Install 4 AA alkaline batteries with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door. For driving battery installation: 1. Rotate the battery door latch to the unlocked position and open the battery door. 2. Insert the charged battery pack into the battery compartment as shown. 3. Connect the battery pack’s wire connector to the vehicle’s charging jack as shown. Make certain the connector is securely connected. 4. Close the battery door and rotate the battery door latch to the locked position. Transmitter 1. Remove the battery cover as shown. 2. Install 2 AA alkaline batteries with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door. II. VEHICLE OPERATION FORWARD Slam steering control: Left & Right turn activation turning motion activates turn signal lights. Throttle control: Forward & Reverse motion activation Forward & Reverse motion activates headlights & fender lights Forward & Reverse motion activates cruise tune (from internally stored music). Vehicle drives in low speed when a music player is pluged in. Brake lights activate when the trigger switch returns to the neutral position. REVERSE LEFT RIGHT V. BATTERY CHARGING/CARE X CAUTION:Use only the charger supplied with this toy. Do not use any other charging source. Use only Tyco® R/C 7.2v NiCd battery packs. Other batteries may leak or rupture, causing personal injury and damage. 1. Plug the wall pack charger into a standard wall outlet. 2. Connect the battery pack’s wire connector to the wall pack charger connector. Make certain the two connectors are tightly snapped together. 3. To disconnect the wires, push down on the connector clip and pull apart. 4. After charging, the battery will feel warm. This condition is normal for fully charged batteries. 5. New battery packs must be charged for 5 1/2 hours the first two times charged. Subsequent charges will require 4 hours. Charging the battery pack for more than 5 1/2 hours will not give you a longer running time. 5 1/2 hours is all that is required for a fully charged battery pack. 6. Unlike alkaline batteries, which lose power gradually, a NiCd (Nickel-Cadmium) battery will run for its normal running time and then lose most of its power at once. That’s how you’ll know it’s time to recharge the battery pack. 7. After use, the battery pack will be hot! Wait at least 20 minutes until the battery pack cools before recharging. Recharging a warm or hot battery pack will greatly reduce the number of times your battery pack can be recharged. RECHARGEABLE BATTERY INFORMATION:
DO NOT RECHARGE BATTERY PACK IF IT’S HOT. ALLOW IT TO COOL BEFORE RECHARGING.
DO NOT RECHARGE A BATTERY PACK THAT SHOWS LEAKAGE OR CORROSION.
DO NOT DISASSEMBLE THE BATTERY PACK. THE BATTERY PACK IS A SEALED RECHARGEABLE NICKEL-CADMIUM BATTERY.
EXERCISE CAUTION IN HANDLING A HOT BATTERY PACK.
IF BATTE…

Text truncated - open the document above for the full version.

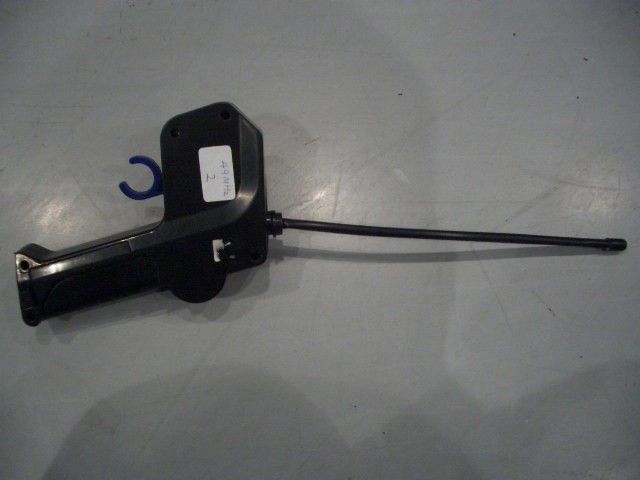

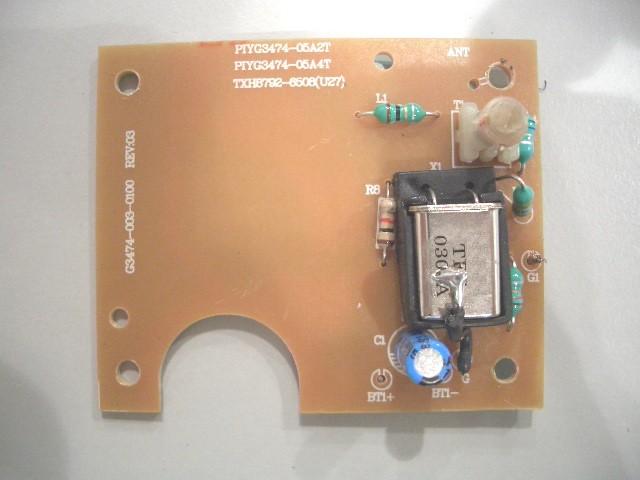

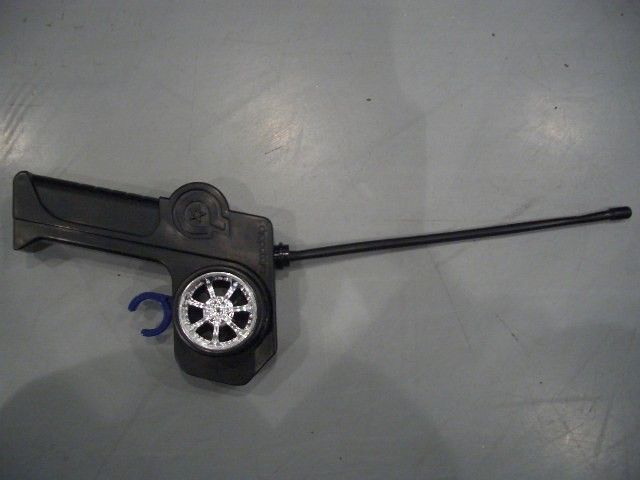

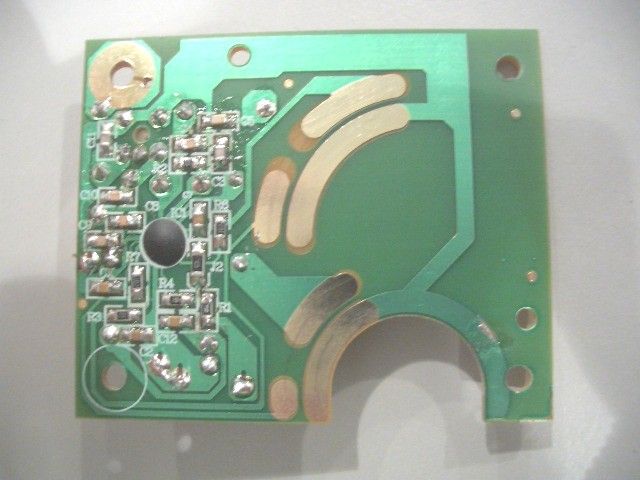

Chrysler 300C TRANSMITTER OPERATIONAL DESCRIPTION The Chrysler 300C radio control transmitter is a low voltage powered, hand held unit for controlling the movement of a toy car .The transmitter is powered by two AA battery. It is designed to operate on a single fixed frequency in the 26.96---27.28Mhz band (27.145 Mhz). Details pleases see the attached block diagram and schematic. R1 and associated components act as power supply. Input switches (SW1~SW2) trigger integrated circuit (U1) which produces the digital control signals and a modulated carrier signal .The carrier signal is generated by U1 with a crystal oscillator (X1). The modulated output from pin ANT of U1 is capacitive coupled (via C8 )to the antenna through a ìPiî matching network comprised of C11 C10 and T1 .The antenna length is about 11 inch and permanently attached. The manufacturer performs all tuning and there are no adjustments that can be made by the user.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 16-May-2005 Sheet of File: \\..\G3474TX05.sch Drawn By: VDD 1 DO 2 OSC 3 OSCO 4 RFO 5 VSS 6 TDX 7 D1 8 D2 9 ROSC 10 D3 11 D4 12 IC1 SPRC205 X1 27.145MHz L2 1.2uH C8 68PF C10 150pF C11 15PF L1 1uH C5 0.1uF C4 68pF C3 56pF R2 1M R4 200K +/-1% C2 104 R1 47 3V BT1 SW ANT L4 5.6UH T1 G3474 TX(27M) C12 104 F B SW L R 05 C1 47uF Cx104 D0 D0 R6 1K R3 1K R7 1K R8 1K C7 104 C9 18P L50.47uH

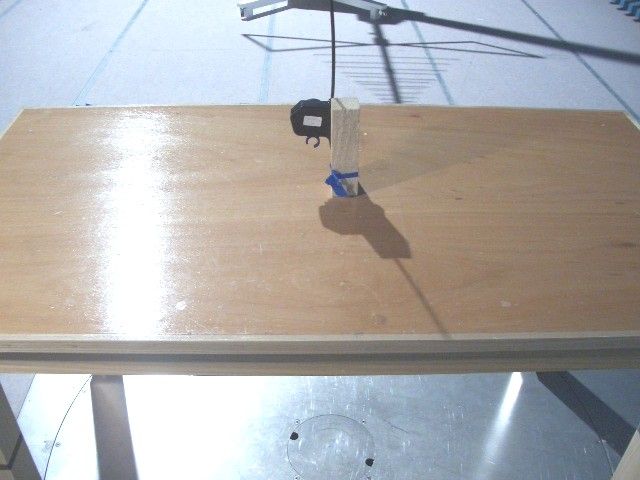

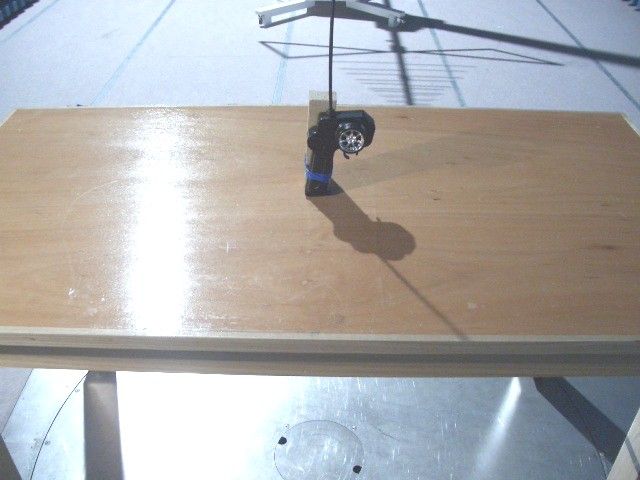

TEST REPORT Report No. : AF010728-001 Date : 2005 May 27 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYJ4031-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF209310(4) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Chrysler 300C of Model No. G3474 Rating : 2 x 1.5V AA size battery No. of submitted sample : Two (2) pieces*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 May 23 2005 May 23 – 2005 May 26 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 11. The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AF010728-001 Date : 2005 May 27 Page 2 of 11 FCC ID : PIYJ4031-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ............................................................................................................... 3 1.2 Location of the test site.......................................................................................................... 4 1.3 List of measuring equipment ................................................................................................. 5 2 Description of the radiated emission test ..................................................................................... 6 2.1 Test Procedure ....................................................................................................................... 6 2.2 Test Result ............................................................................................................................. 6 2.3 Radiated Emission Measurement Data.................................................................................. 7 3 Description of the Line-conducted Test .......................................................................................8 3.1 Test Procedure ....................................................................................................................... 8 3.2 Test Result ............................................................................................................................. 8 3.3 Graph and Table of Conducted Emission Measurement Data .............................................. 8 4 Photograph ................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ................ 9 4.2 Photographs of the External and Internal Configurations of the EUT .................................. 9 5 Supplementary document ............................................................................................................ 10 5.1 Bandwidth............................................................................................................................ 10 5.2 Duty Cycle ............................................................................................................................ 10 6 Appendices.............................................................................................................................. 11 TEST REPORT Report No. : AF010728-001 Date : 2005 May 27 Page 3 of 11 FCC ID : PIYJ4031-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Chrysler 300C. Operating at 27.145MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5V “AA” size battery. It has two control trigger on the EUT. When it switch on and push the trigger once, it can transmit difference radio signal for receiver running. The brief circuit description is listed as follows : - X1 and associated circuit act as oscillator. - IC1 and associated circuit act as encoder. - R4 and associated circuit act as oscillator for IC1. - L4, L5 and associated circuit act as filter. TEST REPORT Report No. : AF010728-001 Date : 2005 May 27 Page 4 of 11 FCC ID : PIYJ4031-05A2T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigate…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Job No.: J00028097 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Job No.: J00028097 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle Duty Cycle 1 CMA Testing and Certification Laboratories Job No.: J00028097 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 2 Duty Cycle 3
