PIYJ4032-05A4RCHRYSLER 300C

TYCO R/C SUPPORT Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. 1 888 557-TYCO (8926) ® tycorc.com Keep these instructions for future reference: they contain important information.IMPORTANT: Please read all “Consumer Information” before operating your vehicle. NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. INPUT: 120VAC, 60Hz, 12VA. OUTPUT:8.5VDC, 420mA, 3.6W. CAUTION-ELECTRIC TOY:

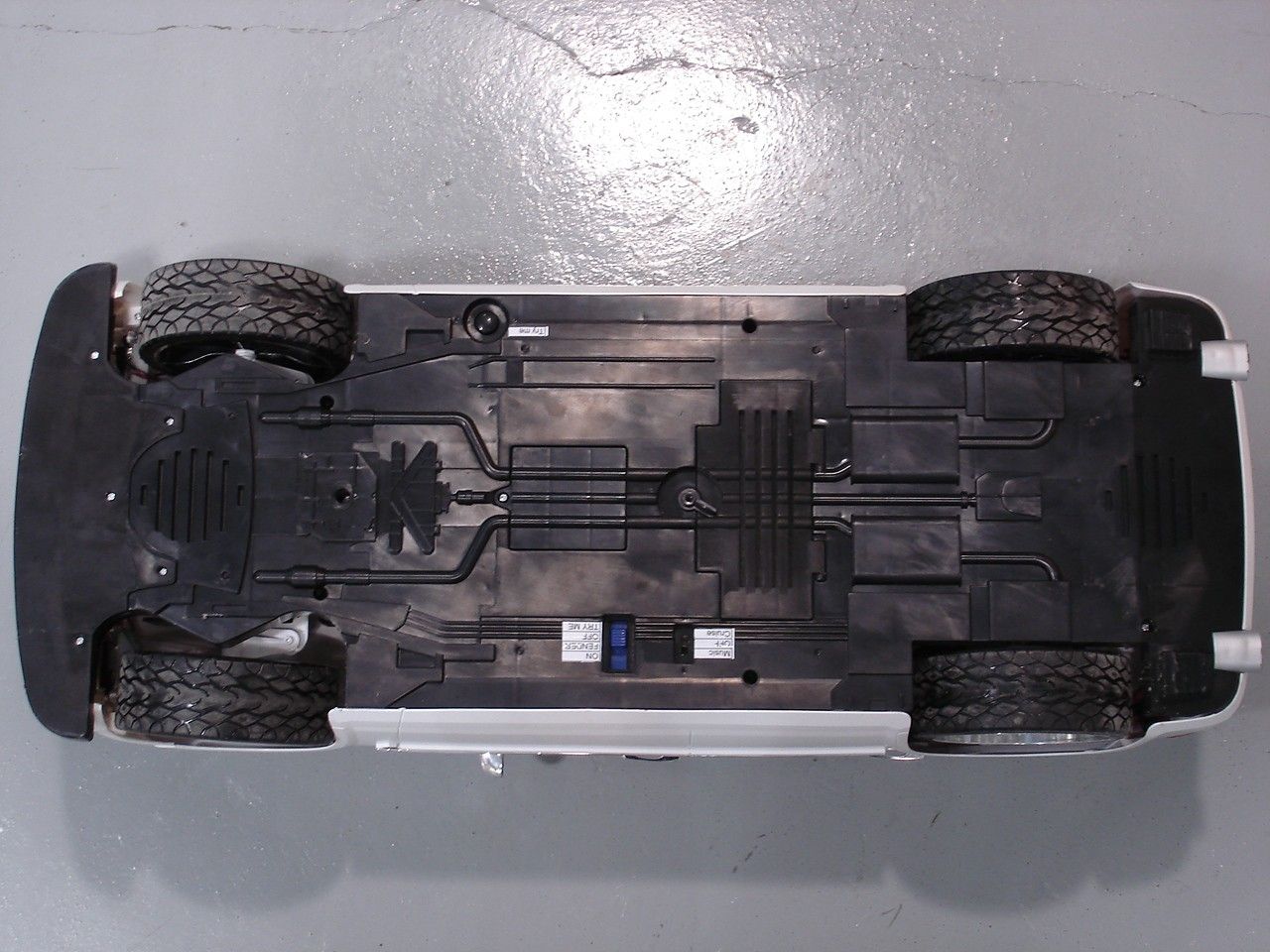

G3474-0920 G3474-S1 I.CONTENTS/FEATURES Vehicle Transmitter 7.2v Battery pack 7.2v wall charger 6AA Batteries Vehicle q Steering adjuster control * For when your vehicle appears to veer to either the right or left. use screwdriver (not included) to turn the knob in the direction necessary to correct the vehicle's alignment. w Try-Me button to activate lights and sounds e 4AA battery door r 7.2v battery latch t 7.2v battery door y ON/Fender lights/OFF/Try-Me (lights and music) switch * This switch has 4 positions: I Vehicle On: Vehicle runs with music effects and lights as you drive (In this mode vehicle will perform at low speed) Ä Fender lights "on" only (Vehicle no movement forward) OVehicle OFF Ä / F Try-Me On: Activates 'try me' function with lights and music effects(In this mode vehicle cannot be driven) u Media player music(MP3/CD’s)/OFF/Cruise music switch * This switch has 3 positions: ß Vehicle runs with internally stored music (In this mode vehicle will perform at low speed) O Vehicle runs with no music (In this mode vehicle will perform at maximum speed) H Vehicle runs with your MP3 or CD music player (In this mode vehicle will perform at low speed) * Note: Both the switches turn to "0" position after run your vehicle or your MP3/CD music end. i Fender lights o Trunk lock-use coin (not included) to open trunk after trunk lock aMedia player plug (for direct input into most media players) * Media player should first be placed into the the protective sleeve and then plugged in. (The music player is not included) * Adjust the volume of the music using the volume control on your music player. s Protective media player sleeve Transmitter q Antenna w Left & Right controls e Forward & Reverse controls r Battery door 7.2V R/C 7.2V R/C X CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. I O O ß H I O O ß H S Q u y e r t w q i i o a w e q r s 7.2 v d.c. 7.2 v d.c. III. BATTERY INSTALLATION There are two power sources: a 7.2v SubC NiCd rechargeable battery pack (which powers all the driving and turning) and a 4 AA alkaline battery pack (which powers the lights and sounds). For detailed information regarding rechargeable battery charging and safety, please refer to the “Battery Charging/Care” section. Vehicle For lights and music sounds position battery installation: 1. Use a screwdriver (not included) to unscrew the power clip cover screw, open the battery cover as shown. 2. Install 4 AA alkaline batteries with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door. For driving battery installation: 1. Rotate the battery door latch to the unlocked position and open the battery door. 2. Insert the charged battery pack into the battery compartment as shown. 3. Connect the battery pack’s wire connector to the vehicle’s charging jack as shown. Make certain the connector is securely connected. 4. Close the battery door and rotate the battery door latch to the locked position. Transmitter 1. Remove the battery cover as shown. 2. Install 2 AA alkaline batteries with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door. II. VEHICLE OPERATION FORWARD Slam steering control: Left & Right turn activation turning motion activates turn signal lights. Throttle control: Forward & Reverse motion activation Forward & Reverse motion activates headlights & fender lights Forward & Reverse motion activates cruise tune (from internally stored music). Vehicle drives in low speed when a music player is pluged in. Brake lights activate when the trigger switch returns to the neutral position. REVERSE LEFT RIGHT V. BATTERY CHARGING/CARE X CAUTION:Use only the charger supplied with this toy. Do not use any other charging source. Use only Tyco® R/C 7.2v NiCd battery packs. Other batteries may leak or rupture, causing personal injury and damage. 1. Plug the wall pack charger into a standard wall outlet. 2. Connect the battery pack’s wire connector to the wall pack charger connector. Make certain the two connectors are tightly snapped together. 3. To disconnect the wires, push down on the connector clip and pull apart. 4. After charging, the battery will feel warm. This condition is normal for fully charged batteries. 5. New battery packs must be charged for 5 1/2 hours the first two times charged. Subsequent charges will require 4 hours. Charging the battery pack for more than 5 1/2 hours will not give you a longer running time. 5 1/2 hours is all that is required for a fully charged battery pack. 6. Unlike alkaline batteries, which lose power gradually, a NiCd (Nickel-Cadmium) battery will run for its normal running time and then lose most of its power at once. That’s how you’ll know it’s time to recharge the battery pack. 7. After use, the battery pack will be hot! Wait at least 20 minutes until the battery pack cools before recharging. Recharging a warm or hot battery pack will greatly reduce the number of times your battery pack can be recharged. RECHARGEABLE BATTERY INFORMATION:
DO NOT RECHARGE BATTERY PACK IF IT’S HOT. ALLOW IT TO COOL BEFORE RECHARGING.
DO NOT RECHARGE A BATTERY PACK THAT SHOWS LEAKAGE OR CORROSION.
DO NOT DISASSEMBLE THE BATTERY PACK. THE BATTERY PACK IS A SEALED RECHARGEABLE NICKEL-CADMIUM BATTERY.
EXERCISE CAUTION IN HANDLING A HOT BATTERY PACK.
IF BATTE…

Text truncated - open the document above for the full version.

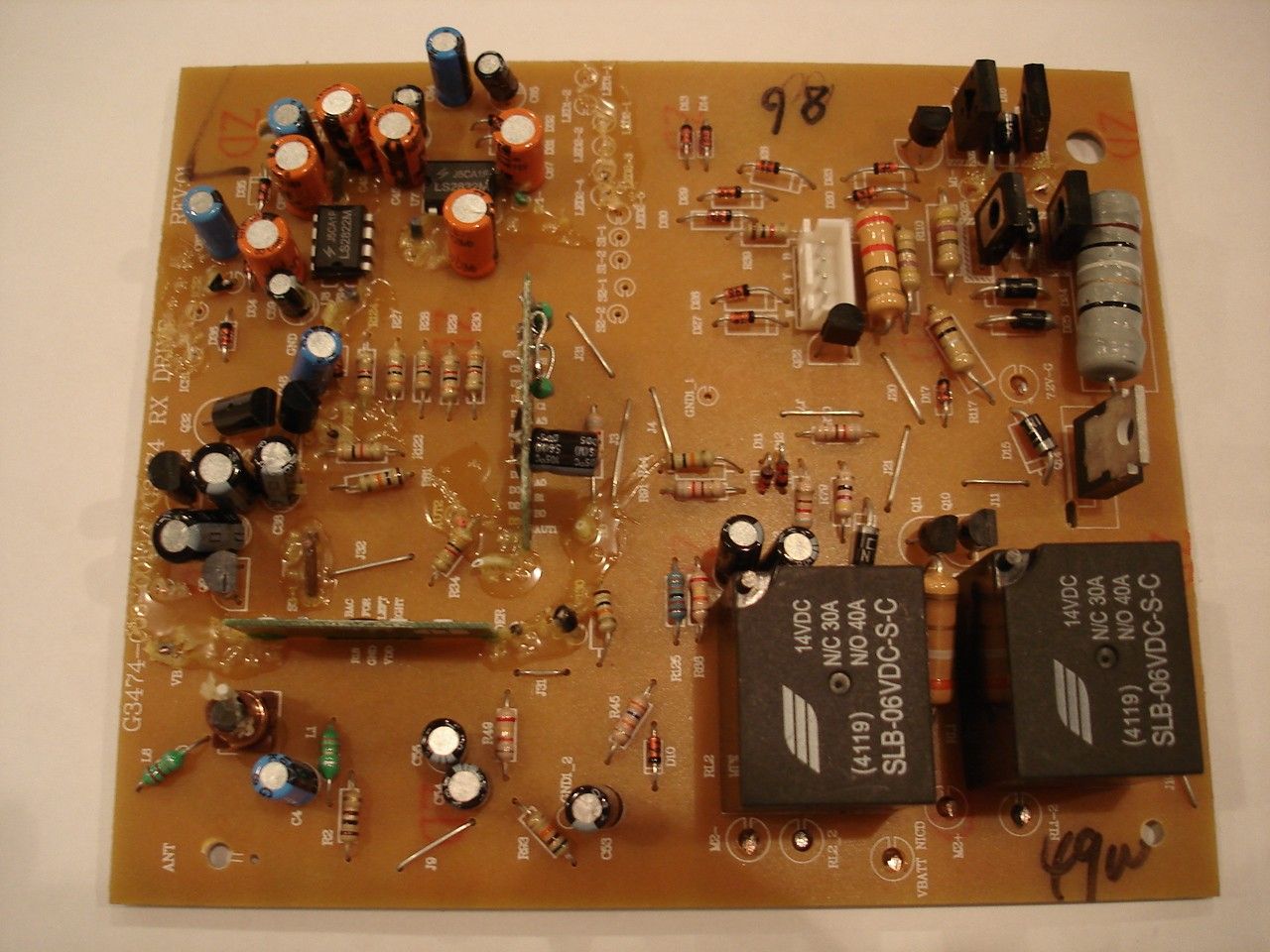

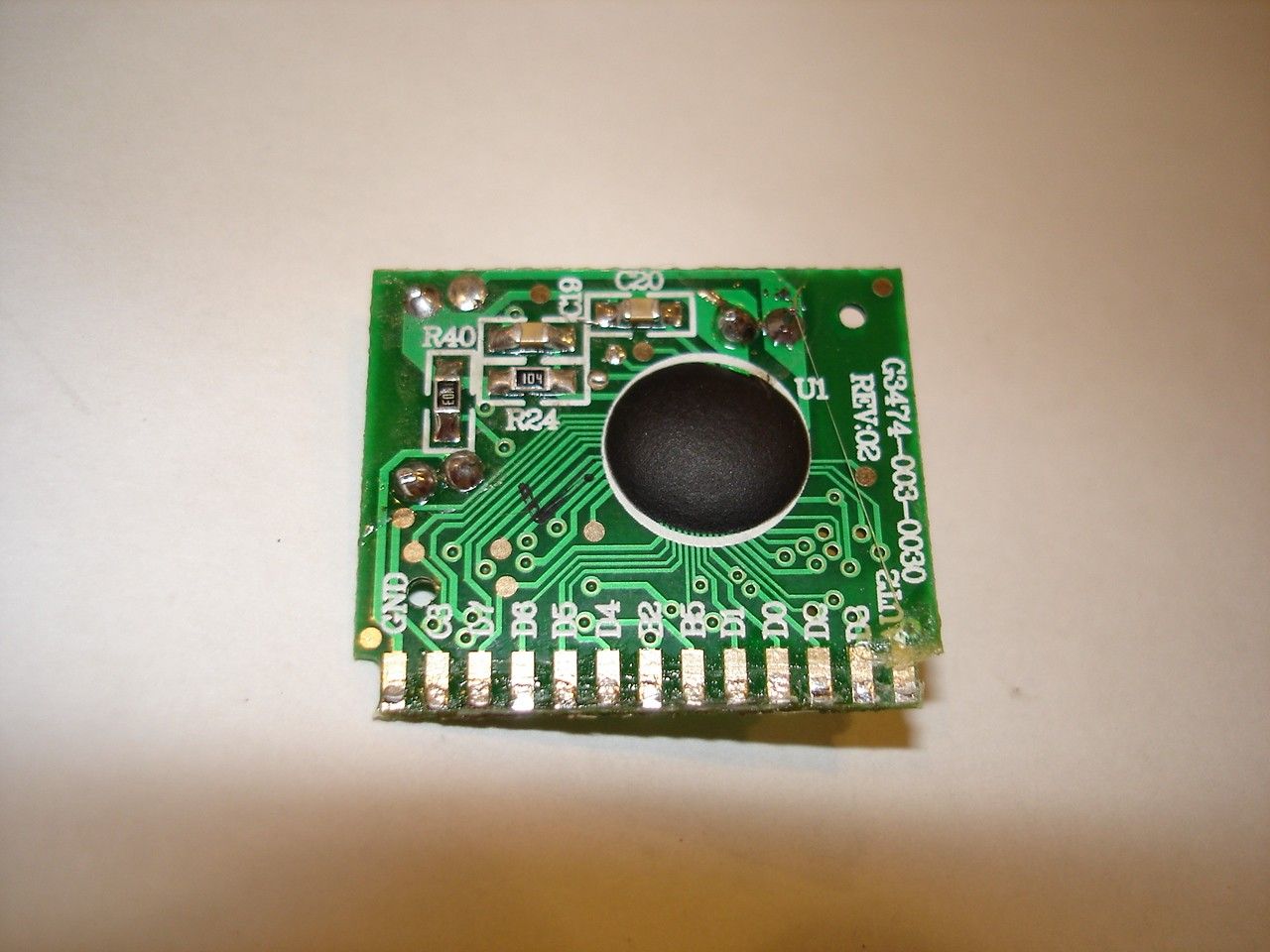

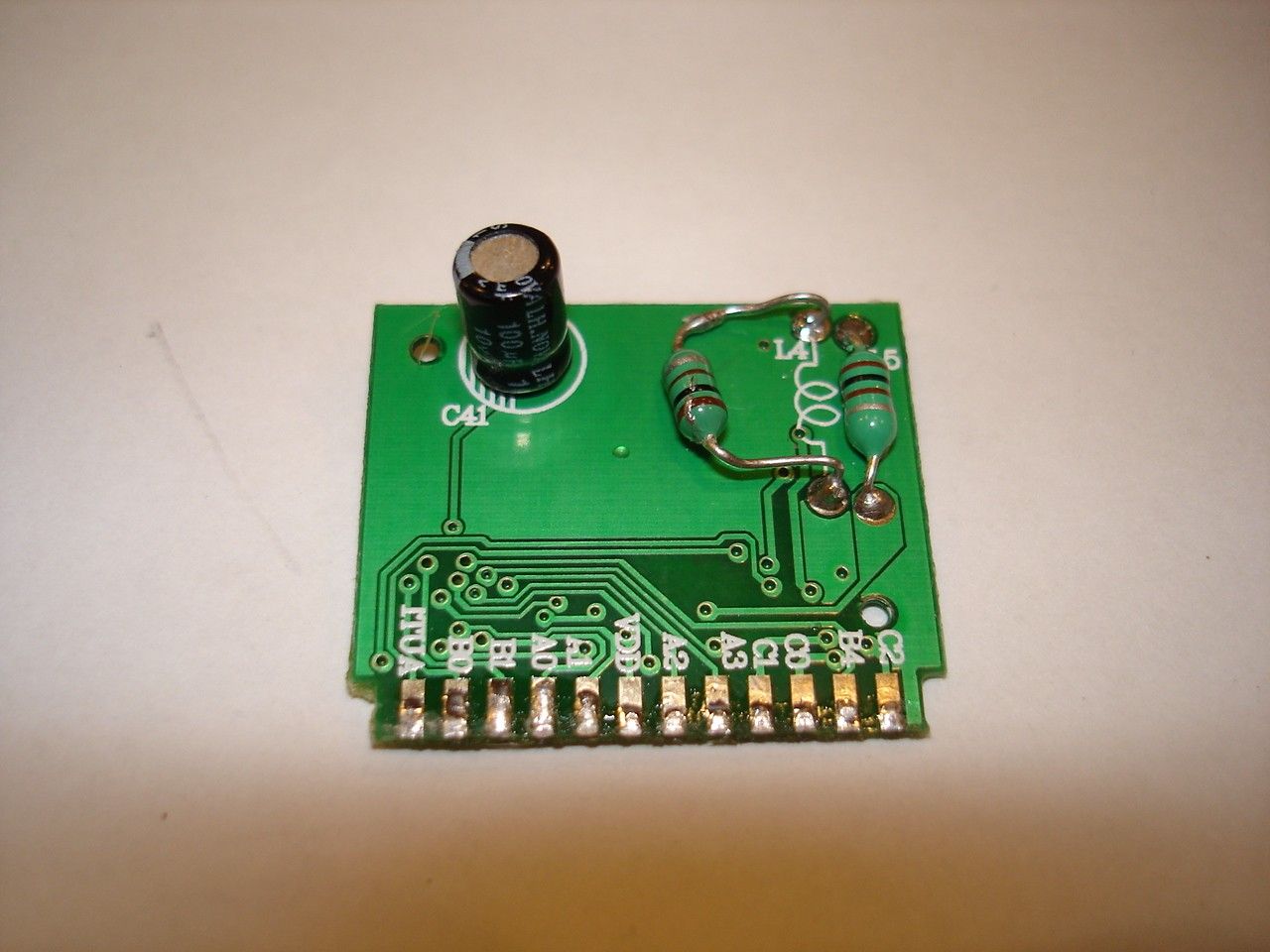

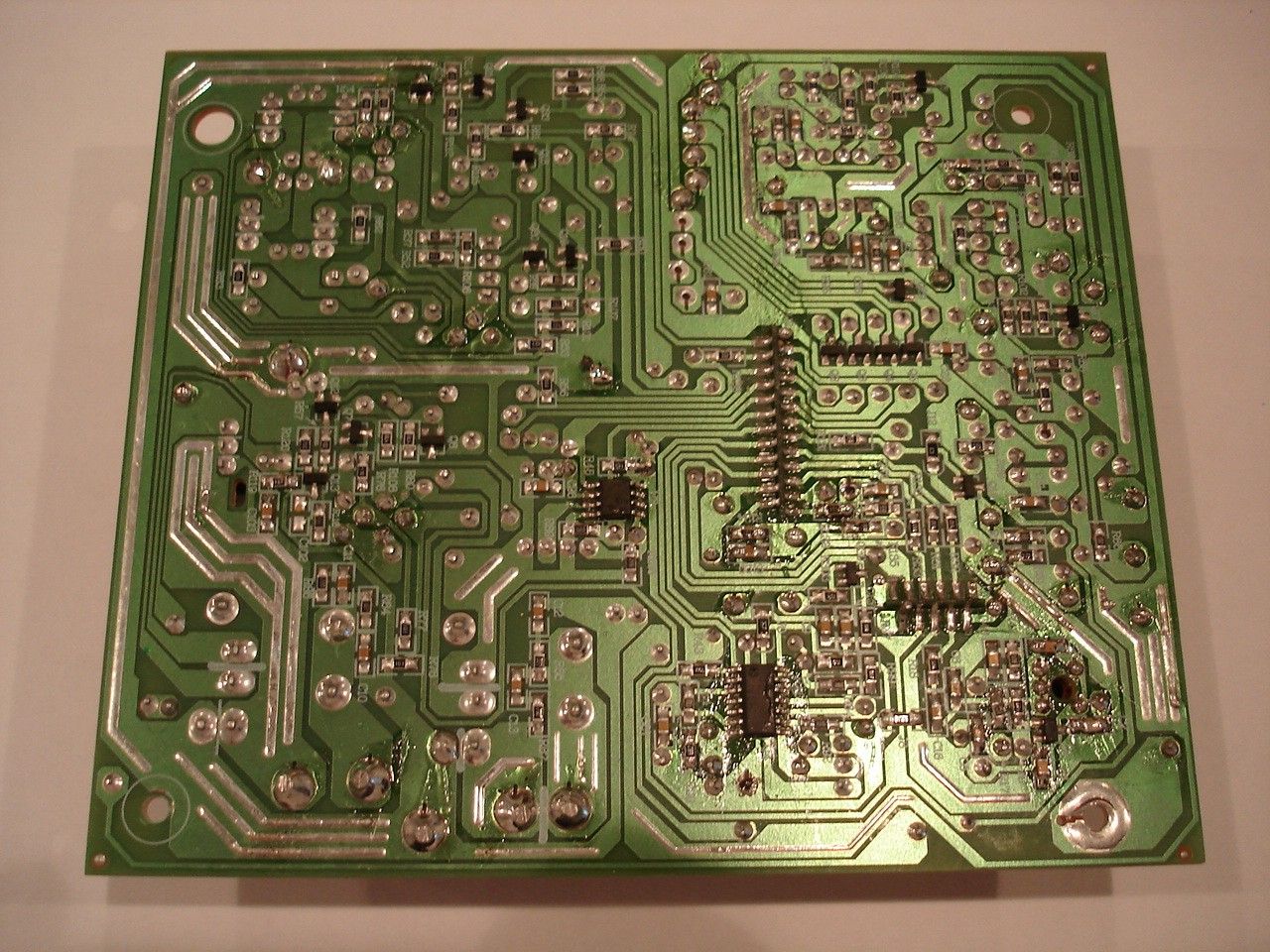

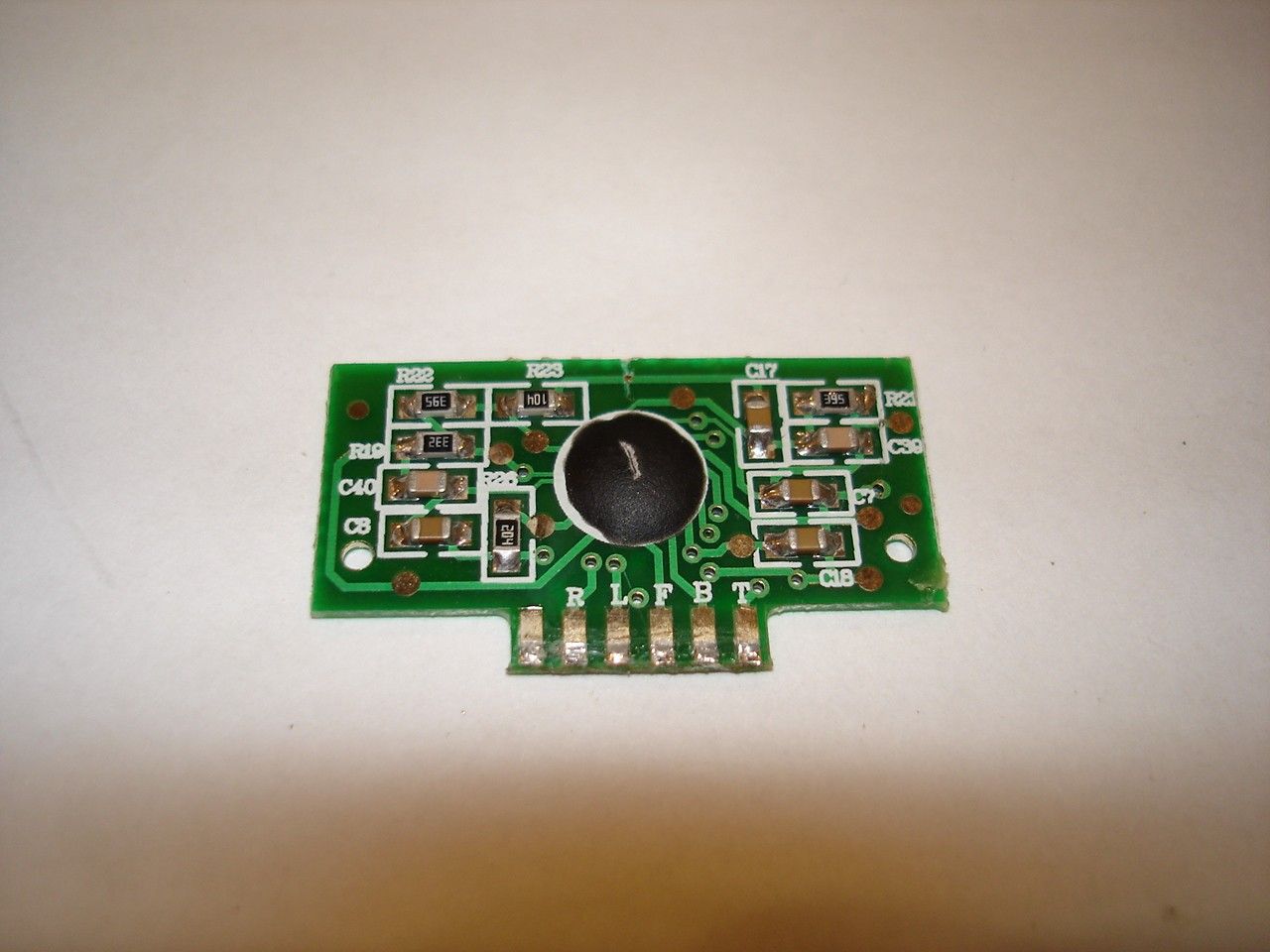

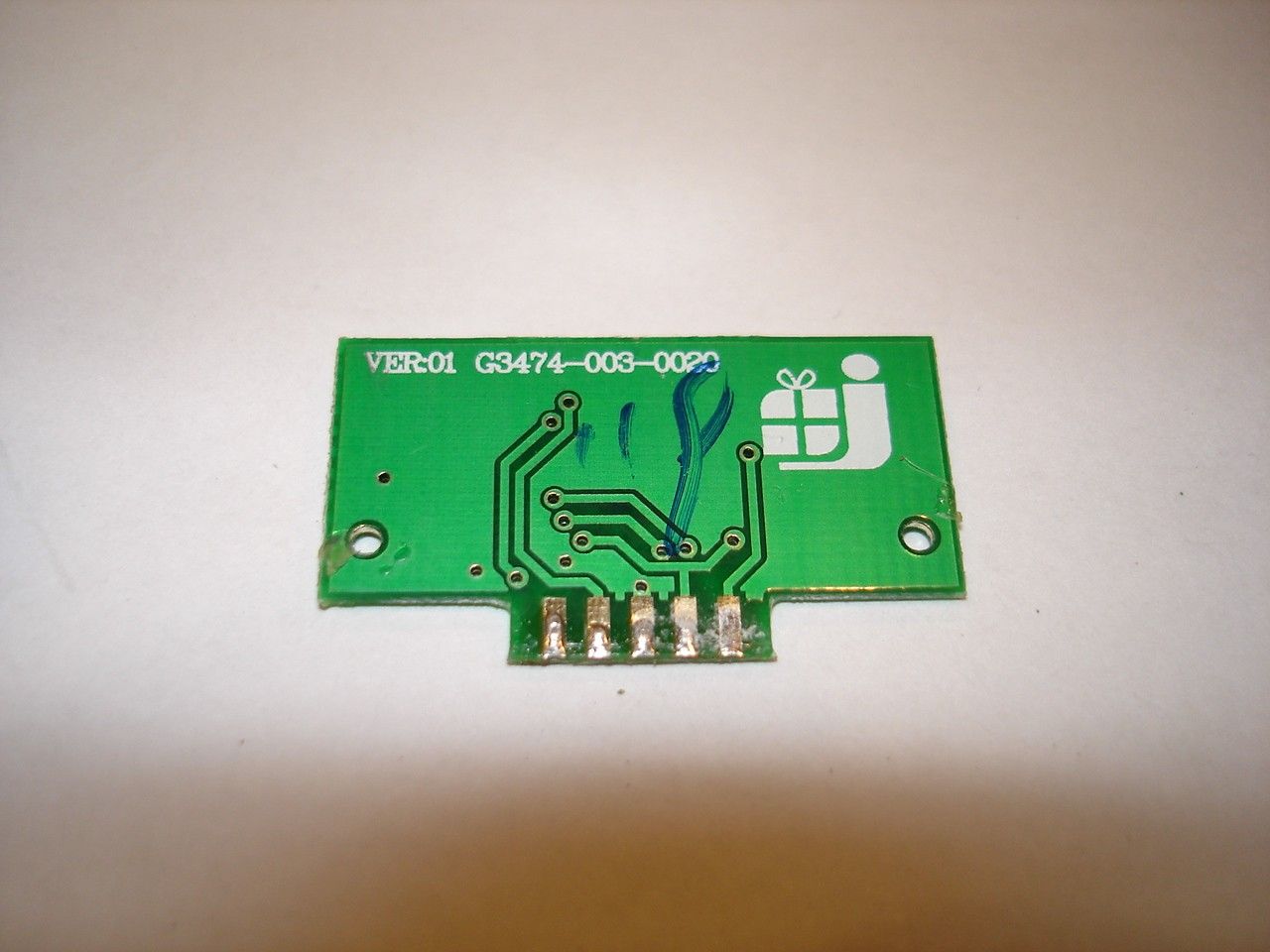

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Re vision Size A3 Date: 23-May-2005 Sheet of File: \\..\G3474RX05(49MHZ).sch Drawn By: VSS 1 ROSC 2 CLKO 3 RXD 4 D0 5 D1 6 VDD 7 D2 8 D3 9 D4 10 IN1 11 OUT1 12 IN2 13 OUT2 14 U1 SPRC206 R26 200K+/-1% R19 3.3K R223.9M R23100K R183.3K R213.9M C40 100P C39100P C170.1uF C160.1uF C6 0.01uF R178.2K R1 220K R42820 Q1 2SC2712 C3 10P C2 3P L1 3.3uH L2 C120P E1 ANTENNA C492200P C50.1uF C7 0.01uF R2100 VDD C8 0.01uF C18 0.1uF L3 100uH R27 3.3K R28 3.3K R29 3.3K R30 3.3K BT27.2V R4100 R3100 D2 D1 ORANGE*4 Q2 S8050D D10 4148 Vbatt AA C533.3uF R90 9.1K+/-1% R45 36K+/-1% R47 1K+/-1% Vbatt AA C27 0.1uF C543.3uF R93 51K R49 24k+/-1% R92 9.1k+/-1% C55 3.3uF R99 5.1k+/-1% R64 36K+/-1% R71820R10847K R76 47 Q7 S8050D Q10S8550D R7710K R8422 RL1 D15 1N4001 D174148 C100.01uF R8622 R1090.01/5W C110.01uF L6 6uH L7 6uH C30 0.1uF C31 0.1uF C25 0.1uF M2 MOTOR AC R8522 C120.01uF R8722 C13 0.01uF RL2 D16 1N4001 Q11 S8550D Q8 S8050D R7810K R79 47 R80 47K VBATT Nicd ForwardBackward Left Right Driver SEN Forward/Backward driver R11100 D38 BLUE x 8 Vbatt AA Steering SEN G3474 RX-B(216)(49MHZ) G3474 VBATT AA R6100 R5100 D4 D3 Q3 S8050D R8100 R7100 D6 RED D5 RED Q4 S8050D R10100 R9100 D8 YELLOW*2 D7 Q5S8050D Q22 S8550D Q26 B772 R5210K R53 10K Q27 B772 Q23 S8550D R54 10K M1 DV MOTOR Q24 D882 R11047/0.5W R6210K R111 47/0.5W R63 10K C35 0.1uF C37 0.1uF R381K R10133K D28 4148 R106 33K R37 1K R61 10K R60 10K R10733K R39 1K W B Y R D27 4148 D181N4001 D19 1N4001 D21 1N4001 D22 1N4001 * RIGHT STATE Q20 S9014D Q19 S9014D Q18 S9014D Q25 D882 D25 1N4001 D20 4148 D24 1N4001 R1143K R115 3K R112 3K D23 4148 R116 22/2W Q28 S8050D D26 4148 Q21 S9014D R117 0.1/0.5W C36 0.1uF VBATT Nicd R5510K R8110k Q15 S8050D S1TRY ME R361K R51 10K Q9 A1160 BT16V VBATT Nicd R31 3.3k R32 3.3k R33 3.3k R34 3.3k R12100 D39 R13100 D40 R14100 D41 R15100 D42 R16100 D43 R40 70K +/-1% C21 0.1uF C9 0.01uF C46 220uF C4822uF C22 0.1uF D95.1V C47220uF C230.1uF R41120 L5 100uH L4 5.6uHC200.1uF C19 0.1uF 2345 9876 1 10 SW2 SW R24 100K C41100uF VDD VBATT AA 4*AA Nicd Q6 2SC3279 VDD R91820 R89 8.2K+/-1% R88 24K +/-1% C52 3.3uF C260.1uF D11 4148 D12 4148 VDD VBATT NICD R70 820 R74820 R73820 6V 30A C150.1uF C3847uF 6V 30A A. Car run with IC sound RCON OFFTRY ME R L B F C42100uF C33 103 C34 0.1uF R984R7 SP1 3" 8ohm C45 100uF 1 2 3 4 5 67 8 U7 LS2822/F C43100uF C14 103 C320.1uF R974R7 SP2 3" 8ohm C44 100uF 1 2 3 4 5 67 8 U8 LS2822/F R954R7 R96 4R7 C56 0.1uF C57 0.1uF R5810K R5910K VBATT BB VBATT BB C44.7uF SERVO PCB 05 R11833KR571K R119100 R5610K Q13 9012 Q129014D Q142SK3404 VBATT Nicd R1203K R122 3.3K Speed 32 1 84 U3ALM393 56 7 U3BLM393 R12533k +/-1%R1269.1k +/-1% C503.3uF VBATT Nicd 76 1 U4BLM339 98 14 U4C LM339 1110 13 U4D LM339 B. OFF-NO SOUNDOption of SW1: R127100 D44 R128100 D45 R129 3R9 /2W C601.0uF C59 1.0uF R103820 R10256 Q179013 R82 10K D35 4148 R35 12k D34 4148 R75 1K R83 10k D32 4148 R25 12k D31 4148 R721K VBATT BB VBATT BB C652.2uF C632.2uF Underbody Light Try Me Wheel Light Sounds C68100uF C67 100uF D364148 R94 2M C6222uF R104 56 Q169013 D334148 R105 2M C6422uF R12310K 54 2 312 U4ALM339 SPC121A Try me VDD Q32 A1160 R65 1K VBATT BB R4610k R43 10k R4410k VDD VDD VDD R4810k VDD Q30S8050D R30310K FENDER R6710K VDD Q31A1160 R661K E F F D13 4148 D14 4148 Q338050 F1 Q29S8050D F2 F1F2 R5010K VDD R1243.3K D294148 D304148 R6810K D4 1 D5 2 D6 3 D7 4 D0 5 D1 6 D2 7 D3 8 B2 9 AUT1 10 AUT2 11 B1 12 A0 15 A1 13 A2 16 A3 14 B4 17 B0 18 B5 19 C0 23 C1 22 C2 21 C3 20 RST 24 VSS 25 VDD 26 X1 27 SPC121A J?CON2 R13010k VDD R131 3.3K R1363.3K R134100 R132100 R1351K R1331K C. MP3/CD 321 141516 4 13 76 5 101112 8 9 SW1 SS-43D01 ABCABC P1 PHONEPLUG R113820 R6910k VDD E SP+SP1- SP2+SP2- C1000.01uf C1010.01uf C1030.1uf 6.5T L8 2.2uH

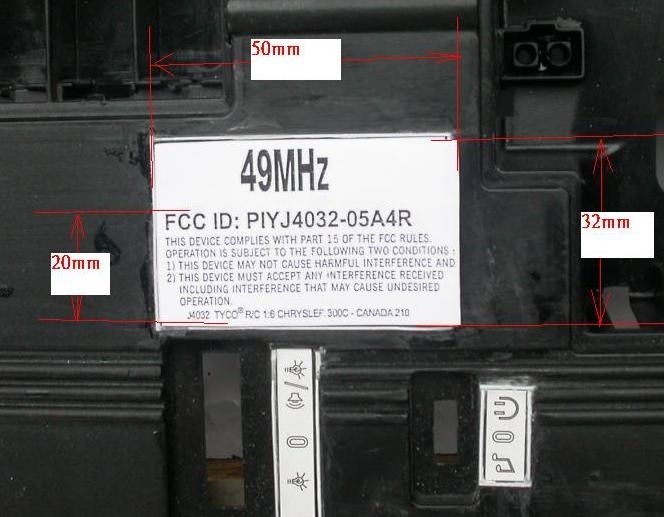

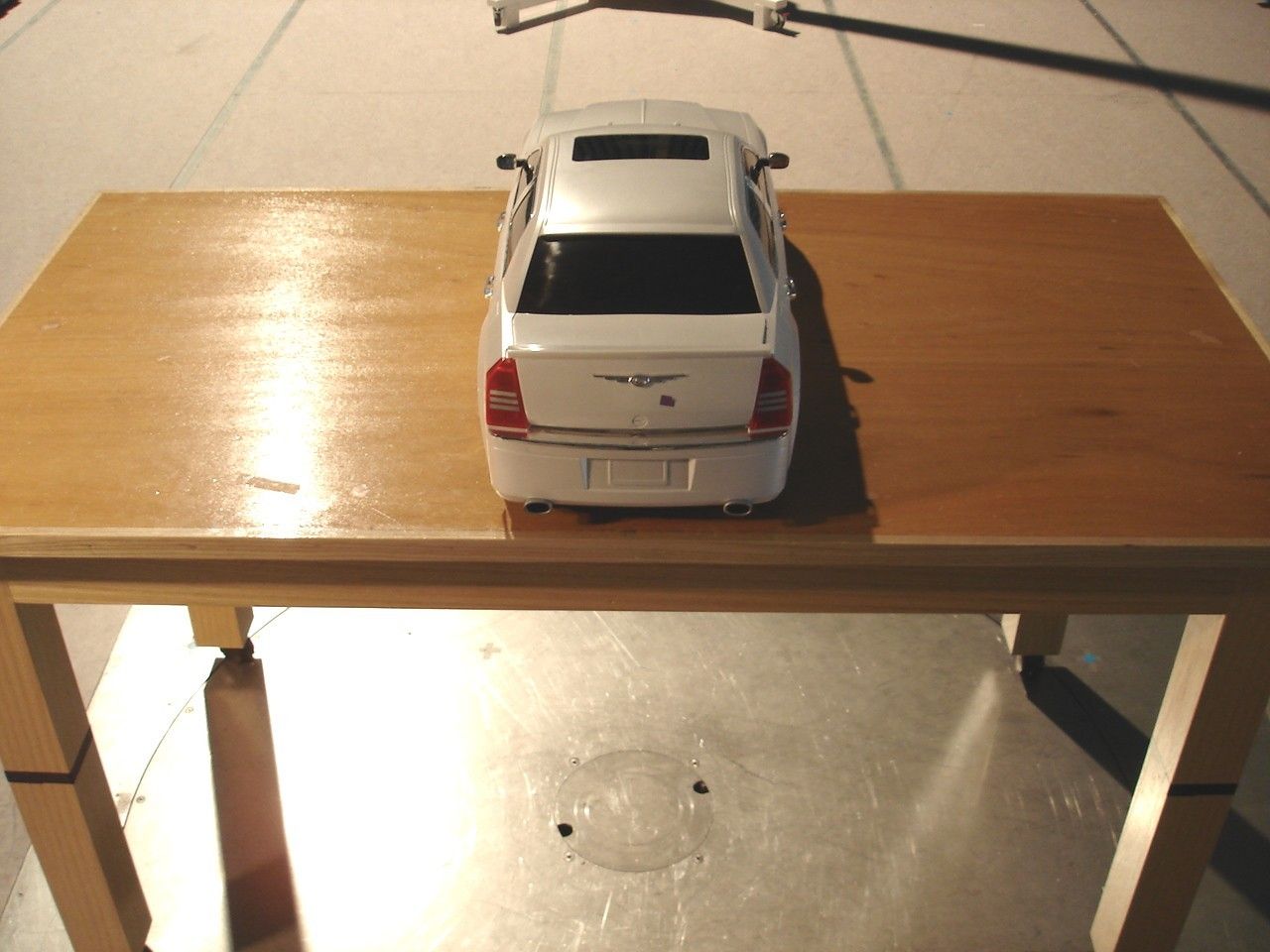

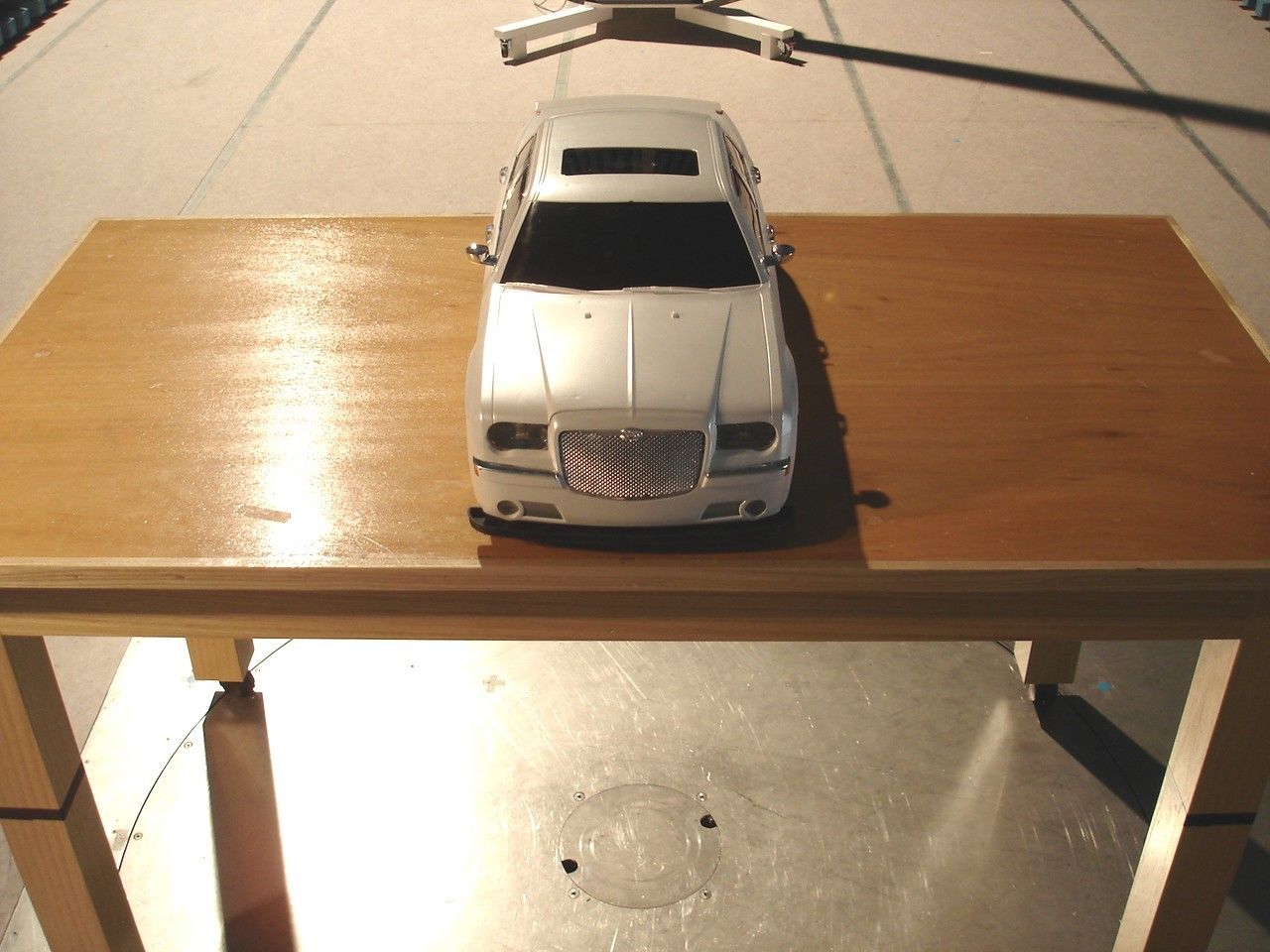

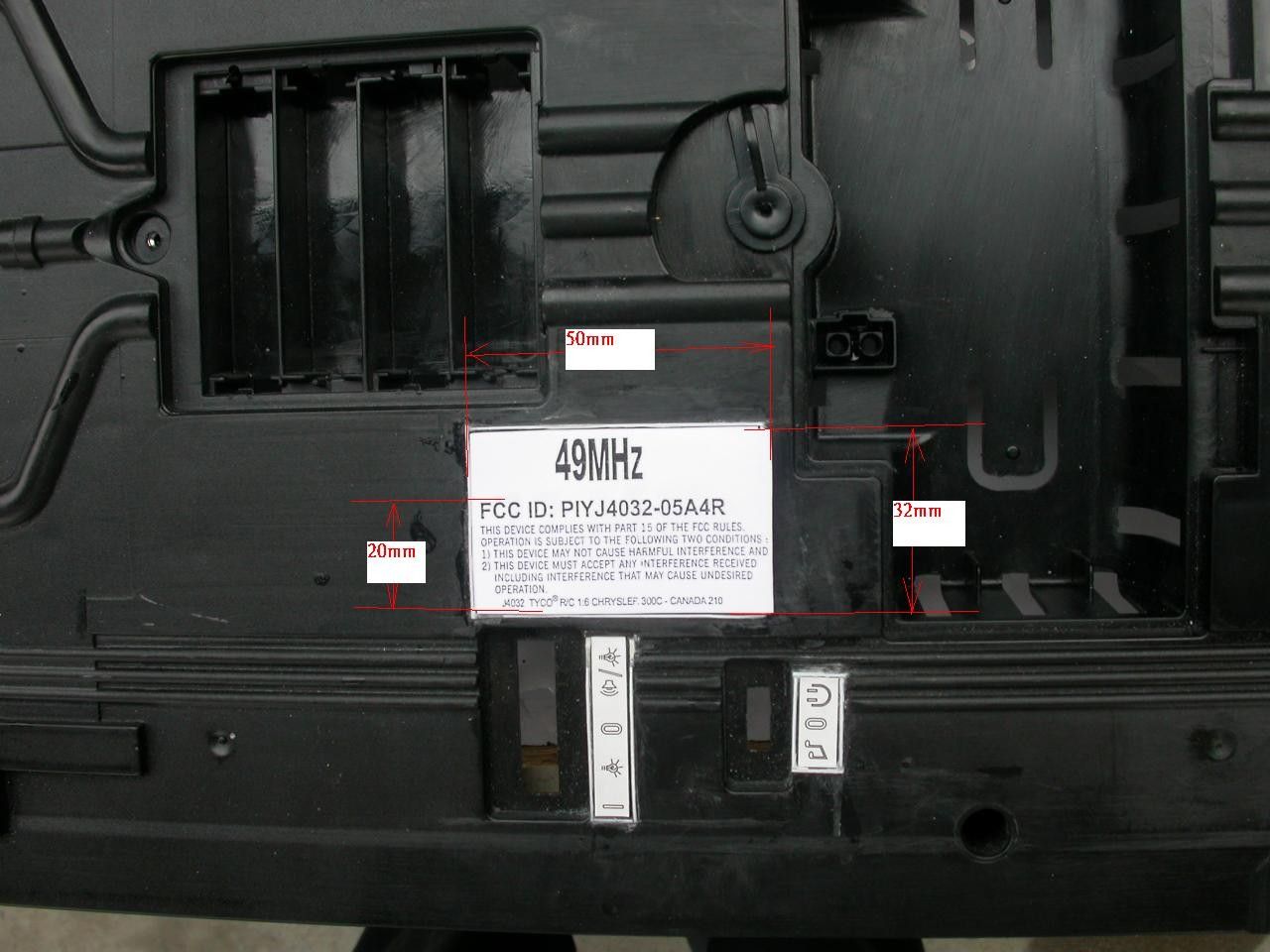

TEST REPORT Report No. : AF011572-001 Date : 2005 June 03 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PIYJ4032-05A4R This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF209310(4) Client : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong Sample Description : One(1) submitted sample stated to be Chrysler 300C of Model No. J4032 Rating : 4 x 1.5V AA size battery 7.2V rechargeable battery No. of submitted sample : One (1) piece*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 May 23 2005 May 23 – 2005 May 31 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 11. The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. TEST REPORT Report No. : AF011572-001 Date : 2005 June 03 Page 2 of 11 FCC ID : PIYJ4032-05A4R This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .................................................................................................................................. 3 1.1 General Description ........................................................................................................................... 3 1.2 Location of the test site ...................................................................................................................... 4 1.3 List of measuring equipment.............................................................................................................. 5 2 Description of the radiated emission test .................................................................................................. 6 2.1 Test Procedure ................................................................................................................................... 6 2.2 Test Result ......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data .............................................................................................. 7 3 Description of the Line-conducted Test .................................................................................................... 8 3.1 Test Procedure ................................................................................................................................... 8 3.2 Test Result ......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ........................................................... 8 4 Photograph ................................................................................................................................................ 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission............................. 9 4.2 Photographs of the External and Internal Configurations of the EUT............................................... 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ........................................................................................................................................ 10 5.2 Duty Cycle ....................................................................................................................................... 10 6 Appendices ............................................................................................................................................... 11 TEST REPORT Report No. : AF011572-001 Date : 2005 June 03 Page 3 of 11 FCC ID : PIYJ4032-05A4R This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for Chrysler 300C. Operating at 49.860MHz which is controlled by LRC circuit. The EUT is powered by 7.2V rechargeable battery and 4 x 1.5V “AA” size battery. When it power on, it can receive a radio signal and go difference direction with LED flashing and music. The brief circuit description is listed as follows : - Q1 and associated circuit act as RF AMP. - U1 and associated circuit act as RX decoder. - U7, U8 and associated circuit act as sound AMP. - Q24 ~ Q26 and associated circuit act as M1 motor control. - Q7, Q8, Q10, Q11, Q14, RL1, RL2 and associated circuit act as M2 motor control. - U3, U4 and associated circuit act as protect circuit. - Q6 and associated circuit act as voltage regulator. TEST REPORT Report No. : AF011572-001 Date : 2005 June 03 Page 4 of 11 FCC ID : PIYJ4032-05A4R This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong…
