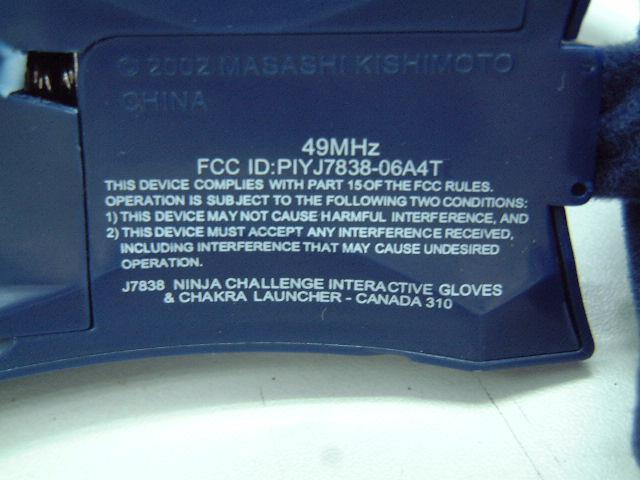

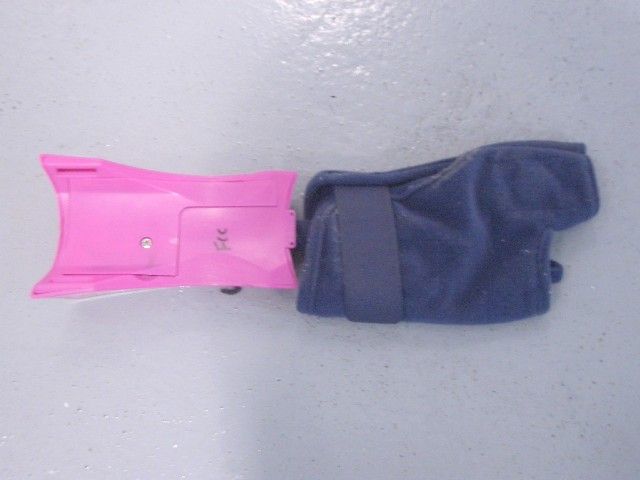

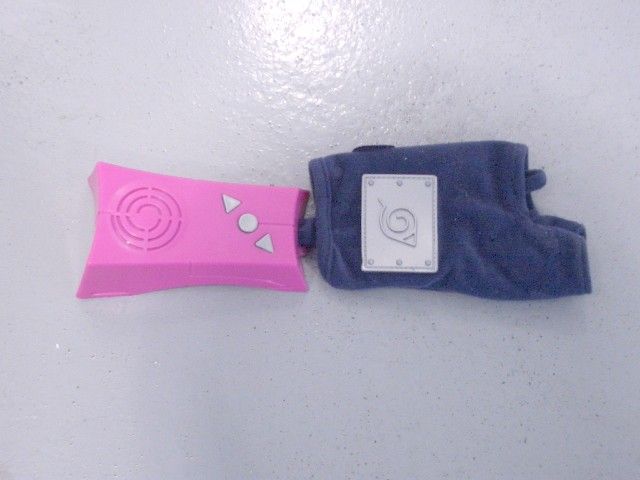

PIYJ7838-06A4TNARUTO NINJA CHALLENGE

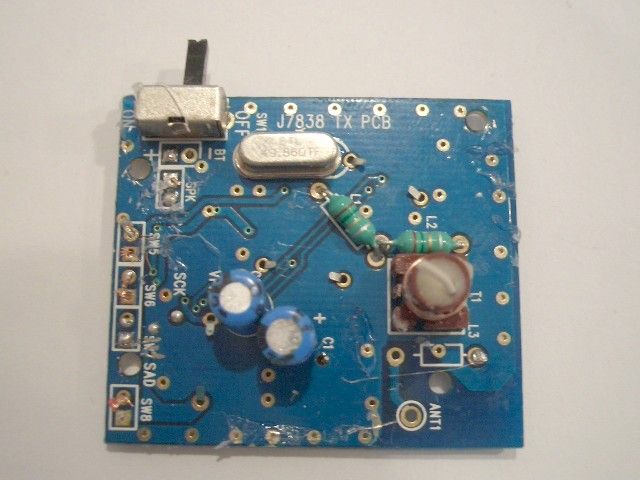

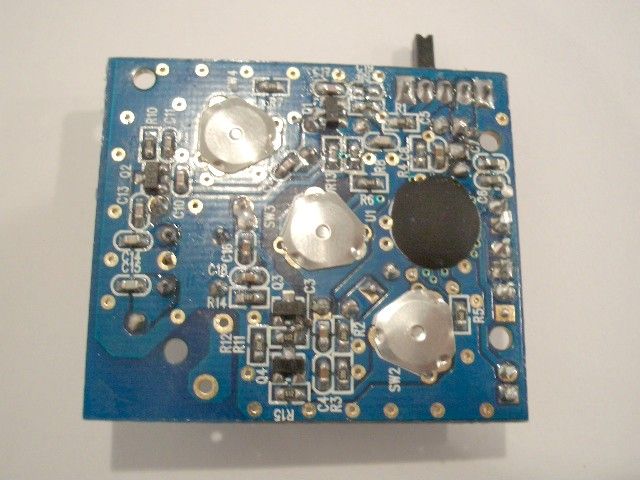

N.S.E.C.T. J9863 49.86 MHz TRANSMITTER OPERATIONAL DESCRIPTION The N.S.E.C.T. control transmitter is a low powered, hand held unit for controlling the movement of a toy N.S.E.C.T.. The transmitter is powered by a 9-volt battery. It is designed to operate on a single fixed frequency in the 49.82~49.90 MHz band. See the attached block diagram and schematic. Input switches trigger an integrated circuit (U1) which produces the digital control signals that will modulate the carrier signal. The carrier signal is generated by a crystal oscillator circuit comprised of a 49.86MHz crystal (Y1) and a PNP transistor (Q2). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage (Q3). The modulated output of the RF amplifier stage is capacitively coupled (via C12 ) to the antenna through a “pi“ matching network comprised of C13, T1 and C14. The antenna is about 13 inches length and permanently attached. A LED acts as a power-on indicator. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the user. No external ground is required or used with this transmitter. N.S.E.C.T. 49.86 MHz Mattel Part J9863 Transmitter FCC ID: PIYJ9863-06A4T

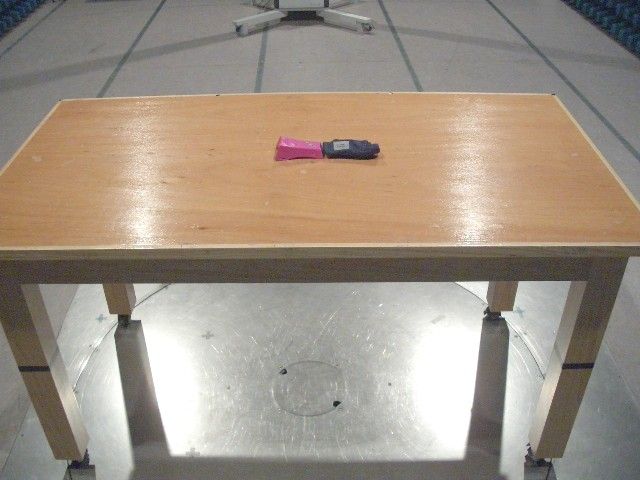

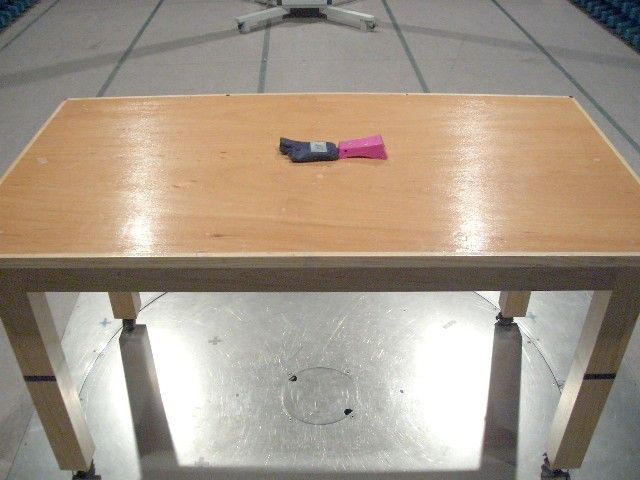

TEST REPORT Report No. : AG010058-001 Date : 2006 June 16 Page 1 of 11 FCC ID: PIYJ7838-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG207288(5) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample(s) stated to be Naruto Ninja Challenge of Model No. J7838 Rating : 4 x 1.5V AAA size batteries No. of submitted sample : Two (2) piece(s) *** Date Received : 2006 April 21 Test Period : 2006 April 26 – 2006 April 28 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG010058-001 Date : 2006 June 16 Page 2 of 11 FCC ID: PIYJ7838-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AG010058-001 Date : 2006 June 16 Page 3 of 11 FCC ID: PIYJ7838-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Naruto Ninja Challenge. It is operate at radio frequency channel 49.860MHz which generated by a crystal. The EUT is powered by 4 x 1.5V AAA size batteries. When it switched on and press the button switch once, it will transmit a radio signal to receiver and the sound will come out. The brief circuit description is listed as follows: - U1, Q4, Q3 and associated circuit act as encoder. - Y1, Q1 and associated circuit act as oscillator - Q2 and associated circuit act as RF amplify. TEST REPORT Report No. : AG010058-001 Date : 2006 June 16 Page 4 of 11 FCC ID: PIYJ7838-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Radiated emissions measur…
