ANTENNA CRYSTAL OSCILLATOR MODULATOR RF AMPLIFIER VOLTAGE REGULATOR FILTER 49.86MHz 9V BATTERY POWER ON/OFF LED EM78P156EH OSCI VDD VSS U1 CLOSE CLAWSRAISE/LOWER GUN FIRE GUN LEFT FORWARD LEFT BACKWARD RIGHT FORWARD BLOCK-DIAGRAMJ9863 TRAN SMITTER MAIN PCB :PIYJ9863-06A4T P60 P61P62P63P64 P65 P67 P66 RIGHT BACKWARD

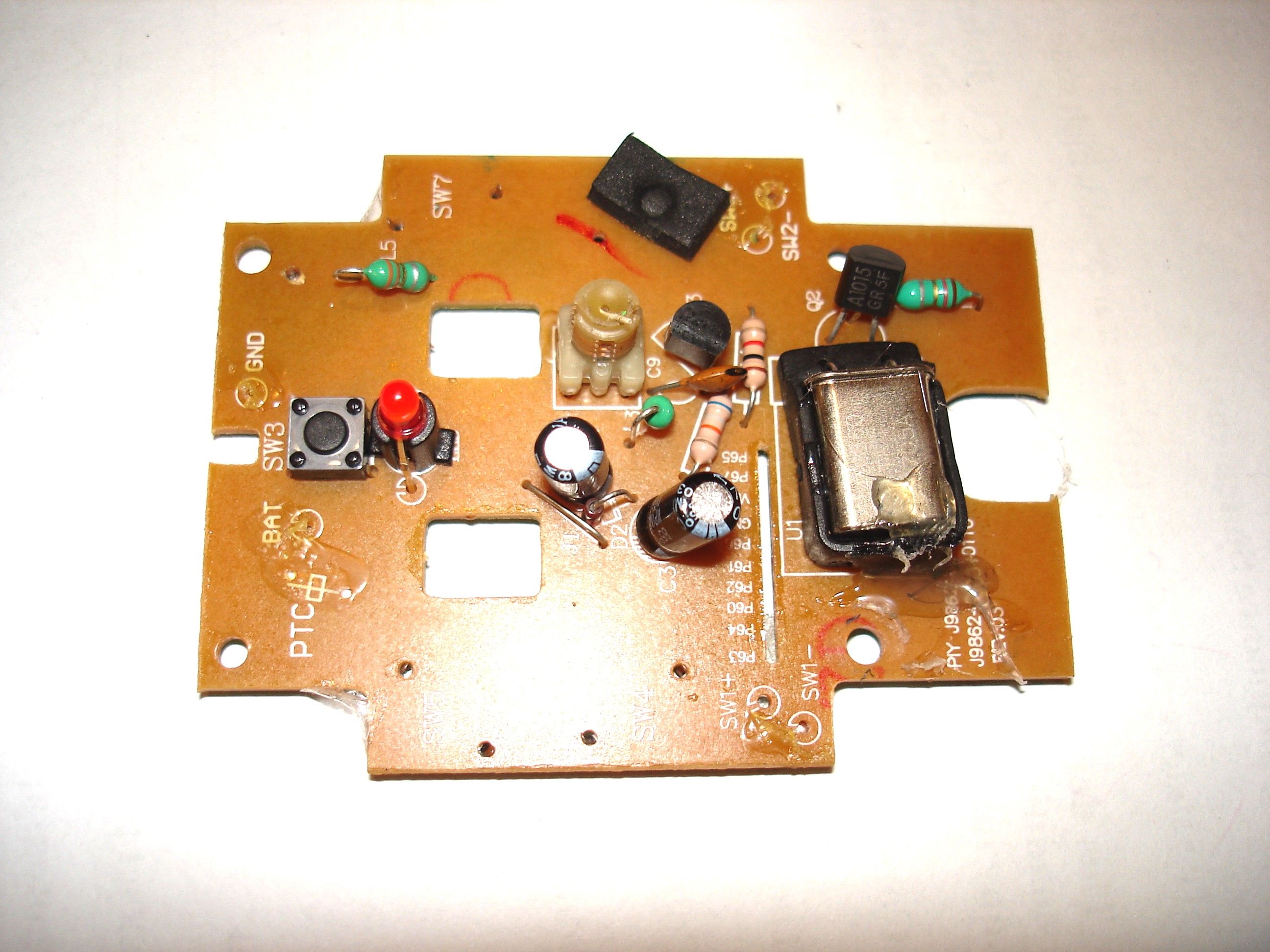

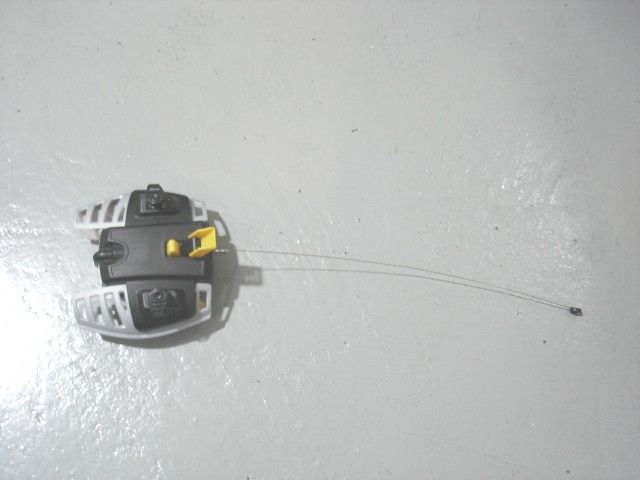

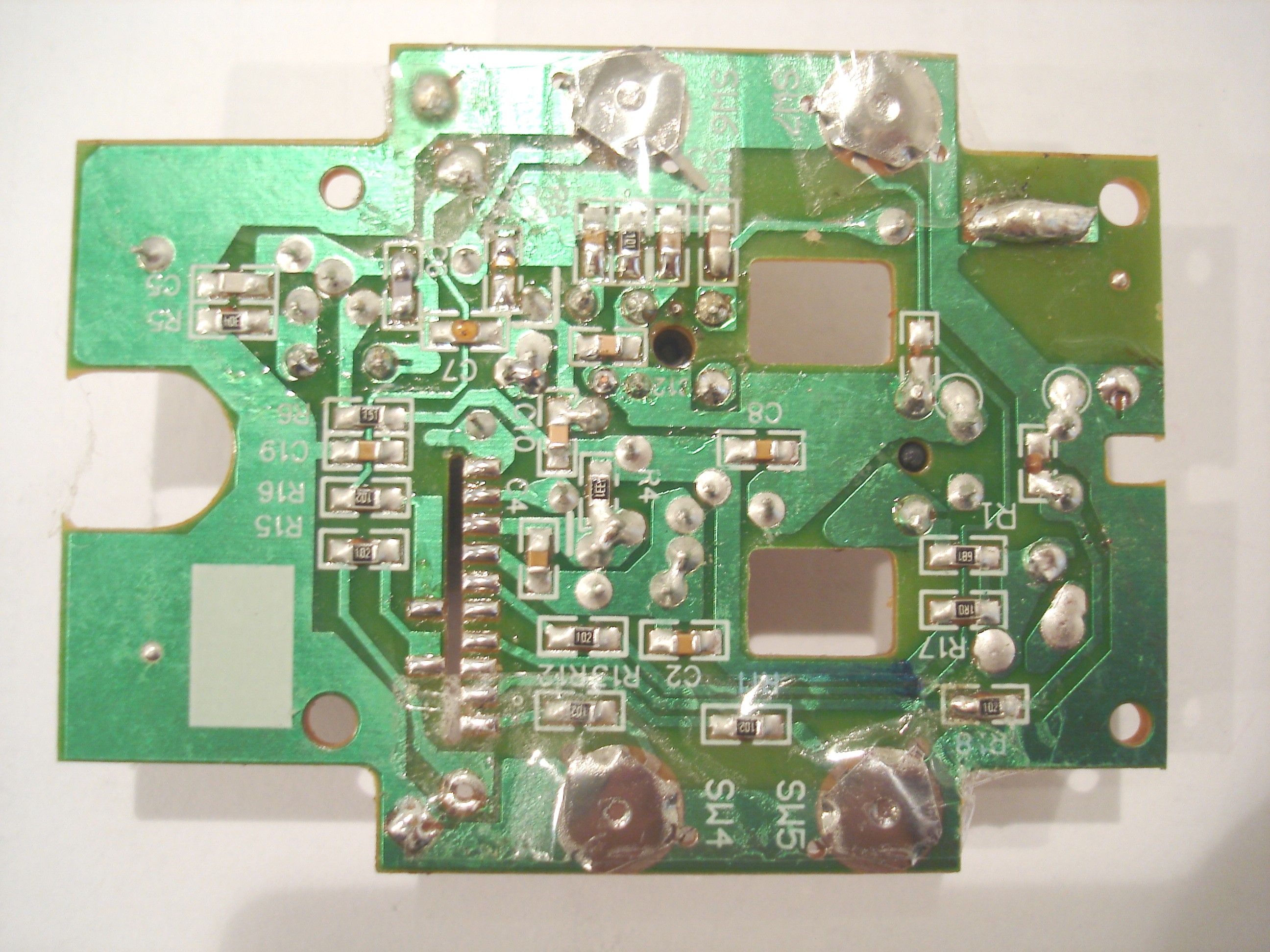

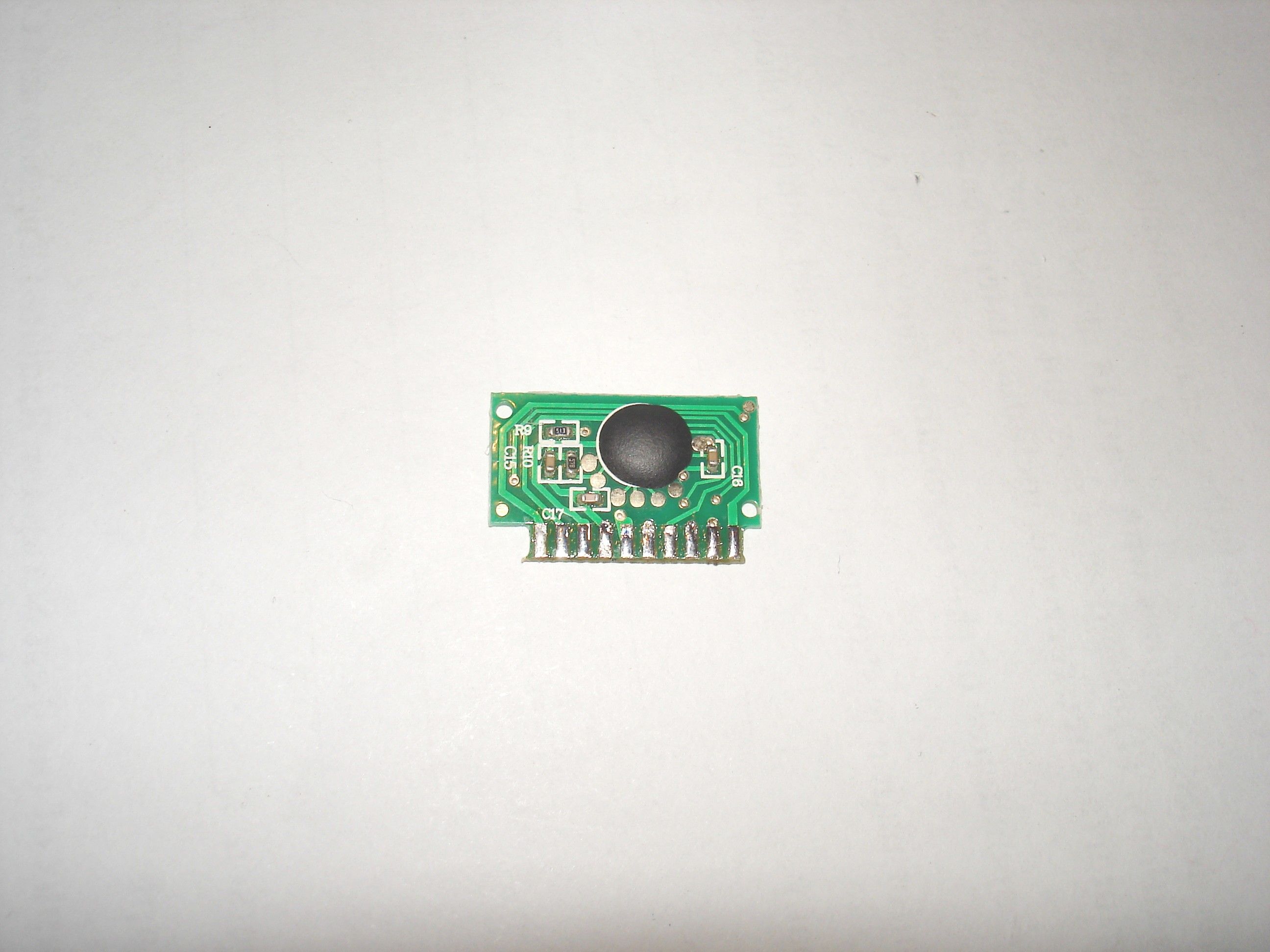

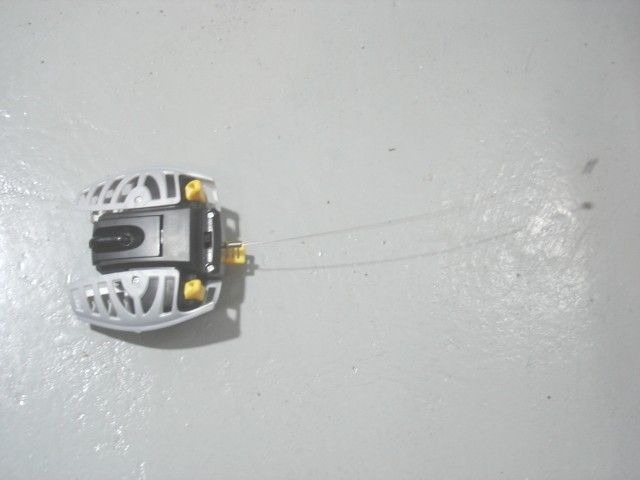

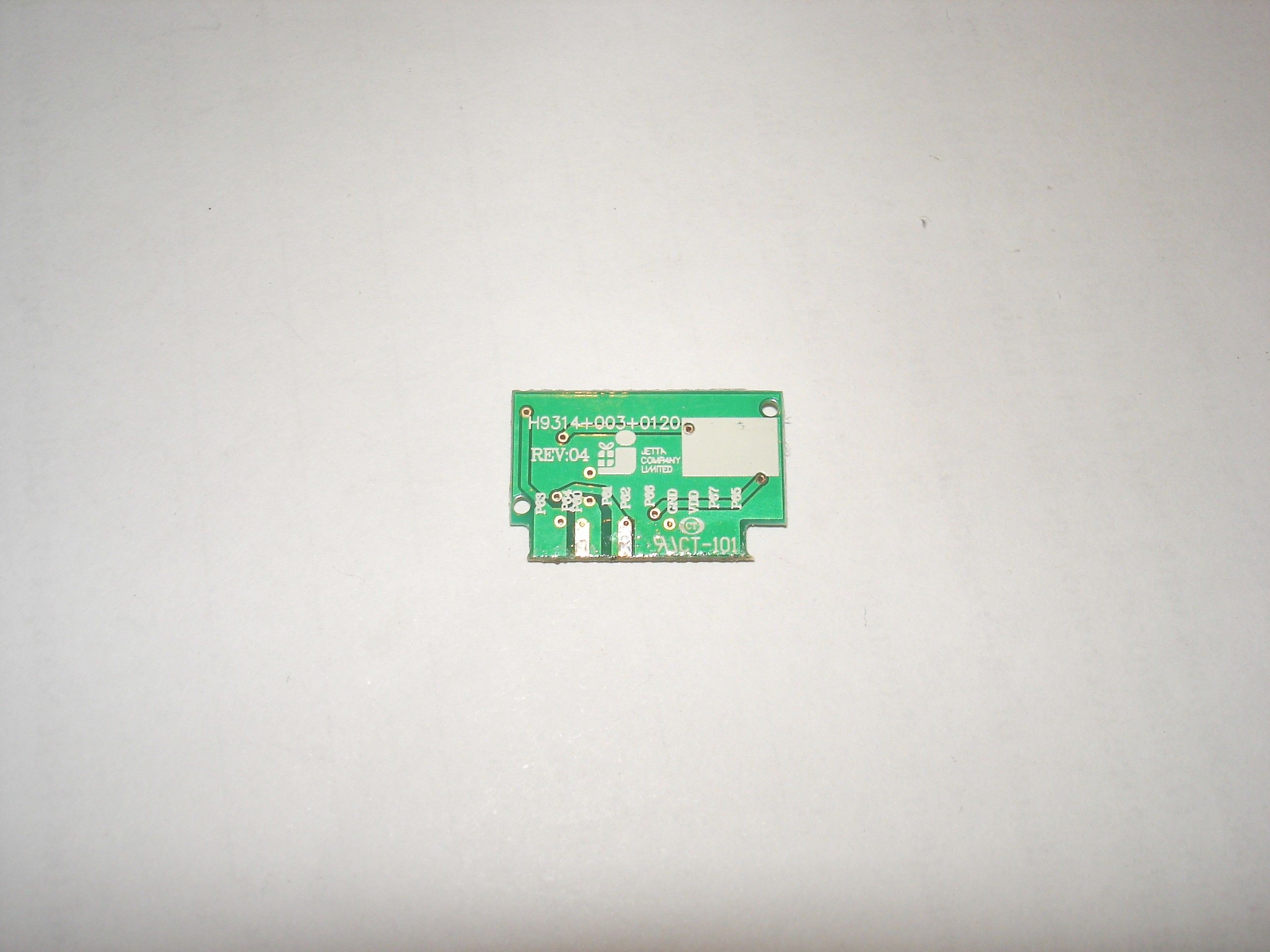

N.S.E.C.T. J9863 49.86 MHz TRANSMITTER OPERATIONAL DESCRIPTION The N.S.E.C.T. control transmitter is a low powered, hand held unit for controlling the movement of a toy N.S.E.C.T.. The transmitter is powered by a 9-volt battery. It is designed to operate on a single fixed frequency in the 49.82~49.90 MHz band. See the attached block diagram and schematic. Input switches trigger an integrated circuit (U1) which produces the digital control signals that will modulate the carrier signal. The carrier signal is generated by a crystal oscillator circuit comprised of a 49.86MHz crystal (Y1) and a PNP transistor (Q2). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage (Q3). The modulated output of the RF amplifier stage is capacitively coupled (via C12 ) to the antenna through a ìpiì matching network comprised of C13, T1 and C14. The antenna is about 13 inches length and permanently attached. A LED acts as a power-on indicator. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the user. No external ground is required or used with this transmitter. N.S.E.C.T. 49.86 M Hz M attel Part J9863 Transmitter FCC ID: PIYJ9863-06A4T
1 2 34 A B CD 4 3 2 1 D C B A Title Number Revision Size A4 Date: 2-Jun-2006 Sheet of File: D:\Project\H9314\TX\SCH\J9863.schDrawn By: R11 1K R12 1K R16 1K R18 1K R15 1K SW5 Left Backward SW4 Left Forward SW2 Fire Gun SW3 Raise/Lower Gun SW1 Close Claws C3 47 uF C4 0.1uF Y1 49.86 MHz Q2 2SA1015GR R6 150 R5 300K C5 8PF C6 8PF C7 47PF C9 47PF R7 6.8K Q3 2SC1815GR R8 100 C12 47PF C13 33PF C110.01uF C14 33PF ANT C8 0.01uF T1 7B-ZT3330-4 C10 18PF L2 1.2uH L3 0.56uH R14 1K SW6 Right Forward P67 VDD RST VSS OSCITCC J9863 (49MHz) 00 N.S.E.C.T. P60 P61 P62 P63P64P65 L5 3.3uH EM78P156EH U1 C17 22pF R10 3.83K +/-1% C15 0.1uF R9 51K C16 0.1UF C19 0.01uF D2 4.3V R4 330 9V BATTERY K1 ON OFF R1 680 LED 3 mm red R17 1 OHM C2 0.1uF C1 47 uF P66 SW7 Right Backward R13 1K

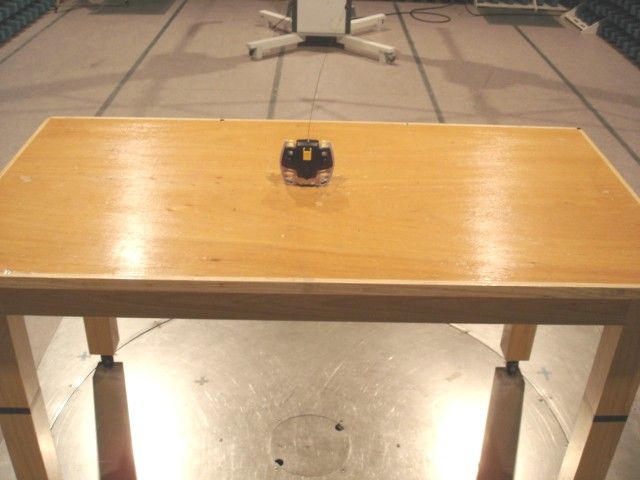

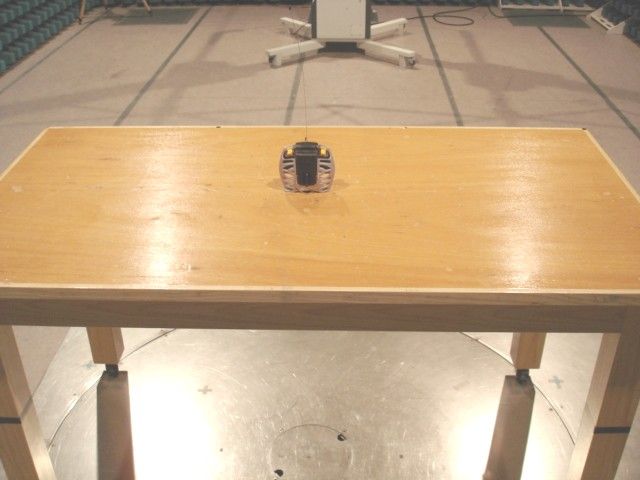

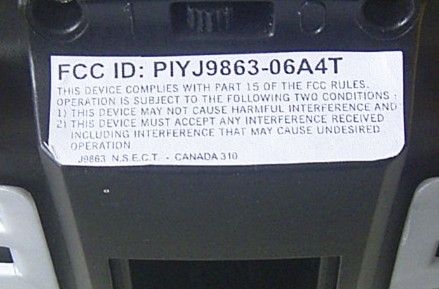

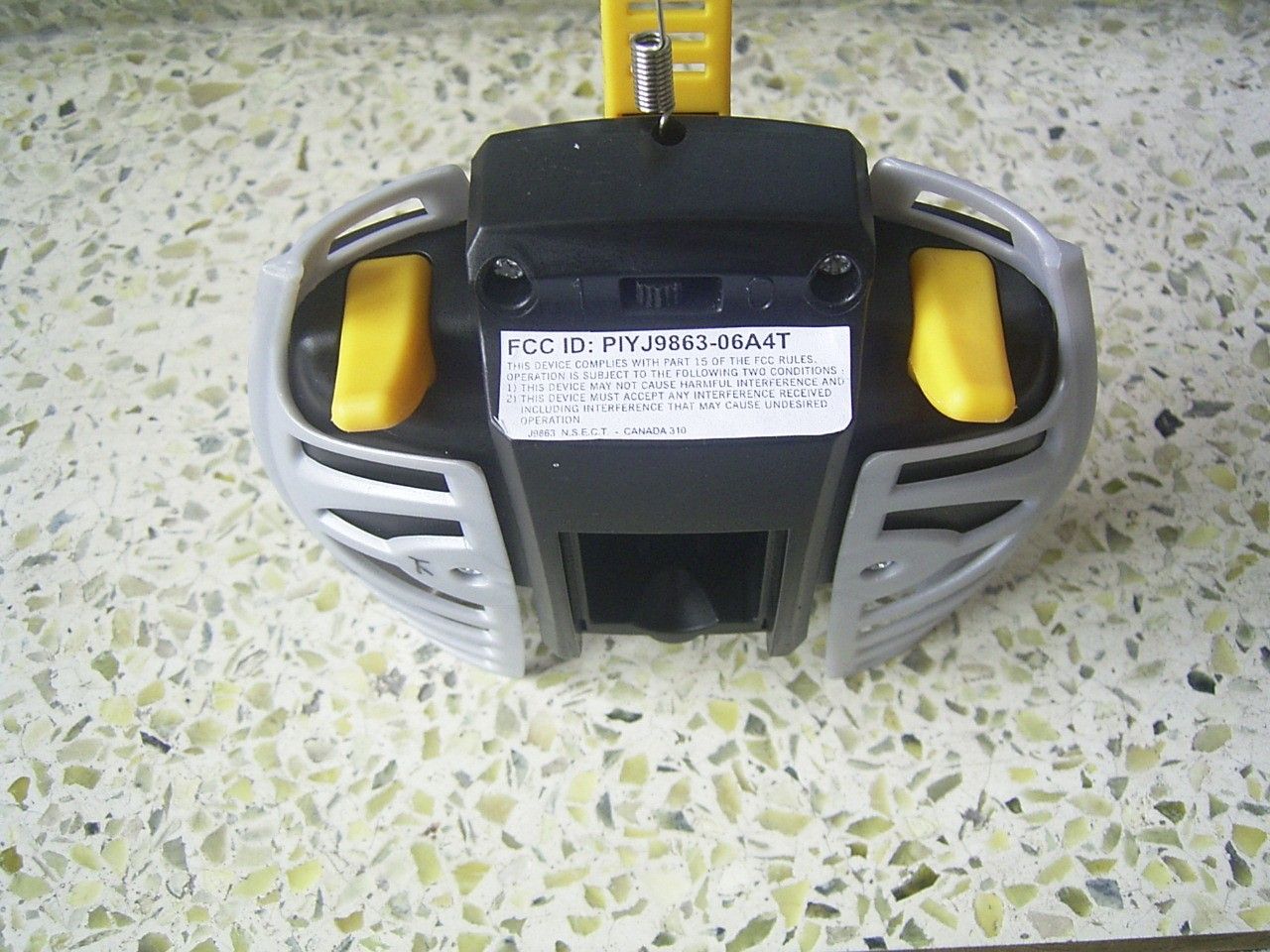

TEST REPORT Report No. : AG013161-001 Date : 2006 June 13 Page 1 of 11 FCC ID: PIYJ9863-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG211856(1) Applicant : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be N. S. E. C. T of Model No. J9863 Rating : 1 x 9V size battery No. of submitted sample : Two (2) piece(s) *** Date Received : 2006 June 01 Test Period : 2006 June 01 β 2006 June 07 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 β 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG013161-001 Date : 2006 June 13 Page 2 of 11 FCC ID: PIYJ9863-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AG013161-001 Date : 2006 June 13 Page 3 of 11 FCC ID: PIYJ9863-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Test Result : 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for N.S.E.C.T. Operating at 49.860MHz which is controlled by a crystal. The EUT is powered 1 X 9V size battery and it has five control trigger in the front of EUT. When forward, backward, turn left, turn right and Raise / Lower gun button is pressed once, it will transmit corresponding signal to receiver unit The brief circuit description is listed as follows: - U1 and associated circuit act as encoder. - Y1, Q2 and associated circuit act as oscillator. - Q3 and associated circuit act as RF amplify. TEST REPORT Report No. : AG013161-001 Date : 2006 June 13 Page 4 of 11 FCC ID: PIYJ9863-06A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Test Result : 1.2 Location of the test sitβ¦
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 49.86 MHz - 49.86 MHz | - |
