PIYK3841-06A2TRC Bloo

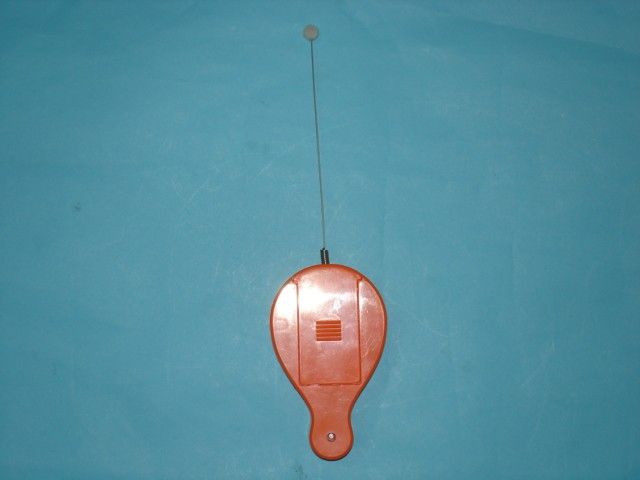

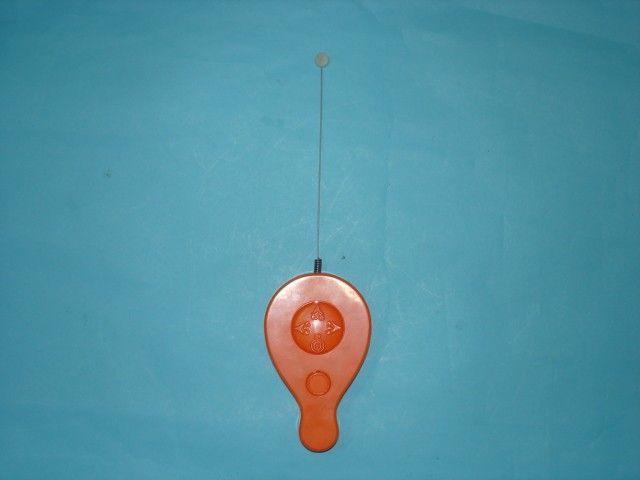

2006 Mattel, Inc. All Rights Reserved. Visit CartoonNetwork.com Mattel, Inc., 333 Continental Blvd., El Segundo, CA 90245 U.S.A. Consumer Relations 1-800-524-8697. service.mattel.com Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628500303 Mattel Australia Pty Ltd., Richmond, Victoria. 3121. Consumer Advisory Service - 1300 135 312. Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel:03-78803817, Fax:03-78803867. INSTRUCTIONS 6+ BLOOREGARD FIGURE Unscrew battery cover with a Phillips head screwdriver (not included). Remove batteries included for demonstration purposes only and dispose of them safely. Install 4 new "AA" (LR6) alkaline batteries (not included), in the orientation (+/-) shown. Replace battery cover and tighten screw. PADDLEBALL REMOTE CONTROL Unscrew battery cover with a Phillips head screwdriver (not included). Install 2 "AA" (LR6) alkaline batteries (not included), in the orientation (+/-) shown. Replace battery cover and tighten screw. When the product does not respond, slows down, loses range, or sounds are garbled or play slowly, change the batteries. For optimal performance use only alkaline batteries. Battery life may vary depending on battery brand. 1. Operating multiple R/C vehicles with the same frequency in close proximity may cause interference and poor performance. The product works best away from high voltage power lines, large buildings and walls. Try to stay away from these. 2. If the product gets wet it is important not to operate it until it is completely dry, inside and outside. Use a clean dry cloth to remove any water, dirt, or mud immediately. 3. Do not store near heat or in direct sunlight. Always turn switches OFF and remove all removable batteries for storage. For greatest range, be sure the antenna on the paddleball remote control is straight. Play Safely! – Do not play with product in the street! NOTE: Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. ® K3841-0920 Keep these instructions for future reference as they contain important information. CONTENTS: Requires 4 "AA" (LR6) alkaline batteries for the figure and 2 "AA" (LR6) alkaline batteries for the paddleball remote control (not included). Batteries included are for demonstration purposes only. QUICK TIPS CREEP FORWARD Press and release to creep forward. ACTIVATE SOUNDS Press and hold to activate phrases and sounds. Press and release to repeat phrases and sounds. SPIN Press and release to spin. You can press and hold the button to spin longer. Release to stop. TURN LEFT Press and hold to turn. Release to stop. Turn Right Press and hold. Release to stop. BOTTOM VIEW GET READY TO PLAY PADDLEBALL REMOTE CONTROL FORWARD LEFT SPIN SOUNDS RIGHT X O I I = ON 0 = OFF X = TRY-ME X O I When holding Blooregard you can activate sound by sliding the switch to "X" and pressing the button on his side. GO FORWARD Press and hold to move forward. INSTALL BATTERIES Battery Safety Information In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy (product). To avoid battery leakage; • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. You control Blooregard! Use the buttons on the paddleball remote control to activate Blooregard's movements with sounds. Make Blooregard travel right, left, go forward, creep forward as if you are sneaking up on something, or spin in place by pressing the buttons on the paddleball remote control. TO PLAY 2006 Mattel, Inc. All Rights Reserved. Works ONLY on flat, level, hard surfaces. Move switch on bottom of Blooregard to ON (I). INSTRUCTION SHEET SPECIFICATIONS To y : Toy No.: Part No.: Trim Size: Folded Size: Type of Fold: # colors: Colors: Paper Stock: Paper Weight: EDM No.: CN TROUBLE MAKIN' BLOO K3841 0920 11" W x 11" H 5.5" W x 11" H One Black White Offset 70 lb. TM & © Cartoon Network (s07) 1. 2.3.

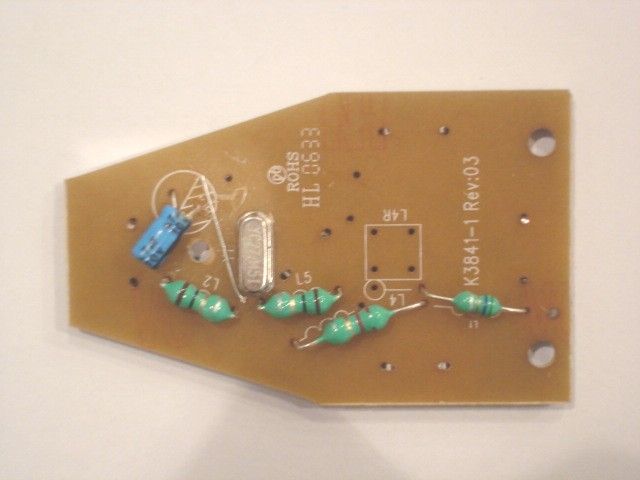

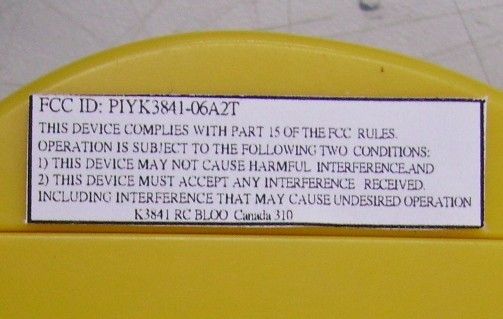

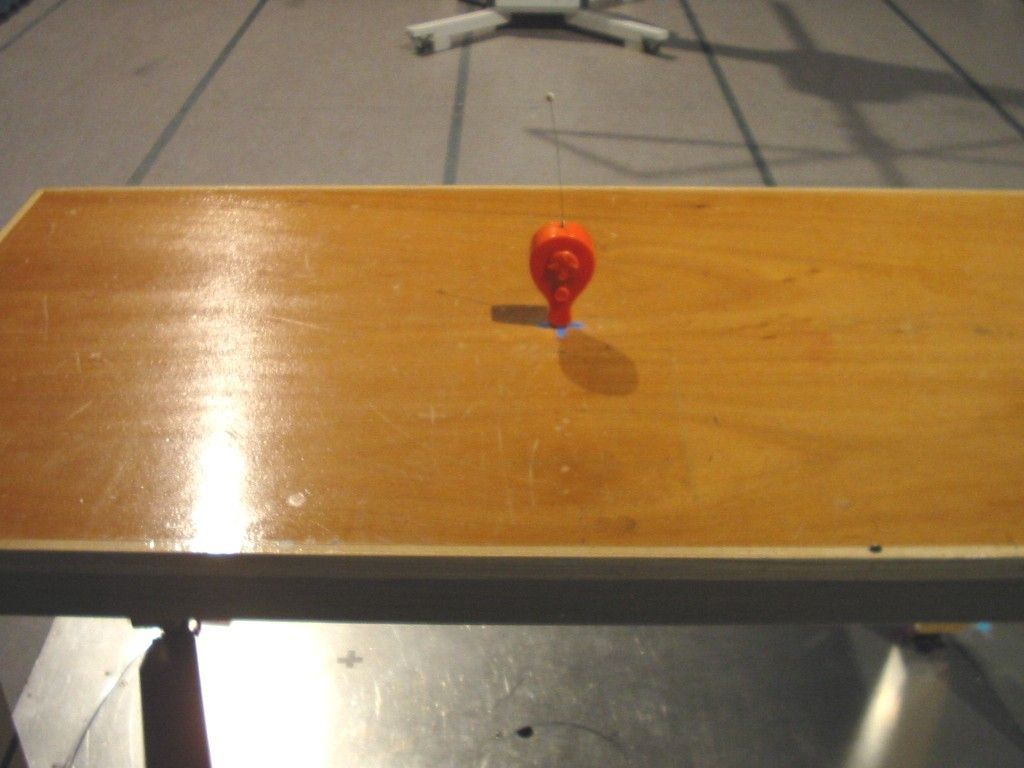

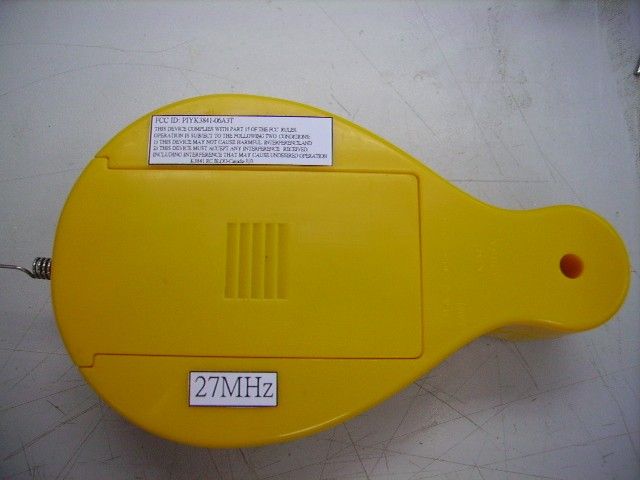

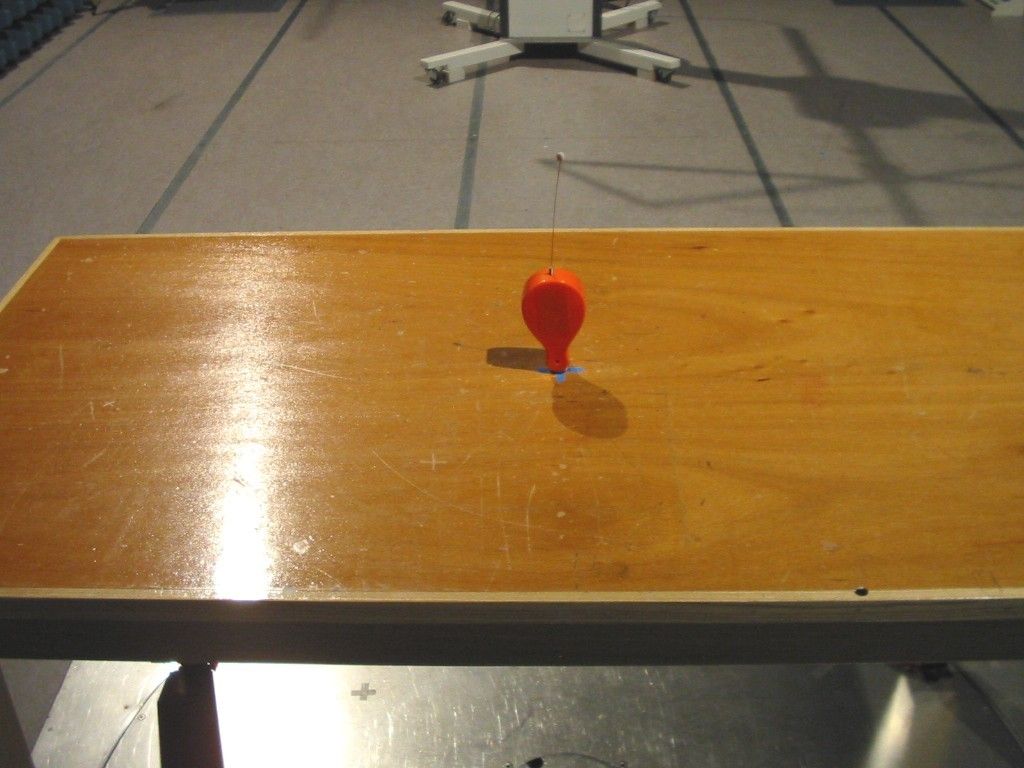

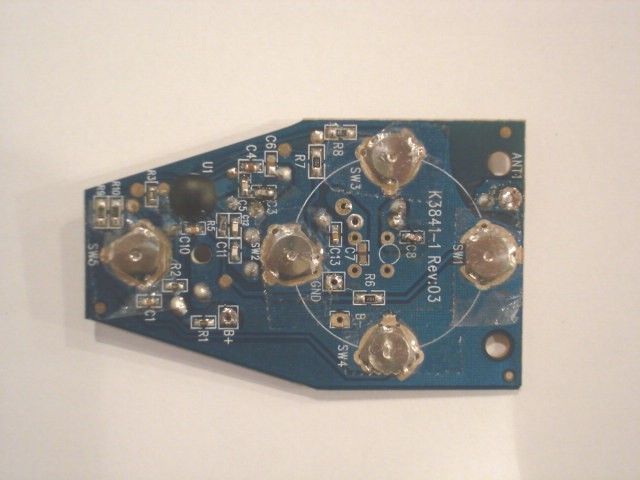

TEST REPORT Report No. : AG025001-001 Date : 2006 October 12 Page 1 of 11 FCC ID: PIYK3841-06A2T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG219629(7) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be RC Bloo of Model No. K3841 Radio Frequency : 27.145 MHz Transmitter Rating : 2 x 1.5V AA size batteries No. of submitted sample : Three (3) piece(s) *** Date Received : 2006 September 11 Test Period : 2006 September 11 ñ 2006 September 22 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG025001-001 Date : 2006 October 12 Page 2 of 11 FCC ID: PIYK3841-06A2T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment ........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AG025001-001 Date : 2006 October 12 Page 3 of 11 FCC ID: PIYK3841-06A2T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC Bloo. It operates at 27.145MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. There are five buttons in the EUT. When the forward, turn right, turn left, self-rotate and sound button is pressed once, it will transmit different radio control signal to the receiver. The brief circuit description is listed as follows: - U1 and associated circuit act as encoder and RF amplifier - Y1 and associated circuit act as an oscillator for U1 TEST REPORT Report No. : AG025001-001 Date : 2006 October 12 Page 4 of 11 FCC ID: PIYK3841-06A2T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Ra…

Text truncated - open the document above for the full version.

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle 3
