PIYK7253-07A4RRC Monster Jam Stunt

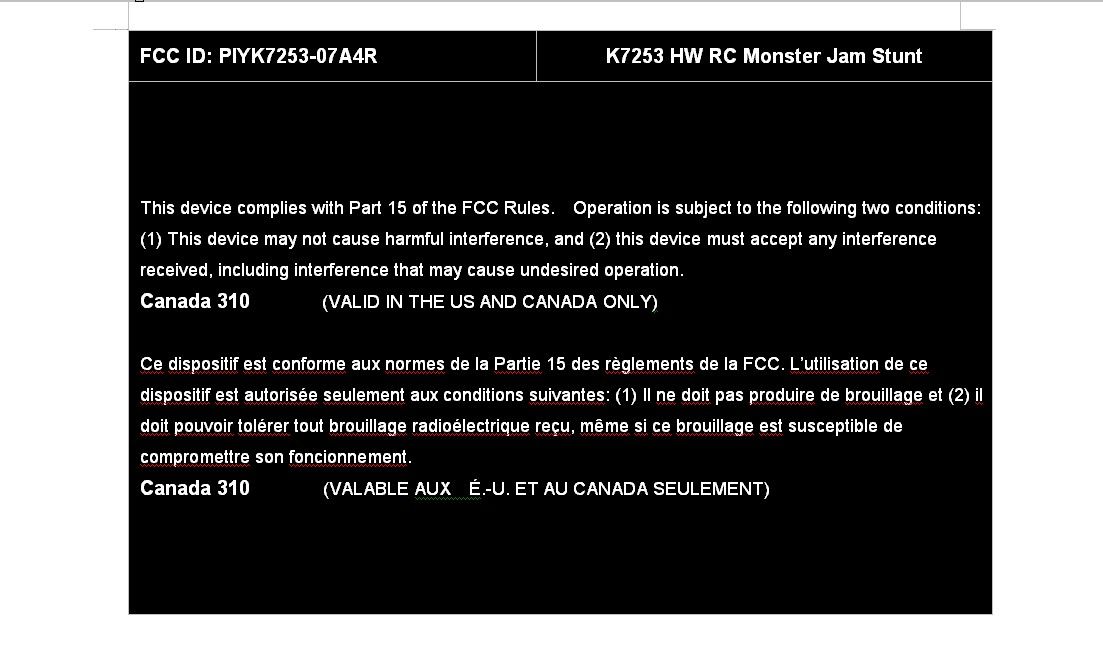

h Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. i Si tiene alguna pregunta o problema con el producto, NO DEVUELVA EL PRODUCTO A LA TIENDA. Llámenos, y con gusto le ayudaremos. j Vous avez des questions à propos de votre produit ou il ne fonctionne pas correctement? NE LE RETOURNEZ PAS AU MAGASIN! Un appel suffit. K7253-0824 ® ® COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY - VALABLE AUX É.-U. SEULEMENT) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC which are designed to provide reasonable protection against such interference. NOTE: Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. RSS - 310 (Canada) (VALID FOR CANADA ONLY - VALABLE AU CANADA SEULEMENT) This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif de radiocommunication rencontre toutes les exigences de la norme CNR-310 d'Industrie Canada. L’utilisation de ce produit est sujette aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) il doit pouvoir tolérer tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre son fonctionnement. CNR-310 d'Industrie Canada (CANADA SEULEMENT) 27.145 MHz TX RF =70.60 dB ÌÌV/m @ 3m. 49.860 MHz TX RF =74.50 dBÌÌV/m @ 3m. XCAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. XPRECAUCIÓN: las superficies se pueden calentar y causar quemaduras si las piezas electrónicas se mojan. No usar el vehículo en agua ni nieve. XATTENTION : Les surfaces peuvent devenir chaudes et causer des brûlures si les composants électroniques sont mouillés. Ne pas utiliser ce véhicule sur des surfaces mouillées ou enneigées. XATENÇÃO: As superfícies podem esquentar e gerar fogo se os aparelhos eletrônicos ficarem molhados. Não ligar o veículo na água ou neve. h Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. i Guardar estas instrucciones para futura referencia, ya que contienen información de importancia acerca de este producto. IMPORTANTE: leer toda la "Información al consumidor" antes de usar el vehículo. j Conserver ce mode d'emploi pour s'y référer en cas de besoin car il contient des informations importantes. IMPORTANT : Lire la section «Renseignements pour les consommateurs» avant de faire fonctionner le véhicule. q Guardar estas instruções para referência futura pois contêm informação importante. ATENÇÃO: Leia toda a «Informação ao Consumidor» antes de colocar o veículo em funcionamento. CANADA 90-DAY LIMITED WARRANTY Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. If defective, return the product along with proof of the date of purchase, postage prepaid to Mattel Canada Inc., Consumer Service, 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2 for replacement with an identical toy or a similar toy of equal or greater value according to availability. This warranty gives you specific legal rights and you may have other rights which vary from province to province. This warranty does not cover damage resulting from accident, misuse or abuse. Valid for products sold in Canada only. YOU MAY CALL US FREE AT 1-800-557-8926 Monday – Friday, 8:00 a.m. – 5:00 p.m. EST; 5:00 a.m. – 2:00 p.m. PST. CANADA GARANTIE LIMITÉE DE 90 JOURS Mattel garantit à l’acheteur initial que le produit est couvert contre les vices de matériau ou de fabrication pour une période de 90 jours (à moins d’indication contraire dans d’autres garanties) à compter de la date d’achat. Tout produit défectueux doit être retourné, accompagné d’une preuve de la date d’achat et dûment affranchi, au Service à la clientèle de Mattel Canada Inc., 6155, Freemont Blvd., Mississauga (Ontario) L5R 3W2, où il sera remplacé par un produit identique ou un produit semblable de valeur égale ou supérieure, selon la disponibilité. La présente garantie procure certains droits légaux à l’acheteur, qui peut également bénéficier de droits supplémentaires qui varient d’une province à l’autre. La présente garantie ne couvre pas les dommages occasionnés par un accident ou un usage abusif ou inapproprié. Valable pour les produits vendus au Canada seulement. QUESTIONS OU COMMENTAIRES? COMPOSEZ SANS FRAIS LE 1 800 557-MATTEL (1 800-557-8926) du lundi au vendredi, de 8 h à 17 h (HNE) ou de 5 h à 14 h (HNP). Mattel de México, S.A. de C.V., garantiza este producto por un periodo de 90 días en todas sus partes y mano de obra, a partir de la fecha de entrega. Condiciones: 1.- El consumidor presentará el producto, junto con el comprobante de compra, en el lugar donde lo adquirió o lo presentará o enviará a nuestro centro de servicio ubicado en Av. Tejocotes S/N, Lote 7 (domicilio conocido), San Martín Obispo, Cuautitlán Izcalli, C.P. 54769, Edo. de México, Tel.: (01 55) 59 05 51 00 Ext. 5206 y número de atención gratuita 01-800 463 5989. 2.- Durante la vigenc…

Text truncated - open the document above for the full version.

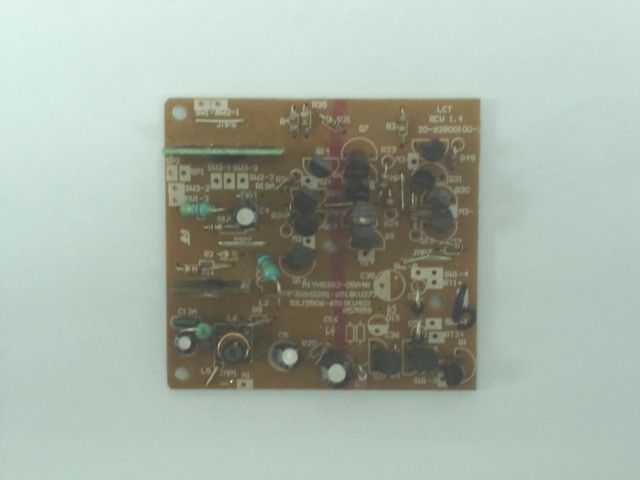

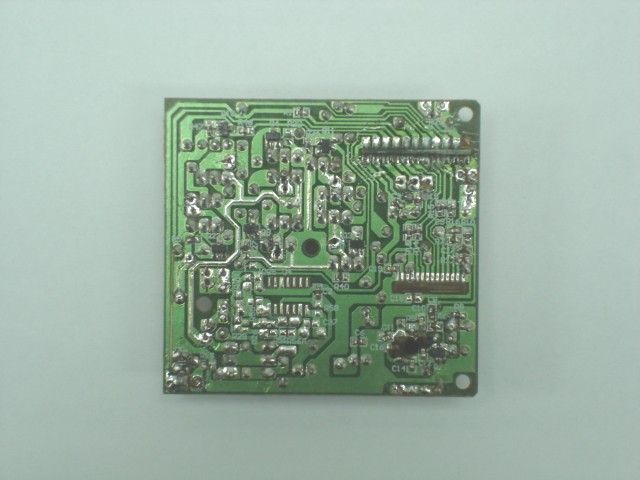

49.860MHZ Receiver Operational Description The receiver of R/C stunt car- is powered by 6*1.5V AA battery. When it received either one of Forward, Backward, Spin, Left Turn and Right Turn signal from the transmitter, it will move forward, backward, spin, turn left or right accordingly. Refer to the receiver circuit design, the circuit description is listed as below : ® Q2 and associate components are acted as RF receiver. ® U1, U3 and associate components are acted as control signal decoder. ® Q4 ~ Q9 , Q10 ~ Q14,Q17-Q22 and associate components are acted as motor driving. RECEIVER FCC ID: MATTEL K7253 HW RC MONSTER JAM STUNT MATTEL K7253 HW RC MONSTER JAM STUNT PIYK7253-07A4R HW RC MONSTER JAM STUNT

-49MHZ-RX-FCC.sch-1 - K72532007.05.07 BEN TIAN K7253 2007.05.07

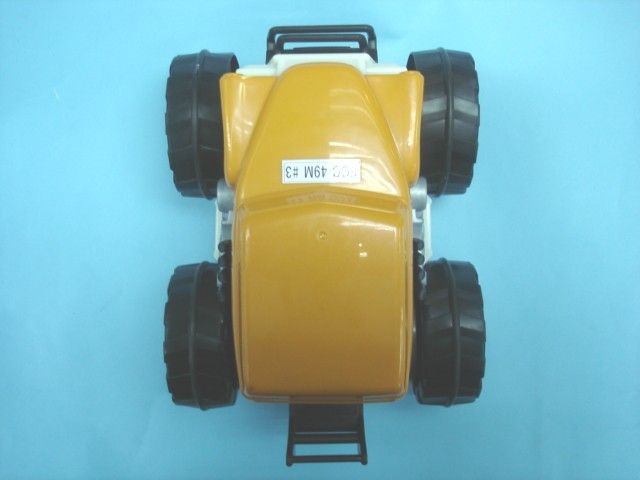

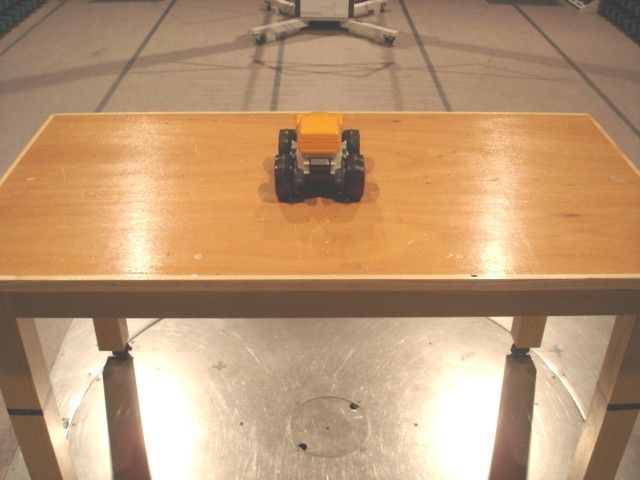

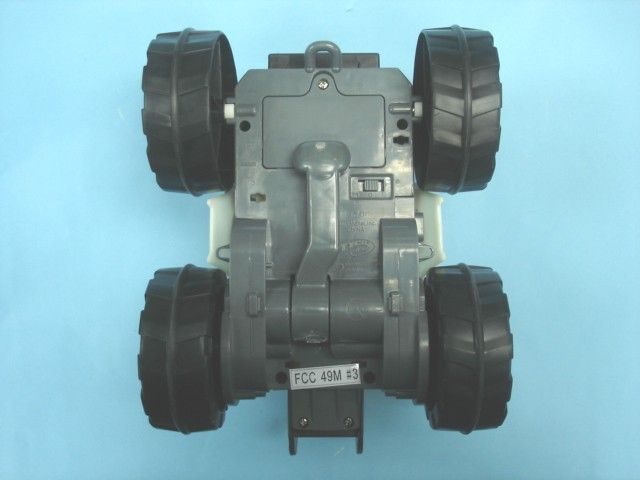

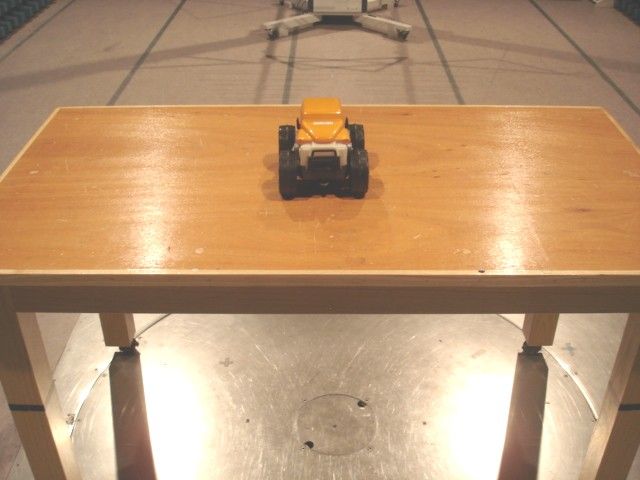

TEST REPORT Report No. : AJ005023-001 Date : 2007 June 11 Page 1 of 11 FCC ID: PIYK7253-07A4R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ203528(9) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample(s) stated to be RC Monster Jam Stunt of Model No. K7253 Radio Frequency : 49.860MHz Receiver Rating : 6 x 1.5V AA size batteries No. of submitted sample : Three (3) piece(s) *** Date Received : 2007 March 10 Test Period : 2007 March 20 – 2007 March 26 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ005023-001 Date : 2007 June 11 Page 2 of 11 FCC ID: PIYK7253-07A4R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty Cycle Calculation.............................................................................................................. 10 5.3 Transmission Time..................................................................................................................... 10 5.4 Power Spectral Density ............................................................................................................. 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AJ005023-001 Date : 2007 June 11 Page 3 of 11 FCC ID: PIYK7253-07A4R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for RC Monster Jam Stunt. It operates at 49.860MHz and the oscillation of radio control an LRC circuit. The EUT is powered by 6 x 1.5V AA size batteries. When received a forward, backward, turn right, turn left or self- turning signal, it will go to the corresponding direction or will turn around itself. The brief circuit description is listed as follows: - Q2 and associated circuit act as receiver. - U1, U3 and associated circuit act as decoder. - Q15, Q27, Q1 and associated circuit act as voltage controller. - Q4 ~ Q9 and associated circuit act as M1 motor controller. - Q10 ~ Q14, Q3 and associated circuit act as M2 motor controller. - Q17 ~ Q22 and associated circuit act as M3 motor controller. TEST REPORT Report No. : AJ005023-001 Date : 2007 June 11 Page 4 of 11 FCC ID: PIYK7253-07A4R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industri…

Text truncated - open the document above for the full version.
