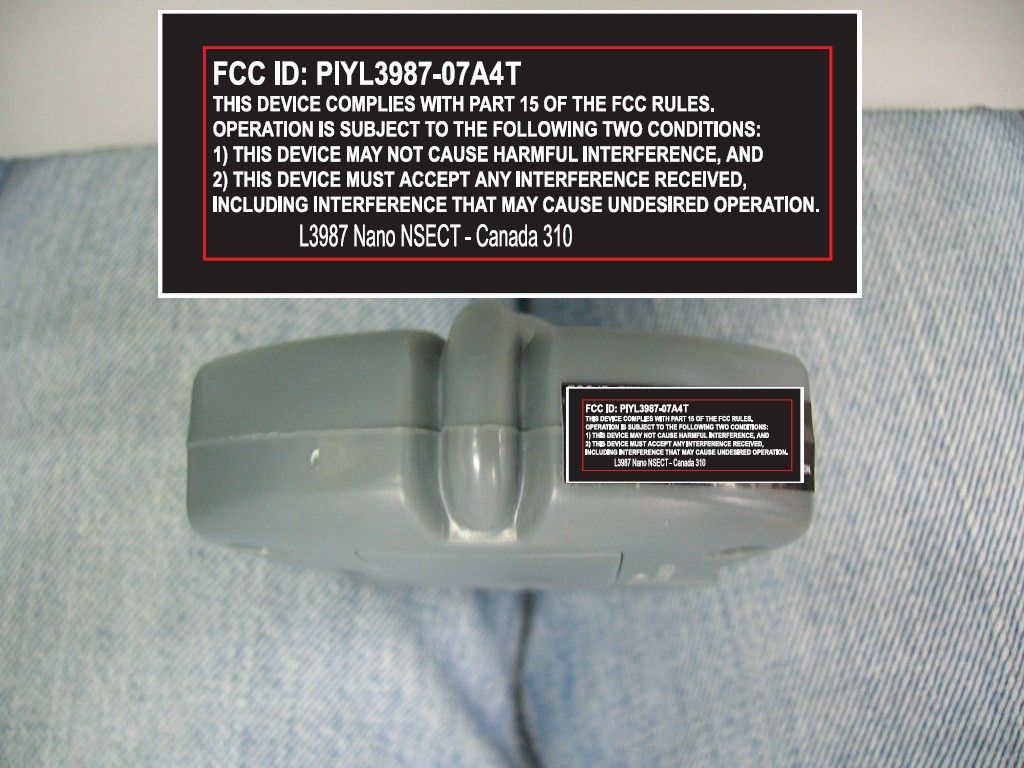

PIYL3987-07A4TNano N.S.E.C.T.
Mattel Asia Pacific Sourcing Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Oct 23, 2006
- Application Purpose
- Original Equipment
- Date of Application
- Oct 23, 2006
- Equipment Note
- Nano N.S.E.C.T.
- Frequency Range
- 49.86000000 - 49.86000000
- Country
- Hong Kong
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
I O TYCO R/C SUPPORT Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. 1 888 557-TYCO (8926) ® tycorc.com Keep these instructions for future reference. They contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. I. CONTENTS / FEATURES Vehicle Transmitter Vehicle ( I ) ON/ ( 0 ) OFF switch Battery door L.E.D. Eye Indicator Transmitter LReverse/Left/Right control RForward/Left/Right control @Antenna MBattery door II. BASIC OPERATION LLEFT UP/RIGHT UP: FORWARD RLEFT UP: TURN RIGHT @LEFT UP/RIGHT DOWN: SPIN RIGHT MRIGHT UP: TURN LEFT ORIGHT UP/LEFT DOWN: SPIN LEFT TLEFT DOWN/RIGHT DOWN: REVERSE If your vehicle doesn’t move when you use the transmitter there’s a good chance your vehicle’s batteries are ready to be changed. Asst. K7246 K7260/L3987-0920 Front View Back View @ L R M MOT LR@ LR@ MOT Creature TM TM IO TO SHOOT GUN 1. First you must insert the dart into the cannon by aligning the end of the dart with the grooves found in the cannon. 2. Gently press the dart until you feel it click in. 3. Now fire the missile by either moving the Nano N.S.E.C.T.™ creature in spin right or reverse. (see figure 3 and 6) or just pressing the RIGHT DOWN key. Only use projectile supplied with this toy. Do not fire at people or animals or at point blank range. Keep hands clear of the Nano N.S.E.C.T.™ legs. III. BATTERY INSTALLATION Requires 3 AAA batteries for vehicle and 2 AAA batteries for transmitter. Batteries not included. Vehicle 1. Use a screwdriver (not included) to unscrew the power clip cover screw, remove the battery cover. 2. Install 3 AAA batteries (not included), with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door. CAUTION:Battery pack may be hot after use. Allow to cool before touching. Transmitter 1. Use a screwdriver (not included) to unscrew the power clip cover screw, remove the battery cover. 2. Install 2 AAA batteries (not included), with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door. |IV.CONSUMER INFORMATION Note to adults: To ensure that the child’s play is both safe and fun, please review all the operating instructions and safety tips with your child. Safety Tips • You should NEVER, EVER play with Nano N.S.E.C.T.™ creatureon the street! • DO NOT pick up Nano N.S.E.C.T.™ creaturewhile in motion. Take your fingers off the transmitter buttons and then pick it up. CAUTION: Keep fingers, hair and loose clothing away from Nano N.S.E.C.T.™ while it’s on. • Adult supervision is recommended when Nano N.S.E.C.T.™ creatureis being used. • To avoid accidental or unwanted operation, remove all the batteries when not in use. Always turn Nano N.S.E.C.T.™ creatureOFF before removing the batteries. I O V. QUICK TIPS LWhen Nano N.S.E.C.T.™ starts to lose power you’ll start to lose performance. It's time for fresh batteries. RBe forewarned--The Nano N.S.E.C.T.™ creature’s running time may change depending on your driving style. @Radio interference can mess up the signals you’re sending, causing Nano N.S.E.C.T.™ creature to perform erratically. Things to look for that may be causing the interference: other R/C vehicles running on the same frequency, electrical wires, large buildings, CB radios, or other wireless gear that can cause interference. MPoint your transmitter antenna up -- not down toward Nano N.S.E.C.T.™ creature. If Nano N.S.E.C.T.™ creature escapes your antenna’s grasp, you can kiss proper functioning goodbye. ODon’t drive Nano N.S.E.C.T.™ creature through water or snow. Not only won’t you get very far, you might ruin the creature. If Nano N.S.E.C.T.™ creature does get wet, wipe it with a towel and allow it to dry completely. TDon’t store Nano N.S.E.C.T.™ creature near heat or in direct sunlight. Always turn the switches OFF and, if you’re not planning on any search and destroy maneuvers for awhile, remove all the batteries...really. It’s amazing how one bad battery can destroy a super-secret experimental creature technology (that would be Nano N.S.E.C.T.™ creature). VI. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short- circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. Battery Performance Note: For best performance use regular or high- performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. 2 1 4 6 5 3 Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solve…
Text truncated - open the document above for the full version.
Operational Description

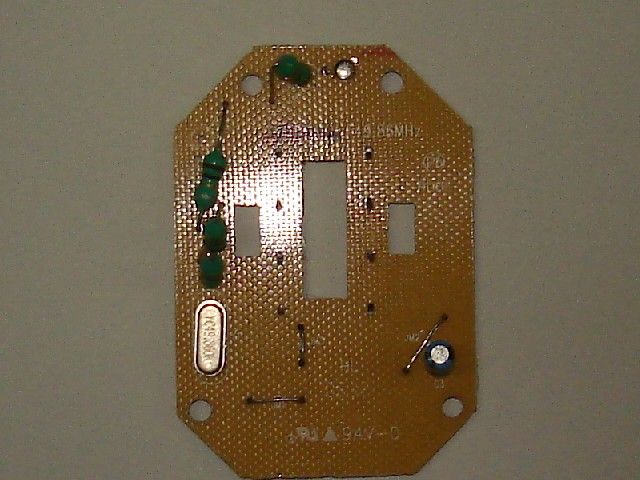

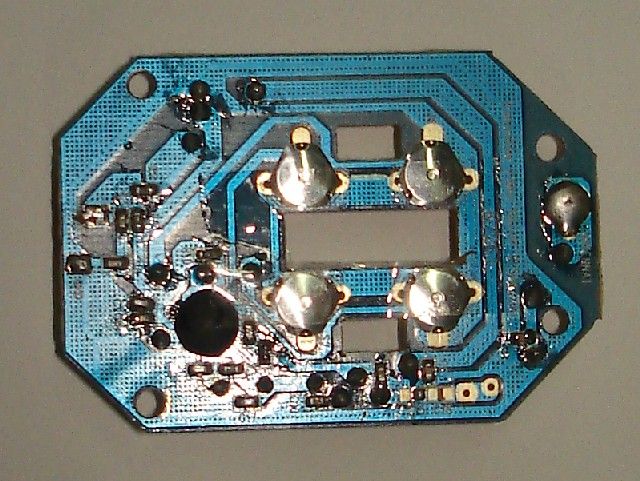

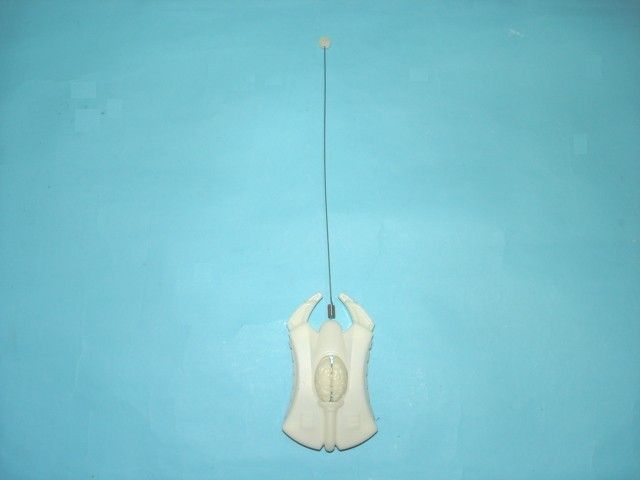

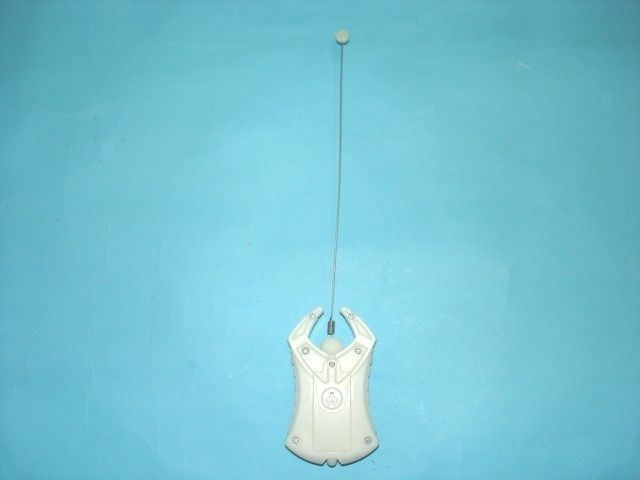

Function Description of Transmitter (TX) The TX (transmitter) sends radio frequency signal (49.68MHz) to control the movements of Mini Creature. The power supply of TX is 3V by 2pcs AA batteries. It consists of a control IC, sunplus ñ SPRC205A, it is a RC encoder which encodes five lines of binary information into a serial bit-stream data. When any of the 5-line information is activated (eg. Go forward, turn right buttons), built-in crystal oscillator and power amplifier will be enable to deliver the encoded bit-stream data. In the circuit, the resistor R10 turns 128kHz clock frequency to IC input - ROSC. The 49.860MHz crystal gives the oscillated frequency to the IC input ñ OSC0 and OSC1. The IC will encode the signals and detect which button had been pressed. The signal will be output by IC pin ñ RFO. This output signal will be sent through C15, L4, C18, L5, C8, L3 and antenna for control the movement of receiver.
Schematics
mycro rebound transmitter V0.7.sch-1 - Thu Sep 14 16:01:41 2006
Test Report

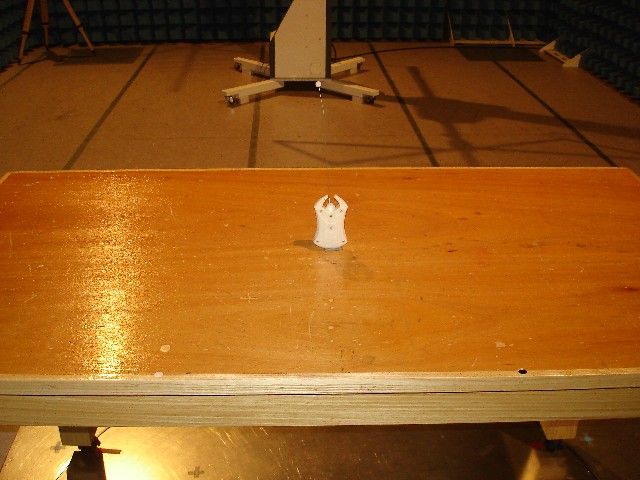

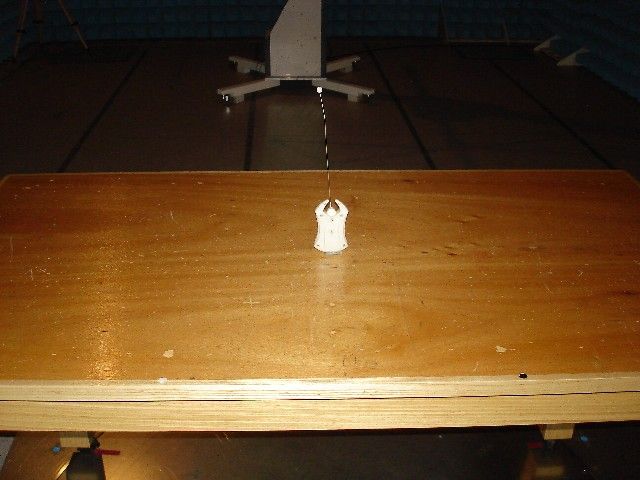

TEST REPORT Report No. : AG024217-001 Date : 2006 October 19 Page 1 of 11 FCC ID: PIYL3987-07A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG219628(6) Client : Mattel Asia Pacific Sourcing Limited 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be Nano N.S.E.C.T of Model No. L3987 Radio Frequency : 49.860 MHz Transmitter Rating : 2 x 1.5V AAA size batteries No. of submitted sample : Two (2) piece(s) *** Date Received : 2006 September 02 Test Period : 2006 September 02 – 2006 September 15 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG024217-001 Date : 2006 October 19 Page 2 of 11 FCC ID: PIYL3987-07A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AG024217-001 Date : 2006 October 19 Page 3 of 11 FCC ID: PIYL3987-07A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Nano N.S.E.C.T. It operates at 49.860MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5V AAA size batteries. There are two control sticks in the EUT. When the right- forward, right-backward, left-forward and left- backward stick is pressed once, it will transmit different radio control signal to receiver. The brief circuit description is listed as follows: - U1 and associated circuit act as encoder. - Y1 and associated circuit act as oscillator. TEST REPORT Report No. : AG024217-001 Date : 2006 October 19 Page 4 of 11 FCC ID: PIYL3987-07A4T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of …
Text truncated - open the document above for the full version.
Test Report
Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1
Test Report
Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle 3
