PIYL6963-07A2Toy Walkie Talkie

Ove r 35 rescue missions and phrases! Baby Jaguar is lost! ¡Al rescate! To the rescue! The macaw is lost in the rainforest. Go, Animal Rescuer, go! Dieline PMS 021 GRAPHIC DESIGNER: Michael Chan PI ENGINEER: Jonal Liu PROJECT ENGINEER: Daniel Tam CS VENDOR: IasIasIasIasikikikik ITEM NO.: L6963-DE1E LANG.: EL PART CODE: L6963-0910 SOFTWARE: Illustrator CS2 COLOR PROFILE/LPI: Gracol / 150 lpi CS DATE: 4 / 26 / 07 NOTES TO PRINTER: Proofs accurate for process color only. All spot colors must follow PMS Color Formula Guide or color swatch specified. PROOF APPROVAL SIGN OFF (GRAPHIC): DATE: Turn the dial to select an animal to rescue and then push the top button to hear Diego. Press the bottom button to communicate with the other walkie-talkie. Walkie-TalkieWalkie-Talkie Adventure SetAdventure Set Walkie-TalkieWalkie-Talkie Adventure SetAdventure Set Walkie-Talkie Adventure Set 3+ 2 Modes: •Talk to Diego! •Talk to your friend! Walkie-TalkieWalkie-Talkie Adventure SetAdventure Set Walkie-TalkieWalkie-Talkie Adventure SetAdventure Set Walkie-Talkie Adventure Set 2 Modes: •Ta lk to Die go! •Ta lk to you r fri end! Over 35 rescue missions and phrases! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Mattel Inc. 333 Continental Blvd. El Segundo, CA (310) 252-2400 NOTE: Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China. Mattel Canada Inc.,Mississauga, Ontario L5R 3W2. Colors and Decorations May Vary. Requires 2 “9V” (6LR61) alkaline batteries, not included. ID.L6963-0910 27 MHz ©2007 Viacom International Inc. All Rights Reserved. Nickelodeon, Nick Jr., Go, Diego, Go! and all related titles, logos and characters are trademarks of Viacom International Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. MADE IN CHINA. Manufactured for Fisher-Price. ©2007 Mattel, Inc. All Rights Reserved. Fisher-Price and the Fisher-Price logo are U.S. trademarks of Mattel, Inc. CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963. Packaging and address should be retained for future reference. Mattel Canada Inc., Mississauga, Ontario L5R 3W2. Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Mattel Australia Pty., Ltd., Richmond, Victoria 3121- Consumer Advisory Service 1300 135 312 (Valid only in Australia). Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P) Lot 13.5, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Mattel, Inc., 333 Continental Blvd., El Segundo, CA 90245 U.S.A. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy (product). To avoid battery leakage; BATTERY INSTALLATION: Please keep these instructions for future reference as they contain important information. Unscrew and lift cover away from back of product. Install batteries as shown. • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. For longer life use only alkaline batteries. Requires 2 "9V" (6LR61) batteries. PROOF OF PURCHASE L6963 Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities (Europe only). ID.L6963-0910 7F0426-3(L6963-0910) Not suitable for children under 36 months - Small parts may be generated. Play to Learn with Nickelodeon’s younger sibling – Nick Jr.! Nick Jr. shows are especially for younger children because they help kids learn through play. Our Play to Learn philosophy has revolutionized the way that kids watch TV, encouraging them to think, explore, problem solve, master cognitive skills, and develop self-esteem — all while playing along with the characters they love. The care, commitment, and quality that we put into all Nick Jr. programming also goes into our products. So when your kids pl…

Text truncated - open the document above for the full version.

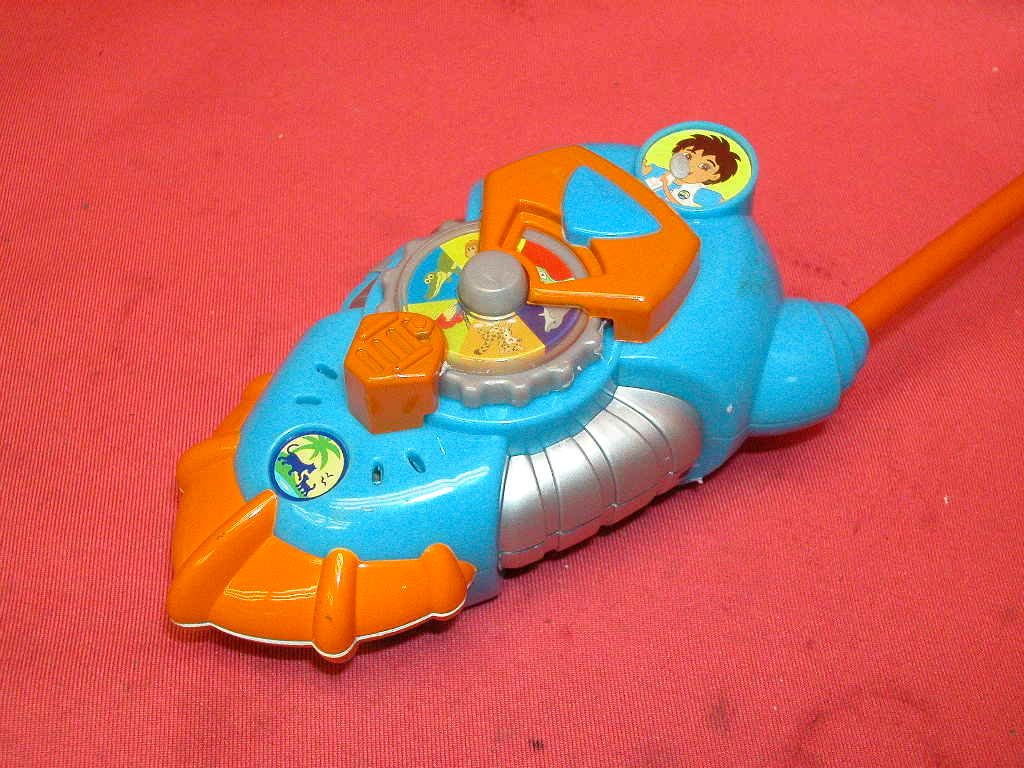

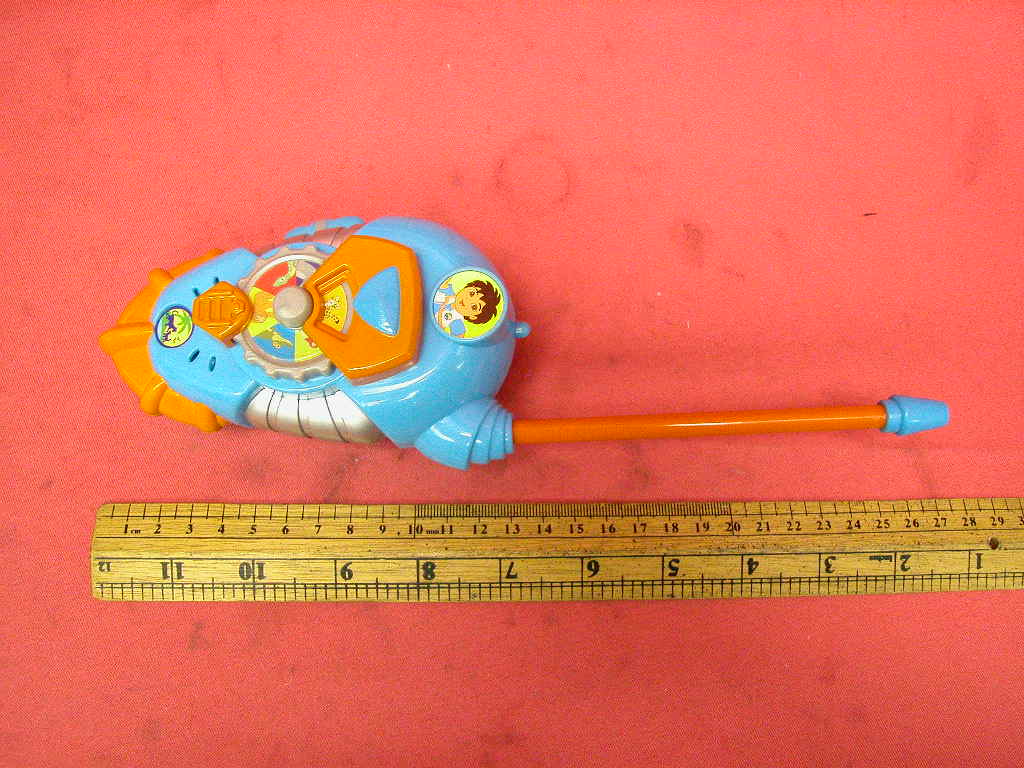

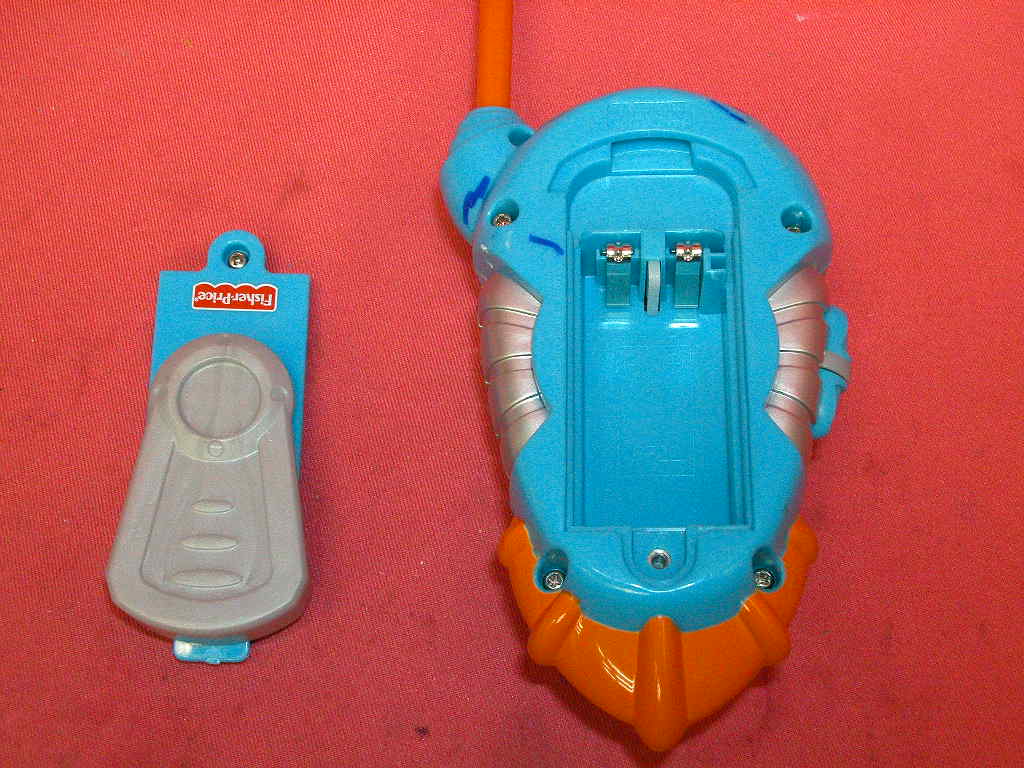

FCC ID: PIYL6963-07A2 Ophoto1 Ophoto2 FCC ID: PIYL6963-07A2 Ophoto3 Ophoto4

Size:16mm x6mm label location

FCC ID: PIYL6963-07A2 Iphoto1 Iphoto2 FCC ID: PIYL6963-07A2 Iphoto3 Iphoto4 FCC ID: PIYL6963-07A2 Iphoto5 Iphoto6 FCC ID: PIYL6963-07A2 Iphoto7 Iphoto8 FCC ID: PIYL6963-07A2 Iphoto9 Iphoto10

FCC ID: PIYL6963-07A2 Technical Description : The brief circuit description is listed as follows : - Q4, T1 and associated circuit act as 27.145 MHz Super- regenerative Receiver/Modulator. - X1, Q3 and associated circuit act as 27.145 MHz Oscillator. - Q3 and associated circuit act as Receiver Demodulator. - U1 eST120 acts as Sound Synthesizer. - SW3 to SW5 act as Control Keys (animal switch). - D1 and associated circuit act as Voltage Regulator. - Q1, Q2, B1 and associated circuit act as Audio Amplifier. - SW1 and SW2 act as push-to-talk and function buttons. Antenna Used : An integral antenna (non-extendable) has been used.

SW5 SW5: Animal ID switch 1 SW3 SW3: Animal ID switch 2 SW4 SW4: Animal ID switch 3 R17 100k Vdd SP 40 mm mylar D1 5.1V C20 100 nF P1.0 P1.1 P1.2 P1.3 P2.0 P2.1 P2.2 P2.3 VDD VDD VSS VSS RESET TEST OSCO OSCI VO1 VO P3.0 P3.1 P3.2 P3.3 U1 eST120 R14 DNL TP3 C19 22 nF R19 51* C18 2.2 uF R18 3.9K R12 820 SW2A Vdd TP1 TP2 C2 100 uF R3 10K C11 1 uF R13 10K R7 750 L2 10 uH SW1D PTT button R T X1 27.145 MHz C17 47 pF 2 nF C10 39 pF C9 56 pF Q3 9018G C7 100 pF R6 56 R5 10k R4 ANT 5.6 uH C13 200 pF R9 1M SW1A PTT button Q4 9018H/G T R C14 100 nF R10 100 SW1C PTT C8 10 nF RT TP4 R11 220R* B1 T1 SW1B PTT button T R Q1 9013 C3 1 nF C4 20 nF R2 Q2 9014 C5 100 nF C12 R21 330 R8 470k C1 100 uF R1 100 R20 SW2CSW2B Transmitting child's voice Transmitting child's voice Transmitting Diego speech Transmitting Diego speech button ANIMALSW5SW3SW4 Monkey Caiman Macaw Dolphin Snake Jaguar 010 010 0 0 1 0 1 0 1 0 11 11 Creation Date Modif. Date Fisher-Price Friends # L6963 Diego Animal Rescue Walkie Talkies 12/07/2006 BAT DC9V K1 Power On / Off C21 0.22 uF C22 0.22 uF R22 200 Vbatt R16 1 R 6.8K 15R 1 nF 10K L1 L3 1 uH C6 100pF C15 * DNL=Dont’ Load EI-14 13/300mH 2T/7T 0.60uH 27.145MHz Rev D 2007-05 102/685T

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : PIYL6963-07A2 Mattel Asia Pacific Sourcing Limited (MAPS) Application For Certification (FCC ID: PIYL6963-07A2) Transmitter Sample Description : Diego Walkie Talkies Model : L6963 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2007] 0709279 AC/at September 3, 2007 INTERTEK TESTING SERVICES FCC ID: PIYL6963-07A2 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PIYL6963-07A2 ii MEASUREMENT/TECHNICAL REPORT Mattel Asia Pacific Sourcing Limited (MAPS) - MODEL: L6963 FCC ID: PIYL6963-07A2 September 3, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2007 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: PIYL6963-07A2 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty.................................................................................... 6 2.6 Support Equipment List and Descripition ............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications ....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information ................................................................................... 23 8.1 Measured Bandwidth ......................................................................................... 24 8.2 Emission Test Procedures ................................................................................ 25 INTERTEK TESTING SERVICES FCC ID: PIYL6963-07A2 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: PIYL6963-07A2 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PIYL6963-07A2 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a toy walkie talkie operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. The EUT has an on/off switch, a push-to-talk button, a function button and an animal switch. The user can send voice signal to other walkie talkie, when the user presses and holds the push-to-talk button and…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
