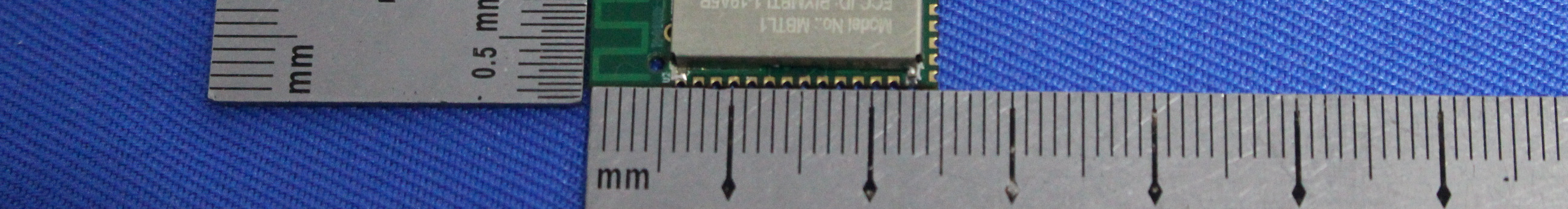

PIYMBTL1-19A5RBLE module

www.sziton.com MBTL1_V1.3 MBTL1 Bluetooth Low Energy Module DISCLAIMER AND COPYRIGHT NOTICE Information in this document, including URL references, is subject to change without notice. This document is provided “As if” with no whatsoever, including any warranty of merchantability, noninfringement, fitness for any purpose, or any warranty otherwise arising out of any proposal, specification or samples. All liability, including liability for infringement of any proprietary rights, relating to use of information in this documen t is disclaimed. No licenses express or implied, by estoppel or otherwise, to any intellectual property rights are granted herein. The Bluetooth logo and symbol belong to the Bluetooth SIG Inc. All trade names, trademarks and registered trademarks mentioned in this document are property of their respective owners, and are hereby acknowledged. Copyright by ITON Technology Corp. All rights reserved. MBTL1_V1.3 www.sziton.com ITON Technology Corp. Page 2 of 17 Contents Revision History ............................................................................................................................................................. 3 1 .Overview .................................................................................................................................................................... 3 1.1 Key features .................................................................................................................................................3 1.2 Typical applications ........................................................................................................................................4 1.3 Block diagram .................................................................................................................................................5 2 Pin Configuration and Functions ................................................................................................................................. 6 2.1 Pin Layout .......................................................................................................................................................6 3 Electrical Specifications ............................................................................................................................................... 9 3.1 Absolute maximum ratings .............................................................................................................................9 3.2 Recommended operating condition ............................................................................................................ 10 3.3 DC characteristics ......................................................................................................................................... 10 3.4 AC characteristics ......................................................................................................................................... 10 4 Application Diagram .................................................................................................................................................. 12 5 Mechanical and Package .......................................................................................................................................... 13 5.1 Recommended PCB Footprint ...................................................................................................................... 13 5.2 Packaging Information ................................................................................................................................. 14 6 Thermal Reflow ......................................................................................................................................................... 14 7 FCC & IC Statement ................................................................................................................................................... 15 MBTL1_V1.3 www.sziton.com ITON Technology Corp. Page 3 of 17 Revision History Date Version No. Description Author 2019.10.31 V1.0 Initial version WangLei 2019.11.18 V1.1 Mainly updated the sections below 1) change Operating Temperature 2) update the RX Sensitivity 3) update the power dissipation in Section 3.3 4) update the mechanical size WangLei 2019.12.20 V1.2 1)update the module Number: MBTEL1 2)change support Bluetooth support 4.2 and keep BLE wireless technology standards 3)add FCC & IC streatment WangLei 2020.01.06 V1.3 Update the TX output power up to +5.5dBm. 1 .Overview The MBTEL1 module is designed with Telink BLE SoC TLSR8258 with internal Flash and audio support, the radio frequency(RF), digital processing, protocols stack software and profiles. MBTEL1 support BLE specification up to Bluetooth 4.2, allows easy connectivity with Bluetooth Smart Ready mobile phones, tablets, laptops, which supports BLE slave and master mode operation, including broadcast, encryption, connection updates, and channel map updates. 1.1 Key features General features 1) Embedded 32-bit proprietary microcontroller , max. running speed up to 48MHz 2) Program memory: internal 512kB (TLSR8258F512) Data memory: 64kB on-chip SRAM 3) RTC and other timers: • Clock source of 24MHz&32.768kHz Crystal and 32kHz/24MHz embedded RC oscillator • Three general 32-bit timers with four selectable modes in active mode • Watchdog timer • A low-frequency 32kHz timer available in low power mode 4) A rich set of I/Os: • Up to 32/17 GPIOs depending on package option. All digital IOs can be used as GPIOS. • DMIC (Digital Mic). • AMIC (Analog Mic). • I2S. MBTL1_V1.3 www.sziton.com ITON Technology Corp. Page 4 of 17 • Stereo Audio output. • SPI. • I2C. • UART with hardware flow control and 7816 protocol support. • USB. • Swire debug Interface. 5) Up to 6 channels of differential PWM: • PWM1~PWM5: 5-channel normal PWM output. • PWM0: 1 channel with IR/IR FIFO/IR DMA FIFO mode for IR generation. 6) Sensor: • 14bit 10-cha…
