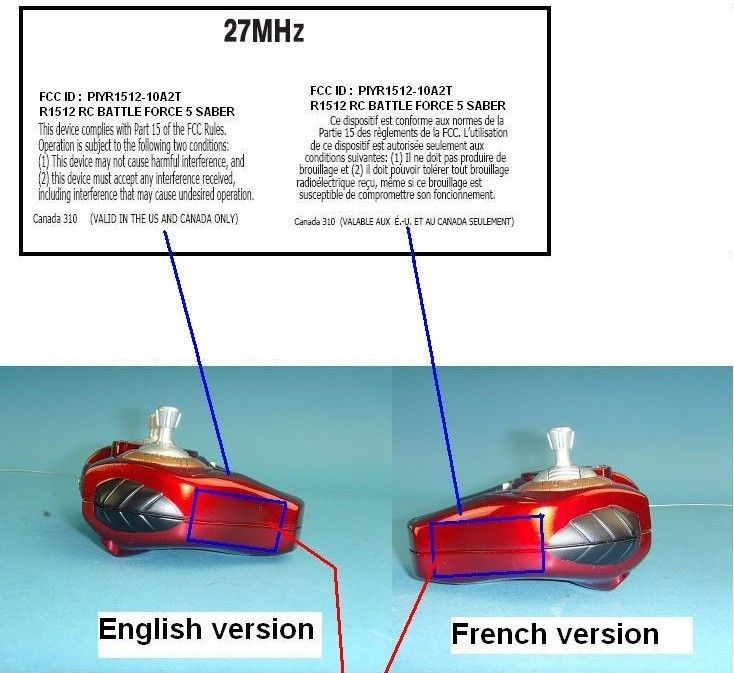

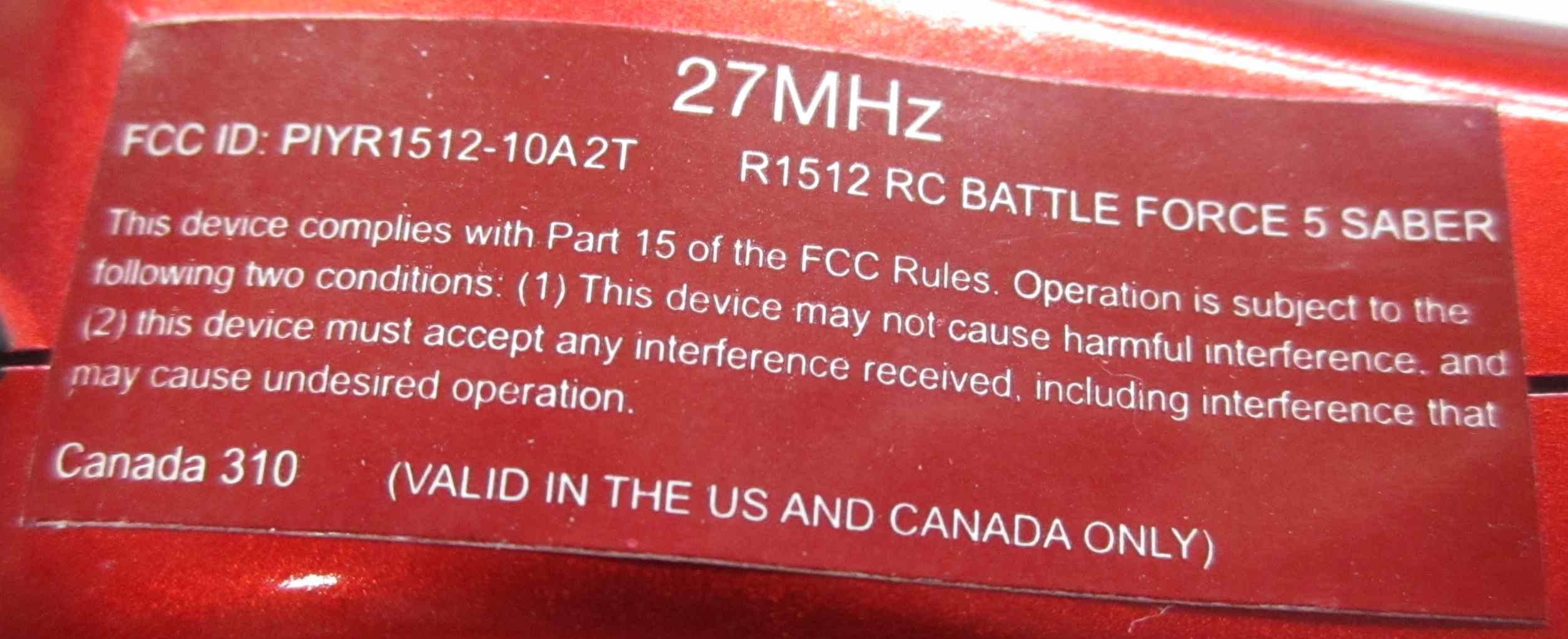

PIYR1512-10A2TRC BATTLE FORCE 5 SABER

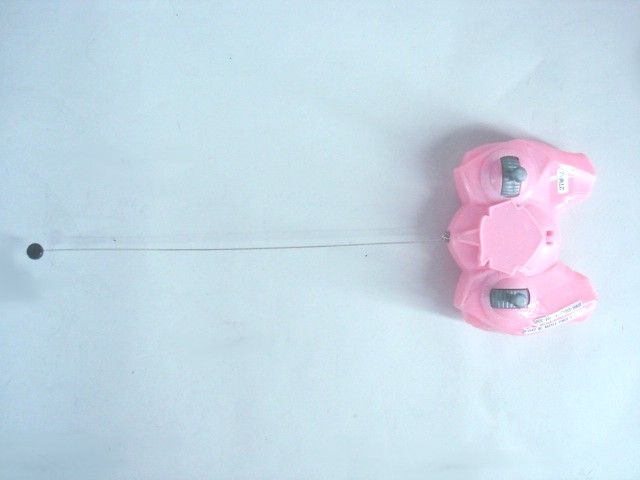

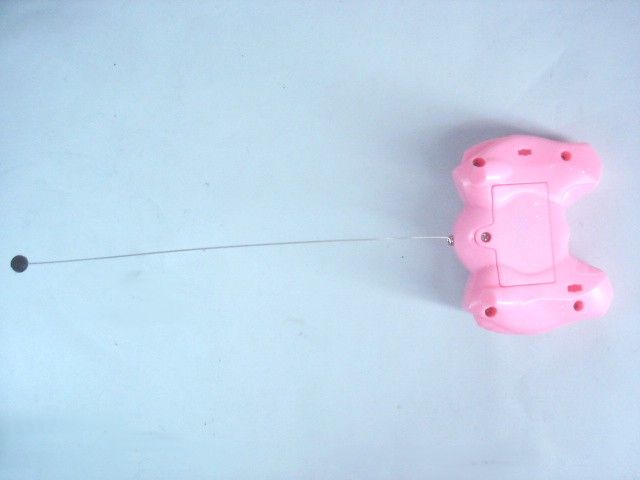

OI I. CONTENTS / FEATURES Vehicle Transmitter Vehicle ON(I)/OFF(O) switch Steering adjuster R1512-0920 Transmitter Forward / Reverse 2 Left / Right 3Switch Battery door Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. 6+ 1 1 1 1 2 2 3 4 2 3 CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. A B 2 O I 4 III. BATTERY INSTALLATION Requires 4 AA Alkaline batteries for the vehicle and 2 AAA Alkaline batteries for the transmitter. Batteries not included. Vehicle 1. Use a screwdriver (not included) to unscrew the power clip cover screw, remove the battery cover. 2. Install 4 AA Alkaline batteries (not included), with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door and tighten screw. Transmitter 1. Remove the battery cover as shown. 2. Install 2 AAA Alkaline batteries (not included), with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery cover. Once the batteries are installed the transmitter will always be “ON” and will work automatically the moment you use it. 1.Forward II. VEHICLE OPERATION Reverse 3.LEFT RIGHT Right 1 3 2 Reveal the hidden weapons If the bumper hits an obstacle while driving on Side A, the panels will open to reveal the hidden secret weapons! Side A 4 x AA 2 x AAA 2.Left SIDE A IV. QUICK TIPS 1. When your vehicle starts to lose power, it may lose functionality or performance. It’s time for fresh batteries. 2. Your vehicle’s running time may vary depending on your driving style. 3. Radio interference can affect your vehicle’s performance. Interference can be caused by other R/C vehicles running on the same frequency, electrical wires, large buildings, CB radios or other wireless gear. Try to stay away from these! 4. Point your transmitter up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. 5. Don’t drive your vehicle through water or snow. If your vehicle does get wet, wipe it with a towel and allow it to dry completely. 6. Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. V. CONSUMER INFORMATION Note to adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up vehicle while in motion. CAUTION: To prevent entanglement, keep hair away from wheels. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Always turn the vehicle OFF before removing batteries. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short- circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. WARNING: Inserting or changing batteries are actions that must be done to Note to Adults: – using the appropriate tool to open and close battery compartment. Battery Performance Note: For best performance use regular or high- performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. Protect the environment by not disposing of this product with household waste [2002/96/EC]. Check your local authority for recycling advice and facilities. 1 2 3 4 6 5 © 2010 Mattel, Inc. 636 Girard Avenue, East Aurora, NY 14052, U.S.A. Consumer Relations 1-800-524-8697. • Mattel Canada Inc., Mississauga, Ontario L5R 3W2. You may call us free at 1-800-524-8697. • Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628 500303. • Mattel Australia Pty., Ltd., Richmond, Victoria. 3121.Consumer Advisory Service - 1300 135 312 Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. • Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel:03-78803817, Fax:03-78803867. service.mattel.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica…

Text truncated - open the document above for the full version.

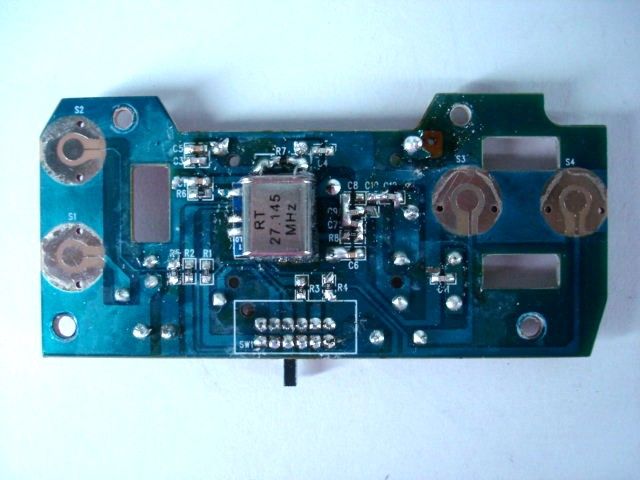

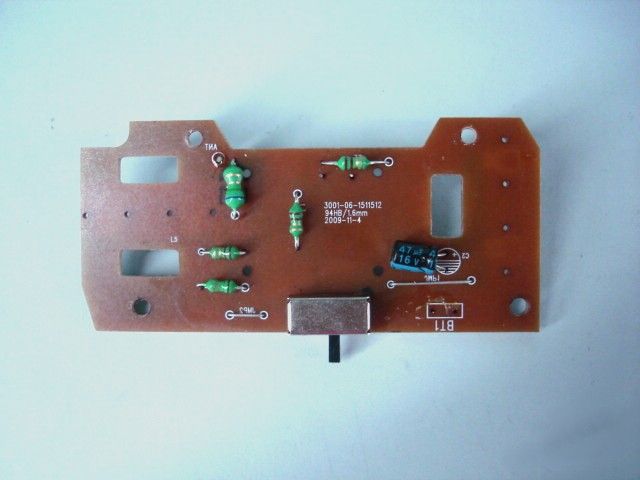

TX (27MHz) TX is supplied by a 3V battery to the IC GPRC205A. there are four function keys S1, S2, S3 & S4 to control the RC car (left, right, backward & f orward). The modulating signal from RF0 of GPRC205A will be modulated by carrier frequency 27. 145MHz. The modulated signal will be amplified and matching network to antenna. The matc hing network consists of L1, C12 & L5. C11,L4. This is one more Slide switch SW1. Once switch “ON” for this switch, there is reverse in LEFT-RIGHT and FORWARD-BACKWARD control signal t o the IC. (S1 and S2 function key will be reversed. S3 and S4 function key will b e reversed) RX (27MHz) RX is supplied by AA x 4 batteries and regulate 3V3 to the IC GPRC206A. The modulated signal is received by the antenna and demodulated. The demodulated signal will be GPRC206A for decoding. The outputs will control two motors d riving left & right and forward & backward respectively.

R1512 TX.sch-1 - Sat Jan 23 08:43:24 2010

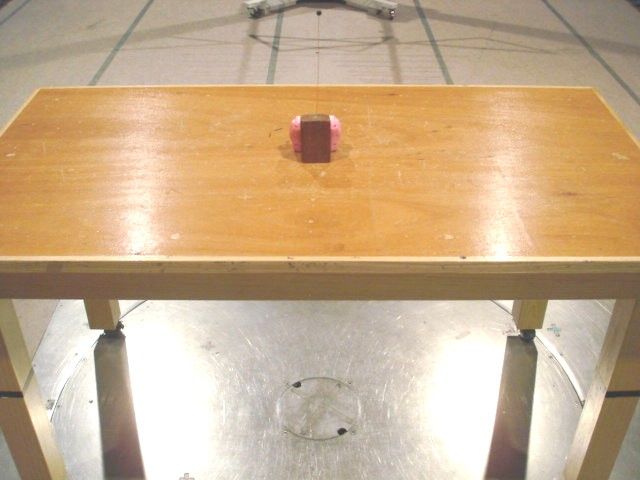

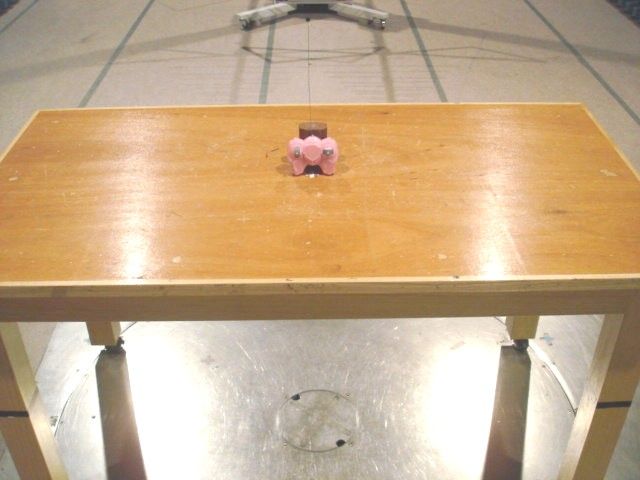

TEST REPORT Report No. : AM010303-001 Date : 2010-03-23 Page 1 of 11 FCC ID: PIYR1512-10A2T This document is issued subject to CMA Testing standard TEARMS AND CONDITIONS, and shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LM215190(7) Applicant : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be RC Battle Force 5 Saber of Model No. R1512 Radio Frequency : 27.145MHz Transmitter Rating : 2 x 1.5V AAA size batteries No. of submitted sample : Two (2) piece(s) Date Received : 2010-02-25. Test Period : 2010-03-02 to 2010-03-05 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-08 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Mr. Wong Lap-pong, Andrew Assistant Manager Electrical Division TEST REPORT Report No. : AM010303-001 Date : 2010-03-23 Page 2 of 11 FCC ID: PIYR1512-10A2T This document is issued subject to CMA Testing standard TEARMS AND CONDITIONS, and shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site................................................................................................................ 4 1.3 List of measuring equipment ....................................................................................................... 5 1.4 Measurement Uncertainty............................................................................................................ 5 2 Description of the radiated emission test............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test .............................................................................................. 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data .................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT ........................................ 9 5 Supplementary document .................................................................................................................. 10 5.1 Bandwidth.................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time...................................................................................................................... 10 6 Appendices ........................................................................................................................................ 11 TEST REPORT Report No. : AM010303-001 Date : 2010-03-23 Page 3 of 11 FCC ID: PIYR1512-10A2T This document is issued subject to CMA Testing standard TEARMS AND CONDITIONS, and shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC Battle Force 5 Saber. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 2x 1.5V AAA size batterires. There are two control sticks and one switch on the EUT. The switch is used to reverse the Left, Right, Forward and Backward control function. When the control sticks are pressed, it will transmit different radio control signal to receiver. The antenna is permanently attached in EUT and the radio output power is unable to adjust. The brief circuit description is listed as follows: - Y1 and associated circuit act…

Text truncated - open the document above for the full version.

Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Bandwidth Plot Bandwidth 1

Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Duty Cycle Duty Cycle 1 Duty Cycle 2 Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Duty Cycle Duty Cycle 3 Duty Cycle 4
