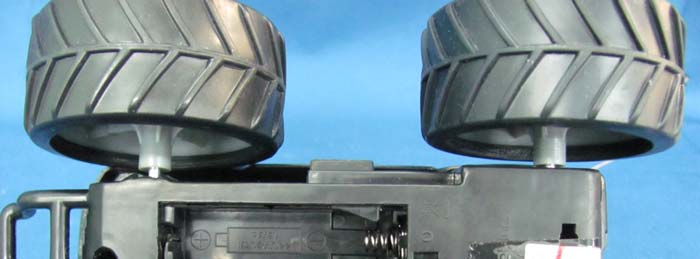

INTERTEK TESTING SERVICE Report No.: HK10040938-1 FCC ID: PIYT4832-10A4R Equipment Photographs Model : T4832 (External) INTERTEK TESTING SERVICE Report No.: HK10040938-1 FCC ID: PIYT4832-10A4R Equipment Photographs Model : T4832 (External)

Label Size: 40mm X 9mm

INTERTEK TESTING SERVICE Report No.: HK10040938-1 FCC ID: PIYT4832-10A4R Equipment Photographs Model : T4832 (Internal) INTERTEK TESTING SERVICE Report No.: HK10040938-1 FCC ID: PIYT4832-10A4R Equipment Photographs Model : T4832 (Internal)

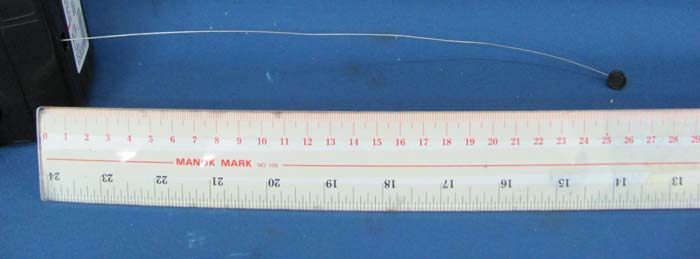

FCC ID: PIYT4832-10A4R Technical Description : The brief circuit description is listed as follows : - Q1, L1, T1 and associated circuit act as 49.860 MHz Super- regenerative Receiver - Q2, R4 and associated circuit act as Amplifier - C10, Q3, D1 and associated circuit act as Decoder - Q6-Q11 and associated circuit act as Motor Driver Antenna Used : An integral antenna (non-extendable) has been used.
