PIYT4832-10A4TRC Car

I. CONTENTS / FEATURES Vehicle Transmitter Vehicle ON(I)/OFF(O) switch Battery door T4831 / T4832-0920 ASST. T4511 Transmitter 1 Steering wheel control: forward / backward to left Battery door Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. 3+ 1 1 2 2 2 CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. ® II. VEHICLE OPERATION I O 1 2 1 III. BATTERY INSTALLATION Requires 2 AA Alkaline batteries for the vehicle and 2 AA Alkaline batteries for the transmitter. Batteries not included. Vehicle 1. Use a screwdriver (not included) to unscrew the power clip cover screw, remove the battery cover. 2. Install 2 AA Alkaline batteries (not included), with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery door. Transmitter 1. Remove the battery cover as shown. 2. Install 2 AA Alkaline batteries (not included), with polarity (+/-) as shown inside the battery compartment. 3. Replace the battery cover. Once the batteries are installed the transmitter will always be “ON” and will work automatically the moment you use it. IV. QUICK TIPS 1. When your vehicle starts to lose power, it may lose functionality or performance. It’s time for fresh batteries. 2. Your vehicle’s running time may vary depending on your driving style. 3. Radio interference can affect your vehicle’s performance. Interference can be caused by other R/C vehicles running on the same frequency, electrical wires, large buildings, CB radios or other wireless gear. Try to stay away from these! 4. Point your transmitter up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. 5. Don’t drive your vehicle through water or snow. If your vehicle does get wet, wipe it with a towel and allow it to dry completely. 6. Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. 1 2 3 4 6 5 V. CONSUMER INFORMATION Note to adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up vehicle while in motion. CAUTION: To prevent entanglement, keep hair away from wheels. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Always turn the vehicle OFF before removing batteries. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short- circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. WARNING: Inserting or changing batteries are actions that must be done to Note to Adults: – using the appropriate tool to open and close battery compartment. Battery Performance Note: For best performance use regular or high- performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. Protect the environment by not disposing of this product with household waste [2002/96/EC]. Check your local authority for recycling advice and facilities. © 2010 Mattel, Inc., 636 Girard Avenue, East Aurora, NY 14052, U.S.A. Consumer Relations 1-800-524-8697. • Mattel Canada Inc., Mississauga, Ontario L5R 3W2. You may call us free at 1-800-524-8697. • Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628 500303. • Mattel Australia Pty., Ltd., Richmond, Victoria. 3121.Consumer Advisory Service - 1300 135 312 Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. • Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel:03-78803817, Fax:03-78803867. service.mattel.com TM & © 2010 WWE, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning th…

Text truncated - open the document above for the full version.




1 Re: revised exhibits to FCC as application below Applicant: Mattel Asia Pacific Sourcing Ltd. FCC ID: PIYT4831-10A2T and PIYT4832-10A4T To whom it may concern, This request for supersede of attachments - report.pdf due to typo errors found. If you have questions or need further information, please contact the undersigned. Sincerely, ________________________ Alfred Lo Technical Manager Commercial & Electrical Tel : 852-2173 8527 Fax : 852-23710914 Email: [email protected] www.hk.intertek-etlsemko.com

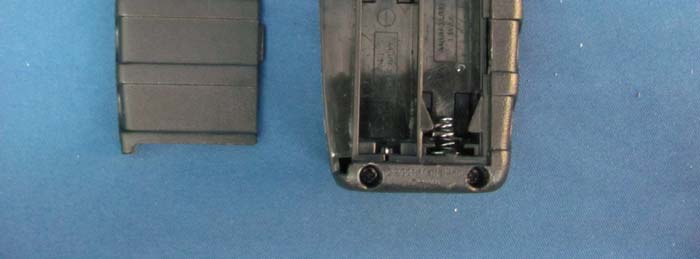

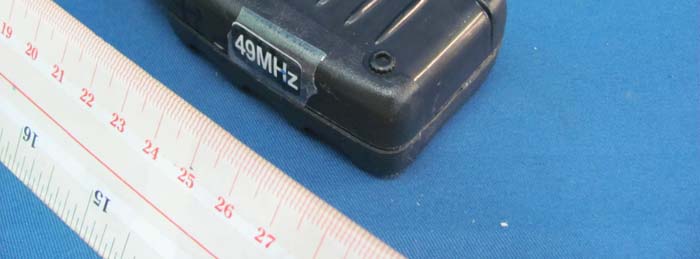

INTERTEK TESTING SERVICE Report No.: HK10040937-1 FCC ID: PIYT4832-10A4T Equipment Photographs Model : T4832 (External) INTERTEK TESTING SERVICE Report No.: HK10040937-1 FCC ID: PIYT4832-10A4T Equipment Photographs Model : T4832 (External)

Label Size: 40mm X 22mm FCC ID: PIYT4832-10A4T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

INTERTEK TESTING SERVICE Report No.: HK10040937-1 FCC ID: PIYT4832-10A4T Equipment Photographs Model : T4832 (Internal) INTERTEK TESTING SERVICE Report No.: HK10040937-1 FCC ID: PIYT4832-10A4T Equipment Photographs Model : T4832 (Internal)

FCC ID: PIYT4832-10A4T Technical Description : The brief circuit description is listed as follows : - Q3, Q4, C9, C10, R5, R6, R8, R9 and associated circuit act as Encoder - Y1, Q2, L2, C8, R2, R4 and associated circuit act as 49.860MHz Oscillator - Q1 and associated circuit act as RF Modulator and Amplifier - S1 and associated circuit act as Control stick Antenna Used : An integral antenna (non-extendable) has been used.





INTERTEK TESTING SERVICES Report No.:HK10040937-1 Sample No.:1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement INTERTEK TESTING SERVICES Report No.:HK10040937-1 Sample No.:1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement

INTERTEK TESTING SERVICES Report No.:HK10040937-1 Sample No.:1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10040937-1 Mattel Asia Pacific Sourcing Ltd. Application For Certification (Original Grant) (FCC ID: PIYT4832-10A4T) Transmitter Prepared and Checked by: Approved by: Signed On File Leung Siu Lung, Michael Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: May 04, 2010 INTERTEK TESTING SERVICES Report No.: HK10040937-1 FCC ID: PIYT4832-10A4T i GENERAL INFORMATION Mattel Asia Pacific Sourcing Ltd. MODEL: T4832 FCC ID: PIYT4832-10A4T Grantee: Mattel Asia Pacific Sourcing Ltd. Grantee Address: 1301 South Tower, World Finance Centre, Harbour City, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Benjalin Lin Tel: (86 755) 28863811-3879 Fax: (86 755) 28863842 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: T4832 Type of EUT: Transmitter Description of EUT: World Wrestling Entertainment® Raw Riders JOHN CENA TM Serial Number: N/A FCC ID: PIYT4832-10A4T Date of Sample Submitted: April 20, 2010 Date of Test: April 23, 2010 Report No.: HK10040937-1 Report Date: May 04, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10040937-1 FCC ID: PIYT4832-10A4T ii SUMMARY OF TEST RESULT Mattel Asia Pacific Sourcing Ltd. MODEL: T4832 FCC ID: PIYT4832-10A4T TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10040937-1 FCC ID: PIYT4832-10A4T iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results .............................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK10040937-1 FCC ID: PIYT4832-10A4T Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : T4832 HK10040937-1 INTERTEK TESTING SERVICE Report No: HK10040937-1 FCC ID: PIYT4832-10A4T Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : T4832 HK10040937-1
