COVER 1. INSTRUCTION MANUAL Keep these instructions for future reference as they contain important information. Play tennis indoors, outdoors, day or night without the ball! HOW TO REPLACE BATTERIES Sonic Slam™ requires 6 AAA batteries, 3 for each racquet (not included). Use only Alkaline Batteries. Toy may not function with other types of batteries. 1. Unscrew battery compartment cover with Phillips screwdriver (not included) and lift open. 2. Install 3 AAA size Alkaline Batteries in compartment as shown. 3. Replace cover by slipping tabs into place, pressing cover down and screwing shut. 4. If game malfunctions, check the battery installation. 5. Batteries should be changed when the sound distorts and the lights dim or no longer work. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fl uids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fi re. The batteries inside may explode or leak. CONTENTS Ages 6 + T7003-0920 AAA x 6 Not Included 2 racquets 1 Instructions Sheet Please remove all components from the container and compare them to the contents list. If any items are missing, please call 1.800.803.9611. Outside the U.S., please consult the listing of your local Mattel offi ces at the end of these instructions. TM CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963. © 2010 Mattel, Inc. All Rights Reserved. RADICA USA Ltd. www.radicagames.com Helpline 1.800.803.9611 or service.mattel.com. Mattel, Inc. 636 Girard Avenue, East Aurora, NY 14052, U.S.A. Retain this address for future reference: Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline - 01628 500303. Mattel Europa, B.V., Gondel 1, 1186 MJ Amstelveen, Nederland. Mattel Australia Pty. Ltd., Richmond, Victoria. 3121. Consumer Advisory Service - 1300 135 312. Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P) Lot 13.5, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel: 03- 78803817, Fax: 03-78803867. Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifi cations not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. T7003 Manual_1L-English P/N 823-E0600, Rev.A Date: MAR. 04, 2010 INSTRUCTION SHEET SPECIFICATIONS Toy: Toy No.: Part No.: Trim Size: Folded Size: Type of Fold: # colors: Colors: Paper Stock: Paper Weight: EDM No.: SONIC SLAM T7003 0920 11” W x 8.5” H 5.5” W x 8.5” H Fold into half (W) One Black White Offset 70 lb. 001 SET UP • Insert the batteries as directed above. • Choose an area free of obstructions and hazards that might get hit when you swing your racquet. • The racquets have a range of approximately 35 feet from each other, so keep your play area within this limit. • Put your hand through the safety strap and firmly grip the racquet. BEFORE YOU PLAY TURN THE RACQUETS ON • Move the ON/OFF button into either the first ON position (softer sound) or second ON position (louder sound). For TWO-PLAYER games, turn on BOTH RACQUETS. For a SINGLE-PLAYER game, only turn on ONE racquet. TWO PLAYER GAMES (SONIC SLAM™ & HOT POTATO) • You will hear “Select Game” from both racquets. • To select the game you want to play, press the SCROLL button to hear game choices. When you hear the game you want to play, press the ENTER button. • The games are: Sonic Slam™ (2 Players) Hot Potato (2 Players) and Solo Slam (1 Player). NOTE: when selecting a Two Player game, if you press the ENTER button BEFORE the SCROLL button, the racquet will automatically play Sonic Slam™. • Once the game is selected, you will hear “Select Sound Effects” from BOTH racquets. • To pick a SOUND EFFECT, each player presses the SCRO…

Text truncated - open the document above for the full version.

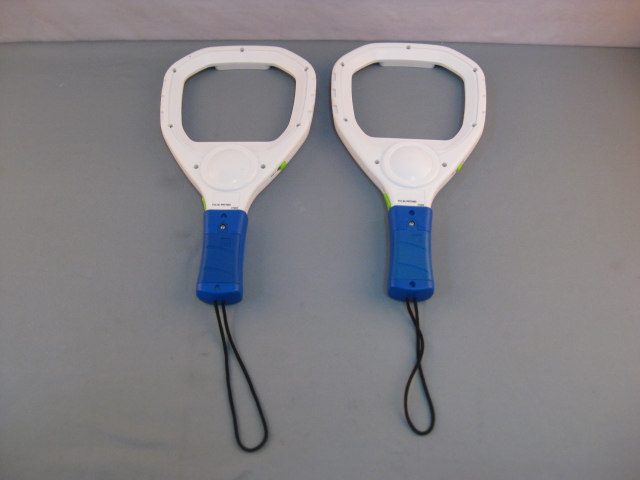

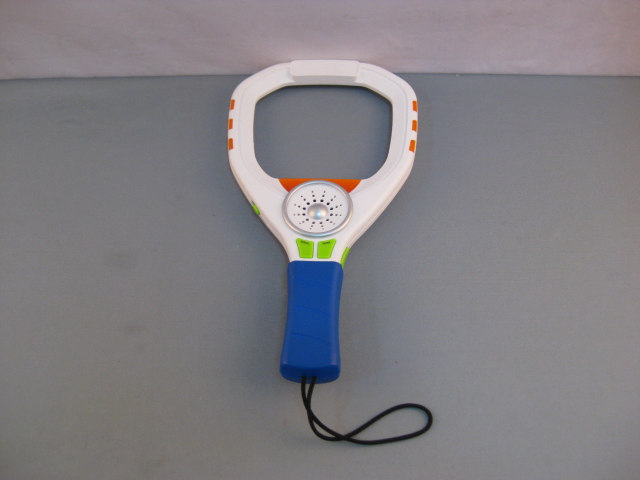

1 Photographs - EUT Constructional Details

© 2010 Mattel, Inc. DC 4,5V 0,8W x 3 FCC ID: PIYT7003 CHINA T7003 Rating Insert Rev.C Size: 29 x 21mm (R1 x 4) Date: Mar. 31, 2010 T7003 Rating Insert Rev.A Size: 77 x 7mm (R1 x 4) Date: Mar. 04, 2010 T7003 AAA/LR03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. © 2010 Mattel, Inc. DC 4,5V 0,8W x 3 FCC ID: PIYT7003 CHINA T7003 AAA/LR03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. 21.0 29,00 77,00 7.0 10,00 10,00 Screw Inset 2.1mm 2.1mm 2mm 2mm 5.7mm 1.8mm 2mm 2.1mm T7003 Sonic Slam Rating Insert.pdf 4/26/10 2:44:07 PM

Authorized Signature: Jack Zhang Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEMO10040187101 Page: 1 of 17 FCC REPORT Application No. : SZEMO100401871RF Applicant: Mattel Asia Pacific Sourcing Ltd. Product Name: SONIC SLAM Operation Frequency: 2465MHz FCC ID: PIYT7003 Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249: 2008 Date of Receipt 14 April 2010 Date of Test 14 April to 10 May 2010 Date of Issue 12 May 2010 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO10040187101 Page: 2 of 17 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION.................................................................................................................................... 4 4.1 CLIENT INFORMATION............................................................................................................................................. 4 4.2 GENERAL DESCRIPTION OF E.U.T........................................................................................................................... 4 4.3 E.U.T OPERATION MODE........................................................................................................................................ 5 4.4 TEST FACILITY........................................................................................................................................................ 5 4.5 TEST LOCATION..............................................................................................................…

Text truncated - open the document above for the full version.

1 Photographs - Test Setup Photo Radiated Spurious Emission
