PIYT9446-11A2TRC HOT WHEELS MONSTER JAM VEHICLE 27MHz

Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. CAUTION: To prevent entanglement, keep all hair away from the wheels. I. CONTENTS/ FEATURES Vehicle Transmitter T9446-0920 5+ ® Spin-out wheelies Sound effects Reverse left Battery cover ON(I) / OFF(O) ON(l) / TRY ME (X) 1 2 3 4 5 6 ® CYCLONE SPINNER TM 4 5 6 1 2 3 4 IO IX T9446-0920.indd 18/18/10 4:27:31 PM II. BATTERY INSTALLATION (Transmitter & Vehicle) Requires 4 AA alkaline batteries for the vehicle and includes 2 AA batteries for the transmitter. ADULTS NOTE: Batteries included are for demonstration purposes only. Vehicle 1. Unscrew the battery cover with a Phillips head screwdriver (not included). 2. Install 4 new AA alkaline batteries in the orientation (+/-) shown. 3. Replace battery cover and tighten screw. Transmitter 1. Unscrew the battery cover with a Phillips head screwdriver (not included). 2. Remove batteries for demonstration purposes and dispose of them properly. 3. Install 2 new AA alkaline batteries in the orientation (+/-) shown. 4. Replace battery cover and tighten screw. III. OPERATION Press for real Monster Jam ® sounds! Press & hold for insane spin-out wheelies! TIP: When batteries are low, press Reverse Left then quickly press Forward for spin-out wheelies. Press & hold to reverse left. Quickly press, release, then press & hold to move straight forward. 1 2 3 4 2 1 34 T9446-0920.indd 28/18/10 4:27:31 PM IV. QUICK TIPS 1 When your vehicle starts to lose power, it may lose functionality or performance. It’s time for fresh batteries. Your vehicle’s running time may change depending on your driving style. 2 Radio interference can affect your vehicle's performance. Interference can be caused by other R/C vehicles running on the same frequency, electrical wires, large buildings or CB radios. Try to stay away from these! 3 Point your transmitter up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. 4 Don't drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe it with a towel and allow to dry completely overnight. 5 Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. 6 If the vehicle malfunctions, please turn the vehicle and transmitter's power OFF and ON again. This should reset your vehicle and let you resume normal operation. V. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. Battery Performance Note: For best performance use regular or high-performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon- zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. VI. CONSUMER INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up the vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. T9446-0920.indd 38/18/10 4:27:31 PM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician…

Text truncated - open the document above for the full version.

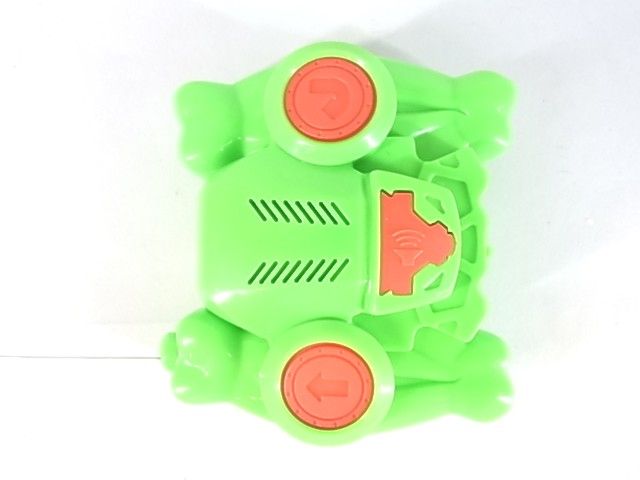

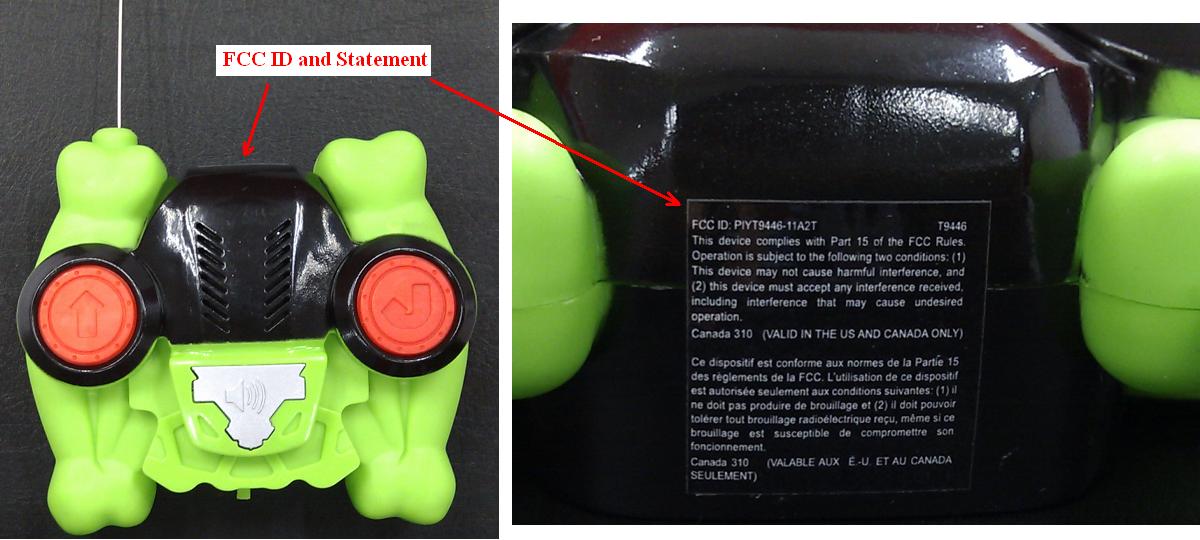

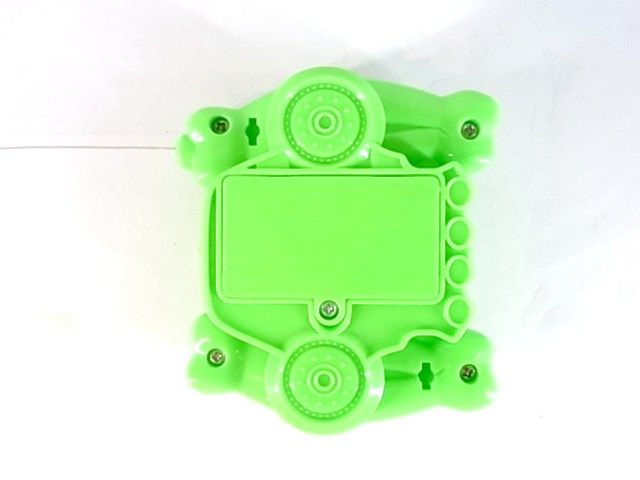

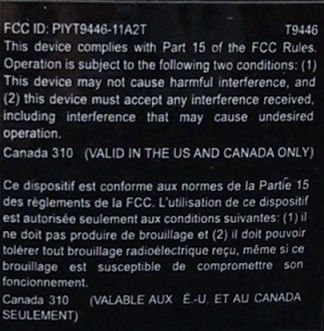

Power Supply 3V Speech MCU (U2) Control Keys SW1: Forward SW3: Backward SW2: Sound Mode Switch Normal / Try me option (SW4) Encoder and Modulator (U1) Matching Circuit (L5,L6,C9,C10) 27.145MHz Crystal (Y1) Speaker ANT Block Diagram of T9446 Transmitter FCC ID: PIYT9446-11A2T

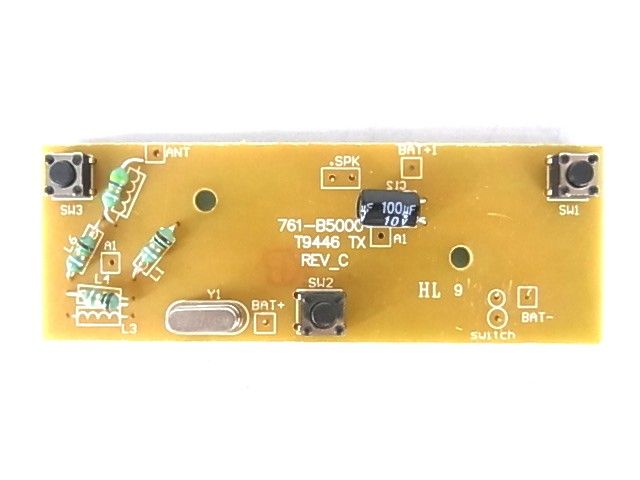

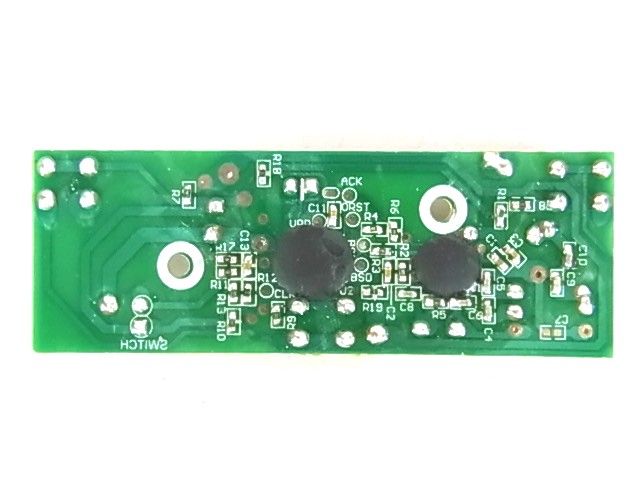

Operation Description for T9446 Monster Jam transmitter (FCC ID: PIYT9446-11A2T) The Monster Jam transmitter is powered by 2 x 1.5V batteries. If it is switched to try me mode, the speech MCU will play sound effect only when a key is pressed. However, if it is in normal mode, the speech MCU will not only play sound effect but also send control signal to the IC U1 when a key is pressed. The IC U1 is an encoder and modulator which can generate different codes signal to control receiver. The carrier frequency, 27.145MHz, is provided by the crystal Y1. The antenna is matched with L5, L6, C9 and C10.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA D i s t r i b u t ed t o SMT : N o Y e s Re v .: o n d eman d . L t d ./ Ra d i ca G ame s L t d ., a n d mu s t b e r e t u r n ed d e t r i me n t al t o t h e i n t er e s t o f Ra d i ca Ch i n a c o v e n a n t s i t w i l l n o t b e u s e d i n a n y man n e r G a me s L t d . T h i s p r i n t i s l o a n e d an d r e ci p i en t e x p r e s s c o n s e n t o f Ra d i ca Ch i n a L t d ./ Rad i c a o t h e r s , i n p ar t o r i n w h o l e , w i t h o u t t h e r ep r o d u c e d , r ev ea l ed t o o r a p p r o p r i at ed b y c o n f i d e n c e an d i s n o t t o b e co p i ed , G a me s L t d . T h i s i n f o r mat i o n i s d i s c l o s ed i n i s t h e p r o p er t y o f Rad i c a Ch i n a L t d ./ Rad i c a p e r t a i n i n g t o t h e ar t i c l e s h o w n o n t h i s s h e et A l l d es i g n , o p e r a t i v e an d p r o c es s d a t a D e s c r i p t i o n : Mo d e l N o .: D r aw n b y : Ch ec k e d b y : A p p r o v ed b y : D r aw i n g N o .: D a t e : D a t e : D a t e : I N N O V A T I O N S RA D I CA : A ME MBE R O F RA D I CA G A ME S G RO U P Sh ee t o f Ch an g e d b yD a t eD e s c r i p t i o nRe v . EA E A11 Car T X T 9446 lizhuMay.28.10 inntial release BAT AAx2 29mm 16 OHM 0.25W Speaker VCC C12 100uF VDD 1 D11 8 D12 9 D13 11 D14 12 V SS 6 DOUT ROSC 10 RF0 5 OSC0 4 OSC1 3 D10 2 U1 GPRC205A VCC 1KR4 1KR6 104 C2 4.7RR7 104 C11 4.7R R3 200K R2 390K R13 0R R12 2.2K R11 2.2K R10 2.2K R9 2.2K R8 1M R17 FORWARD SW1 SOUND SW2 BACKWARD SW3 TRY ME/ NORMAL SW4 10M R5 10R R1 1uH EC-24 L1 104 C3 68PF C4 1uH EC-24 L4 100PF C9 4.7uH/EC-24 L5 15PF C10 ANT OPEN L3 OPEN C7 47PF C6 22PFC8 27.145MHz Y1 68PF C5 VCC 103 C1 PRB2 12 V D D 1 7 V D D 2 19 PRA0 3 G N D 1 2 PRB0/OSC2 10 PWM1 1 PWM2 /COUT 27 OSCI 8 PRA1 4 PRA2 5 PRB3/RESET 13 G N D 2 9 PRB1/IR 1 1 PRA3 6 G N D 3 14 G N D 4 24 G N D 5 26 PRC0 15 PRC1 16 PRC2 17 PRC3 18 PRD0 20 PRD1 21 PRD2 22 PRD3 23 VPP 25 V D D 3 28 U2 AM4EA031A 104 C13 VPP 1.5uH EC-24 L6 ORET ACK BS0 BS1 CLK BS0/BS1/ACK/ORET/CLK/VPP/ VDD /GND for OTP program us e rd 12 JP1

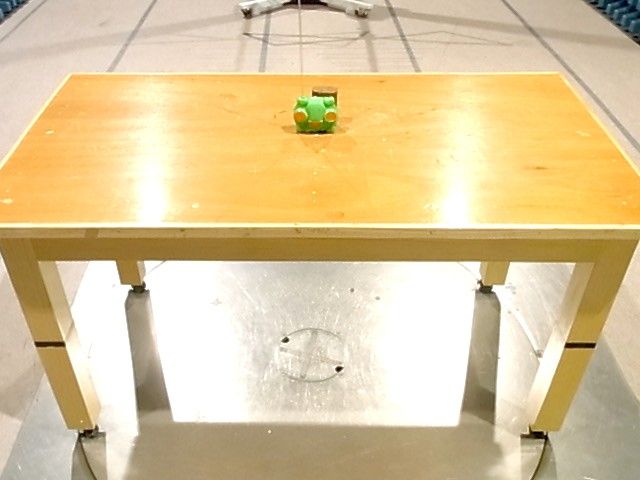

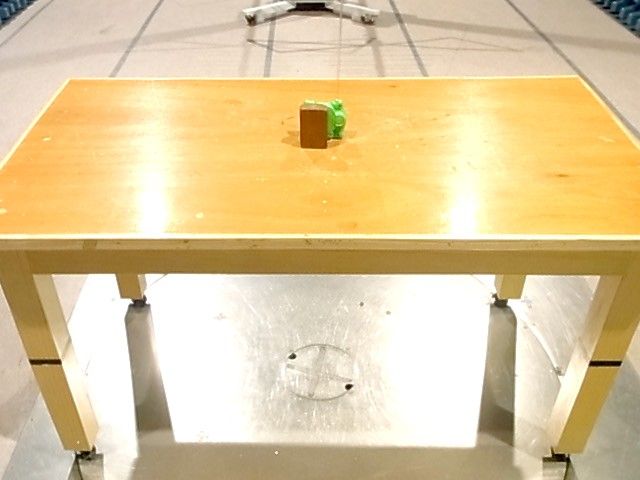

TEST REPORT Report No. : AM0041703(4) Date : 2010-08-27 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PIYT9446-11A2T This document is issued subject to the latest CMA Testing General Terms and Conditions o f Testing and Inspection Services, available on request or accessible at website www.cmatcl.com. This document shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St., Fo Tan, Shatin, N.T., Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LM010214(8) Applicant : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Centre, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample(s) stated to be RC Hot Wheels Monster Jam Vehicle 27MHz of Model No. T9446 Radio Frequency : 27.145MHz Transmitter Rating : 2 x 1.5V AA size batteries No. of submitted sample : Two (2) piece(s) Date Received : 2010-07-21. Test Period : 2010-07-22 to 2010-07-29. Test Requested : FCC Part 15 Certification Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AM0041703(4) Date : 2010-08-27 Page 2 of 11 FCC ID: PIYT9446-11A2T This document is issued subject to the latest CMA Testing General Terms and Conditions of Testing and Inspection Services, available on request or accessible at website www.cmatcl.com. This document shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St., Fo Tan, Shatin, N.T., Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information ............................................................................................................................ 3 1.1 General Description .................................................................................................................... 3 1.2 Location of the test site ............................................................................................................... 4 1.3 List of measuring equipment ...................................................................................................... 5 1.4 Measurement Uncertainty ........................................................................................................... 5 2 Description of the radiated emission test............................................................................................. 6 2.1 Test Procedure ............................................................................................................................ 6 2.2 Test Result .................................................................................................................................. 6 2.3 Radiated Emission Measurement Data ....................................................................................... 7 3 Description of the Line-conducted Test .............................................................................................. 8 3.1 Test Procedure ............................................................................................................................ 8 3.2 Test Result .................................................................................................................................. 8 3.3 Graph and Table of Conducted Emission Measurement Data .................................................... 8 4 Photograph........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................ 9 5 Supplementary document .................................................................................................................. 10 5.1 Bandwidth ................................................................................................................................. 10 5.2 Duty cycle ................................................................................................................................. 10 5.3 Transmission time..................................................................................................................... 10 6 Appendices ........................................................................................................................................ 11 TEST REPORT Report No. : AM0041703(4) Date : 2010-08-27 Page 3 of 11 FCC ID: PIYT9446-11A2T This document is issued subject to the latest CMA Testing General Terms and Conditions of Testing and Inspection Services, available on request or accessible at website www.cmatcl.com. This document shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St., Fo Tan, Shatin, N.T., Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC Hot Wheels Monster Jam Vehicle 27MHz. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. There are three buttons and one “Try me” switch on the EUT. When the “Forward” and “B…

Text truncated - open the document above for the full version.

Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Bandwidth Plot Bandwidth 1

Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Duty Cycle Duty Cycle 1 Duty Cycle 2 Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Duty Cycle Duty Cycle 3
