PIYT9499-11A2TRC CARS 2 REMOTE CONTROL EVERETT CAR TRANSPORTER

ENG Questions or problems with your product? DON’T RETURN IT TO THE STORE! Just call us for help. U.S. consumers may also register their products at this number. Si tiene alguna pregunta o problema con el producto, NO DEVUELVA EL PRODUCTO A LA TIENDA. Llámenos, y con gusto le ayudaremos. F Vous avez des questions à propos de votre produit ou il ne fonctionne pas correctement? NE LE RETOURNEZ PAS AU MAGASIN! Un appel suffit. Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. Leer y guardar estas instrucciones para futura referencia, ya que contienen información de importancia acerca de este producto. IMPORTANTE: Leer toda la "Información al consumidor" antes de usar el vehículo. Conserver ce mode d'emploi pour s'y référer en cas de besoin car il contient des informations importantes. IMPORTANT : Lire tous les «Renseignements pour les consommateurs» avant d'utiliser le véhicule. CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. PRECAUCIÓN: Las superficies se pueden calentar y causar quemaduras si las piezas electrónicas se mojan. No usar el vehículo en agua ni nieve. MISE EN GARDE : Les surfaces peuvent devenir chaudes et causer des brûlures si les composants électroniques sont mouillés. Ne pas utiliser le véhicule dans l'eau ou la neige. CAUTION: To prevent entanglement, keep all hair away from the wheels. PRECAUCIÓN: Para evitar lesiones, mantener el cabello alejado de las ruedas. MISE EN GARDE : Pour éviter tout risque d'enchevêtrement, tenir les cheveux éloignés des roues. ESP © 2010 Mattel, Inc. All Rights Reserved. Tous droits réservés.Mattel, Inc. 636 Girard Avenue, East Aurora, NY 14052, U.S.A. Consumer Relations 1-888-557-8926. Mattel Canada Inc., Mississauga, Ontario L5R 3W2. You may call us free at 1-888-557-8926. Mattel Australia Pty., Ltd., Richmond, Victoria. 3121.Consumer Advisory Service - 1300 135 312. Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel:03-78803817, Fax:03-78803867. Retain this address for future reference. Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Importado y distribuido por Mattel de México, S.A. de C.V.R.F.C, Insurgentes Sur # 3579, Torre 3, Oficina 601, Col. Tlalpan, Delegación Tlalpan, C.P. 14020, México, D.F. MME-920701-NB3. 59-05-51-00. Ext. 5206 ó - 01-800-463 59-89 Mattel Chile, S.A., Avenida Américo Vespucio 501-B, Quilicura, Santiago. Mattel de Venezuela, C.A. RIF J301596439, Ave. Mara, C.C. Macaracuay Plaza, Torre B, Piso 8, Colinas de la California, Caracas 1071. Mattel Argentina S.A., Curupaytí 1186, (1607) - Villa Adelina, Buenos Aires. Mattel Colombia, S.A., calle 123#7-07 P.5, Bogotá. Importado por : Mattel do Brasil Ltda.- CNPJ : 54.558.002/0008-04 - Av. Tenente Marques, 1246 - Sala 02 - 2º. Andar - 07770-000 - Polvilho - Cajamar - SP - Brasil Serviço de Atendimento ao Consumidor (SAC): 0800-550780 - [email protected] Mattel France, 27/33 rue d’Antony, Silic 145, 94523 Rungis Cedex N° Indigo 0 825 00 00 25 (0,15 € TTC/mn) ou www.allomattel.com. Mattel España, S.A., Aribau 200. 08036 Barcelona. [email protected] Tel: 902.20.30.10 http://www.service.mattel.com/es Mattel Portugal Lda., Av. da República, nº 90/96, 2º andar Fracção 2, 1600-206 Lisboa service.mattel.com • Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. • Proteger el medio ambiente no disponiendo de este producto en la basura del hogar (2002/96/EC). Consultar con la agencia local pertinente en cuanto a información y centros de reciclaje. • Protéger l'environnement en ne jetant pas ce produit avec les ordures ménagères (2002/96/EC). Consulter la municipalité pour obtenir des conseils sur le recyclage et connaître les centres de dépôt de la région. COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. RSS - 310 (Canada) (VALID FOR CANADA ONLY - VALABLE AU CANADA SEULEMENT) This Category II radiocommunication device complies with Industry Canada Standard RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept an…

Text truncated - open the document above for the full version.

Control Keys K1: Forward K2: Backward Encoder and Modulator (U1) Matching Circuit (L6,L5,C9,C10) 27.145MHz Crystal (Y1) ANT Block Diagram of T9499 Transmitter

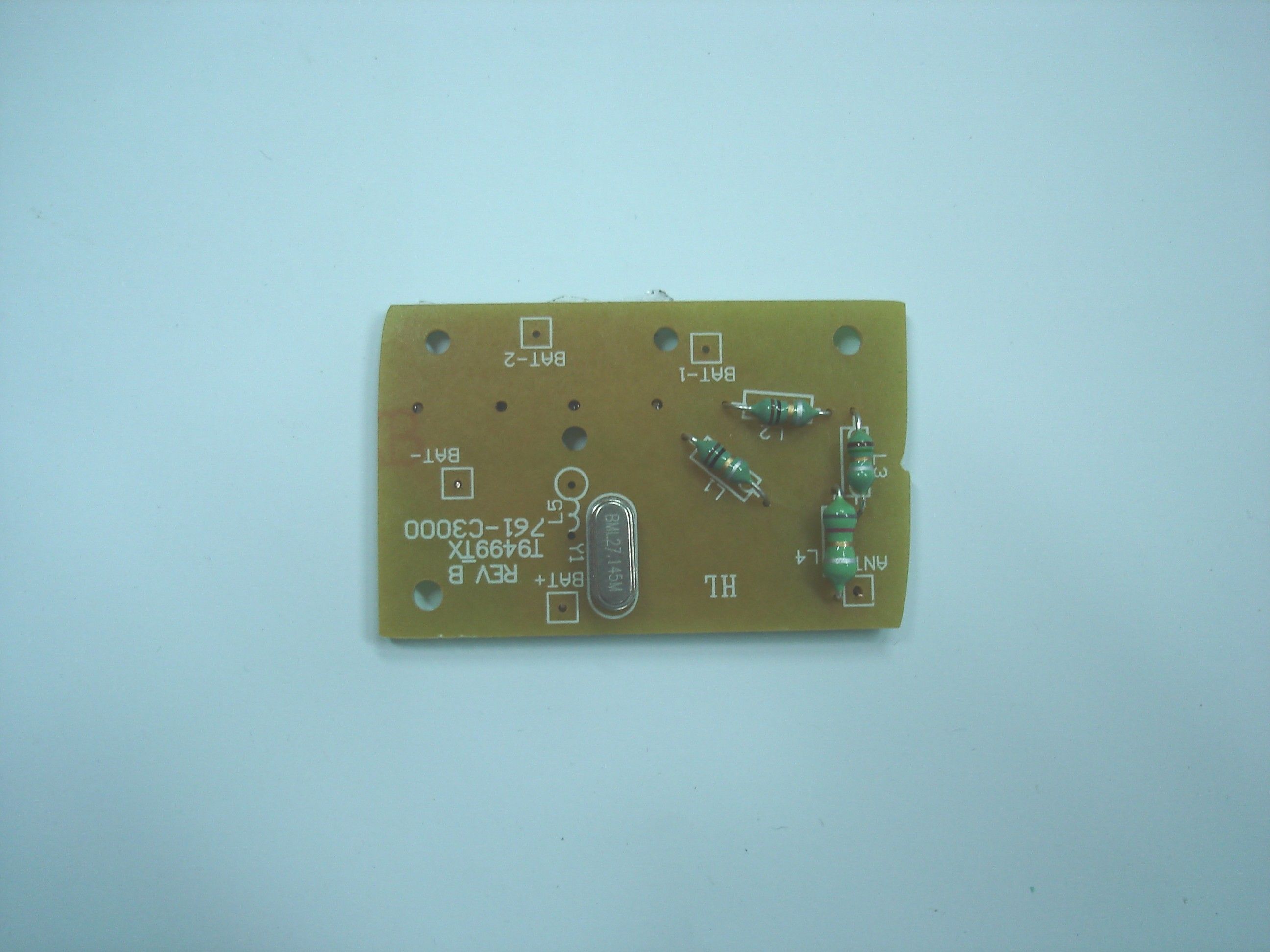

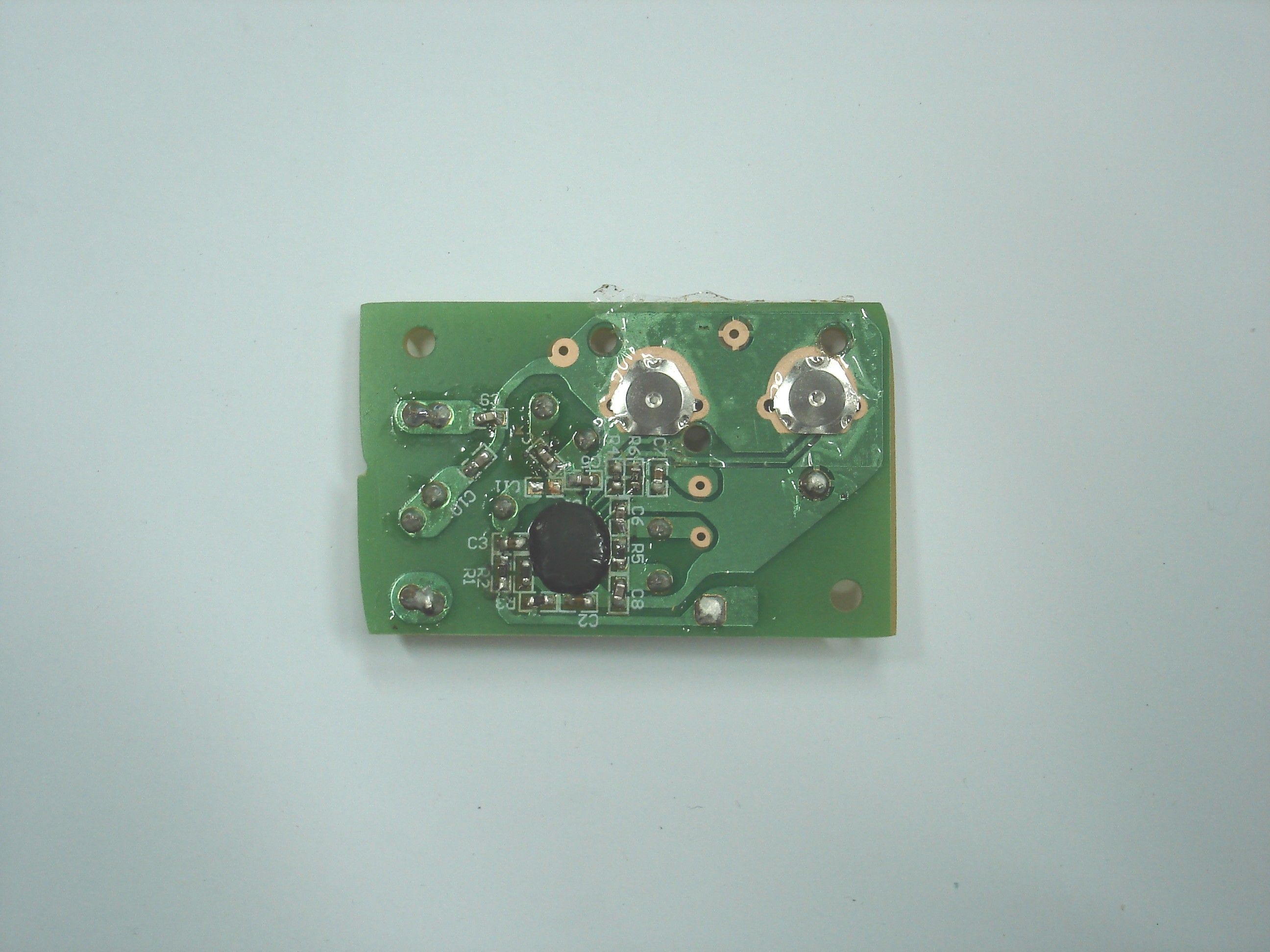

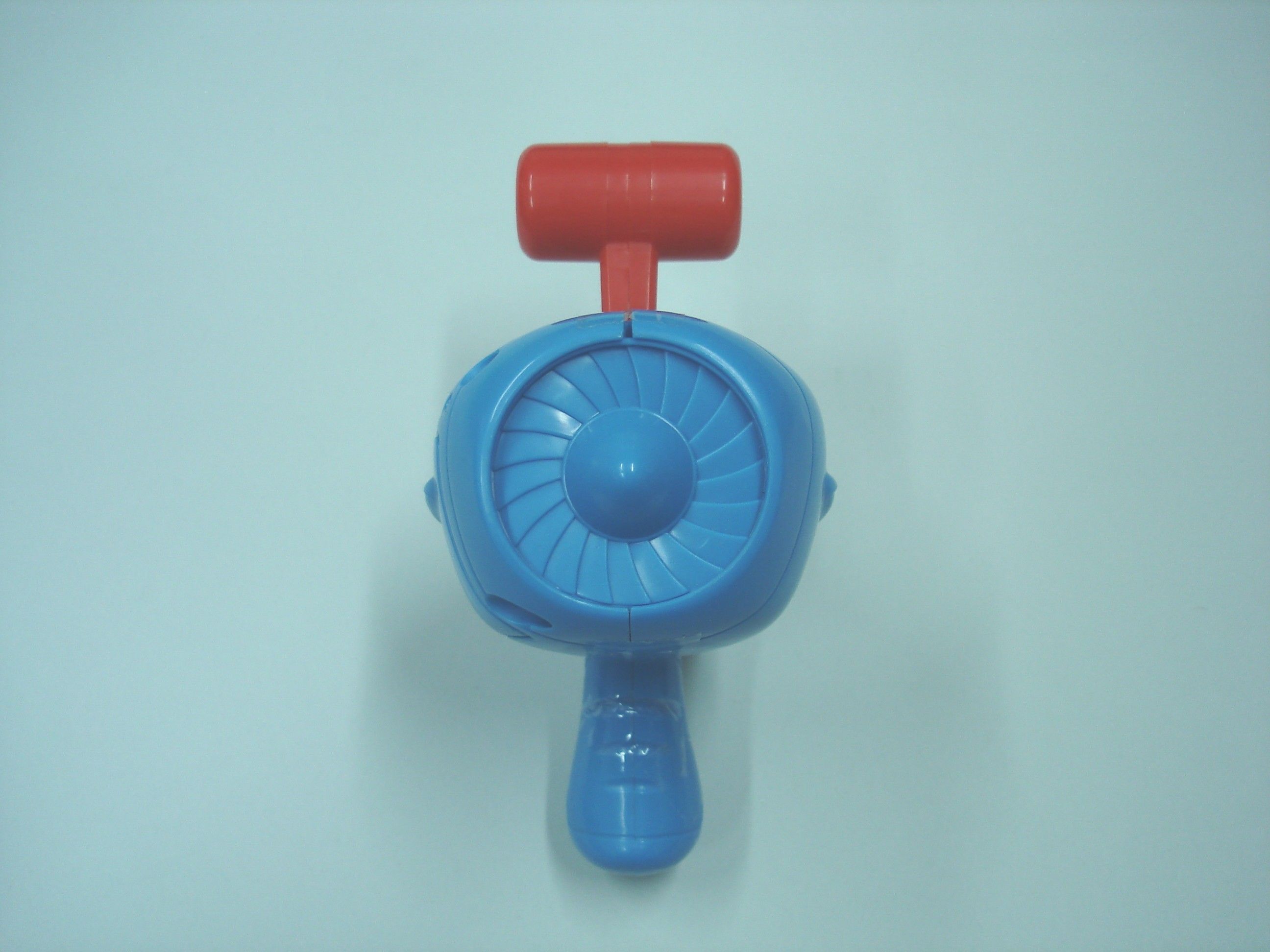

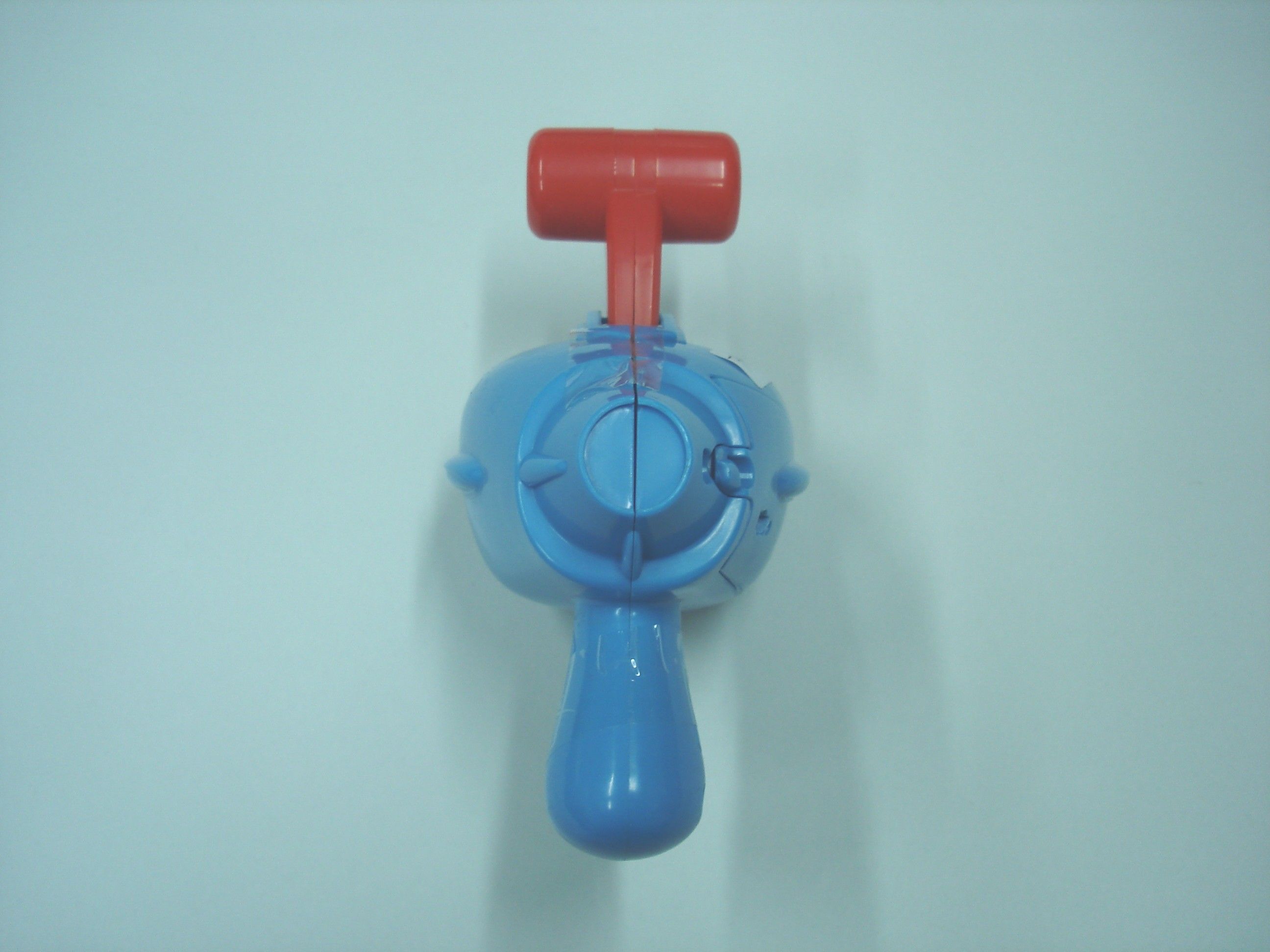

Operation Description for T9499 RC CARS 2 REMOTE CONTROL EVERETT CAR TRANSPORTER a. Using timing sharing for data transmission b. 2 function including forward, backward 1. TX(27MHZ) TX is supplied by AA size 1.5V batteries in total 2pcs , there are two function keys: F,B to control the EVERETT CAR TRANSPORTER (forward, backward). The GPRC205A IC is within code generator and high frequency oscillator. From the 3 th pin, the 4 th pin of IC and crystal generated producing 27.145MHz high frequency signal, passing through the amplifier of within IC GPRC205A, the modulated high frequency signal exported to the matching network which is consist of L1,C4,C5,C9,C10,L4,L5,L6 by the 5 th pin of GPRC205A IC. 2. RX(27MHZ) withON/OFF/try me function, only sound function when slide switch to try me position, will off when slide switch to middle, with Remote function and sound function when switch slide to on. Rx supplied by AA size 1.5V batteries in total 4pcs, after regulating 3.3V to IC GPRC206A.The modulated signal is received by the antenna which is demodulated through super generator circuit. The demodulated signal will be amplified and decoding through IC GPRC206A.Then the outputs will control tow motors driving forward , backward respectively.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA D i s t r i b u t ed t o SMT : N o Y e s Re v .: o n d eman d . L t d ./ Ra d i ca G ame s L t d ., a n d mu s t b e r e t u r n ed d e t r i me n t al t o t h e i n t er e s t o f Ra d i ca Ch i n a c o v e n a n t s i t w i l l n o t b e u s e d i n a n y man n e r G a me s L t d . T h i s p r i n t i s l o a n e d an d r e ci p i en t e x p r e s s c o n s e n t o f Ra d i ca Ch i n a L t d ./ Rad i c a o t h e r s , i n p ar t o r i n w h o l e , w i t h o u t t h e r ep r o d u c e d , r ev ea l ed t o o r a p p r o p r i at ed b y c o n f i d e n c e an d i s n o t t o b e co p i ed , G a me s L t d . T h i s i n f o r mat i o n i s d i s c l o s ed i n i s t h e p r o p er t y o f Rad i c a Ch i n a L t d ./ Rad i c a p e r t a i n i n g t o t h e ar t i c l e s h o w n o n t h i s s h e et A l l d es i g n , o p e r a t i v e an d p r o c es s d a t a D e s c r i p t i o n : Mo d e l N o .: D r aw n b y : Ch ec k e d b y : A p p r o v ed b y : D r aw i n g N o .: D a t e : D a t e : D a t e : I N N O V A T I O N S RA D I CA : A ME MBE R O F RA D I CA G A ME S G RO U P Sh ee t o f Ch an g e d b yD a t eD e s c r i p t i o nRe v . A RC CA RS T RA N SPO RT E R_ T X T 9 4 9 9 N o v .2 9 - 2 0 1 0 A11 7 6 1 - C3 0 0 0 LIZHU VDD 1 D11 8 D12 9 D13 11 D14 12 V SS 6 DOUT ROSC 10 RF0 5 OSC0 4 OSC1 3 D10 2 U1 GPRC205A VCC 1KR4 1KR6 104 C2 4.7R R3 200K R2 FORWARD SW1 BACKWARD SW3 10M R5 10R R1 1uH EC-24 L1 104 C3 68PF C4 1uH EC-24 L4 100PF C9 8.2uH/EC-36 L5 20PF C10 ANT OPEN L3 OPEN C7 47PF C6 22PFC8 27.145MHz Y1 15PF C5 VCC 1.5uH EC-24 L6

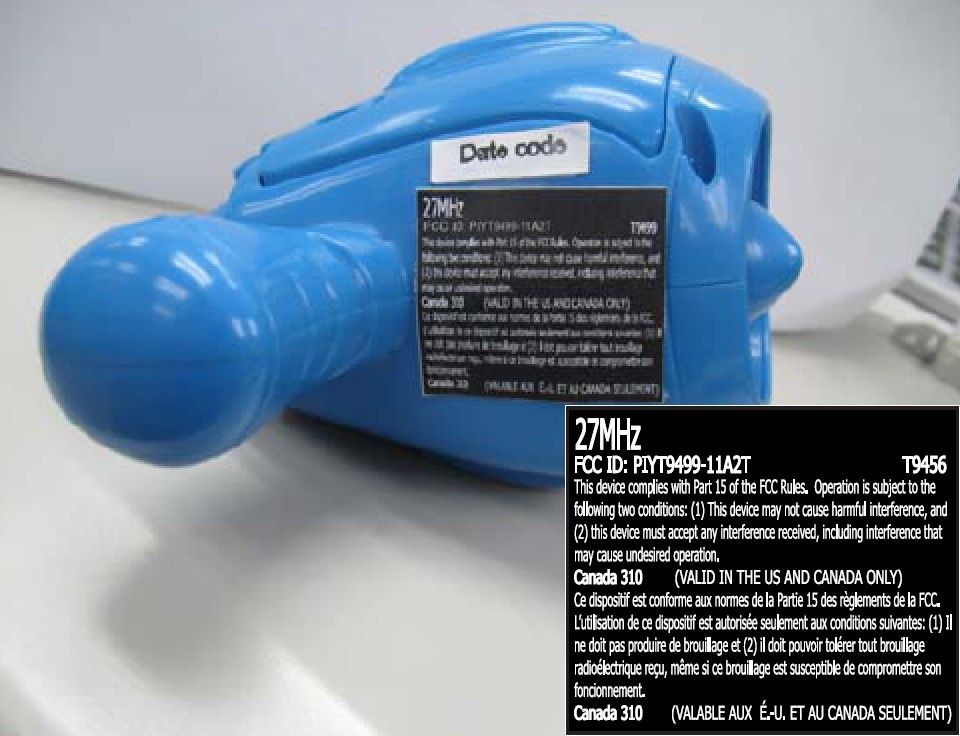

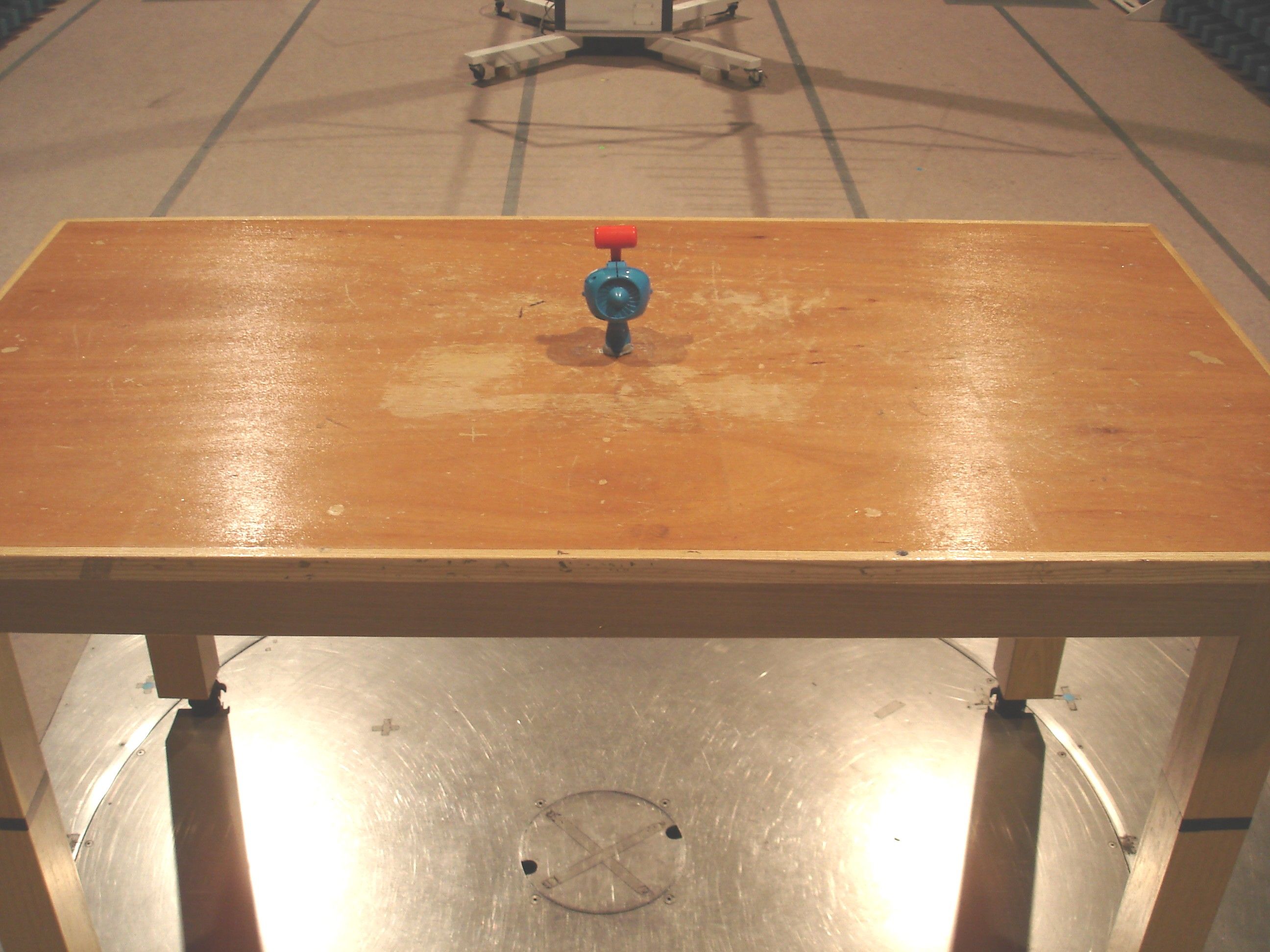

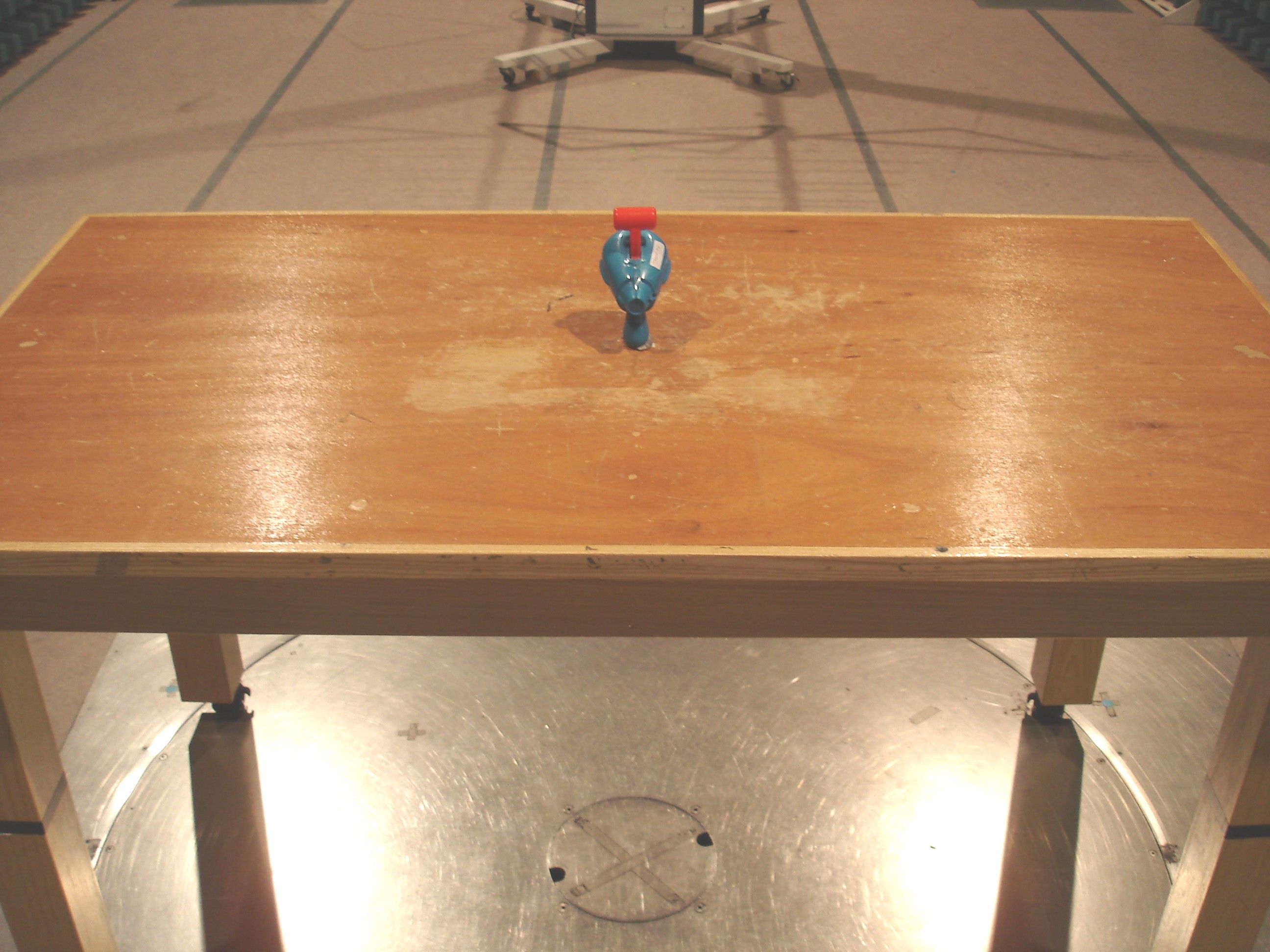

TEST REPORT Report No. : AM0064501(5) Date : 2011-02-18 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PIYT9499-11A2T Application No. : LM024740(6) Applicant : Mattel Asia Pacific Sourcing Ltd. 13/F., South Tower, World Finance Center, Harbour City, Tsimshatsui, Kowloon, Hong Kong. Sample Description : One(1) item of submitted sample stated to be: Sample Description Model no. RC CARS 2 REMOTE CONTROL EVERETT CAR TRANSPORTER T9499 RC CLUB TRANSPORTER W/3 DCC PALLET T9456 Radio Frequency : 27.145MHz Transmitter Rating : 2 x 1.5V AA size batteries No. of submitted sample : One (1) piece (s) Date Received : 2010-11-29. Test Period : 2010-12-03 to 2010-12-07. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All two models are the same in circuitry and components and constriction, and therefore model T9499 was chosen to be the representative of the test sample. The difference between the testing/tested model and the declared model is/are package, color and model number. TEST REPORT Report No. : AM0064501(5) Date : 2011-02-18 Page 2 of 11 FCC ID: PIYT9477-11A2T Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 5 2 Description of the radiated emission test ................................................................................................... 6 2.1 Test Procedure .................................................................................................................................... 6 2.2 Test Result .......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................... 7 3 Description of the Line-conducted Test ..................................................................................................... 8 3.1 Test Procedure .................................................................................................................................... 8 3.2 Test Result .......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................ 8 4 Photograph ................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................... 9 4.2 Photographs of the External and Internal Configurations of the EUT................................................ 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ......................................................................................................................................... 10 5.2 Duty cycle ......................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................. 10 6 Appendices...............................................................................................................................................11 TEST REPORT Report No. : AM0064501(5) Date : 2011-02-18 Page 3 of 11 FCC ID: PIYT9477-11A2T 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC CARS 2 REMOTE CONTROL EVERETT CAR TRANSPORTER. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. There is a control stick on the EUT. When the control stick is triggered, the EUT will transmit radio control signal to the receiver. The antenna is permanently attached in EUT and the radio output power is unable to adjust. The brief circuit description is listed as follows: - U1 and its associated circuit act as an encoder. - Y1 and its associated circuit act as an oscillator. TEST REPORT Report No. : AM0064501(5) Date : 2011-02-18 Page 4 of 11 FCC ID: PIYT9477-11A2T 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2003. A shielded room is located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AM0064501(5) Date : 2…

Text truncated - open the document above for the full version.

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: Document Ref No: WF-EL-EMC-15 Issue Date: 06 Sep 2010 Edition: 1 (Amd 3) Page of . Bandwidth Plot Bandwidth 1

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: Document Ref No: WF-EL-EMC-15 Issue Date: 06 Sep 2010 Edition: 1 (Amd 3) Page of . Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: Document Ref No: WF-EL-EMC-15 Issue Date: 06 Sep 2010 Edition: 1 (Amd 3) Page of . Duty Cycle 3
