PIYV0070-11A2TRC INTL MAX STEEL FIG/VEHICLE

® SPEED MODEALL TERRAIN MODE Attach figure and accessories Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. CAUTION: To prevent entanglement, keep all hair away from the wheels. 5+ ® V0070-0920 I. CONTENTS/ FEATURES This set includes: 1 vehicle, 1 transmitter, 1 figure, 2 accessory pieces. Forward / Reverse Left / Right Turbo Speed Button Battery cover ON (I) / OFF (0) Steering adjuster - Turn with screwdriver (not included) to keep vehicle running straight. 1 2 3 4 5 6 4 6 4 5 IO 3 2 1 V0070-0920 2.indd 14/25/11 9:52:46 AM 2 X AA II. BATTERY INSTALLATION (Transmitter & Vehicle) Requires 6 AA alkaline batteries for the vehicle and 2 AA alkaline batteries for the transmitter. Batteries not included. Vehicle 1. Unscrew the battery cover with a Phillips head screwdriver (not included). 2. Your vehicle requires 6 AA alkaline batteries. Install with polarity (+/-) as shown inside the battery compartment. 3. Replace battery cover and tighten screw. Transmitter 1. Unscrew the battery cover with a Phillips head screwdriver (not included). 2. Transmitter requires 2 AA alkaline batteries. Install with polarity (+/-) as shown inside the battery compartment. 3. Replace battery cover and tighten screw. NOTE: Once the batteries are installed the transmitter will always be “ON” and will work automatically the moment you use it. III. OPERATION FORWARDREVERSE SPEED MODE 12 OR 23 4 OROR 1 ALL TERRAIN MODE NOTE: Transmitter directions are reversed when vehicle is in All Terrain Mode. FORWARD LEFT OR RIGHT REVERSE LEFT OR RIGHT 3 4 Press for turbo speed 6 X AA V0070-0920 2.indd 24/25/11 9:52:47 AM IV. QUICK TIPS 1 When your vehicle starts to lose power, it may lose functionality or performance. It’s time for fresh batteries. Your vehicle’s running time may change depending on your driving style. 2 Radio interference can affect your vehicle's performance. Interference can be caused by other R/C vehicles running on the same frequency, electrical wires, large buildings or CB radios. Try to stay away from these! 3 Point your transmitter up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. 4 Don't drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe it with a towel and allow to dry completely overnight. 5 Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. 6 If the vehicle malfunctions, please turn the power OFF and ON again. This should reset your vehicle and let you resume normal operation. V. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. Battery Performance Note: For best performance use regular or high-performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon- zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. VI. CONSUMER INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up the vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. V0070-0920 2.indd 34/25/11 9:52:47 AM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment…

Text truncated - open the document above for the full version.

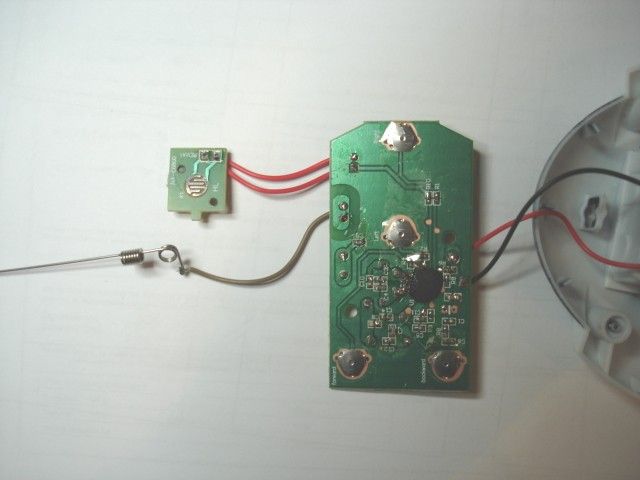

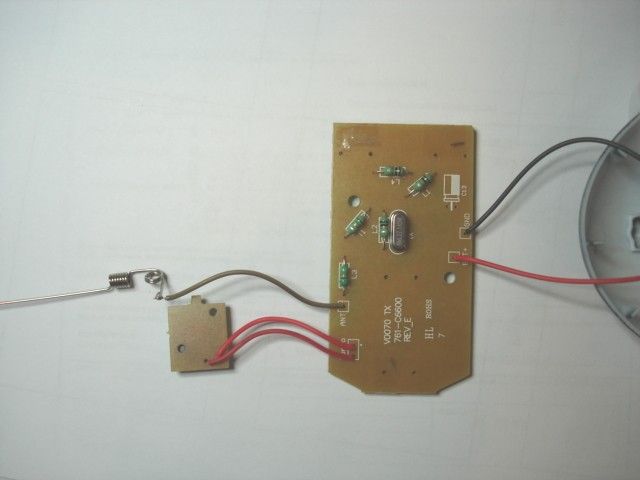

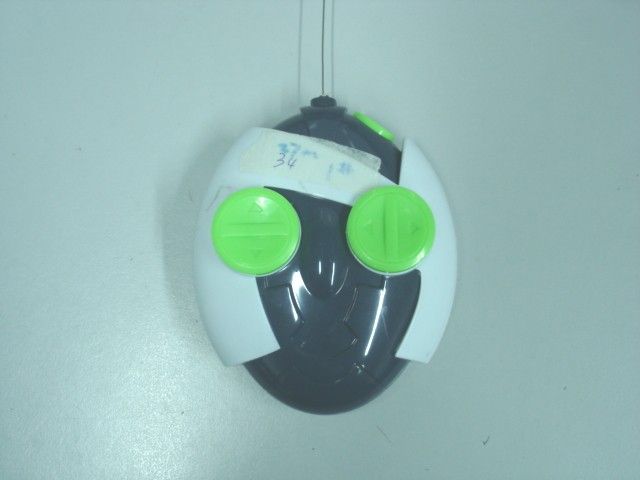

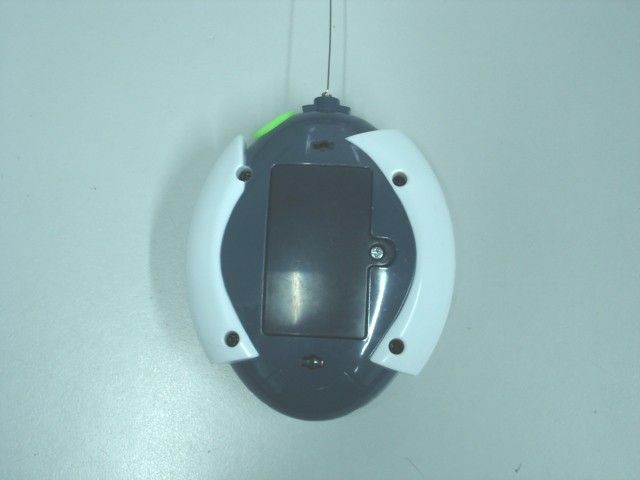

Transmitter Operational Description V0070 is used 1.5V *2 ‘AA’ batteries, it is designed to operate a single fixed frequency in the 27.145MHz band, Please see attached block diagram and schematic. Device has 5 function keys, they control receiver forward, backward, turn left, right and speedup. A five-function Remote Control Encoder— SPRC205A is used on transmitter. SPRC205 receives key controlling signal, a encode serial bit-stream is sent out via filter and antenna. Receiver Operational Description Receiver is used 1.5V *6 ‘AA’ batteries to supply power, using SPRC206A to decode, the supply voltage of SPRC206A is 3.3V via regulator. Antenna receive the modulated signal, the signal is demodulated Through super generator circuit, the demodulating signal is amplified and Decoded by SPRC206A, SPRC206A send out driving signal to drive the Motor.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Dist ribut ed to SMT: No Yes Rev.: on demand. Ltd./ Radica Games Ltd., and must be returned detrimental to the interest of Radica China covenant s it w ill not be used in any manner Games Lt d. This print is loaned and recipient express consent of Radica China Lt d./ Radica others, in part or in w hole, w ithout the reproduced, revealed to or appropriated by confidence and is not to be copied, Games Lt d. This information is disclosed in is t he property of Radica China Lt d./ Radica pertaining to the article shown on this sheet All design, operative and process data Description: Model No.: Draw n by: Checked by: Approved by: Draw ing No.: Date: Date: Date: I NNOVATIONS RADI CA: A MEMBER OF RADI CA GAMES GROUP Sheet of Changed byDat eDescript ionRev. A RC int l MAX STEEL FI G/ VEHI CLE V0070 FEB-17-2011 A11 761XXXXX D10 2 D11 8 D12 9 D13 11 D14 12 VSS 6 VDD 1 DOUT 7 ROSC 10 RFO 5 OSCO 4 OSCI 3 U1 GPRC205A R41KK1F C13 10uF C1 104 R6 10 G1 3V GND VDD VDD R9200K C1415P 12 Y1 27.145MHz R7 2.2M C3 22P C4 47P GNDGND GND R8 0R C6 103 GND L1 1uH EC-24 C5 30P L2 1uH C10 104 GND C7 68P C12 10P C8 open C9 15P L4 1.0uH EC-24 L3 8.2UH E1 Antenna T1 1.5UH EC-24 GND GND GND Liao minghua R31KK2B R21KK3L R11KK4R R101KK5Turbo C110.1uF

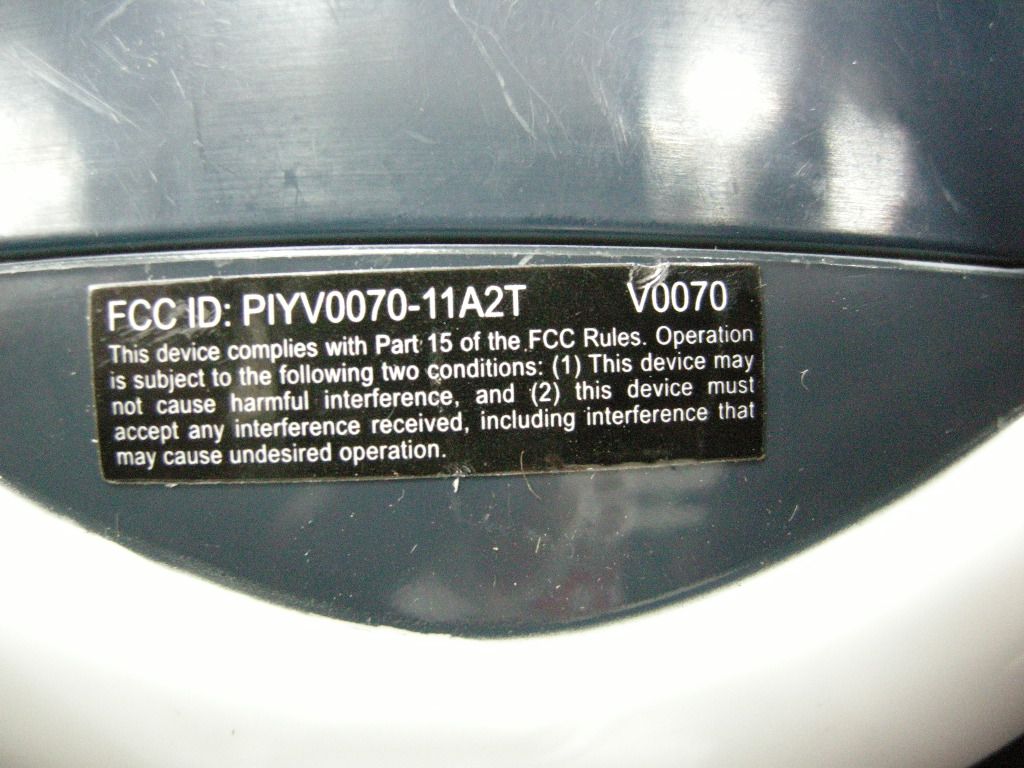

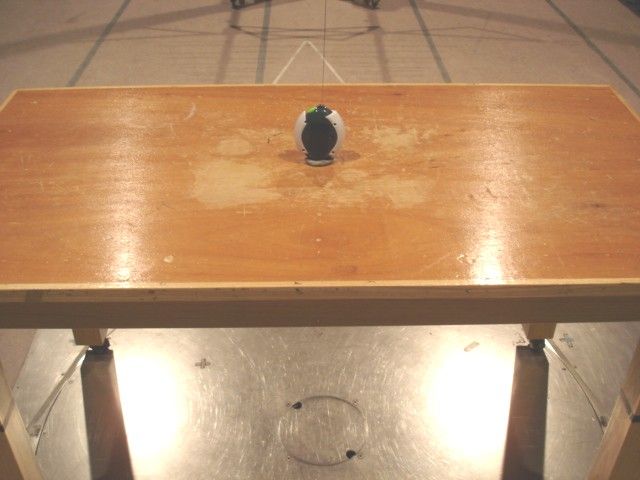

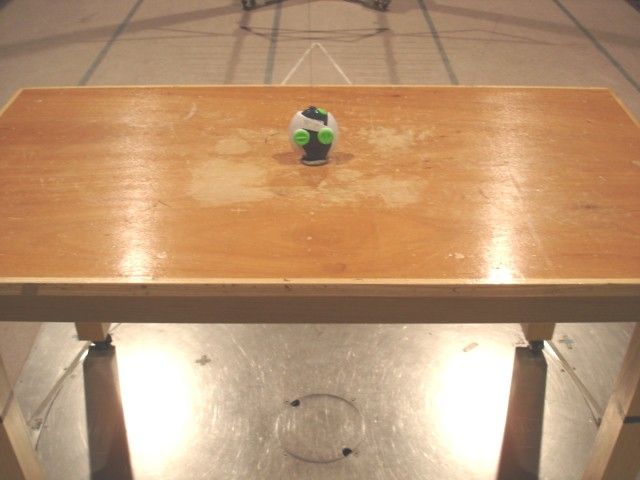

TEST REPORT Report No. : AN0019922(1) Date : 2011-04-27 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PIYV0070-11A2T Application No. : LN009831(0) Applicant : Mattel Asia Pacific Sourcing Ltd. 1301, South Tower, World Finance Center, Harbour City, Tsimshatsui, Hong Kong Sample Description : One(1) item of submitted sample stated to be RC intl MAX STEEL FIG/VEHICLE of Model No. V0070 Radio Frequency : 27.145MHz Transmitter Rating : 2 x 1.5V AA size batteries No. of submitted sample : Two (2) piece (s) Date Received : 2011-04-04. Test Period : 2011-04-11 to 2011-04-13. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AN0019922(1) Date : 2011-04-27 Page 2 of 11 FCC ID: PIYV0070-11A2T Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 5 2 Description of the radiated emission test ................................................................................................... 6 2.1 Test Procedure .................................................................................................................................... 6 2.2 Test Result .......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................... 7 3 Description of the Line-conducted Test ..................................................................................................... 8 3.1 Test Procedure .................................................................................................................................... 8 3.2 Test Result .......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................ 8 4 Photograph ................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................... 9 4.2 Photographs of the External and Internal Configurations of the EUT................................................ 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ......................................................................................................................................... 10 5.2 Duty cycle ......................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................. 10 6 Appendices...............................................................................................................................................11 TEST REPORT Report No. : AN0019922(1) Date : 2011-04-27 Page 3 of 11 FCC ID: PIYV0070-11A2T 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC intl MAX STEEL FIG/VEHICLE. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. There are two control sticks on the EUT. When the control stick is triggered, the EUT will transmit radio control signal to the receiver. The antenna is permanently attached in EUT and the radio output power is unable to adjust. The brief circuit description is listed as follows: - U1 and its associated circuit act as an encoder. - Y1 and its associated circuit act as an oscillator. TEST REPORT Report No. : AN0019922(1) Date : 2011-04-27 Page 4 of 11 FCC ID: PIYV0070-11A2T 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AN0019922(1) Date : 2011-04-27 Page 5 of 11 FCC ID: PIYV0070-11A2T 1.3 List of measuring equipment Equipment Manufacturer Model No. Serial No. Calibration Due Date EMI Test Receiver R&S ESCS30 100001 2011 Apr 23 Broadband Antenna Schaffner CBL6112B 2692 2011 May 31 Loop Antenna EMCO 6502 00056620 2011 Aug 24 Coaxial Cable Schaffner RG 213/U N/A 2011 Aug 03 Coaxial Cable Schner RG 214/U N/A 2011 A…

Text truncated - open the document above for the full version.

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Bandwidth Plot Bandwidth 1 Bandwidth 2

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle 3 Duty Cycle 4
