PIYV0098-11A2TRC HW GYMKHANA CAR

Mattel Asia Pacific Sourcing Ltd.
RC HW GYMKHANA CAR - FCC ID PIYV0098-11A2T - Mattel Asia Pacific Sourcing Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Apr 06, 2011
Application Purpose
Original Equipment
Date of Application
Apr 06, 2011
Equipment Note
RC HW GYMKHANA CAR
Frequency Range
27.14500000 - 27.14500000
Company
Mattel Asia Pacific Sourcing Ltd.
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

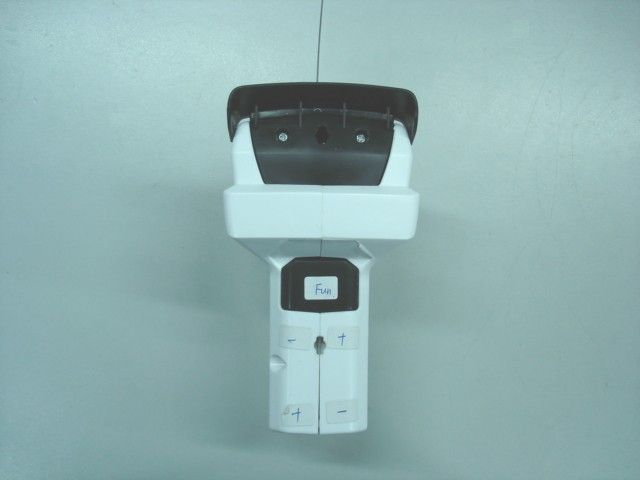

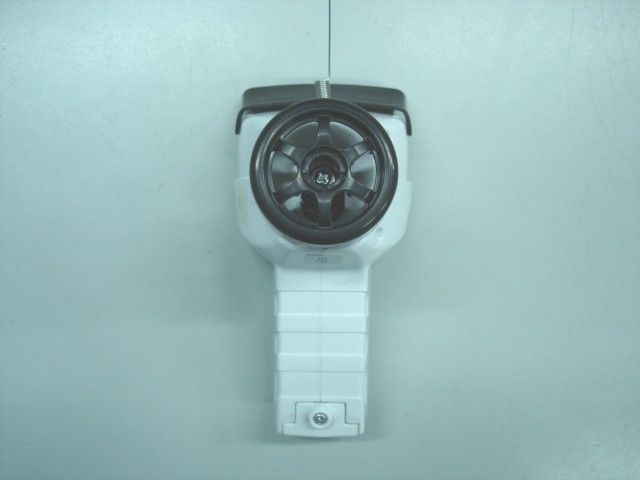

External Photos

↗
↗

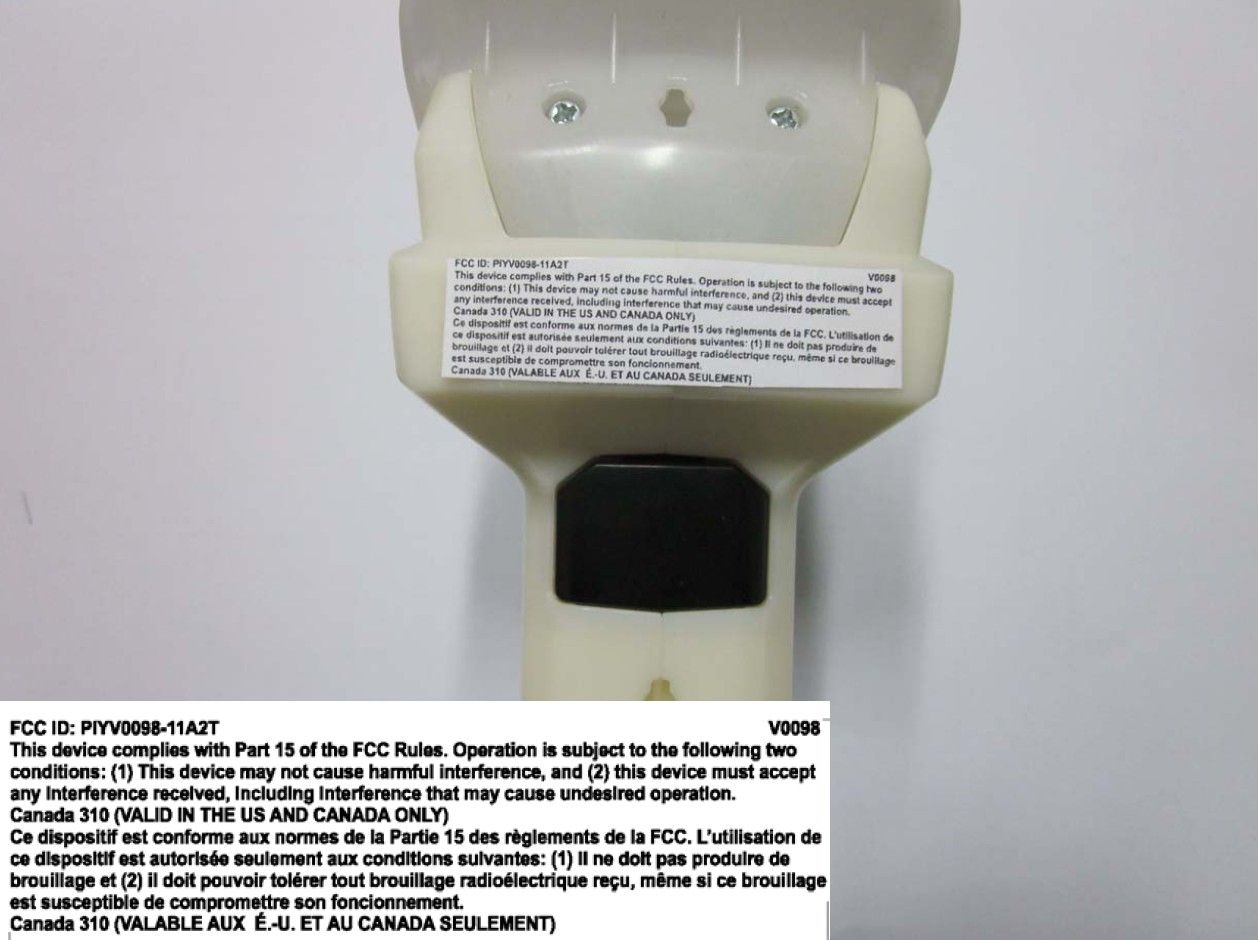

ID Label/Location Info

↗

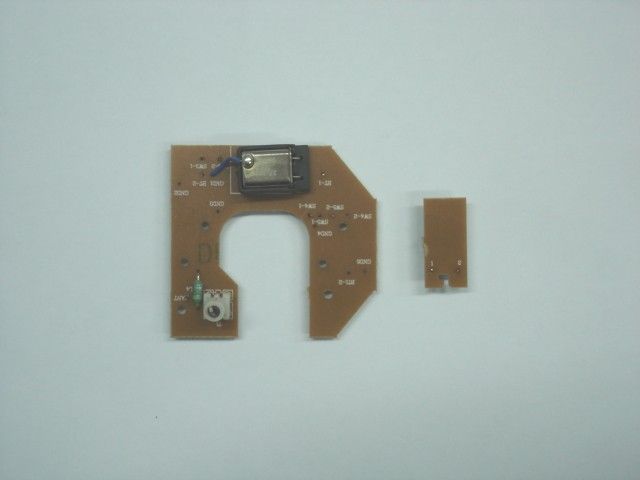

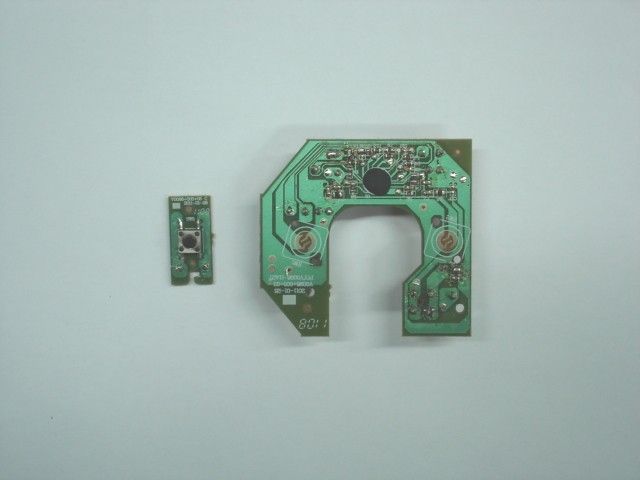

Internal Photos

↗
↗

Operational Description

↗

Schematics

↗

Test Report

↗
↗
↗

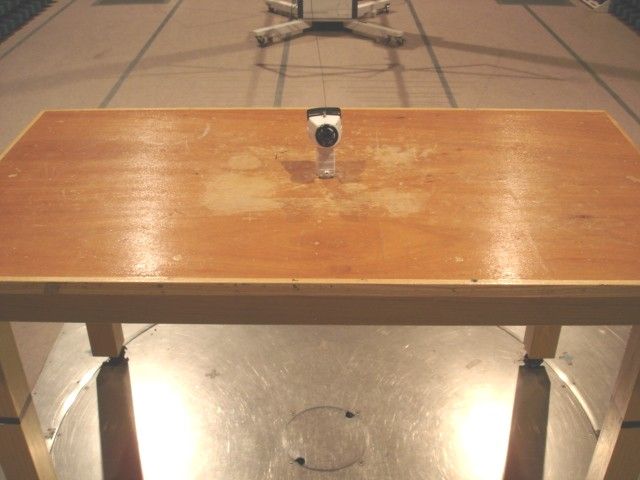

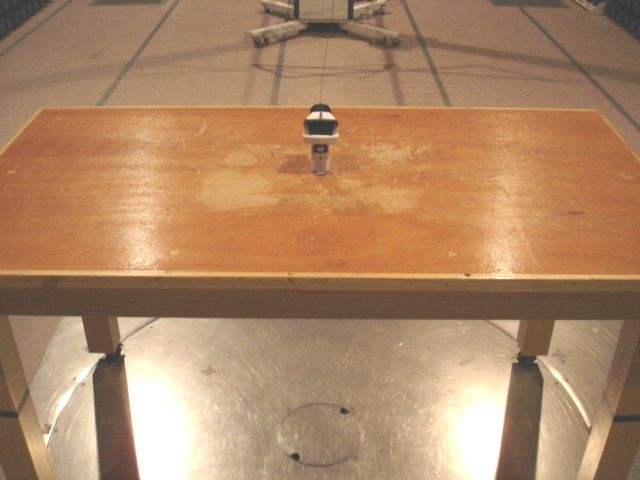

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. CAUTION: To prevent entanglement, keep all hair away from the wheels. I. CONTENTS/ FEATURES Vehicle Transmitter Steering wheel Battery cover ON (I) / OFF (0) Steering adjuster Tight Drift Button 8+ ® 1 2 3 4 5 V0098-0920 IO 2 4 3 5 1 2 V0098-0920 .indd 13/28/11 7:43:38 PM II. BATTERY INSTALLATION (Transmitter & Vehicle) Requires 6 AA alkaline batteries for the vehicle and 2 AA alkaline batteries for the transmitter. Batteries not included. Vehicle 1. Unscrew the battery cover with a Phillips head screwdriver (not included). 2. Your vehicle requires 6 AA alkaline batteries. Install with polarity (+/-) as shown inside the battery compartment. 3. Replace battery cover and tighten screw. Transmitter 1. Unscrew the battery cover with a Phillips head screwdriver (not included). 2. Transmitter requires 2 AA alkaline batteries. Install with polarity (+/-) as shown inside the battery compartment. 3. Replace battery cover and tighten screw. NOTE: Once the batteries are installed the transmitter will always be “ON” and will work automatically the moment you use it. III. OPERATION WIDE DRIFT RIGHTFORWARD REVERSETIGHT DRIFT RIGHT 2 X AA 6 X AA One-touch tight drifts! One-touch tight drifts! WIDE DRIFT LEFT TIGHT DRIFT LEFT V0098-0920 .indd 23/28/11 7:43:39 PM IV. QUICK TIPS 1 When your vehicle starts to lose power, it may lose functionality or performance. It’s time for fresh batteries. Your vehicle’s running time may change depending on your driving style. 2 Radio interference can affect your vehicle's performance. Interference can be caused by other R/C vehicles running on the same frequency, electrical wires, large buildings or CB radios. Try to stay away from these! 3 Point your transmitter up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. 4 Don't drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe it with a towel and allow to dry completely overnight. 5 Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. 6 If the vehicle malfunctions, please turn the power OFF and ON again. This should reset your vehicle and let you resume normal operation. V. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged (if designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (if designed to be removable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. Battery Performance Note: For best performance use regular or high-performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon- zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. VI. CONSUMER INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up the vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. V0098-0920 .indd 33/28/11 7:43:43 PM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifications not expressly approved by the manufacturer responsible for complian…

Text truncated - open the document above for the full version.

Block Diagram

ABCD DCBA Title Number Revision Size B Date: 28-Feb-2011 Sheet of File: C:\Documents and Settings\chlayoutteam\ ோ૿ \123\RCHWGH~1.DDB Drawn By: BIOCK-DIAGRAM V0098 TRANSMTTTER POWER SUPPLY 3V 2*AA ENCODER AND MODULATOR U1 CONTROL KEYS SW1,SW2,SW3,SW4 ,sw5 27.145MHZ OSC ILLATOR Y1 MATCHINGCIRCUITT1,C13,C8 27.145MHz ANTENNA RC HW GHMKHANA CAR (MATTEL) V0098 00 ZHL

Operational Description

V0098 HW Gymkhana Car 27.145MHz TRANSMITTER OPERATIONAL DESCRIPTION The HW Gymkhana Car radio control transmitter is a low powered, hand held unit for controlling the movement of a toy car .The transmitter is powered by 3 volt AA batteries .It is designed to operate on a single fixed frequency in the 26.98---27.28MHz band. See the attached block diagram and schematic. Input switches trigger integrated circuit (U1) which produces the digital control signals which will modulate the carrier signal. The carrier signal is generated by a crystal oscillate circuit comprised of a 27.145MHz crystal (Y1). The RF carrier signal is modulated by the digital control signal from Ul’s PIN RFO . The modulated output of PIN RFO is capacitively coupled (via C7 )to the antenna through a “Pi” matching network comprised of C13、C22 and T1 .The antenna is 350mm long and permanently attached. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the User .No external ground is required or used with this transmitter.

Test Report

TEST REPORT Report No. : AN0016243(5) Date : 2011-04-07 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PIYV0098-11A2T Application No. : LN004114(0) Applicant : Mattel Asia Pacific Sourcing Ltd. 1301, South Tower, World Finance Center, Harbour City, Tsimshatsui, Hong Kong Sample Description : One(1) item of submitted sample stated to be RC HW Gymkhana Car of Model No. V0098 Radio Frequency : 27.145MHz Transmitter Rating : 2 x 1.5V AA size batteries No. of submitted sample : Two (2) piece (s) Date Received : 2011-02-22. Test Period : 2011-02-24. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AN0016243(5) Date : 2011-04-07 Page 2 of 11 FCC ID: PIYV0098-11A2T Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 5 2 Description of the radiated emission test ................................................................................................... 6 2.1 Test Procedure .................................................................................................................................... 6 2.2 Test Result .......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................... 7 3 Description of the Line-conducted Test ..................................................................................................... 8 3.1 Test Procedure .................................................................................................................................... 8 3.2 Test Result .......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................ 8 4 Photograph ................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................... 9 4.2 Photographs of the External and Internal Configurations of the EUT................................................ 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ......................................................................................................................................... 10 5.2 Duty cycle ......................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................. 10 6 Appendices...............................................................................................................................................11 TEST REPORT Report No. : AN0016243(5) Date : 2011-04-07 Page 3 of 11 FCC ID: PIYV0098-11A2T 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC HW Gymkhana Car. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. There are a steering wheel and a button on the EUT. When the steering wheel is triggered or the button is pressed, the EUT will transmit different radio control signal to receiver. The antenna is permanently attached in EUT and the radio output power is unable to adjust. The brief circuit description is listed as follows: - Y1 and its associated circuit act as an oscillator. - U1 and its associated circuit act as an encoder. TEST REPORT Report No. : AN0016243(5) Date : 2011-04-07 Page 4 of 11 FCC ID: PIYV0098-11A2T 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AN0016243(5) Date : 2011-04-07 Page 5 of 11 FCC ID: PIYV0098-11A2T 1.3 List of measuring equipment Equipment Manufacturer Model No. Serial No. Calibration Due Date EMI Test Receiver R&S ESCS30 100001 23 Mar, 2011 Broadband Antenna Schaffner CBL6112B 2692 31 May, 2011 Loop Antenna EMCO 6502 00056620 24 Aug, 2011 Coaxial Cable Schaffner RG 213/U N/A 03 Aug, 2012 Coaxial Cable Suhner RG 214/U…

Text truncated - open the document above for the full version.

Test Report

Job No.: J  Assignment No.: Reference No.:  Application No.: Sample No.: R  Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Bandwidth Plot Bandwidth 1 Bandwidth 2

Test Report

Job No.: J  Assignment No.: Reference No.:  Application No.: Sample No.: R  Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: J  Assignment No.: Reference No.:  Application No.: Sample No.: R  Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle 3 Duty Cycle 4

Contact Information

Applicant

Joule Mak(Director, Electronic Engineering)
[email protected]31855000Fax: 27353758

Test Firm

CMA Industrial Development Foundations LimitedAndrew Wong
[email protected]852-2698-8198Fax: 852-2695-4177

Technical Specifications

#Rule PartsFrequency RangePower Output
115C27.145 MHz - 27.145 MHz-
