ID. V1579-0910 ID. V1579-0910G1 R/C Cranky & Motorized Flynn Complete Set As seen on Introducing Flynn! Motorized Fire Engine! 3 position crane arm R o t a t e s 3 6 0 º 3+ Raise & Lower Hook! You Control The Action! Flynn puts out the fire! TM TM TM TM Multiple TrackMaster™ sets were used to create this layout. Playsets and accessories sold separately. Subject to availability. Create the world of Thomas & Friends™Create the world of Thomas & Friends™ with TrackMaster™ sets and accessories! www.fisher-price.com/thomasandfriends Requires 5 "AA" (LR6) alkaline batteries, 1 for Flynn and 4 for Cranky, 3 "AAA" (LR03) alkaline batteries for remote control, not included. Dispose of batteries safely. ADULT ASSEMBLY REQUIRED. Phillips screwdriver required, not included. Frequency: 27MHz Colors and Decorations May Vary. NOTE: Adults should remove & discard rubber bands holding tracks together. WARNING: Small parts may be generated.WARNING: Long cord. Strangulation hazard. This product contains magnets.Do not use around items that aresensitive to or affected by magnetic fields. ID. V1579-0910G2 R/C Cranky & Motorized Flynn Complete Set Flynn puts out the fire! Flynn charges out of his cargo crate! Use the remote to raise & lower the hook! R/C Cranky & Motorized Flynn Complete Set R/C Cranky & Motorized Flynn Complete Set In the new Thomas & Friends DVD movie “ Day of the Diesels ", a fire breaks out on the Island of Sodor! Save the day by helping Cranky unload a special delivery, the brand new fire engine Flynn. Use the remote control to drop off the special loading crate which pops open and sends Flynn racing to the rescue! Together you, Cranky and Flynn can save the day! R/C Cranky & Motorized Flynn Complete Set Flynn charges out of his cargo crate! Includes full loop of Track! Lift and load! Cargo Car & Crate I’m Cranky! TM ID. V1579-0910G1 TO SEE ACTUAL SIZE! LIFT! Easy-to use Remote! YOU control Cranky! New Motorized Flynn! R/C Cranky & Motorized Flynn Complete Set I load, you deliver! EASY-TO-USE REMOTE CONTROL! EASY-TO-USE REMOTE CONTROL! Raise & Lower Crane Hook! Rotate Cranky Left & Right! Help Cranky Drop Off Cargo With One Press! R o t a t e s 3 6 0 º ! Remote Controlled Crane! Based on the Railway Series by The Reverend W Awdry. © 2011 Gullane (Thomas) Limited. Thomas the Tank Engine & Friends and Thomas & Friends aretrademarks of Gullane (Thomas) Limited. © HIT Entertainment Limited. HIT and the HIT logo are trademarks of HIT Entertainment Limited. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052, U.S.A. MADE IN CHINA. Manufactured for Fisher-Price. © 2011 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated. CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963. Mattel, Inc., 636 Girard Avenue, East Aurora, NY 14052, U.S.A. Retain this address for future reference. Mattel UK Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628 500303. Mattel Europa, B.V., Gondel 1, 1186 MJ Amstelveen, Nederland. Mattel Australia Pty. Ltd., Richmond, Victoria. 3121. Consumer Advisory Service - 1300 135 312. Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel: 03-78803817, Fax: 03-78803867. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This Category II radio communication device complies with Industry Canada Standard RSS-310. • Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d’Industrie Canada. • Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. • L’utilisation de ce produit est sujette aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) il doit pouvoir tolérer tout brouillage reçu, même si ce brouillage est susceptible de compromettre son fonctionnement. Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. V1579 Please keep these instructions for future reference as they contain important information. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy (product). To avoid battery leakage: •…

Text truncated - open the document above for the full version.

TM INSTRUCTIONS Please keep these instructions for future reference as they contain important information. ID.V1579-0920 BATTERY SAVE MODE If Cranky is not played with for more than 20 minutes, he will automatically shut-off to preserve battery life. To resume play, set the ON/OFF switch on Cranky’s cab to OFF and then ON again to resume play. BATTERY INSTALLATION Unscrew and lift cover away from products. Install battery as indicated inside the battery compartment. For longer life use only alkaline batteries. Requires 5 “AA” (LR6) and 3 “AAA” (LR03) batteries. If this toy begins to operate erratically, you may need to reset the electronics. Remove the batteries from the toy and replace it. Do not connect to more than the recommended number of power supplies. Assembly Fire Area Track Layout FlynnCranky ADULT ASSEMBLY REQUIRED. Phillips screwdriver required (not included). How To Play 1. Be sure the ON/OFF switch on the crane is in the ON position. NOTE: If you wish to play with Cranky without sound, set the switch to NO SOUNDS. 2. Be sure the ON/OFF switch on the remote is in the ON position. Now you control cranky with the remote! NOTE: For best results, make sure the remote is no further than 5 feet (1.5 m) away from Cranky while playing. Be sure to point the remote directly at Cranky with nothing in between Cranky and the remote. UP - raises the crane hook DOWN - lowers the crane hook Item No : V1579-0920 Version : EL Size : 16.54" x 11.69" (A3) Paper : Woodfree paper 80 gsm Color : Black Date : Mar 3, 2011 (WC) 1. Assemble the tower to the base using the (4) screws (included). 2. Snap the cab onto the tower. 3. Assemble the base to the Loading Area, aligning the two plugs found on the track to the pegs found on the base. NOTE: This is a one time snap. Once the cab is assembled to the tower, it cannot be taken apart. Loading Area Fire Area 3. Place the crate on the Loading Area with the cargo doors OPEN. Set the switch on the crate to the STOP position. Place “Flynn” on the track and set his switch to the ON position. Flynn drives into the rear end of the crate, stopping inside the crate. 4. Close the crate doors and use the remote to pick up the crate with Cranky's hook. 7. As Flynn continues on the track he can either drive through the crate if the switch is set to GO or re-load into the crate if the switch is set to STOP. 9. Manually raise and lower the angle of the crane arm using the tabs on the side of Cranky’s cab. For your safety, always remove the crate from the hook before adjusting the crane arm angle. 6. As Flynn races by the fire he will knock over the flame tab and “put out the fire”! RIGHT - rotates the crane head counter clockwise LEFT - rotates the crane head clockwise LOAD - aligns Cranky with the Loading Area ON OFF LOAD Once the crate is raised, use the remote control to turn Cranky Left and Right. When you want to load Flynn onto the tracks, line the crate up with the loading area and lower it onto the loading surface. NOTE: At any time you can press the LOAD button on the remote to automatically align Cranky with the Loading Area. DOWN Lower the crate to the Loading Area using the remote to control Cranky. NOTE: Adults should remove & discard rubber bands holding tracks together. ONOFF 1,5V x 1 “AA” (LR6) 1,5V x 4 “AA” (LR6) Remote Control 1,5V x 3 “AAA” (LR03) ON OFF To prevent entanglement, keep hair away from wheels. CAUTION: OFF NO SOUND NORMAL NO SOUND NORMAL STOPGO Safety Breakaway Plug STOPGO ON 8. You can also load and unload the small cargo crate using the magnet found at the end of Cranky’s hook. 5. When the crate is lowered onto the base, the doors will open and Flynn will drive out of the crate and onto the tracks. V1579 Based on the Railway Series by The Reverend W Awdry. © 2011 Gullane (Thomas) Limited. Thomas the Tank Engine & Friends and Thomas & Friends are trademarks of Gullane (Thomas) Limited © HIT Entertainment Limited. HIT and the HIT logo are trademarks of HIT Entertainment Limited. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. PRINTED IN CHINA. Manufactured for Fisher-Price. © 2011 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated. Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. 0979 27MHz Hereby, Mattel declares that the toy is in compliance with the essential requirements and other relevant provisions of Directives 99/5/EC, 2004/108/EC, 88/378/EEC. Suitable for use in all EU member states. A copy of the Declaration of Conformity may be obtained from Mattel Europa, B.V., Gondel 1, 1186 MJ Amstelveen, Nederland.

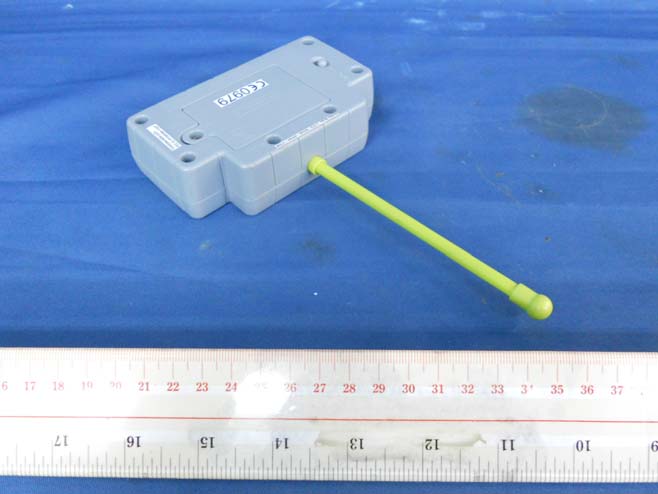

INTERTEK TESTING SERVICE Report No.: HK11041502-1 FCC ID: PIYW5394-11A2T Equipment Photographs Model : V1579 (External)

FCC ID: PIYW5394-11A2T Model: V1579 Labeling Artwork 14mm

INTERTEK TESTING SERVICE Report No.: HK11041502-1 FCC ID: PIYW5394-11A2T Equipment Photographs Model: V1579 (Internal) INTERTEK TESTING SERVICE Report No.: HK11041502-1 FCC ID: PIYW5394-11A2T Equipment Photographs Model: V1579 (Internal) INTERTEK TESTING SERVICE Report No.: HK11041502-1 FCC ID: PIYW5394-11A2T Equipment Photographs Model: (Internal)

INTERTEK TESTING SERVICES Report No. : HK11041502-1 Sample No. : 1/1 Code: FCC15C_e / Effective Date: 20 Dec 2010 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement
