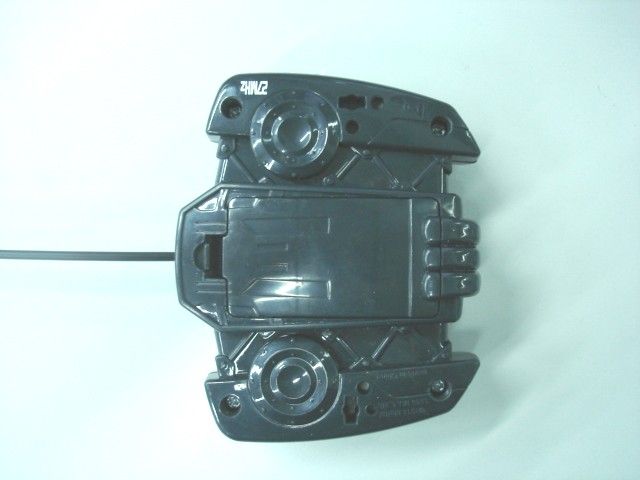

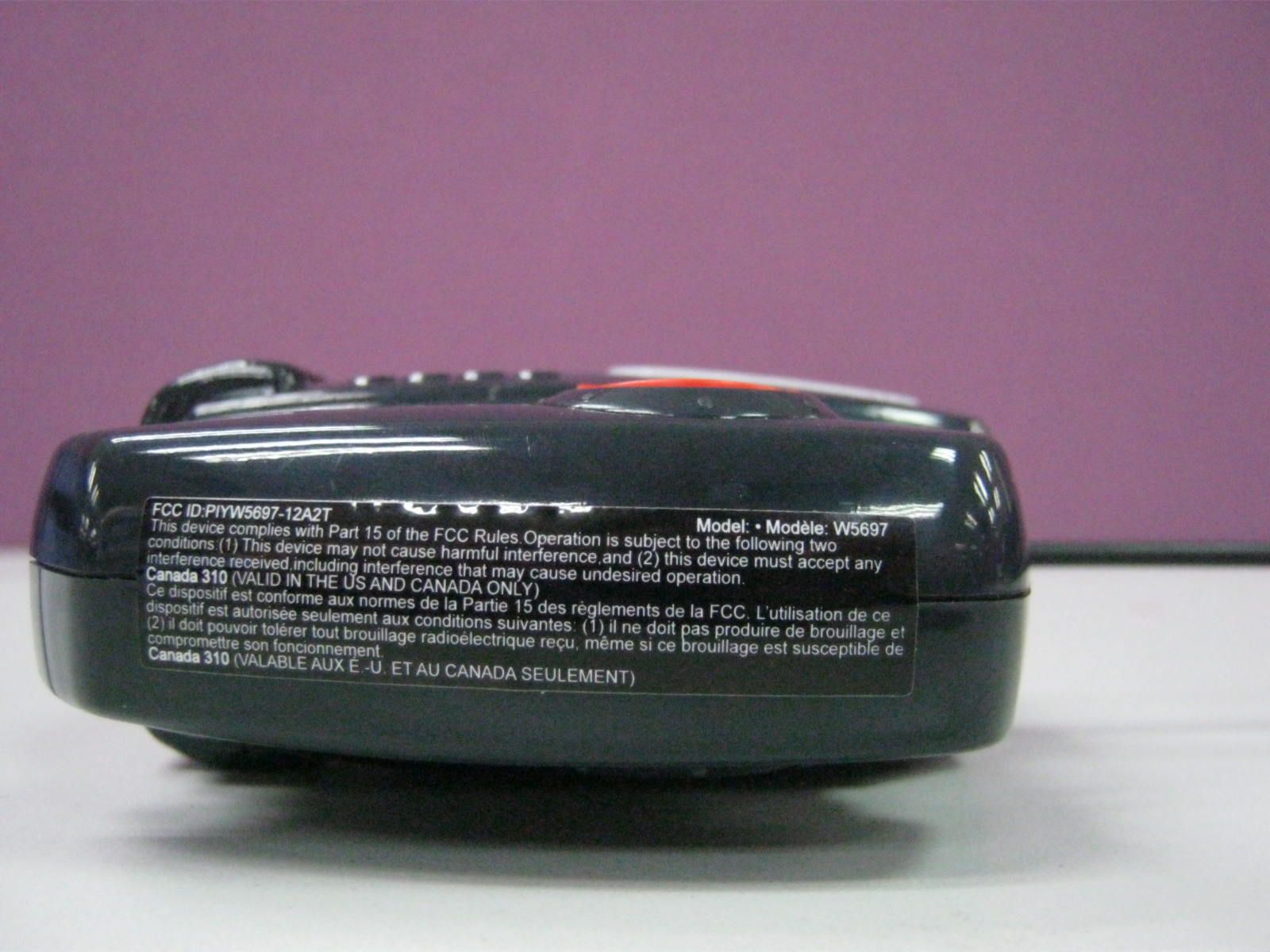

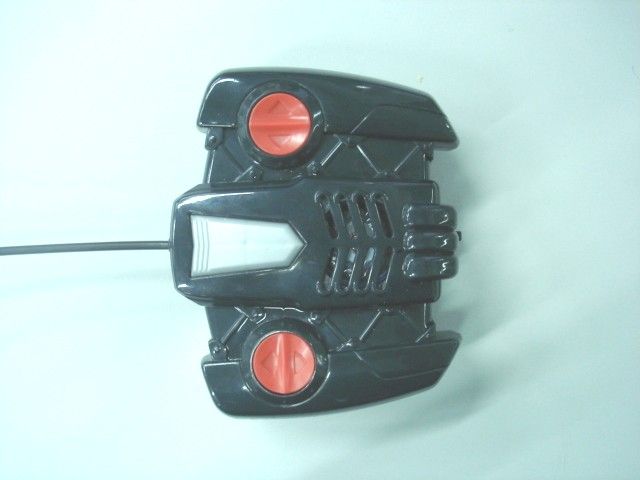

PIYW5697-12A2TRC ANNV MONSTER JAM VEHIC

ENG ENG ESP ESP F F CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. PRECAUCIÓN: Las superficies se pueden calentar y causar quemaduras si las piezas electrónicas se mojan. No usar el vehículo en agua ni nieve. MISE EN GARDE : Les surfaces peuvent devenir chaudes et causer des brûlures si les composants électroniques sont mouillés. Ne pas utiliser le véhicule dans l'eau ou la neige. CAUTION: To prevent entanglement, keep all hair away from the wheels. PRECAUCIÓN: Para evitar lesiones, mantener el cabello alejado de las ruedas. MISE EN GARDE : Pour éviter tout risque d'enchevêtrement, tenir les cheveux éloignés des roues. Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. Leer y guardar estas instrucciones para futura referencia, ya que contienen información de importancia acerca de este producto. IMPORTANTE: leer toda la "Información al consumidor" antes de usar el vehículo. Conserver ce mode d'emploi pour s'y référer en cas de besoin car il contient des informations importantes. IMPORTANT : Lire tous les «Renseignements pour les consommateurs» avant d'utiliser le véhicule Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. Proteger el medio ambiente no desechando este producto en la basura del hogar (2002/96/ EC). Consultar con la agencia local pertinente en cuanto a información y centros de reciclaje. Protéger l'environnement en ne jetant pas ce produit avec les ordures ménagères (2002/96/ EC). Consulter la municipalité pour obtenir des conseils sur le recyclage et connaître les centres de dépôt de la région. © Disney/Pixar Cet appareil est conforme à l'article 15 de la réglementation de la FCC. L'utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage nuisible, et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. • Cet équipement a été testé et jugé conforme aux limites de Classe B pour un appareil numérique, en vertu de l'article 15 de la réglementation de la FCC. Ces limites ont été instaurées pour fournir une protection raisonnable contre toute interférence nuisible dans une installation Este dispositivo cumple con la Parte 15 del reglamento FCC. El uso está sujeto a las siguientes dos condiciones: (1) Este dispositivo no debe causar interferencia dañina y (2) este dispositivo debe aceptar cualquier interferencia recibida, incluyendo interferencia que puede resultar en el uso indeseado del producto. • Este equipo fue probado y cumple con los límites de un dispositivo digital de Clase B, según está establecido en la Parte 15 del reglamento FCC. Estos límites están diseñados para proporcionar una protección razonable contra interferencia dañina en una instalación residencial. Este equipo genera, utiliza y puede emitir energía de frecuencia de radio y, de no instalarse y utilizarse conforme a las instrucciones, podría ocasionar interferencia dañina a comunicaciones de radio. Sin embargo, no hay ninguna garantía de que no haya interferencia en una instalación particular. Si este equipo causa interferencia dañina a un receptor de radio o televisión, lo cual se puede determinar encendiendo y apagando el equipo, se le invita al usuario a tratar de corregir dicha interferencia tomando una o más de las siguientes medidas: • Cambiar la orientación o localización de la antena receptora. • Aumentar la distancia entre el equipo y el receptor. • Conectar el equipo en un tomacorriente en un circuito diferente al del receptor. • Ponerse en contacto con el distribuidor o con un técnico de radio/TV. ATENCIÓN: Los cambios o modificaciones no expresamente autorizados por el fabricante responsable del cumplimiento de las normas puede cancelar la autoridad del usuario de usar el equipo. résidentielle. Cet équipement génère, utilise et peut émettre de l'énergie radiofréquence. S'il n'est pas installé et utilisé conformément aux instructions, il peut provoquer des interférences sur les communications radio. Cependant, il n'est pas garanti que des interférences ne se produiront pas dans certaines installations. Si cet équipement cause des interférences à la réception radio ou télévisée (ce qui peut être vérifié en éteignant l'appareil puis en le remettant sous tension), l'utilisateur peut tenter de les résoudre en suivant une ou plusieurs des mesures ci-après : • Réorienter ou déplacer l'antenne réceptrice. • Augmenter l'espace entre l'appareil et le récepteur. • Brancher l'appareil sur une prise de courant différente de celle sur laquelle le récepteur est branché. • Pour obtenir de l'aide, contacter le vendeur ou un technicien radio/ télévision expérimenté. REMARQUE : Tout changement ou modification de cet appareil n'ayant pas été expressément approuvé par les parties responsables de sa conformité peut entraîner l'annulation du droit d'exploitation de l'équipement par l'utilisateur. RSS - 310 (Canada) (VALID FOR CANADA ONLY - VALABLE AU CANADA SEULEMENT) COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and…

Text truncated - open the document above for the full version.

Block Diagram of W5697 Transmitter

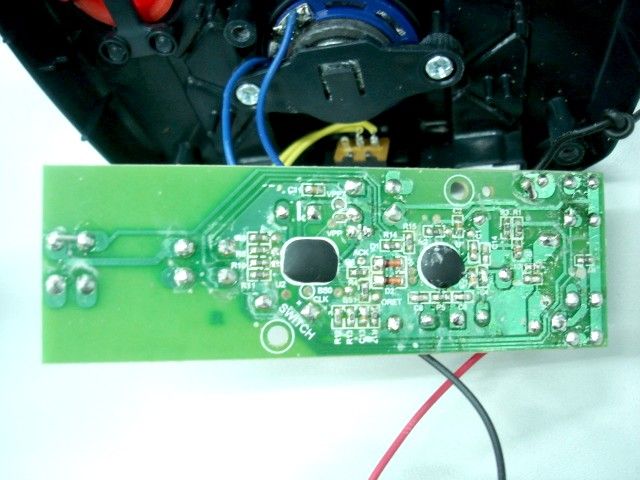

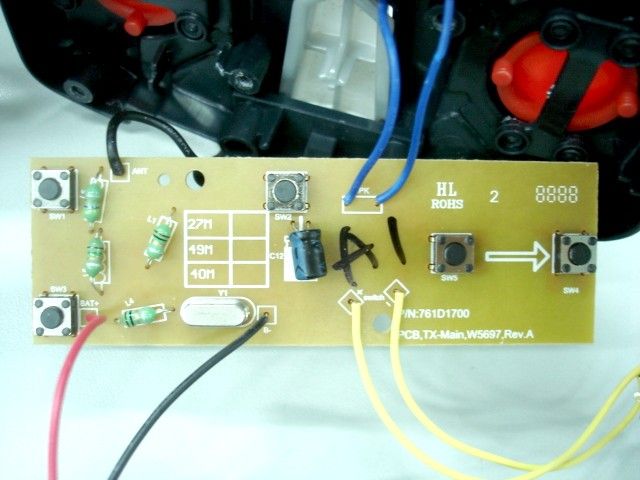

Operation Description for W5697 FCC ID: FIYW5697-12A2T The Monster Jam transmitter is powered by 2 x 1.5V batteries, if it is switched to try me mode, the MCU will play sound effect only the a key is pressed. However, if it is in normal model, the speech MCU will not only play sound effect but also send control signal to the IC U1 when a key is pressed. The IC U1 is an encoder and modulator which can generate different codes signal to control receiver. The carrier frequency, 27.145MHz, is provided by the crystal Y1, the antenna is matched with L4, L5, L6, C9 and C4.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Distributed to SMT: No Yes Rev.: on demand. Ltd./Radica Games Ltd., and must be returned detrimental to the interest of Radica China covenants it will not be used in any manner Games Ltd. This print is loaned and recipient express consent of Radica China Ltd./Radica others, in part or in whole, without the reproduced, revealed to or appropriated by confidence and is not to be copied, Games Ltd. This information is disclosed in is the property of Radica China Ltd./Radica pertaining to the article shown on this sheet All design, operative and process data Description: Model No.: Drawn by: Checked by: Approved by: Drawing No.: Date: Date: Date: INNOVATIONS RADICA: A MEMBER OF RADICA GAMES GROUP Sheet of Changed byDateDescriptionRev. A A11 W5697 zhangfei09.14.11 inntial release BAT AAx2 29mm 16 OHM 0.25W Speaker VCC C12 100uF-6*8 4.7RR7 RES-0603 104 C11 0603 390K R13 RES-0603 0R R12 RES-0603 2.2K R11 RES-0603 2.2K R10 RES-0603 2.2K R9 RES-0603 2.2K R8 RES-0603 1M R17 RES-0603 FORWARD SW1Insert SOUND SW2Insert BACKWARD SW3 Insert TRY ME/ NORMAL SS-12F15-B 104 C1 0603 PRB2 12 VDD1 7 VDD2 19 PRA0 3 GND1 2 PRB0/OSC2 10 PWM1 1 PWM2/COUT 27 OSCI 8 PRA1 4 PRA2 5 PRB3/RESET 13 GND2 9 PRB1/IR 11 PRA3 6 GND3 14 GND4 24 GND5 26 PRC0 15 PRC1 16 PRC2 17 PRC3 18 PRD0 20 PRD1 21 PRD2 22 PRD3 23 VPP 25 VDD3 28 U2 AM4EA031A-Dice 104 C13 0603 VPP ORET ACK BS0 BS1 CLK BS0/BS1/ACK/ORET/CLK/VPP/ VDD /GND for OTP program userd 12 JP1 VDD 1 DI0 2 OSCI 3 OSCO 4 RFO 5 VSS 6 DOUT 7 DI1 8 ROSC 10 DI3 11 DI4 12 DI2 9 U1 GPRC205A-Dice R3 4.7-0603 C2 0.1uF-0603 C6 47P-0603 C8 22P-0603 C3 0.1uF-0603 C9 100P-0603 C10 NA-0603 R5 2.2M-0603 R1 4.7-0603 L1 1uH-EC24 L4 1.0uH-EC24 L6 1.5uH-EC24 L5 4.7uH-EC24 Y127.145MHz 49S R2 200K-0603 C4 100P-0603 E1 ANTENNA C5 200P-0603 R4 1K-0603 R6 1K-0603 R141K-0603 R151K-0603 Left Insert Right Insert D1 IN4148 D2 IN4148 C14 N/A-0603 HW RC 6V SPORTS CAR 27MHz TX 761-D1710 zhangfei 09.14.11

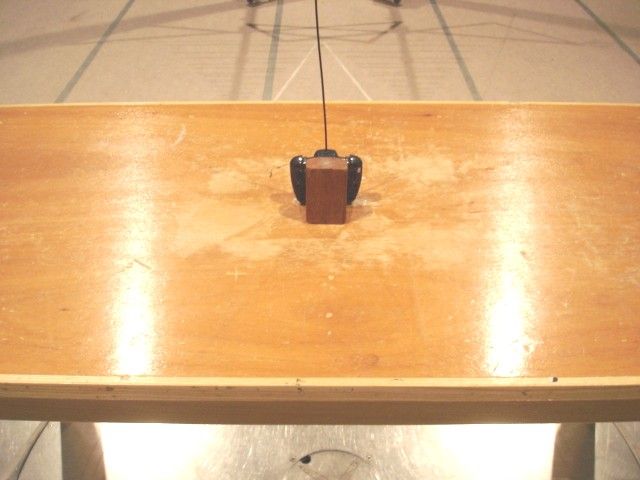

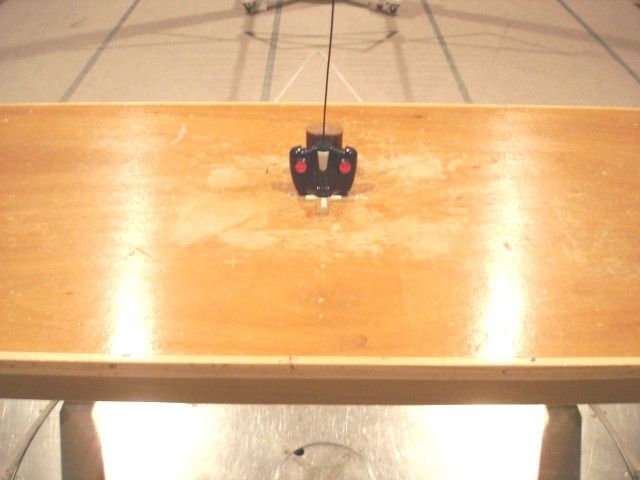

TEST REPORT Report No. : AN0054419(1) Date : 04 Oct 2011 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PIYW5697-12A2T Application No. : LN030478(0) Applicant : Mattel Asia Pacific Sourcing Ltd. 1301, South Tower, World Finance Center, Harbour City, Tsimshatsui, Hong Kong Sample Description : One(1) item of submitted sample stated to be RC ANNV MONSTER JAM VEHIC of Model No. W5697 Radio Frequency : 27.145MHz Transmitter Rating : 2 x 1.5V AA size batteries No. of submitted sample : Two (2) piece (s) Date Received : 05 Sep 2011. Test Period : 23 Sep 2011 to 30 Sep 2011. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-10 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AN0054419(1) Date : 04 Oct 2011 Page 2 of 11 FCC ID: PIYW5697-12A2T Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 5 2 Description of the radiated emission test ................................................................................................... 6 2.1 Test Procedure .................................................................................................................................... 6 2.2 Test Result .......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................... 7 3 Description of the Line-conducted Test ..................................................................................................... 8 3.1 Test Procedure .................................................................................................................................... 8 3.2 Test Result .......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................ 8 4 Photograph ................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................... 9 4.2 Photographs of the External and Internal Configurations of the EUT................................................ 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ......................................................................................................................................... 10 5.2 Duty cycle ......................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................. 10 6 Appendices...............................................................................................................................................11 TEST REPORT Report No. : AN0054419(1) Date : 04 Oct 2011 Page 3 of 11 FCC ID: PIYW5697-12A2T 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC ANNV MONSTER JAM VEHIC. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. There are four buttons on the EUT. When the button are pressed, the EUT will transmit radio control signal to the receiver. The antenna is permanently attached in EUT and the radio output power is unable to adjust. The brief circuit description is listed as follows: - U1 and its associated circuit act as an encoder. - Y1 and its associated circuit act as an oscillator - U2 and its associated circuit act as a sound IC. TEST REPORT Report No. : AN0054419(1) Date : 04 Oct 2011 Page 4 of 11 FCC ID: PIYW5697-12A2T 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AN0054419(1) Date : 04 Oct 2011 Page 5 of 11 FCC ID: PIYW5697-12A2T 1.3 List of measuring equipment Equipment Manufacturer Model No. Serial No. Calibration Due Date EMI Test Receiver R&S ESCI 100152 16 May 2012 Broadband Antenna Schaffner CBL6112B 2718 31 Oct 2012 Loop Antenna EMCO 6502 91072651 19 Apr 2012 Coaxial Cable Schaffner RG213/U N/A 03 Aug 2012 Coaxial…

Text truncated - open the document above for the full version.

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Bandwidth Plot Bandwidth 1 Bandwidth 2

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle 3 Duty Cycle 4
