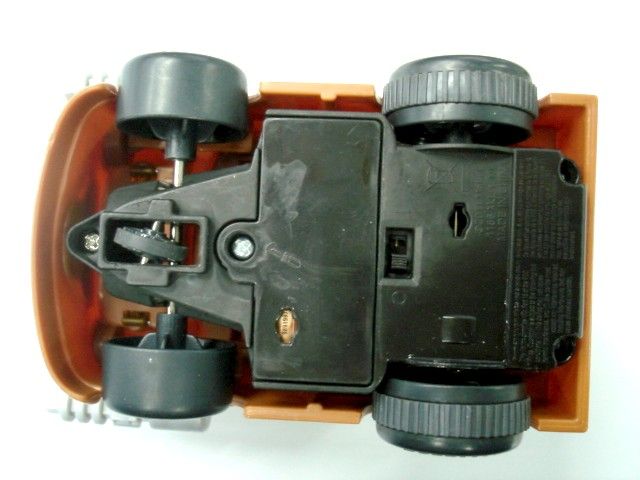

PIYX7264-12A4RRC CARS MINI MATER REFRESH

Keep these instructions for future reference as they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. CAUTION: To prevent entanglement, keep all hair away from the wheels. 1 Forward 2 Reverse left 3 Battery cover 4 ON(I) / OFF(O) X7261 Francesco X7262 Lightning McQueen X7264 Mater X7265 Jeff Gorvette X7263 Finn McMissile This set includes: 1 vehicle, 1 transmitter, 1 antenna tube. I. CONTENTS/ FEATURES Asst.X7260 X7261/X7262/X7263/X7264/X7265-0920 3+ ® A. Insert flexible antenna wire through antenna tube, then insert end of tube firmly into transmitter hole. B. Tie a knot at the end of the flexible antenna wire to keep the tube in place. Antenna tube 3 4 O I 3 4 O I 3 4 O I 3 4 O I 3 4 O I 1 2 3 II. BATTERY INSTALLATION (Transmitter & Vehicle) Requires 2 AAA alkaline batteries for the vehicle and 2 AA alkaline batteries for the transmitter. Batteries not included. Vehicle 1. Unscrew the battery cover with a Phillips head screwdriver (not included). 2. Your vehicle requires 2 AAA alkaline batteries. Install with polarity (+/-) as shown inside the battery compartment. 3. Replace battery cover and tighten screw. Transmitter 1. Remove battery cover as shown. 2. Transmitter requires 2 AA alkaline batteries. Install with polarity (+/-) as shown inside the battery compartment. 3. Replace battery cover and push shut. NOTE: Once the batteries are installed the transmitter will always be “ON” and will work automatically the moment you use it. III. OPERATION FORWARDREVERSE LEFT 2 x AAA 2 x AA IV. QUICK TIPS 1 When your vehicle starts to lose power, it may lose functionality or performance. It’s time for fresh batteries. Your vehicle’s running time may change depending on your driving style. 2 Radio interference can affect your vehicle's performance. Interference can be caused by other R/C vehicles running on the same frequency, electrical wires, large buildings or CB radios. Try to stay away from these! 3 Point your transmitter up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. 4 Don't drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe it with a towel and allow to dry completely overnight. 5 Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. 6 If the vehicle malfunctions, please turn the vehicle and transmitter's power OFF and ON again. This should reset your vehicle and let you resume normal operation. V. BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the product before being charged. • Rechargeable batteries are only to be charged under adult supervision. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product. • The supply terminals are not to be short-circuited. • Dispose of battery(ies) safely. • Do not dispose of this product in a fire. The batteries inside may explode or leak. Battery Performance Note: For best performance use regular or high-performance alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon- zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. VI. CONSUMER INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up the vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifications …

Text truncated - open the document above for the full version.

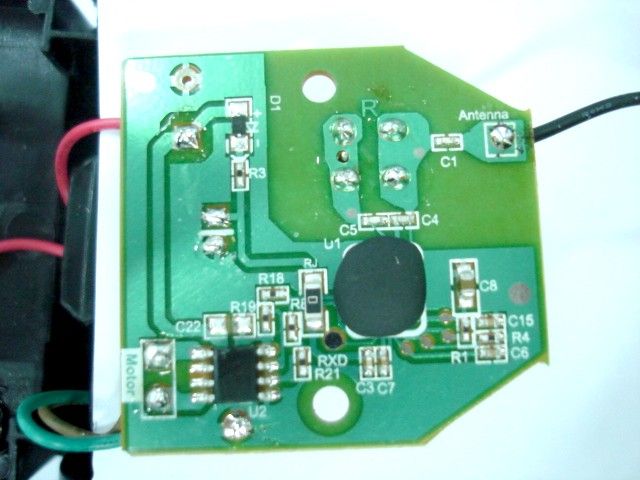

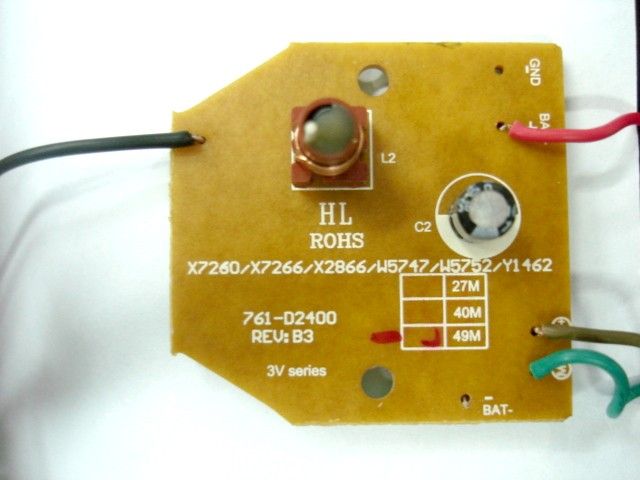

Transmitter Operational Description X7264 is used 1.5V *2 ‘AA’ batteries, it is designed to operate a single fixed frequency in the 49.860MHz band, Please see attached block diagram and schematic. Device has 2 function keys, they control receiver forward and backward. 2 keys Remote Control Encoder—W55RFS27T1B is used on transmitter. W55RFS27T1B receives key controlling signal, a encode serial bit-stream is sent out via filter and antenna. Receiver Operational Description Receiver is used 1.5V *2 ‘AAA’ batteries to supply power, Antenna receive the modulated signal, the signal is demodulated through internal IC, the demodulating signal is amplified and decoded by IC, IC send out driving signal to drive the Motor.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA 1 Standard Common part for master 0.1uF chip 50V +80-20% Y5V, 50V SMD0603 3 110 ohm +/-5% 0603 4 100 ohm +/-5% 0603 5 1K ohm +/-5% 0603 7 8 10k ohm +/-5% 0603 9 100kohm +/-5% 0603 Part ValueNo: 1IN4001PKG: DO-41 50V 2IN4148 PKG: DO-35 50V 1 S8050DNPN ( 1.5A )SOT-23.V: 40; W: 0.3; 4 B772 PNP A: 3; V: 40; Max. W: 1.25; PKG: TO-126; 1 2 S9014D NPN (1.5A )SOT-23.V: 40; W: 0.3; 5 D882 NPN A: 3; V: 40; Max. W: 1.25; PKG: TO-126; Inductor 4 Non Standard parts Guide Line (2nd priority) Qty for update SCH 1M ohm +/-5% 0603 Diode: Transistor Resistor: 5 2 8 10uF 25V +/-20% AL EL PKG:5x11mm 10 100uF 25V +/-20% AL EL PKG:5x11mm 220uF 25V +/-20% AL ELPKG:5x11mm 1000pF chip 50v +80-20% SMD 0603 10PF chip 50v +80-20% SMD 0603 25pF chip 50v +80-20% SMD 0603 4.7Kohm +/-5% 0603 6 2.2M ohm +/-5% 0603 3 Choke Coil DESC: 5.6uH 10% 1/2W 7 0.033uF 25V,Y5V ,PKG: dia 4mm x 3.5 3 S8550D PNP(1.5A )SOT-23.V: 40; W: 0.3; Capacitor 1 PTC MF-R400-0-99 47k ohm +/-5% 0603 10 6 2 20pF chip 50v +80-20% SMD 0603 9 47uF 25V +/-20% AL EL PKG:5x11mm 0.1uF 25V +80-20% Y5V, PKG: Ceramic dia 6mm x 3.5 220k ohm +/-5% 0603 History IC information:TEST MODE: REMARKS: 1 1N5817: DO-41 50V Diode: MAPS All rights reserved Using E3 value for resistor, capacitor and inductor Using E6 value for resistor, capacitor and inductor (1st priority) Non Standard parts Guide Line (3rd priority) Project Name : MAPS Engineer : Bruce Hu Standard IEC E3 Decade Value = 100, 220 & 470 Standard IEC E6 Decade value =100,150,220,330,470 & 680 Size A3 Revision Number 12/22/2011Date : File : Sheet of C:\Documents and Settings\hubruce1\Desktop\X7264 RX sch R0 20111031.SchDoc X7264 RC CARS MINI RIDES ASST FALL 2012 R0 R3 22R-0402 C3 0.01uF-0402 C2 100 uF VDD C1 7PF-0402 R4 16K -040 2 R1 36K -040 2 C15 0.047 uF-0402 C8 10u F-SMD ANTENNA GND RSAW 4 RBIAS 3 CMFB 2 GND 1 VDDA 5 OSCin 7 OSCout 8 GNDA 9 RESET 10 MODE0 11 MODE1 12 TEST 13 F2 14 F1 15 R 16 L 17 B 18 F 19 RXD 20 VSPLY 21 VDDA 6 U1 W55RFS27R1B C6 0.1uF -040 2 C4 20PF-0402 C5 22PF-0402 GND J1 CON1 R81K-0402 R21 4.7K-0402 R19 4.7K-0402 R18 1K-0402 VCC RX InB 7 InA 6 Vdd 2 Vdd 3 OUTA 1 OUTB 4 Vss 5 Vss 8 U2 CM8008B Motor FP130CN18100 CA1 0.1uF-0603 CA2 0.1uF-0603 CA3 0.1uF-0603 F/B C7 0.1uF -040 2 BATTERY1 AAA SIZE 1.5V *2PCS VCC D1 Schottky Diode BAT54WS--SMD C13 N/A-0805 GND L2 KB35-9.5 T 1uH Through Hole S1 Slide switch--SS12F15G6 VDD

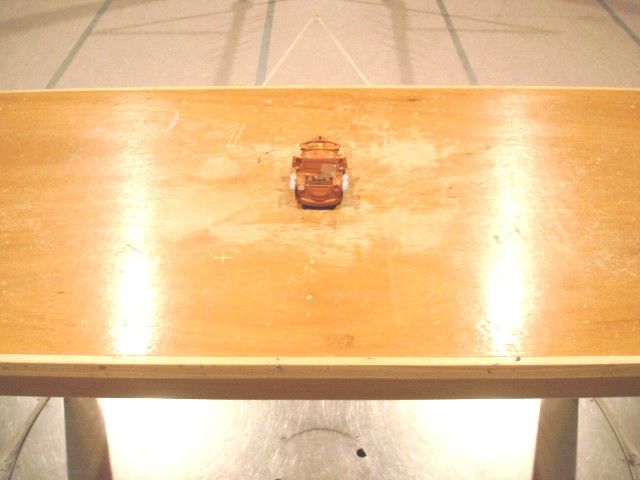

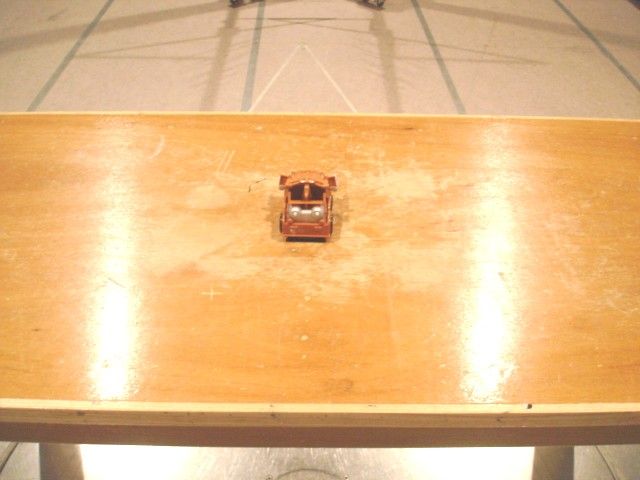

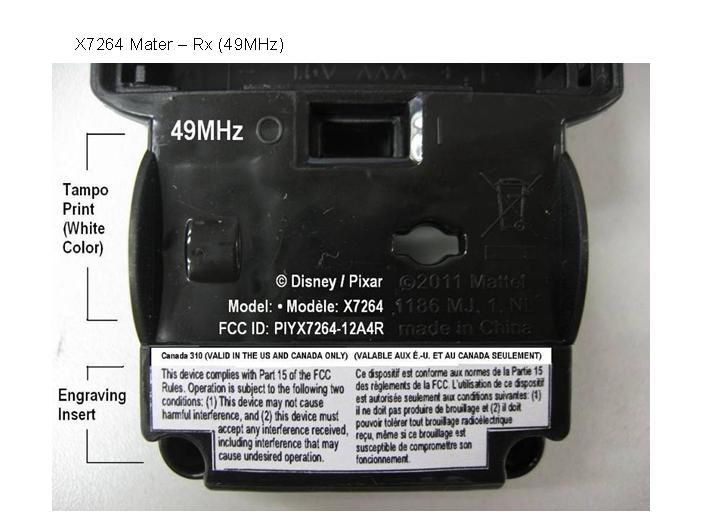

TEST REPORT Report No. : AP0003259(8) Date : 16 Jan 2012 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PIYX7264-12A4R Application No. : LN041405(3) Applicant : Mattel Asia Pacific Sourcing Ltd. 1301, South Tower, World Finance Centre, Harbour City, Tsimshatsui, Hong Kong Sample Description : One(1) item of submitted sample stated to be: Assortment Assortment no. RC CARS MINI RIDES ASST FALL 2012 X7260 Sample Description Model no. RC CARS MINI MATER REFRESH X7264 RC CARS MINI FRANCESCO REFRESH X7261 RC CARS MINI JEFF GORVETTE REFRESH X7265 Radio Frequency : 49.860MHz Receiver Rating : 2 x 1.5V AAA size batteries No. of submitted sample : One (1) piece (s) Date Received : 22 Dec 2011. Test Period : 30 Dec 2011 to 04 Jan 2012. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-10 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : All three models are the same in circuitry and components and construction; and therefore model X7264 was chose to be the representative of the test sample. The difference between the tested model and the declared model(s) are the package, color and model number. TEST REPORT Report No. : AP0003259(8) Date : 16 Jan 2012 Page 2 of 11 FCC ID: PIYX7264-12A4R Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 5 2 Description of the radiated emission test ................................................................................................... 6 2.1 Test Procedure .................................................................................................................................... 6 2.2 Test Result .......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................... 7 3 Description of the Line-conducted Test ..................................................................................................... 8 3.1 Test Procedure .................................................................................................................................... 8 3.2 Test Result .......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................ 8 4 Photograph ................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................... 9 4.2 Photographs of the External and Internal Configurations of the EUT................................................ 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ......................................................................................................................................... 10 5.2 Duty cycle ......................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................. 10 6 Appendices...............................................................................................................................................11 TEST REPORT Report No. : AP0003259(8) Date : 16 Jan 2012 Page 3 of 11 FCC ID: PIYX7264-12A4R 1 General Information 1.1 General Description The equipment under test (EUT) is a receiver for RC CARS MINI MATER REFRESH. It operates at 49.860MHz and the oscillation of radio control is generated by a LRC circuit. The EUT is powered by 2 x 1.5V AAA size batteries. When it switched on and received radio control signal, it will take the corresponding action. The brief circuit description is listed as follows: - D1 and its associated circuit act as a voltage regulator. - U1 and its associated circuit act as a decoder. - U2 and its associated circuit act as a motor driver. TEST REPORT Report No. : AP0003259(8) Date : 16 Jan 2012 Page 4 of 11 FCC ID: PIYX7264-12A4R 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AP0003259(8) Date : 16 Jan 2012 Page 5 …

Text truncated - open the document above for the full version.
